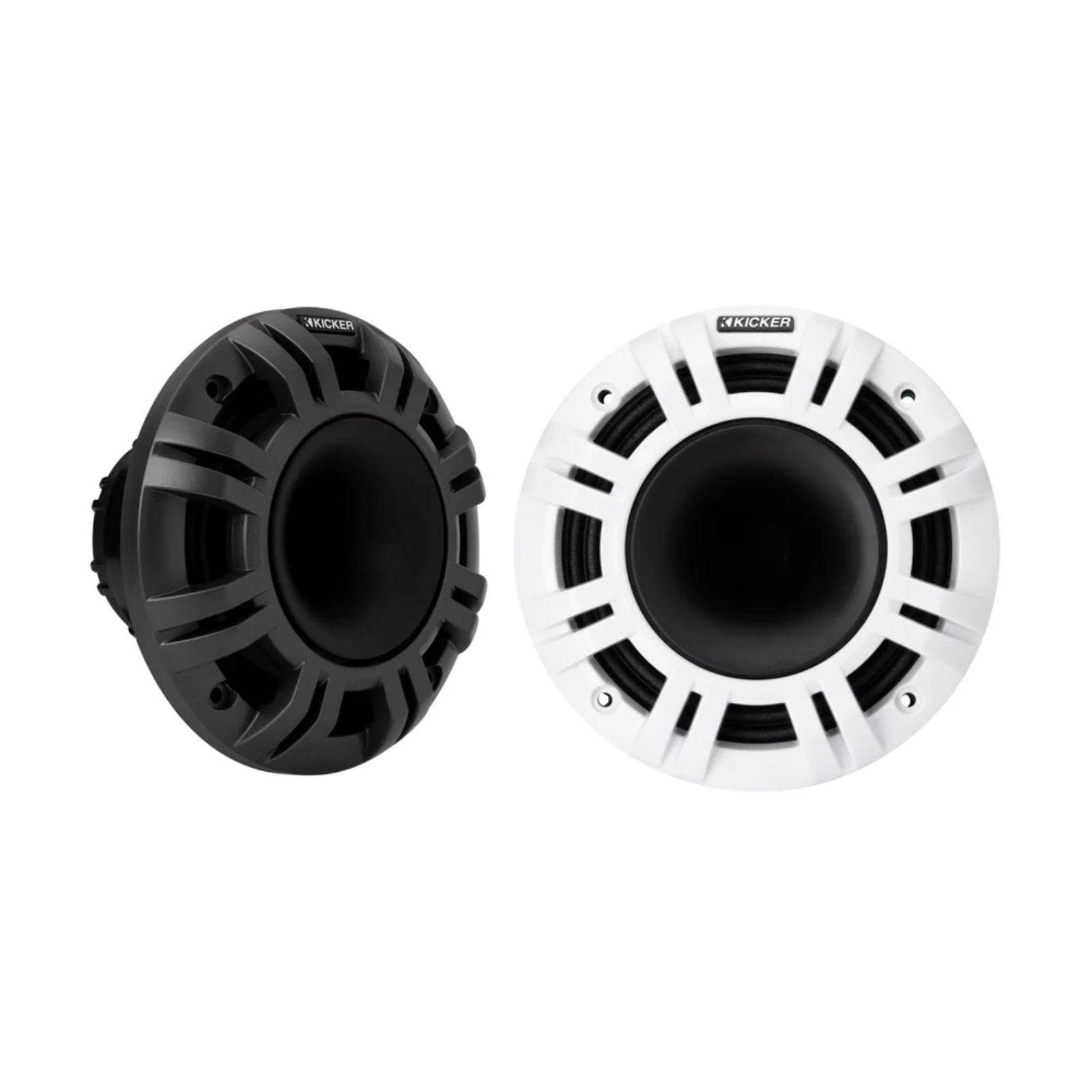

The Kicker 48KMXL654 is a pair of 6.5" (165 mm) horn-loaded marine coaxial speakers from the KM Marine range, rated at 150W RMS (300W peak) with IP66 protection and integrated RGB LED lighting. Both white and charcoal UV-treated grilles are included.
Key specifications
- Size: 6.5" (165 mm)
- Type: Horn-loaded coaxial (marine)
- RMS power: 150W
- Peak power: 300W
- Impedance: 4 ohm
- Sensitivity: 92 dB (1W/1m)
- Frequency response: 90Hz to 20kHz
- Mounting cut-out: 13.9 cm diameter, 8.1 cm depth
- Protection: IP66
KM Marine 6.5" (165 mm) Horn-loaded Coaxial Speakers with White & Charcoal Grilles (48KMXL654)
The KMXL series builds on the technology used in KICKER Marine Audio's KMTC and KMFC Horn-Loaded Tower Systems, which use an HLCD (horn-loaded compression driver) design. The same core technology is packaged into a speaker shallow enough to fit traditional coaxial mounting locations, and robust enough for KM-Series Empty Enclosures.
A proprietary high-frequency horn design delivers smooth, detailed audio that remains comfortable to listen to even at high volumes.
Integrated RGB LED lighting supports up to 20 colours and 19 lighting modes — expandable via the optional KMLC LED remote.
Features
- IP66 certified — protected against dust and water jets
- Shallow profile fits traditional coaxial speaker cut-outs
- Marine-grade, horn-loaded compression driver design
- Proprietary high-frequency horn for smooth high-volume performance
- Lightweight neodymium motors with aluminium-dome tweeters
- UV-treated, waterproof poly/carbon-fibre woofer cones
- Both white and charcoal grilles included

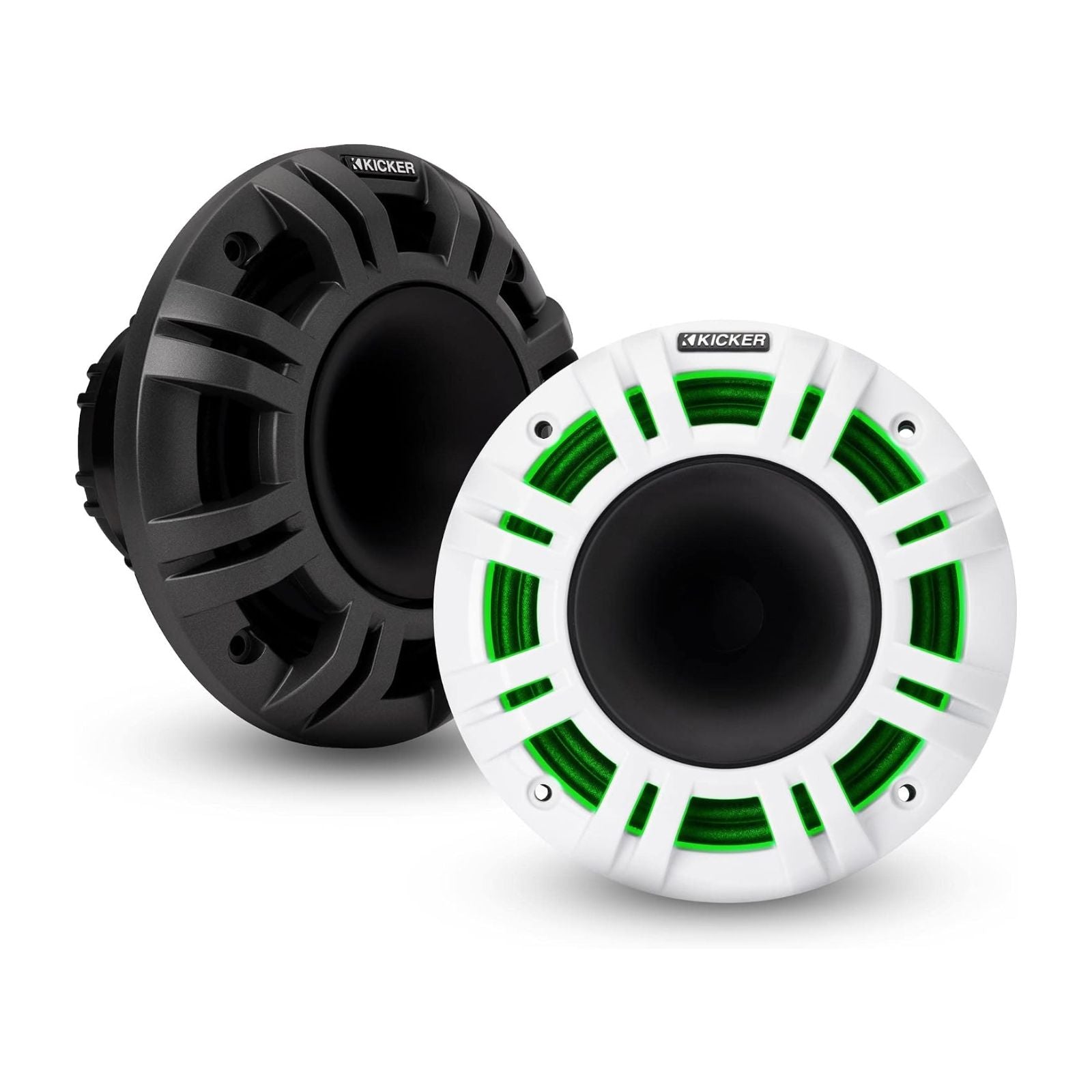

- Integrated multi-colour RGB LED lighting
- KICKER Real Marine™ grade — built for years of on-water use
Explore the full range in Kicker Marine.
Specification
| Speaker Size (in) | 6.5" |
|---|---|
| Style | Horn-loaded Coaxial |
| Colour | Black/White |
| Impedance | (Ohms) 4 |
| RMS Power (W) | 150 |
| Peak Power (W) | 300 |
| Sensitivity | (dB @ 1W/1m) 92 |
| Frequency Response | (Hz) 90-20k |
| Mounting Hole Diameter (cm) | 13.9 |
| Mounting Depth | (cm) 8.1 |
| Single Or Pair | Pair |
| Grilles | Included |
| Grill Style | Sports |
| Grill Colour | Charcoal / White |
| Waterproof Rating | IP66 |
More specs
| |
What's Included
- Kicker 48KMXL654
Kicker
About the Kicker 48KMXL654
From our tech experts at CEN
Marine-grade 6.5 inch speakers handling 150w RMS, with UV-stable cones and corrosion-resistant hardware so they survive sun, salt and damp.
Who it suits
Boats, ribs and open vehicles, plus campers and outdoor builds where speakers live in the weather. Worth considering for any open-topped vehicle that sits outside.
Our tech experts advise
Marine installs live or die on the wiring: corrosion protection at every joint and a properly fused feed. Mounting location does more for the sound than the speaker choice. get in touch and we will talk through the layout. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Kicker Marine
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out size does the Kicker 48KMXL654 need?
A: The 48KMXL654 needs a 13.9 cm mounting hole and 8.1 cm of mounting depth.
Q: Is the 48KMXL654 waterproof?
A: Yes. KMXL speakers are IP66 rated, which means they are protected from dust and from water jets and splashes. The woofer cones are UV-treated and waterproof.
Q: Does the 48KMXL654 have LED lighting?
A: Yes. KMXL speakers have integrated RGB LED lighting, which can be expanded to 20 colours and 19 lighting modes by adding the Kicker KMLC LED remote.
