Hertz Marine Capri HBB Hideaway Digital Media Receiver IP66 USB DAB Bluetooth
Couldn't Load Pickup availability
The Hertz Marine Capri HBB is a hideaway (no-display) marine digital media receiver from the Hertz Marine Capri range. It delivers Class-D 4 x 70W peak power, supports four independent zones with dedicated subwoofer outputs, and carries an IP66 rating for marine use.
For an in-dash unit with a 4.3 inch screen see the Capri H100. Control the HBB with the Capri HD1 or HMC U1 remote.
Key specifications
- Type: Hideaway marine media receiver (no display)
- Power: Class-D 4 x 70W peak @ 4 ohms
- IP rating: IP66
- Zones: 4, each with line out and subwoofer out
- Bluetooth: 5.1 with LDAC, AAC and aptX HD
- Digital audio: Toslink in, coaxial out, A2B digital bus
- Sources: AM/FM (RDS), USB (2A), DAB+ ready, 2 x AUX
- Control: Remote units, Bluetooth app or NMEA 2000
- Equaliser: Custom 8-band per zone, 8 presets

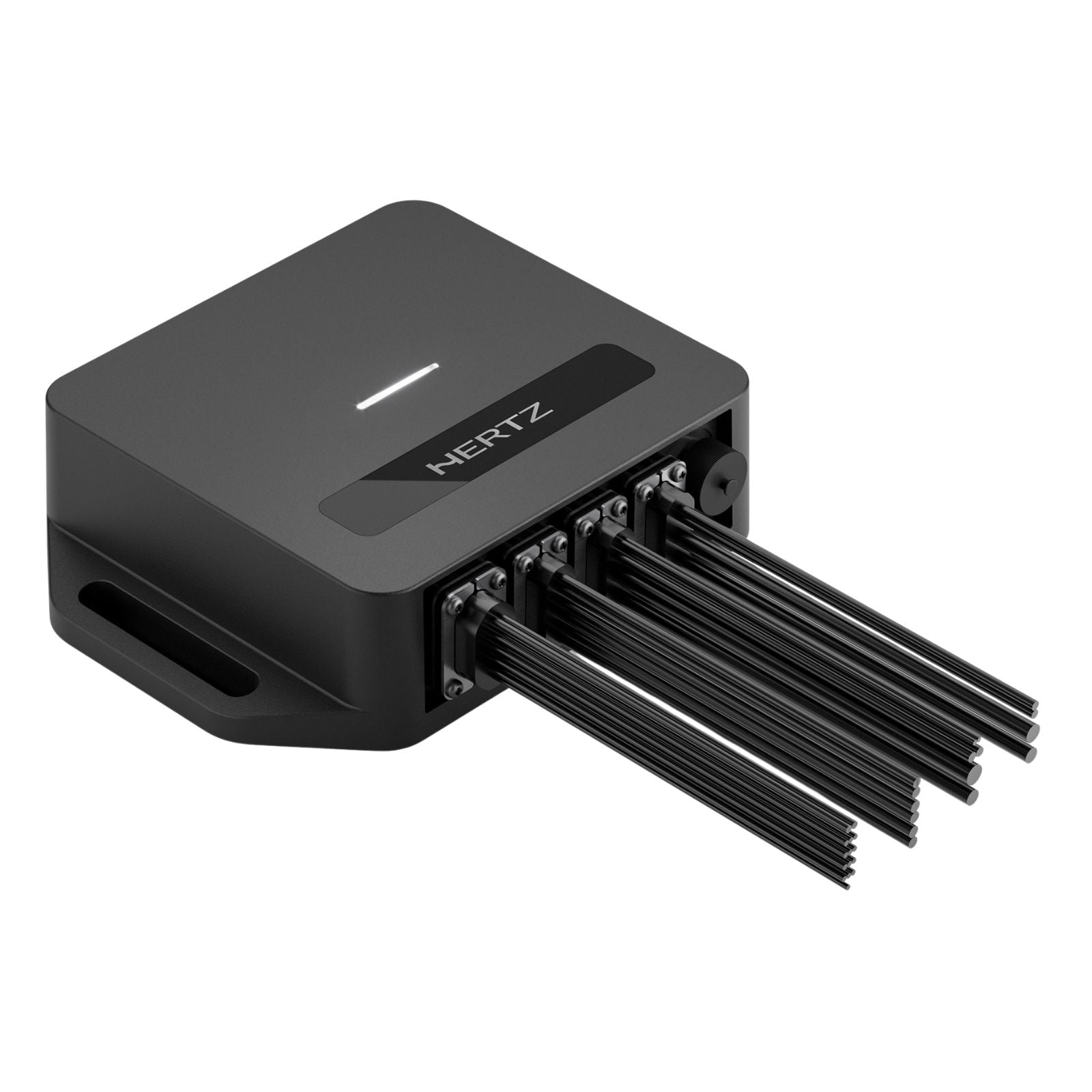

Hertz Marine Capri HBB hideaway digital media receiver
The Capri HBB is the black box version of the Hertz Capri marine source — the same hi-res audio performance and advanced features, without an integrated display. Control it via remote units, the Bluetooth app, or NMEA 2000, with full management of four independent zones, each with its own dedicated subwoofer output.
Features
- Native DSP at 24-bit/96 kHz with an extended audio band up to 40 kHz for hi-res audio performance.
- Plays 24-bit/96 kHz hi-res audio files for audiophile-grade sound.
- Four pairs of stereo outputs, each with an independent subwoofer output, allowing four separately controlled listening zones.
- 8-band digital equaliser per zone with 8 EQ presets created by Hertz audio engineers.
- Voltage indicator for battery status monitoring.
- IP66 protection, ASTM-D4329 UV resistance, and ASTM-B117 salt fog operability for year-round marine use.
Explore the full range in Marine Stereos.
Specification
| PEAK POWER @ 4 Ω | CLASS-D: 4 x 70 W |
|---|---|
| FRONT PANEL IP RATING | IP66 |
| MULTI-ZONE | 4 |
| LINE OUT (RCA) | 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz |
| SUBWOOFER OUT (RCA) | 4x (LPF: ALL, 60, 80, 100 Hz) |
| AUX INPUT (RCA) | 2x L+R |
| S/PDIF DIGITAL IN | Toslink (24 bit/96 kHz) |
| A2B® DIGITAL BUS | UTP cable (24 bit/96 kHz) |
| S/PDIF DIGITAL OUT | Coaxial (24 bit/96 kHz) |
| EQUALIZER | CUSTOM 8 BANDS for each zone |
| EQ. PRESET | 8 |
| CAMERA IN | Yes |
| BATTERY | VOLTAGE GAUGE Yes |
| TUNER | AM/FM (RDS) (EU/US) Weather band |
| USB | Yes (2A) |
| IPOD/IPHONE | Yes |
| DAB+ | Ready |
| SIRIUSXM READY | Yes |
| BLUETOOTH | 5.1 Audio streaming with ID3 Tag Display LDAC – AAC – APTX HD |
| REMOTE CONTROL | HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones) |
| Unit Size mm (in.) | W 146 (5.748) x H 105 (4.134) x D 121 (4.763) |
| Mounting Hole size mm (in.) | W 122 (4.8) x H 52 (2.05) |
| Mounting Depth | mm (in.) 99 (3.89) |
| Mounting Method | Panel mount (4 screws) |
What's Included
- Capri HBB
Hertz
About the Hertz Capri HBB
From our tech experts at CEN
A marine digital media receiver with Bluetooth, USB and radio including DAB, in a housing rated for damp and UV (IP66).
Who it suits
Boats, ribs and open builds where a car head unit would corrode within a season, and campers with an outdoor area.
Our tech experts advise
Aperture sealing, mounting position and a properly fused feed matter more here than in a car. Many of these pair with wired remotes so you can control zones from the helm. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Marine Stereos
More options from the same range, in stock and ready to go
Save 8% Kicker 46KMC5 Marine Digital Media Receiver Bluetooth USB Radio Source Unit RRP£599.95£549.99 / Save 8%In stock
Frequently Asked Questions
Q: How many zones can the Capri HBB run?
A: Four. It has 4 pairs of stereo line outputs (one per zone), each with its own subwoofer output and custom 8-band equaliser, so four listening areas can be controlled independently.
Q: Which remote controls work with the Capri HBB?
A: The HMC HD1 (up to 4 zones) and the HMC U1 (up to 2 zones).
Q: Does the Capri HBB support hi-res audio?
A: Yes. It has a native DSP working at 24 bit/96 kHz with an extended audio band up to 40 kHz, plus Toslink digital input and coaxial digital output at 24 bit/96 kHz.
Q: Does the Capri HBB have a screen?
A: No. The HBB is the black box version of the Capri without an integrated display. It is controlled via remote units, the Bluetooth app or NMEA 2000.
