Helix Pure F-Series PF K165.2 6.5 inch 2-Way Component Speakers 60w RMS

The HELIX PF K165.2 is a 6.5 inch (165 mm) 2-way component speaker set from the Pure F-Series, rated at 60 W RMS / 120 W max, with 3 ohm impedance for increased output from your amplifier.

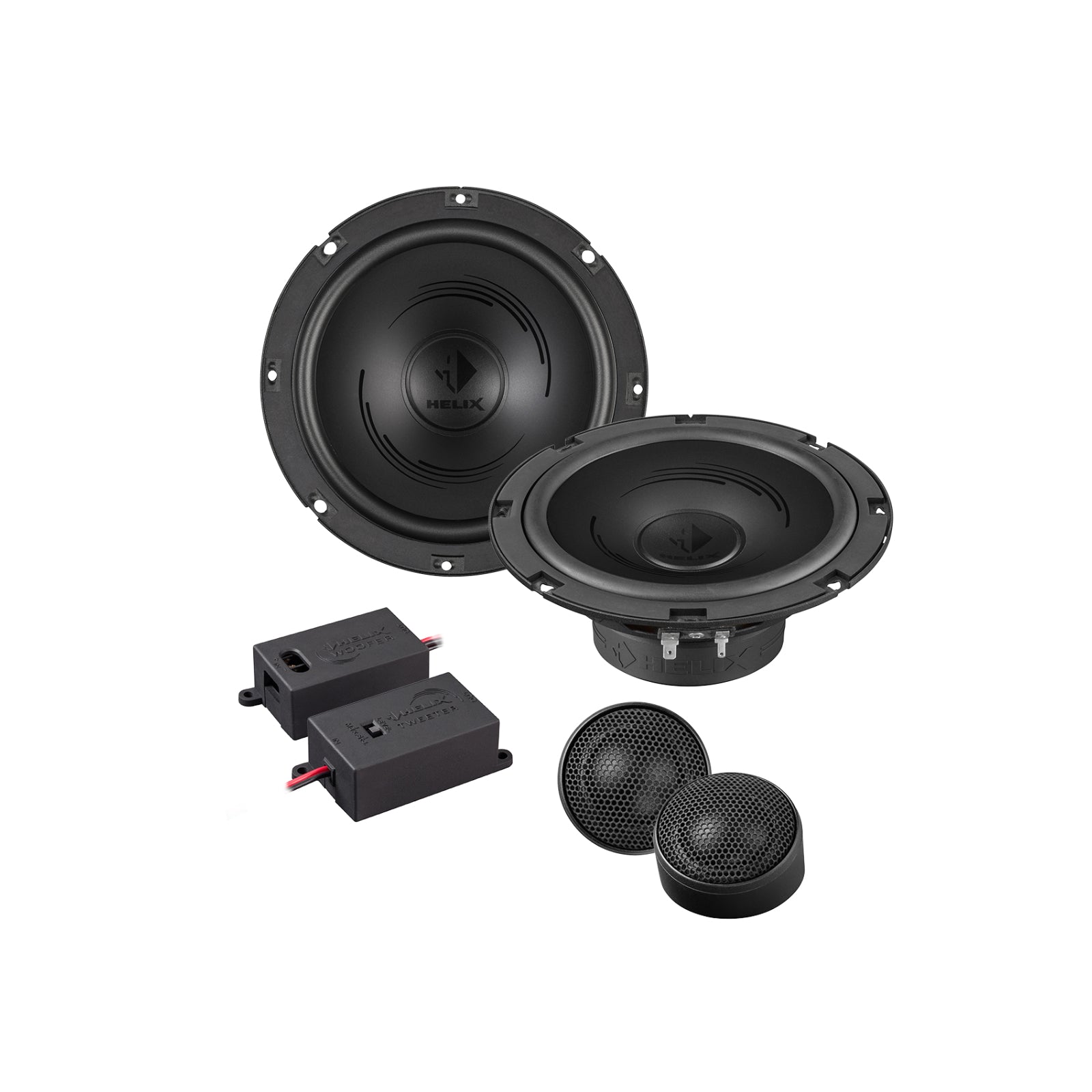

This set pairs a 20 mm silk dome tweeter and a 6.5 inch (165 mm) woofer with a two-part Flex-Crossover, so the tweeter can be mounted in the A-pillar or dash and the woofer in the door. Prefer a single-unit speaker? See the HELIX PF C165.2 coaxial. Other sizes in this set: PF K100.2 and PF K130.2.

Key specifications

• Type: 2-way component speaker set
• Woofer size: 6.5 inch (165 mm)
• Tweeter: 0.75" / 20 mm silk dome, neodymium magnet
• Power RMS / max: 60 / 120 W
• Impedance: 3 ohms
• Frequency response: 55 Hz to 22,000 Hz
• Sensitivity: 92.5 dB @ 2.83 V / 1 m (88.5 dB @ 1 W / 1 m)
• Crossover: two-part Flex-Crossover, 12/12 dB slopes with tweeter protection
• Woofer installation depth: 61 mm (cut-out 142 mm)

The entry into the HELIX sound world

The Pure F-Series is HELIX's entry-level range. Its 3 ohm technology extracts more power from your amplifier, delivering powerful bass, clear mids and detailed highs.

Features

• High sound quality with deep bass, clear mids and detailed highs
• 3 ohm technology for high efficiency and more output from your amplifier
• Low installation depths for straightforward fitting in almost all vehicles
• Black matt cone finish with black shiny Space Line styling
• Tweeter

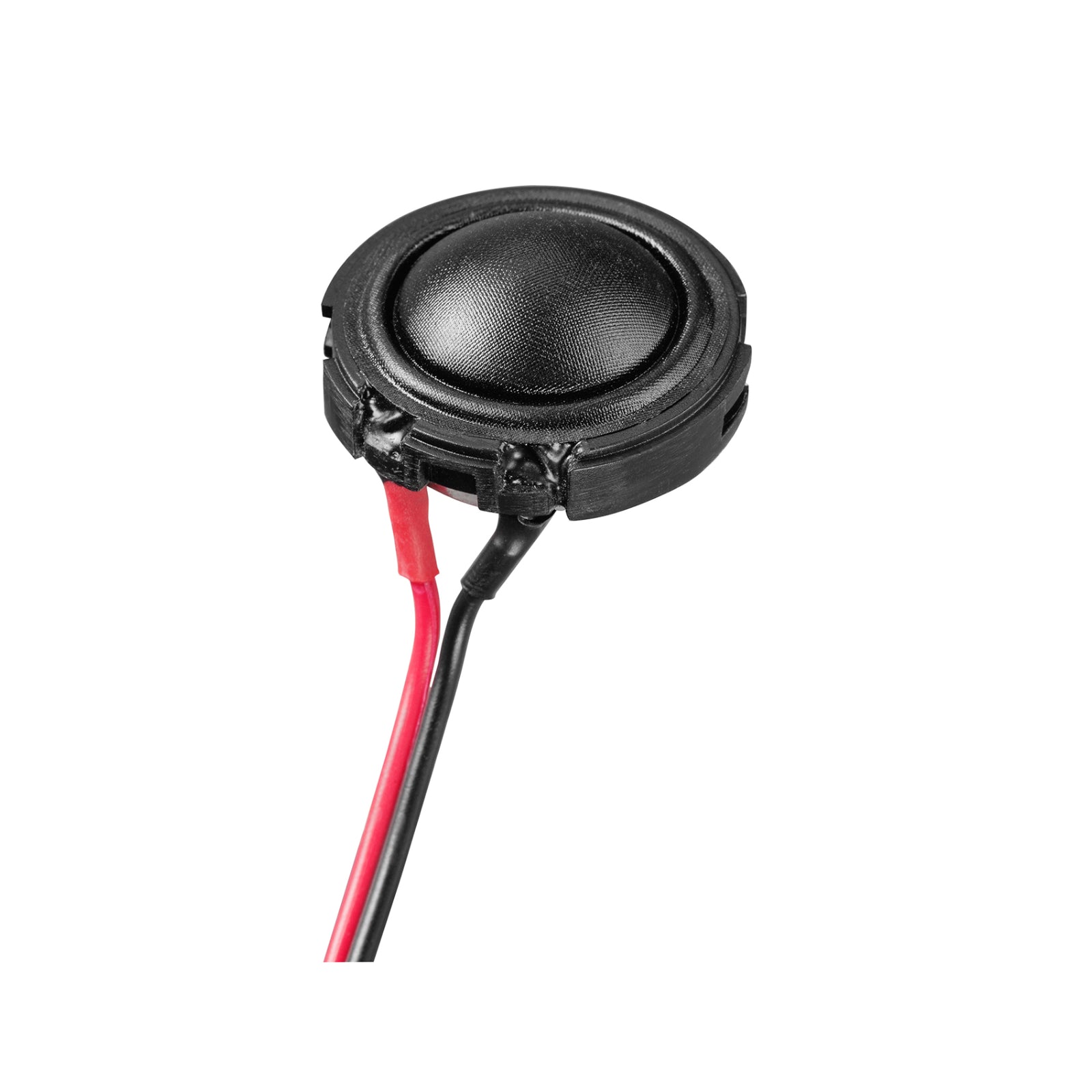

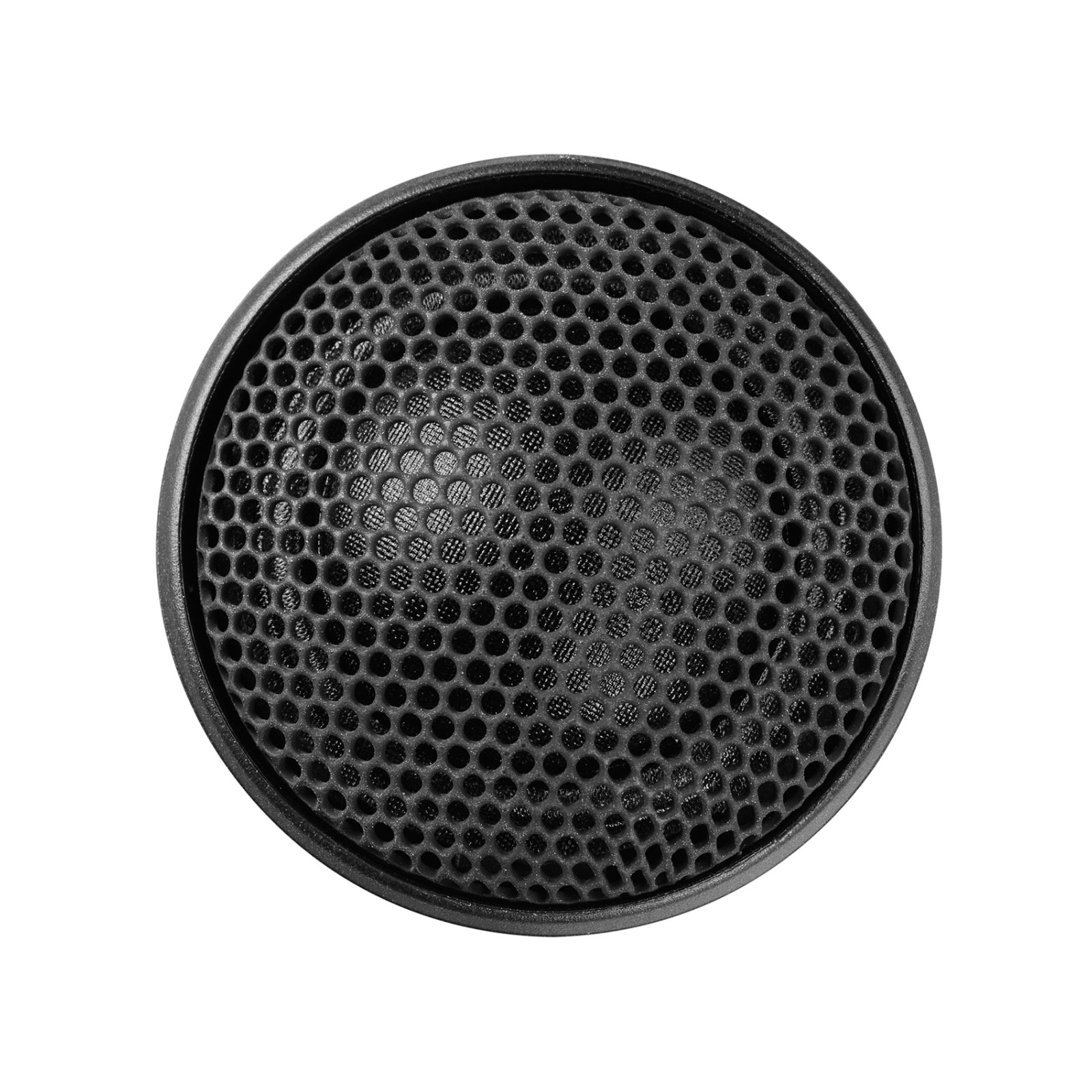

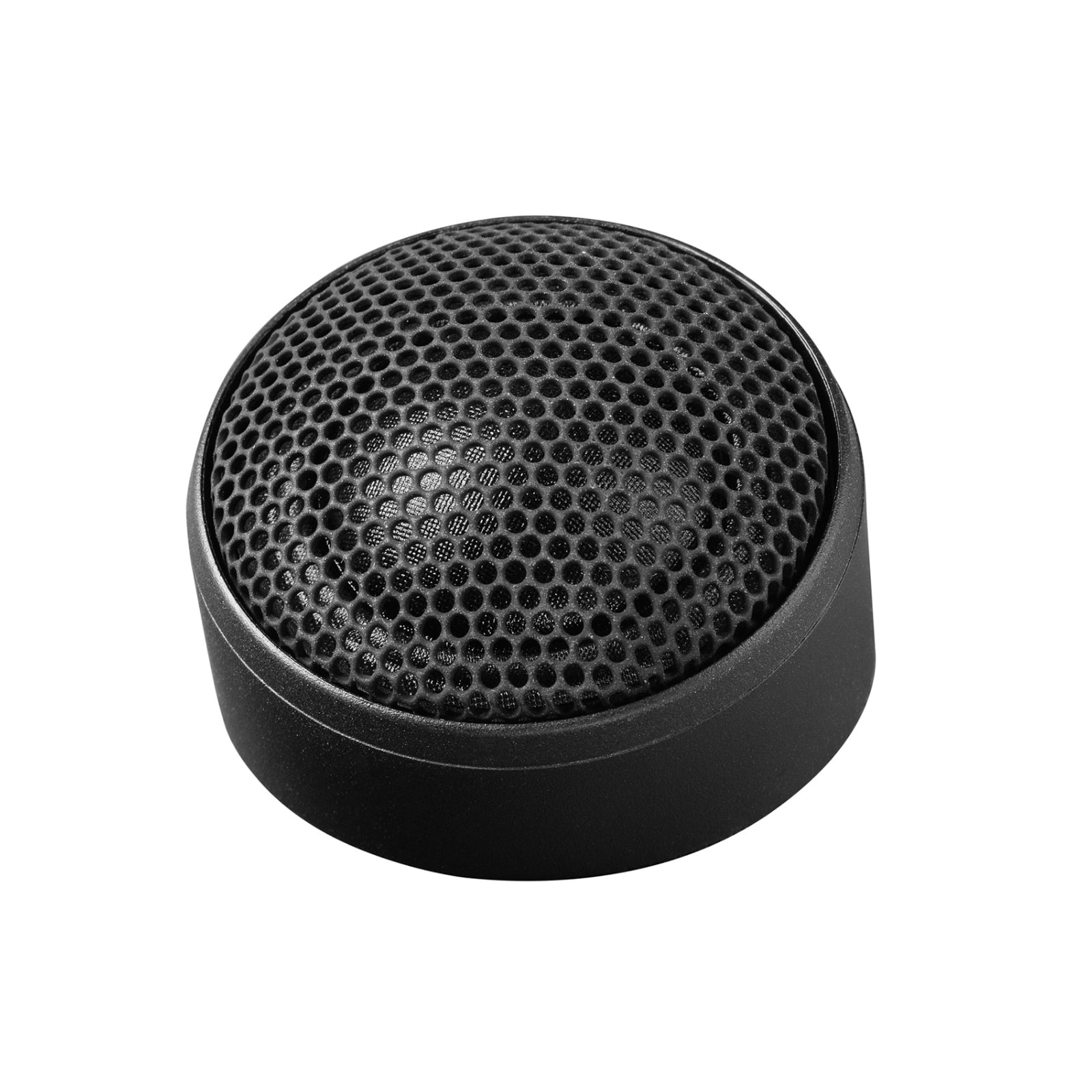

  • 0.75" / 20 mm silk dome tweeter with neodymium magnet for clear, detailed treble even at high levels

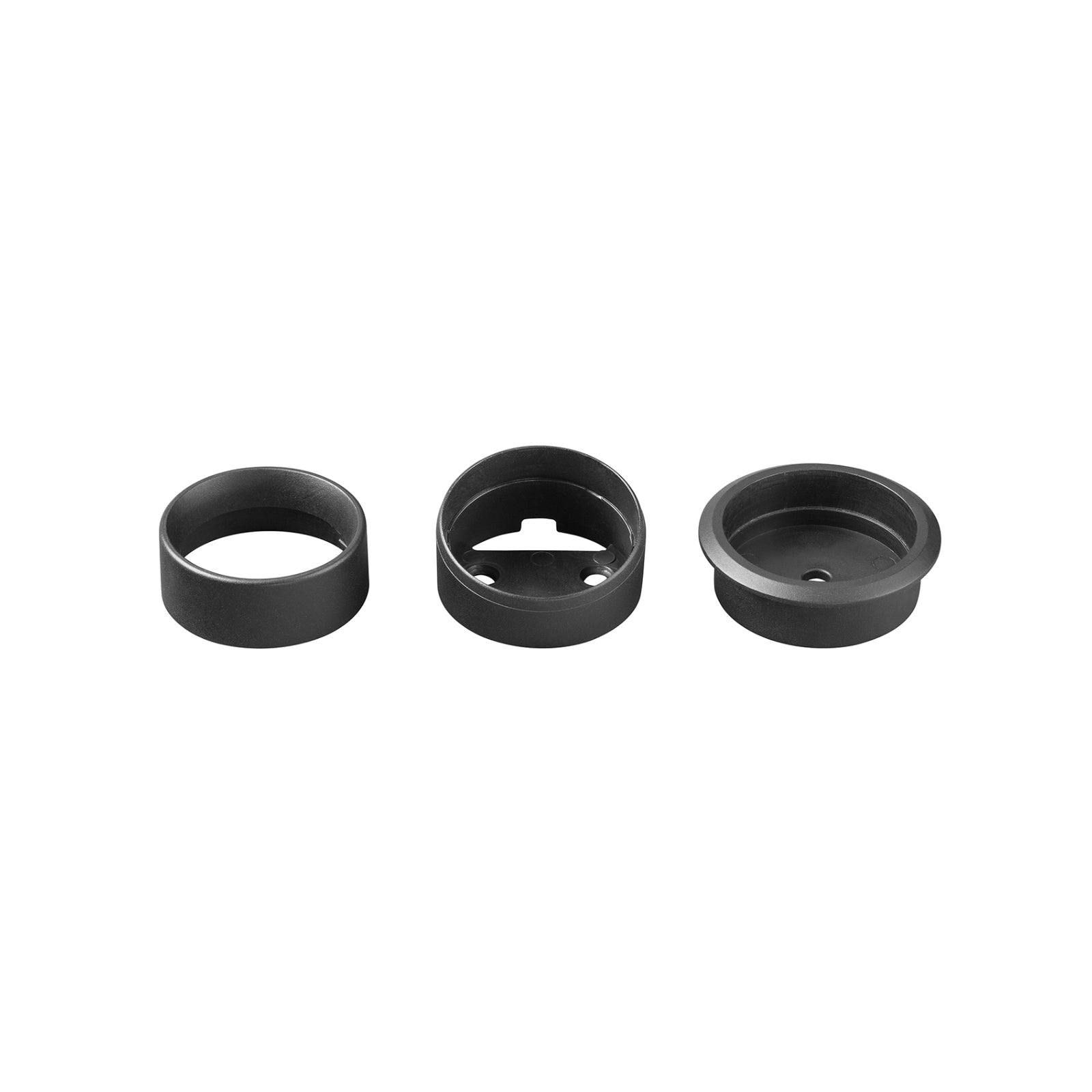

  • Ultra-compact design with various mounting pods for a wide range of installation positions
  • Removable grille for integration behind factory grilles in original mounting locations
• Woofer

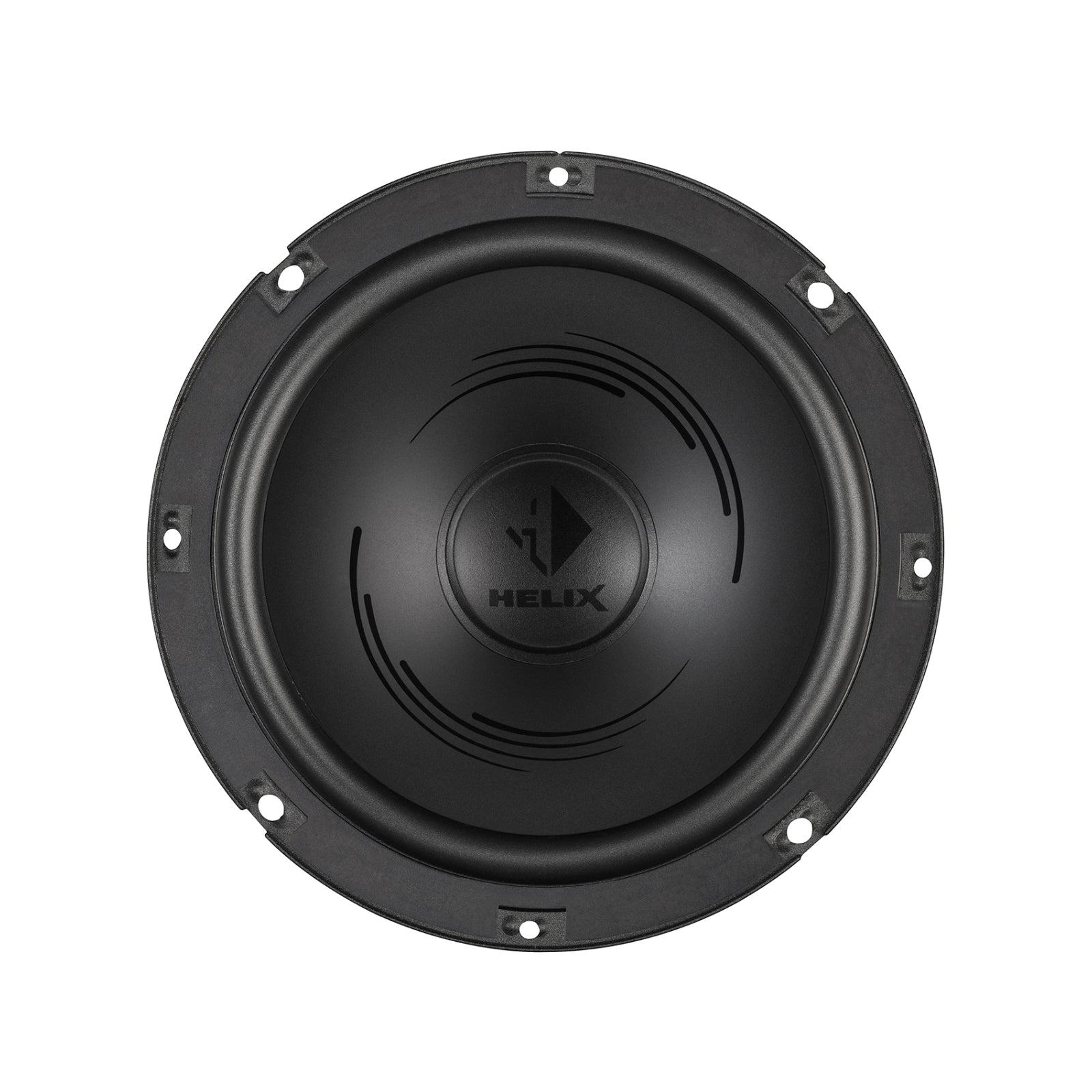

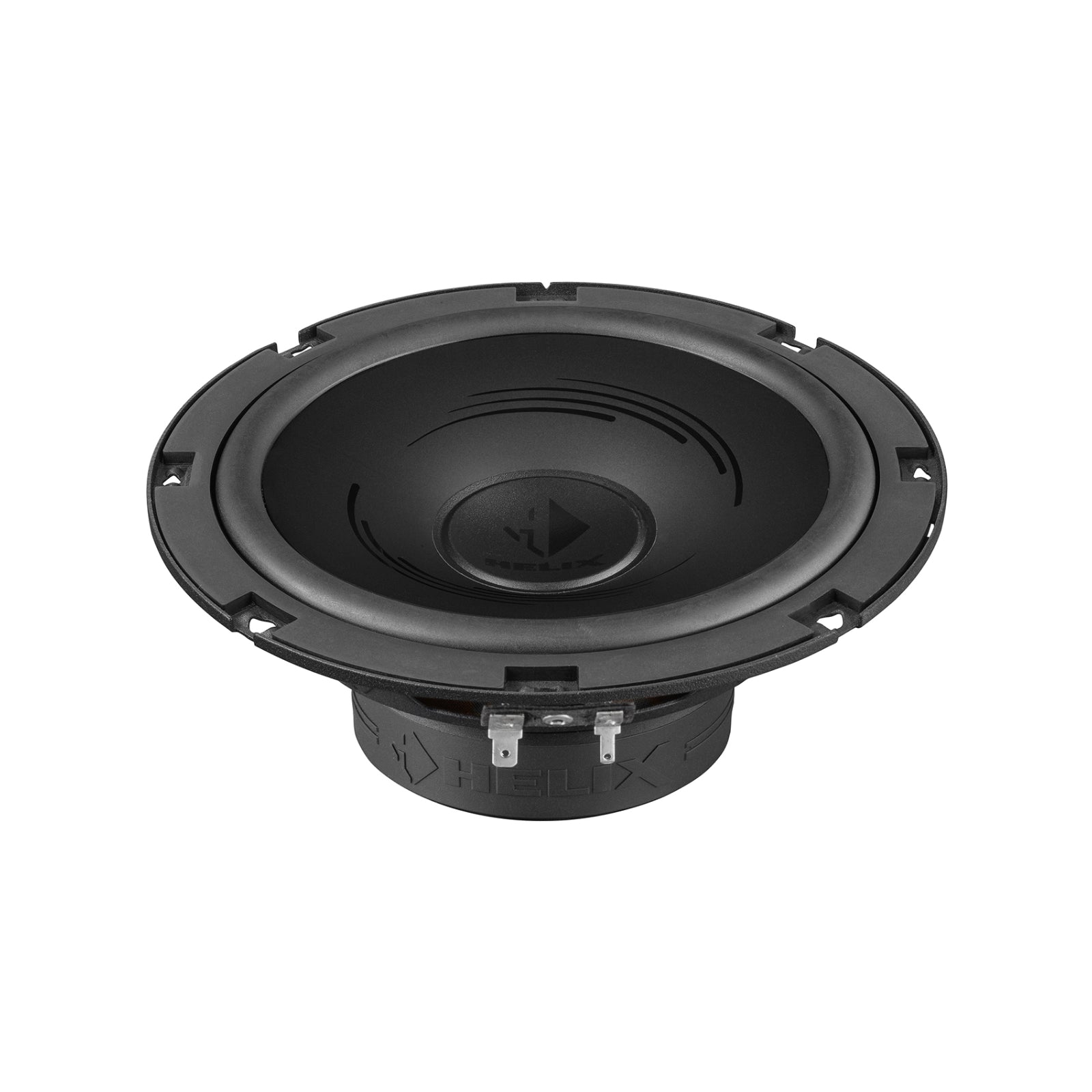

  • 6.5" / 165 mm woofer with rigid injected polypropylene cone with embedded carbon fibres for stiffness and high inner damping
  • Powerful magnet system for controlled, clear bass
  • HELIX basket with additional ventilation holes for improved voice coil cooling and power handling

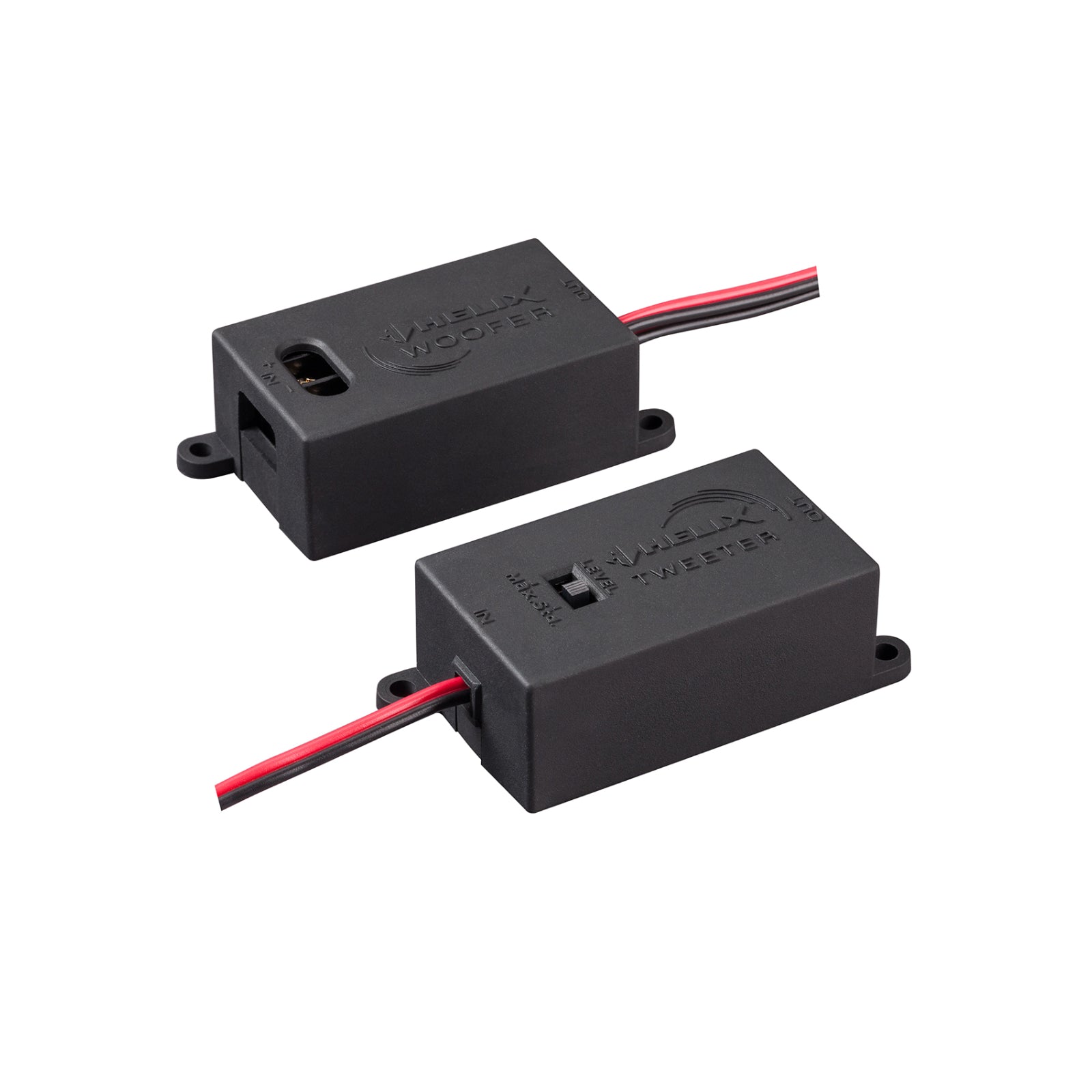

• Flex-Crossover
  • Separate two-part crossover for versatile connection options, well suited to installations where the tweeter and woofer are in different positions
  • 12 dB slopes for both tweeter and woofer
  • Two-stage tweeter level adjustment with integrated tweeter protection

Easiest integration at its best

The PF K165.2 is designed for straightforward installation. The low-profile woofer accommodates the limited space in modern vehicles, and the Flex-Crossover simplifies wiring when the tweeter and woofer are in separate locations. The compact tweeter fits via an innovative bayonet lock and includes multiple mounting pods for flexible positioning.

Maximum flexibility – the "Flex-Crossover"

The two-part Flex-Crossover is space-saving by design and ideal when the tweeter sits in the A-pillar and the woofer in the door. The tweeter crossover includes a two-stage level adjustment so you can tune the sound to suit both your listening preference and your installation.

Cool design – noble materials

The Space Line styling of the woofer cone is a result of the materials used rather than aesthetics alone. Carbon fibres embedded in the polypropylene cone improve midrange reproduction, while the coated silk dome tweeter delivers open, airy highs.
