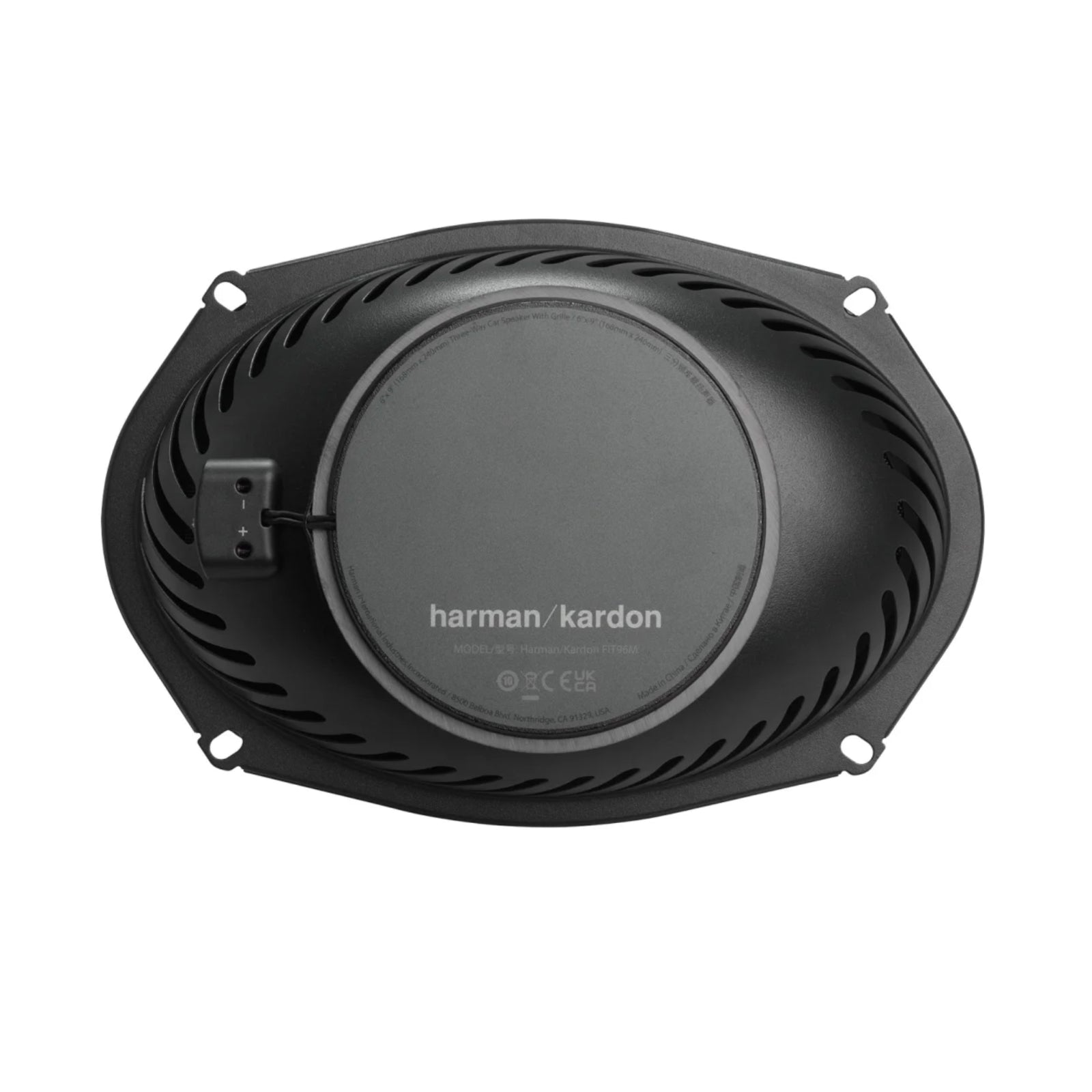

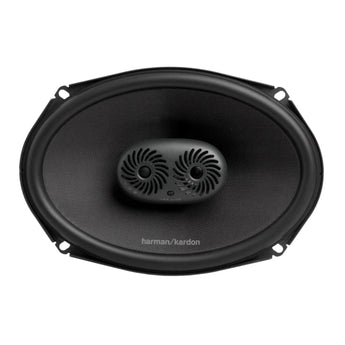

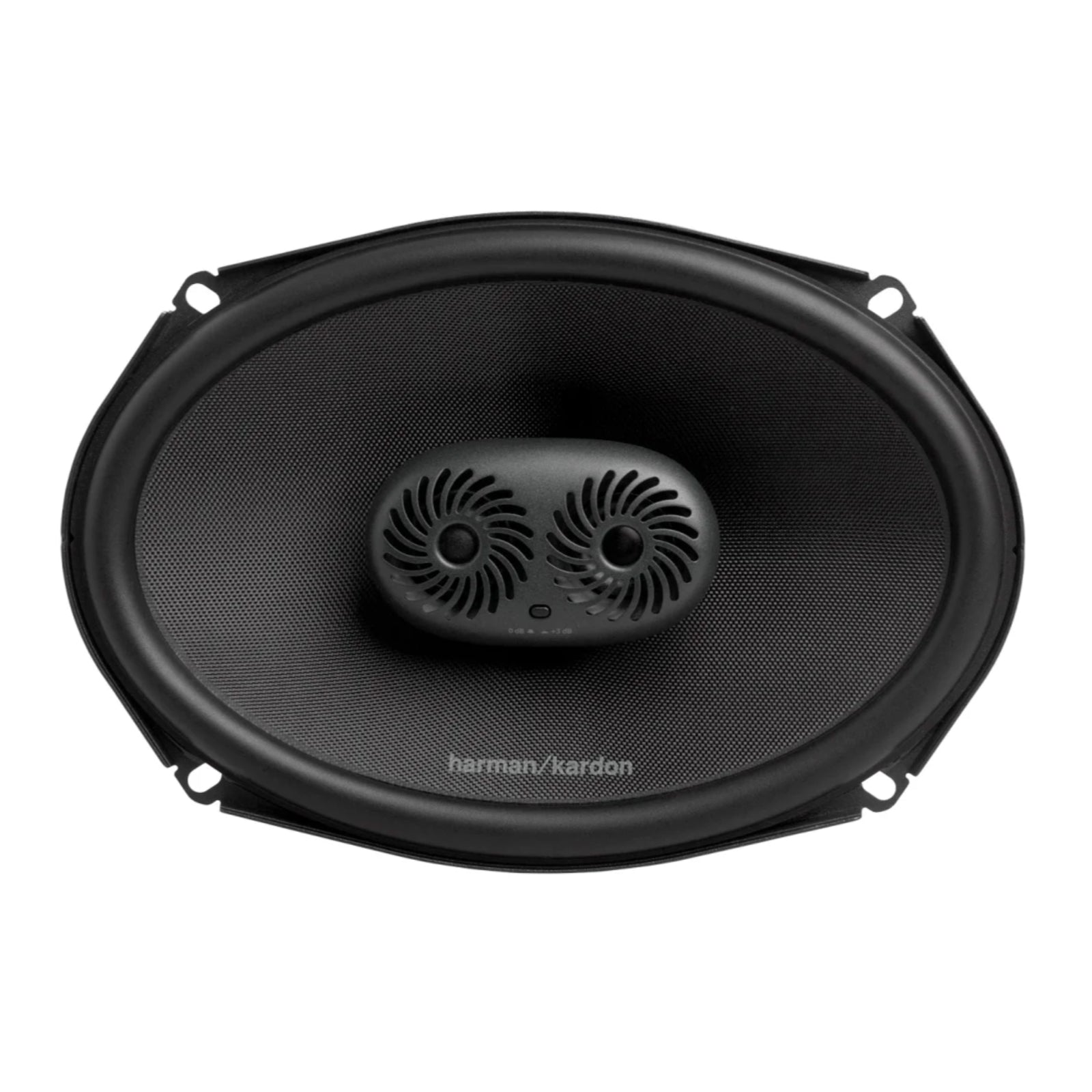

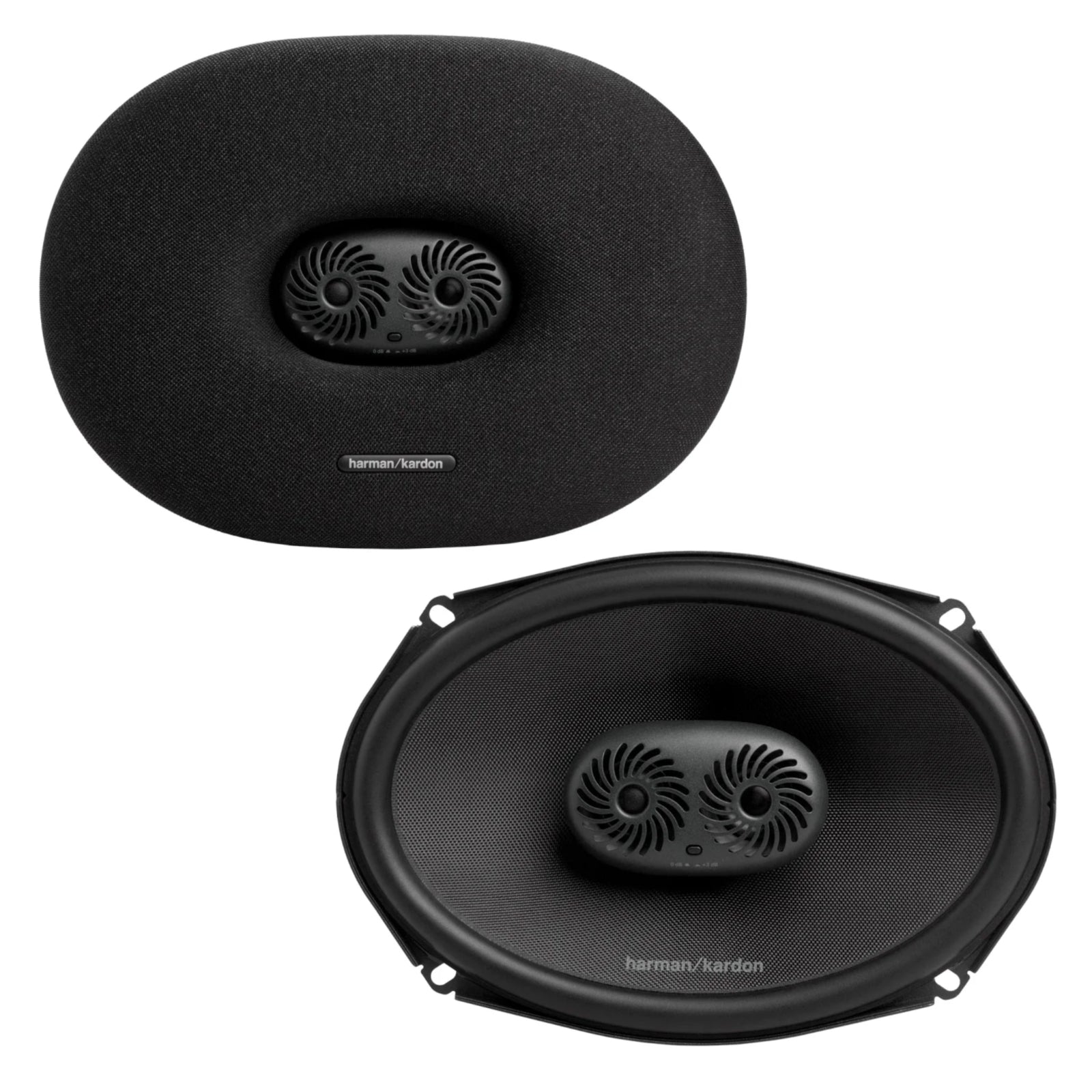

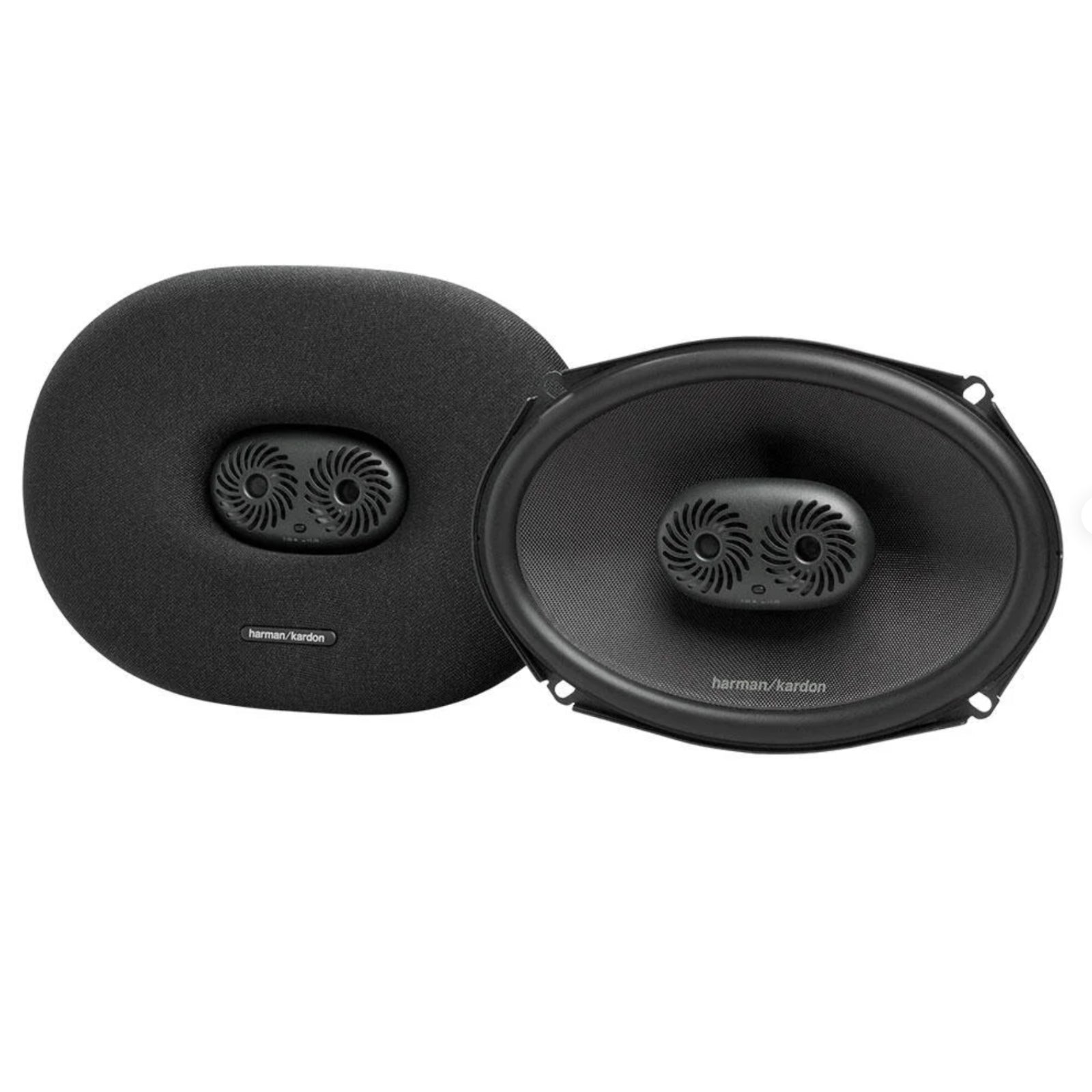

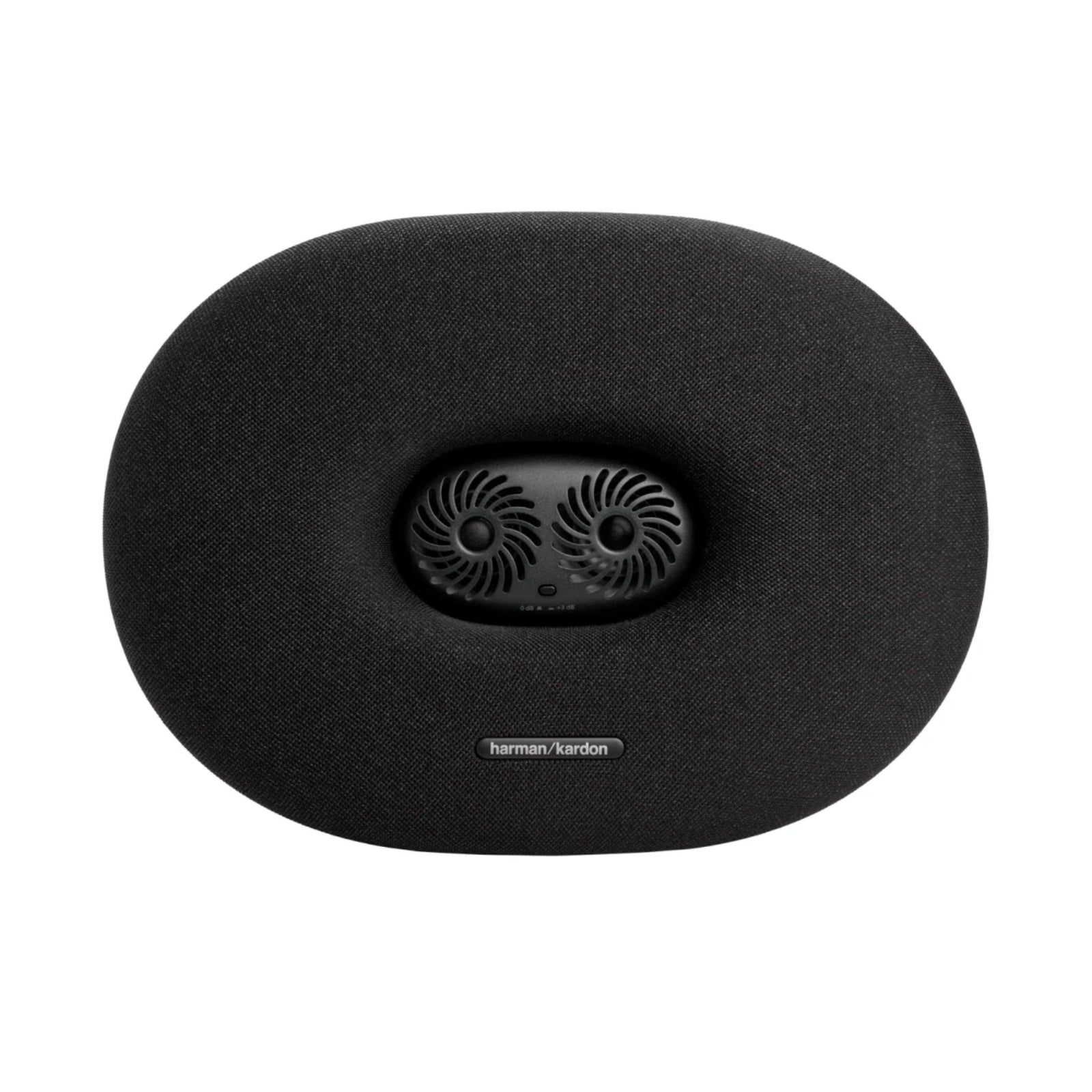

Harman Kardon FIT 96M Fit Series 6x9 Inch 3 Way Component Car Speakers 55w RMS
Couldn't Load Pickup availability
The Harman Kardon FIT 96M is a 6x9 inch (152 x 230 mm) 3-way component car speaker from the Fit series, rated at 55W RMS (440W peak) into 4 ohms. It features a patented Plus One fibreglass woofer cone and an edge-driven textile dome tweeter capable of high-resolution output up to 40 kHz.
Also in the Harman Kardon Fit series: FIT 4F 4 inch coaxial, FIT 5F 5.25 inch coaxial, FIT 6F 6.5 inch coaxial, FIT 6C 6.5 inch component, FIT 19T tweeters.
Key specifications
- Size: 6 x 9 inch (152 x 230 mm), 3-way, supplied with grilles
- Power handling: 55W RMS, 440W peak
- Sensitivity: 92 dB (2.83 V)
- Frequency response: 52 Hz – 40 kHz
- Impedance: 4 ohm
- Installation depth: 76 mm
- Tweeter level: 0 dB or -3 dB
The Harman Kardon difference
The FIT 96M uses Plus One fibreglass woofer cone technology to increase radiating area without increasing enclosure size, delivering more output and deeper bass. The edge-driven textile dome tweeter extends response to 40 kHz for genuine high-resolution audio reproduction. Crossover components are slim and compact for straightforward installation, and the tweeter features an angled design with a single pivot point for accurate aiming. The speakers are manufactured using recycled materials.
Features
- Patented Plus One fibreglass woofer cone
- Edge-driven textile dome tweeter
- 40 kHz high-resolution output
- Angled tweeter design with single pivot point
- 0 dB or -3 dB tweeter output level control
- Slim crossover design
Explore the full range in Harman Kardon FIT Series.
Specification
| Speakers | 6" x 9" (152 mm x 230 mm) 3-way component car speakers with grille |
|---|---|
| Power Handling | 55W RMS, 440W Peak |
| Sensitivity | (at 2.83 V) 92 dB |
| Frequency response | 52 Hz – 40 kHz |
| Nominal impedance | 4 ohms |
| Installation depth | 76 mm |
What's Included
- 2 x speakers
- 2 x grids
- 8 x screws
- 8 x clips
- 1 x foam seal
- 2 x HK logo badge
- 1 x instruction manual
- 2 x floor-mounted adapter rings
Harman Kardon
About the Harman Kardon HKF96M
From our tech experts at CEN
The Harman Kardon FIT 96M is a pair of 6x9 inch (152 x 230mm) 3-way car speakers from the Fit series, rated at 55W RMS (440W peak) into 4 ohms. A Plus One fibreglass woofer cone and edge-driven textile dome tweeter reach from 52Hz to 40kHz, with 92dB sensitivity and grilles supplied.
Who it suits
Owners of cars with oval 6x9 locations, usually in the rear shelf or doors, who want more bass and detail than the factory speakers give. For round 6.5 inch openings, look at the FIT 6F.
Our tech experts advise
Check the 76mm installation depth before ordering, as 6x9s need more room than round speakers. Adapter rings, screws, clips and a foam seal are included, and the tweeter has a 0dB / -3dB level control. Installs are priced per vehicle; get in touch for a quote.
Explore the full Harman Kardon range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Harman Kardon
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Harman Kardon
More options from the same range, in stock and ready to go

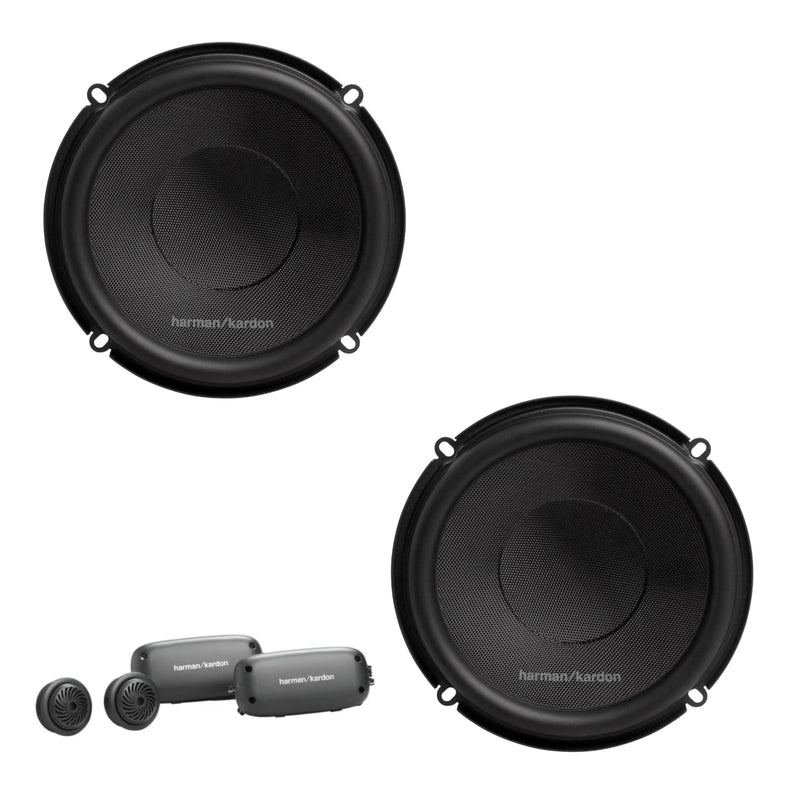

Harman Kardon FIT 6C Fit Series 6.5 Inch 2 Way Component Car Speakers 50w RMS
£269.99
View product
Harman Kardon FIT 19T Fit Series 0.75 Inch Hi-Res Component Tweeters 50w RMS
£99.99
Harman Kardon Flow 75T Edge-Driven Silk Dome Tweeter Hi-Res 120w RMS Pair
£79.99
Harman Kardon Flow 601CSF 6.5 Inch 2 Way Active Component Speaker Set 120w RMS
£399.00

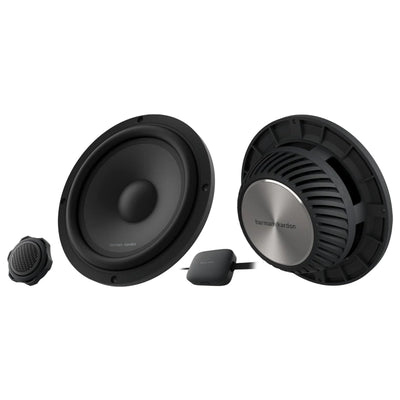

Harman Kardon Flow 600CF 6.5 Inch Passive 2 Way Component Speaker Set 120w RMS
£499.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: How deep is the FIT 96M?
A: It needs 76 mm of installation depth.
Q: What is in the box with the FIT 96M?
A: 2 speakers, 2 grilles, 8 screws, 8 clips, a foam seal, 2 HK logo badges, an instruction manual and 2 floor-mounted adapter rings.
Q: What power does the FIT 96M handle?
A: It is rated at 55W RMS and 440W peak, with 92 dB sensitivity at 2.83 V and a 4 ohm nominal impedance.
