Goldring E1 Cartridge & Stylus E Series Moving Magnet Vinyl Turntable Spherical

Name: Goldring E1 Cartridge & Stylus E Series Moving Magnet Vinyl Turntable Spherical
Brand: Goldring
SKU: 90605
Price: 69.00 GBP
Availability: InStock

£69.00

Low stock

SKU: 90605MPN: GL0054

Product variants

The Goldring E1 is the entry-level model in the E Series of moving magnet (MM) phono cartridges. It features a carbon-fibre reinforced cantilever and a bonded 0.6 mil spherical stylus, and is designed as a straightforward upgrade for budget, pre-fitted or obsolete cartridges on most budget to mid-priced turntables.

This listing is the E1. The Goldring E Series is also available as the E2.

Key specifications

Type: moving magnet (MM)
Cantilever: carbon-fibre reinforced
Stylus: bonded spherical, 0.6 mil, round shank
Output: 3.5 mV (1 kHz at 5 cm/sec)
Frequency response: 20 Hz to 20 kHz
Playing weight: 1.75 g to 2.25 g (2.0 g recommended)
Load resistance: 47 kΩ
Fixing centres: 12.7 mm (0.5 in)
Body colour: red

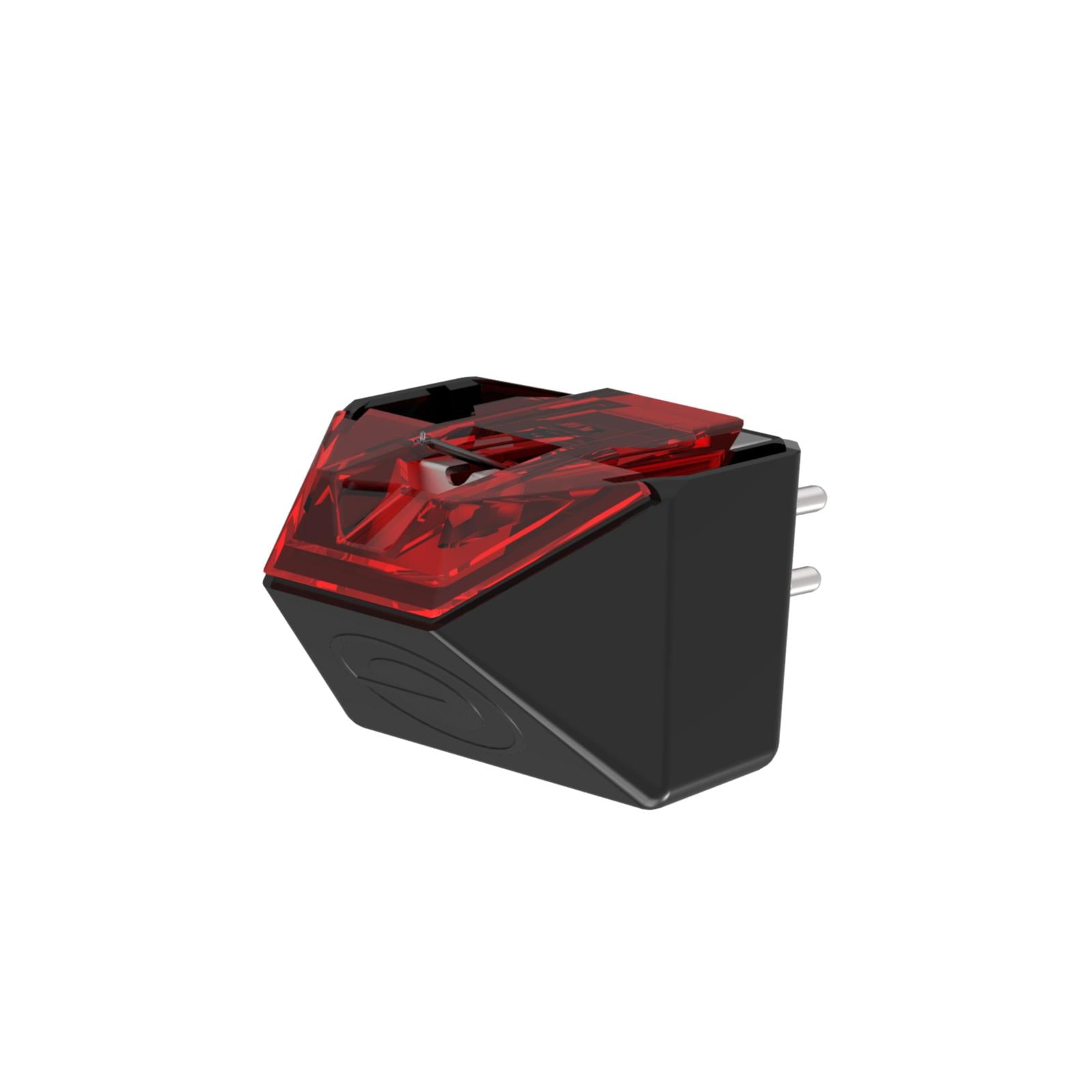

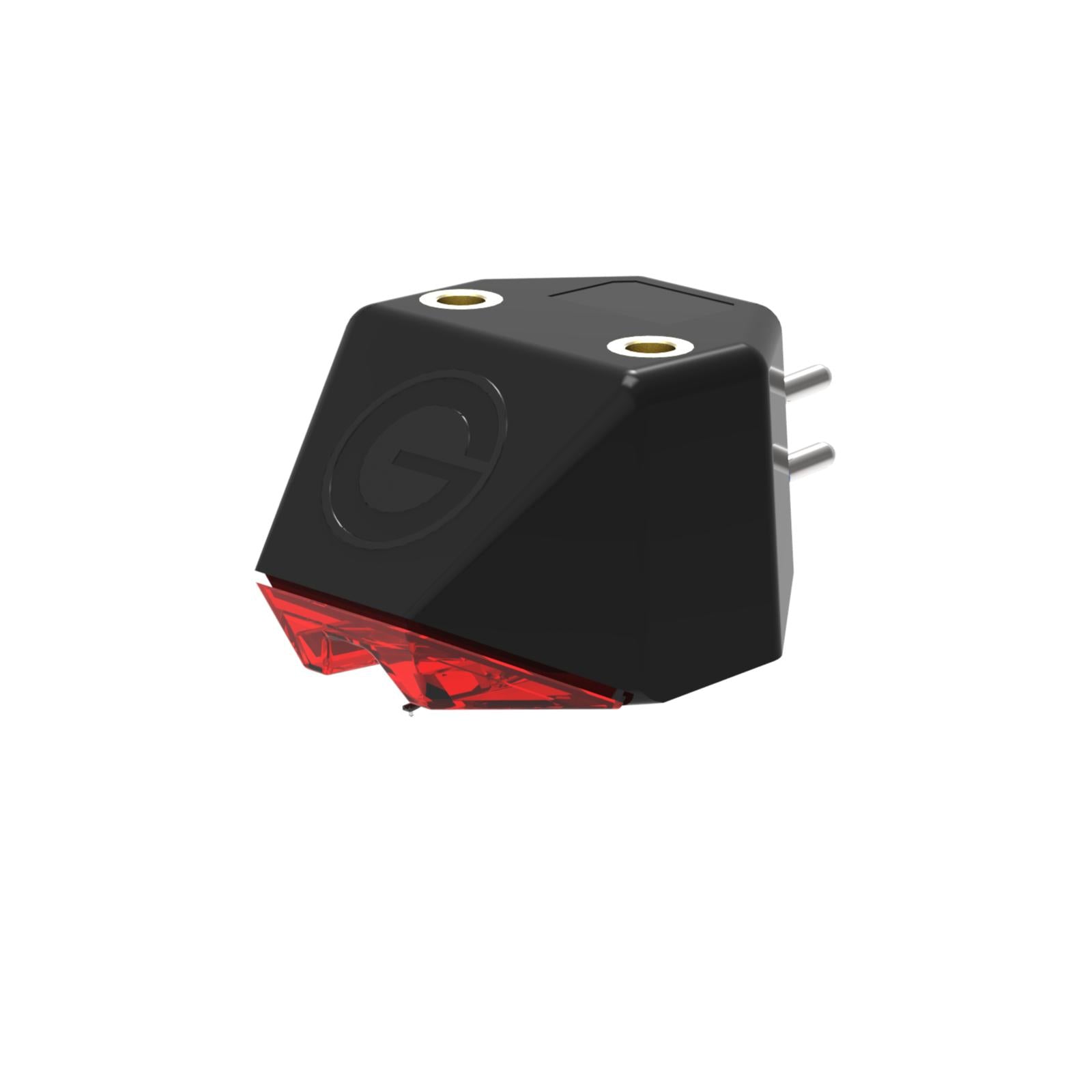

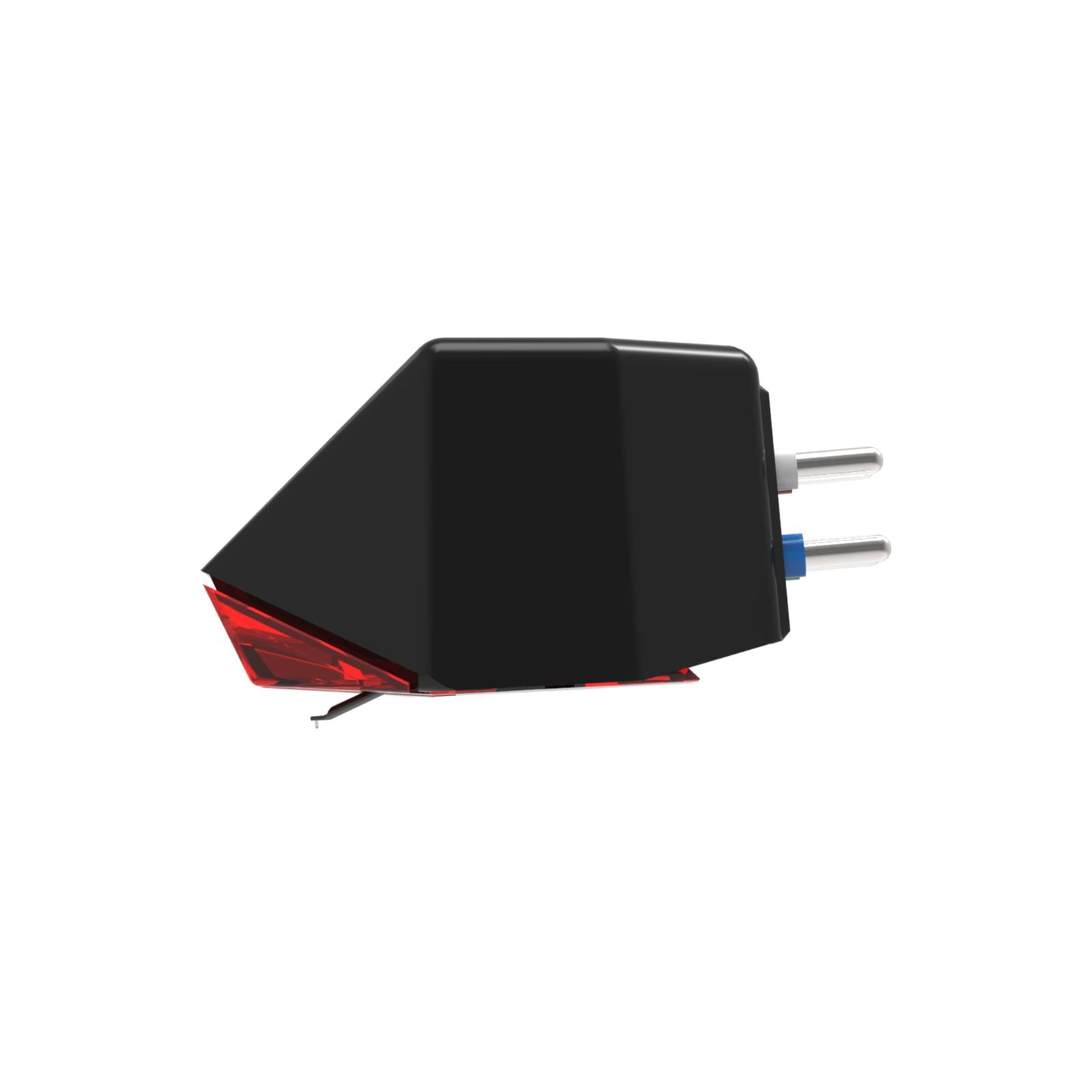

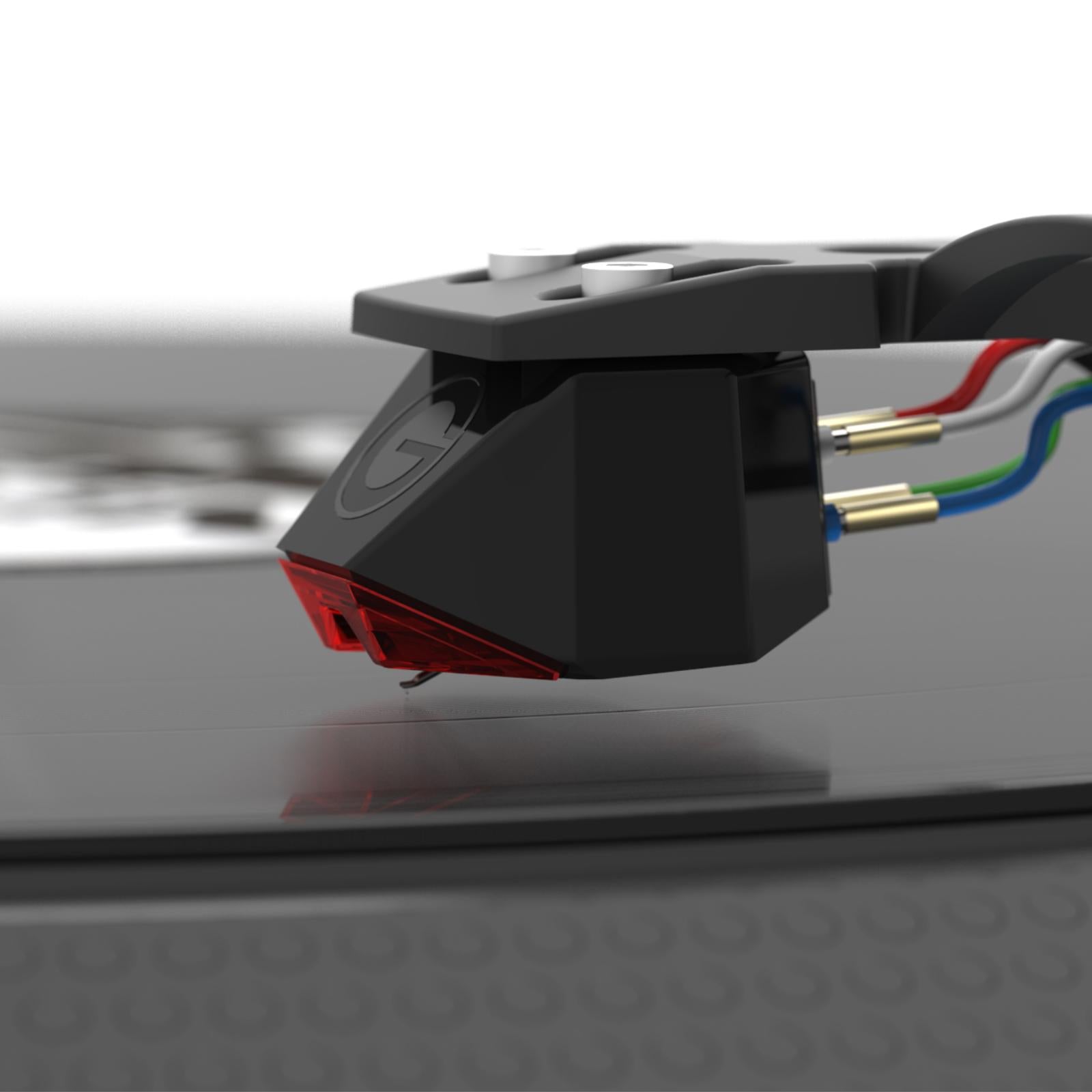

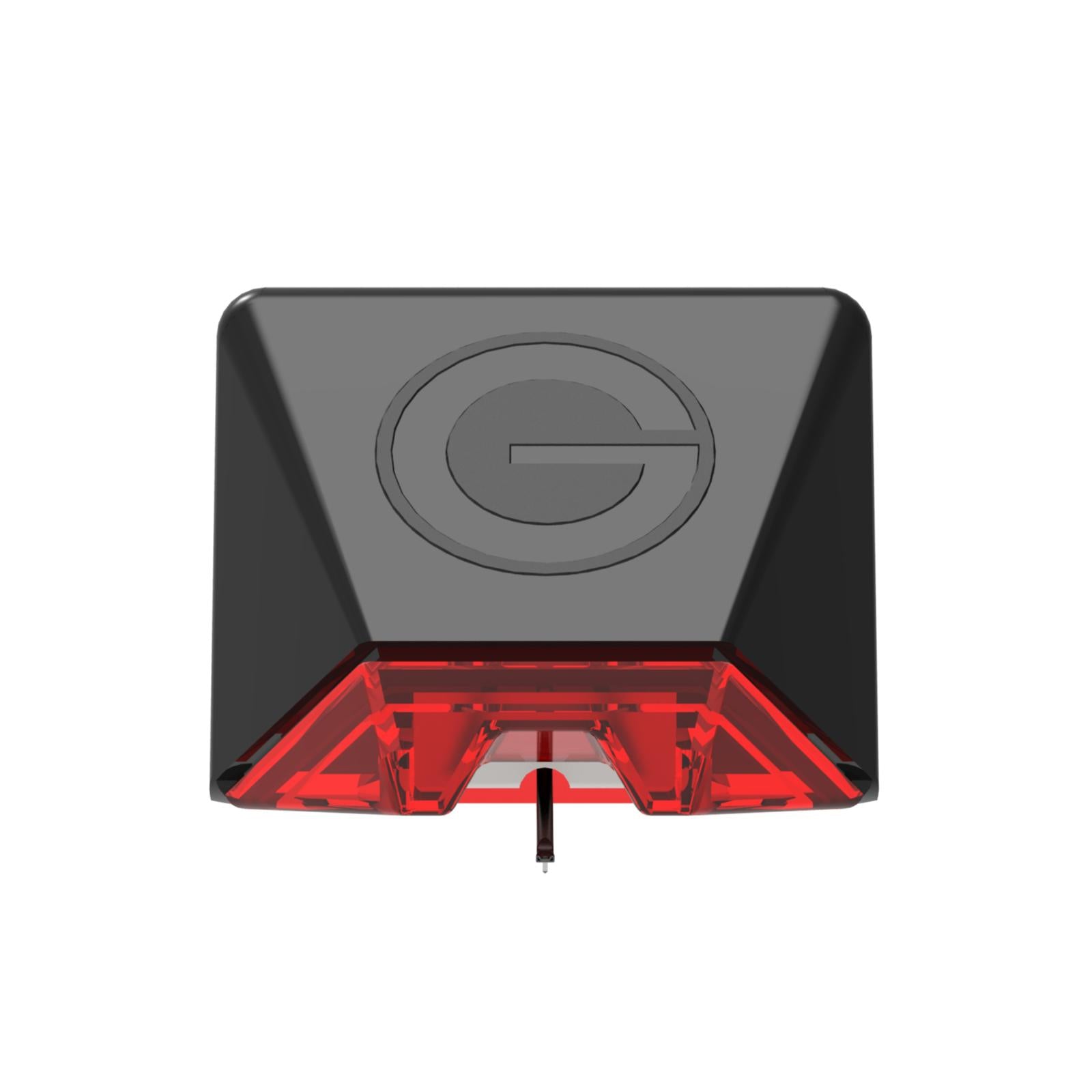

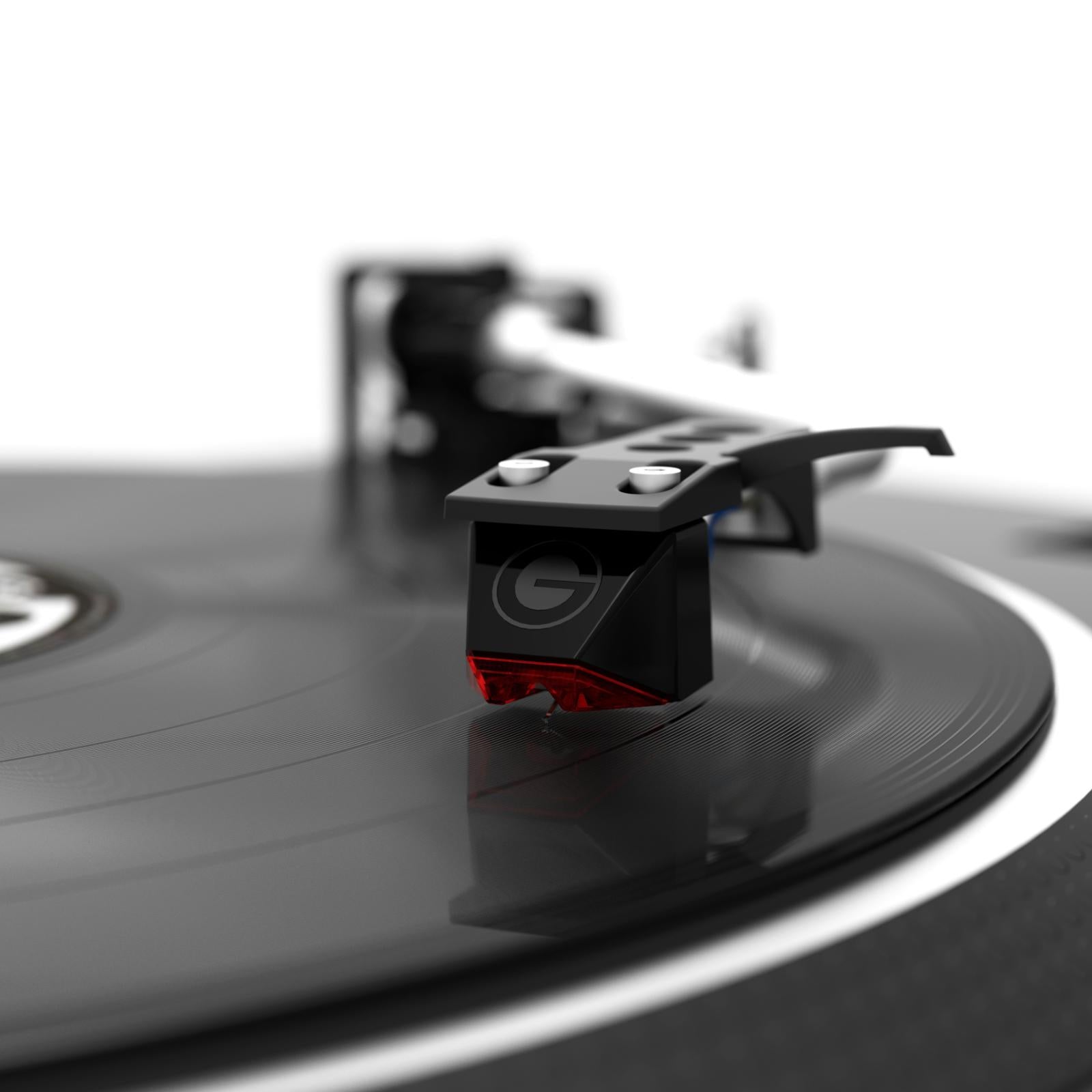

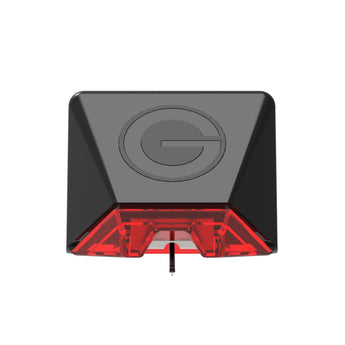

Goldring E1 MM cartridge and stylus

Goldring's aim is accurate replication of the original record production — preserving the musicality, nuance and rhythm the artist intended. The E Series is designed to fit the majority of budget to medium-priced turntables with minimal fuss.

The E1 uses a carbon-fibre reinforced cantilever and bonded spherical stylus. Carbon is a capable alternative to premium aluminium or boron materials and delivers comparable results in entry-level hi-fi applications.

Magnetic Duplex Technology™

Every E Series cartridge includes Goldring's Magnetic Duplex Technology™ — a dual-magnet generator assembly with geometry identical to that of the original cutting head. This allows more accurate reproduction of stereo information in the record groove, improving channel separation and soundstage.

Expert adjustment

E Series cartridges feature a special adjustment screw that allows micro-adjustments during production. The stylus angle relative to the record surface is pre-set at the factory, so no horizontal tracking adjustment is needed on installation. The result is consistent channel balance and reliable performance throughout the product's life.

Stylus and cantilever

The E1 and E2 both use spherical styli, making either an ideal upgrade for a budget, pre-fitted or obsolete cartridge. Both are well suited to everyday vinyl playback on entry-level and mid-priced turntables.

Explore the full range in Cartridge & Stylus.

Specification

Colour	Red
Cantilever	Carbon
Stylus profile	Spherical
Stylus radius	0.6 mil
Frequency range	20 Hz - 20 kHz
Channel balance	1.5 dB at 1 kHz
Channel separation	>20 dB at 1 kHz
Sensitivity	3.5 mV (1 kHz @ 5 cm/sec)
Static compliance	20 mm/N
Vertical tracking angle	24°
Load resistance	47 kΩ
Load capacitance	100 - 200 pF
Internal inductance	400 mH
Internal resistance	470 Ω
Cartridge mass	6.8 g
Fixing centres	12.7 mm (0.5 in)
Playing weight	1.75 g - 2.25 g (2.0 g recommended)

What's Included

Goldring E1 Cartridge

Product information

Goldring

About the Goldring GL0054

From our tech experts at CEN

The Goldring E1 is the entry-level model in Goldring's E Series of moving magnet (MM) phono cartridges. It features a carbon-fibre reinforced cantilever and a bonded spherical stylus with a 0.6 mil tip radius. It is designed as a direct upgrade for worn, pre-fitted or obsolete cartridges on budget to mid-priced turntables.

Who it suits

The E1 suits anyone replacing a basic or worn cartridge on a budget or mid-priced deck. The spherical stylus is forgiving and well suited to everyday vinyl listening. Those wanting an elliptical stylus for improved groove tracing may prefer the Goldring E3.

Our tech experts advise

Set the tracking force to 2.0 g, within the 1.75–2.25 g range. The standard 12.7 mm fixing centres fit most headshells. Your phono stage should present a 47 kΩ load and 100–200 pF capacitance. The stylus angle is factory pre-set, so no horizontal tracking adjustment is needed on installation. Browse the full Goldring range at CEN.

Explore the full Goldring range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Goldring

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Goldring E2 Cartridge & Stylus E Series Moving Magnet Vinyl Turntable Spherical - CEN

Save 6% Goldring E2 Cartridge & Stylus E Series Moving Magnet Vinyl Turntable Spherical RRP ~~£79.00~~ £74.00 Save 6%

Low stock

Frequently Asked Questions

Q: Will the Goldring E1 fit my turntable?

A: Goldring designed the E Series to be simple to fit to the majority of budget to medium priced turntables. It uses standard 12.7 mm (half inch) fixing centres; check that your tonearm can be set to the recommended playing weight.

Q: What tracking force does the Goldring E1 need?

A: The recommended playing weight is 1.75 g to 2.25 g, with 2.0 g recommended.

Q: What is the difference between the Goldring E1 and E2?

A: Both use the same bonded 0.6 mil spherical stylus. The E1 has a carbon-fibre reinforced cantilever, while the E2 upgrades to a stiffer, lighter aluminium cantilever for more detail at medium to high frequencies.
