FiiO M33 R2R DAP Portable Hi Resolution Digital Audio Music Player Black

FiiO M23

Portable High Resolution Audio Player

Pure Audio Performance

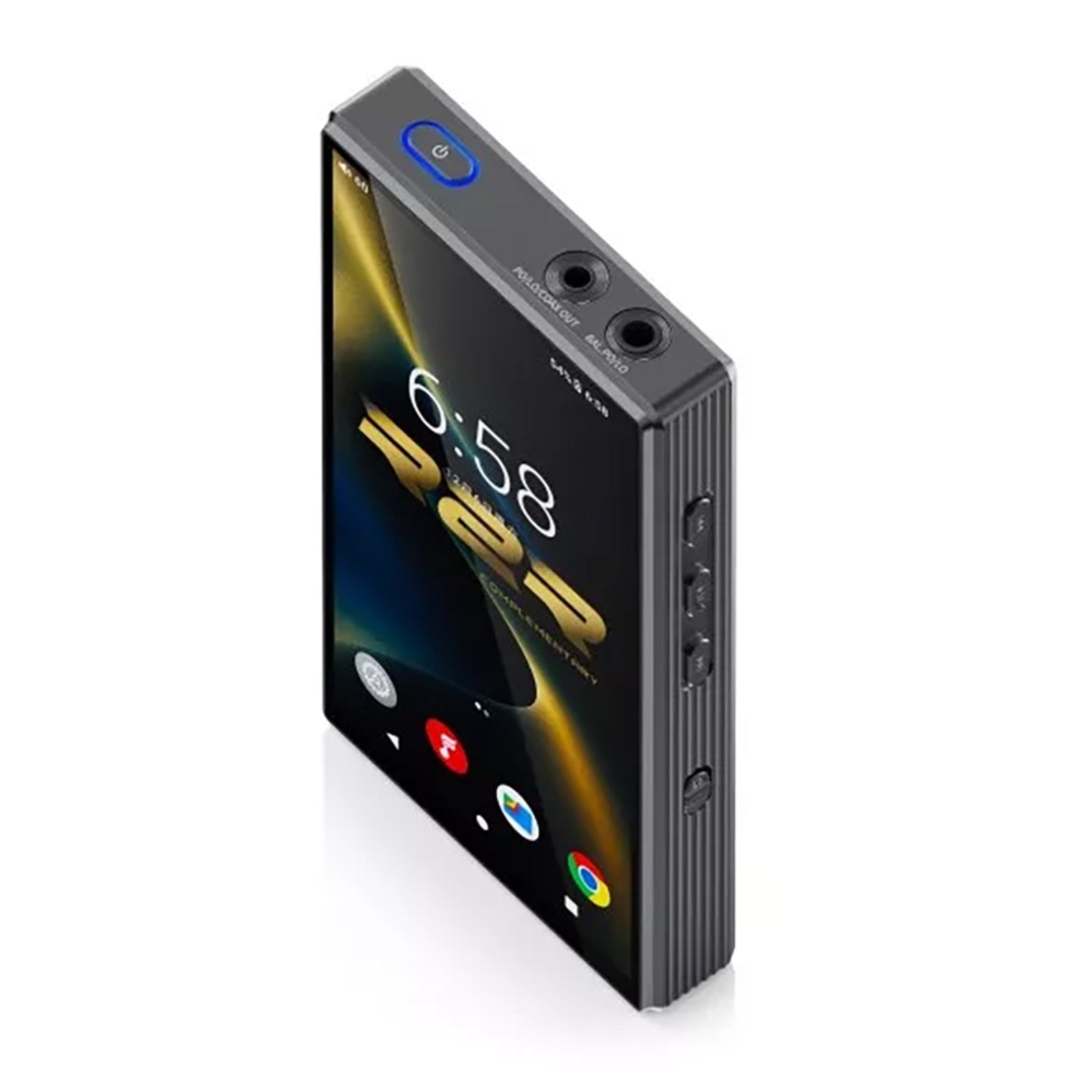

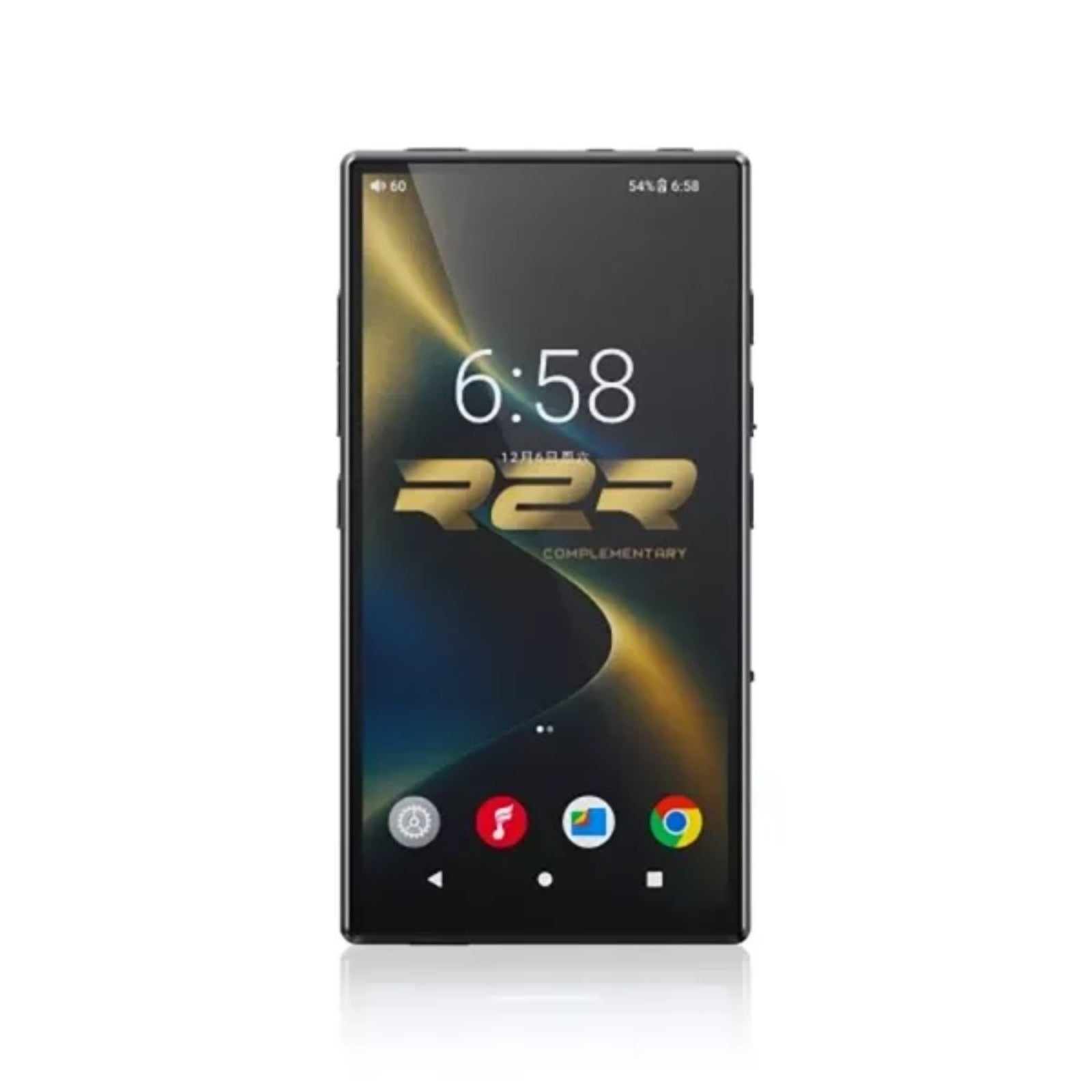

FiiO’s inaugural R2R-driven portable player introduces a resistor ladder DAC topology into a compact, Android-enabled device engineered for daily listening and desktop use. A Snapdragon 680 chipset delivers an excellent interface experience, the 5.5-inch 1080p screen is comfortable to view, and a complete titanium-based multi-stage amplifier supplies clean output through both balanced and single-ended connections.

The device blends portability with serious audio engineering, making it suitable for casual sessions and focused listening alike. Its hardware balance ensures that performance is never sacrificed for convenience.

Reference-Grade Amplification Design

The integrated amplification draws inspiration from FiiO’s premium models, employing a full-series titanium multi-stage configuration. The objective is uniformity across gain levels and reduced noise during demanding loads.

This results in dependable performance for sensitive in-ear monitors and more power-hungry full-size headphones, whether used portably or at a workstation. The amplifier architecture maintains clarity even under higher output demands. It is tuned to preserve dynamics without introducing harshness.

• True 24-bit fully differential R2R DAC with precision thin-film resistor arrays

• Titanium multi-stage amplifier with balanced and single-ended outputs

• Snapdragon 680 Android platform with smooth UI and streaming support

• Advanced shielding, thermal control and protection circuitry

• NJW1195A electronic volume system for low-noise, precise level adjustment

Precision Electronic Volume Control – NJW1195A

The NJW1195A delivers high-grade digital volume management. This four-channel electronic attenuator utilises a resistor ladder potentiometer with minimal distortion and reduced noise, enabling accurate level adjustment.

Fine control allows subtle listening calibration without sacrificing transparency. Volume transitions remain smooth and precisely graduated.

Authentic R2R Conversion Technology

This player employs a genuine R2R DAC configuration rather than a typical delta-sigma implementation. Resistor ladder decoding emphasises exact voltage transitions and organic timing, characteristics many users associate with a grounded, analogue-inspired sound signature.

FiiO integrates selectable OS and NOS options, allowing users to prioritise oversampling accuracy or a more direct non-oversampling pathway. This flexibility enables tailored sonic presentation. The design philosophy focuses on musicality as well as measurable precision.

Fully Differential 24-Bit Architecture

The device incorporates a true fully differential 24-bit R2R DAC resistor network. FiiO’s newly engineered four-channel differential 24-bit R2R array comprises dual 48-element precision thin-film resistor ladders per channel, amounting to 192 resistors with 0.1% tolerance and minimal thermal variation (30ppm).

This structure produces a distinctive and engaging tonal character. The tightly matched components ensure channel balance and phase coherence. It delivers a presentation that feels both technically refined and emotionally compelling.
