FiiO K17 R2R Desktop DAC and Headphone Amplifier Silver
Couldn't Load Pickup availability
The FiiO K17 R2R is a desktop DAC, streamer and headphone amplifier built around a proprietary 5 + 24-bit R2R resistor ladder DAC, with a discrete Class AB headphone stage delivering up to 4000mW per channel balanced into 32 ohms. It is part of FiiO's K-series desktop range.
This listing is the Silver finish. The K17 R2R is also available in Black.
Key specifications
- DAC: Proprietary R2R resistor ladder (5 + 24-bit), NOS and OS modes
- Headphone output: 4000mW + 4000mW balanced, 1850mW + 1850mW single-ended (32 ohms)
- Streaming: Dual-band Wi-Fi (2.4GHz and 5GHz), Gigabit Ethernet, QPlay
- Bluetooth: 5.1 (Qualcomm QCC5125) with LDAC and aptX Adaptive
- USB DAC: Up to 768kHz/32-bit and native DSD256
- Line outputs: RCA (2.5Vrms) and XLR (5Vrms)
- Display: 3.93-inch touchscreen
- Power supply: 35W low-noise linear
- Size and weight: 245 x 223 x 69mm, 2.9kg
At the core of the K17 R2R is a proprietary 5 + 24-bit resistor ladder (R2R) DAC. It supports both NOS (non-oversampling) and OS (oversampling) modes, switchable by the user depending on preference and source material.
Amplification and power output
A discrete Class AB headphone amplifier stage delivers 4000mW per channel balanced, accommodating headphones from in-ear monitors through to more demanding planar designs.
Connectivity and streaming
The K17 R2R functions as both a DAC and a network streamer. It supports dual-band Wi-Fi (2.4GHz and 5GHz), Gigabit Ethernet and QPlay, enabling network-based audio playback within a home setup. Bluetooth 5.1 (Qualcomm QCC5125) adds LDAC and aptX Adaptive wireless support. For those looking for a more compact option in the R2R range, the FiiO K13 R2R is also available.
FiiO K17 R2R sound customisation
A 31-band parametric equaliser with Auto EQ is included. Settings can be adjusted via the FiiO Control app or a web browser, with profiles stored on the device.
Design and features
The front panel is dominated by a 3.93-inch touchscreen giving access to playback controls, settings and visual displays including VU meters. A USB ground loop isolator reduces noise from digital sources, and a 35W low-noise linear power supply is built in. An aluminium infrared remote control is supplied. The K17 R2R works as a standalone headphone amplifier or as part of a wider HiFi system.
Explore the full range in FiiO.
Specification
| Master Control Chip | X2000 |
|---|---|
| DAC | Proprietary R2R PRO DAC |
| USB Chip | XMOS XU316 |
| Bluetooth | Chip Qualcomm QCC5125 |
| Display | 3.93-inch LCD |
| Dimensions | 69mm x 245mm x 223mm |
| Weight | 2.9kg |
| Bluetooth | Version Bluetooth 5.1 |
| Bluetooth | Codecs SBC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC |
| USB DAC | 768kHz/32bit; DSD256 (Native) |
| Coaxial Input | 192kHz/24bit; DSD64 |
| Optical Input | 96kHz/24bit |
| Local Playback | 384kHz/32bit; DSD256 |
| Streaming Playback | 384kHz/32bit; DSD256 (DoP) |
| Coaxial Output | 192kHz/24bit; DSD64 |
| Optical Output | 192kHz/24bit |
| 32Ω Single-Ended Output | L+R ≥1850mW + 1850mW (THD+N <1%, ultra-high gain mode) |
| 32Ω Balanced Output | L+R ≥4000mW + 4000mW (THD+N <1%, ultra-high gain mode) |
| 300Ω Single-Ended Output | L+R ≥240mW + 240mW (THD+N <1%, ultra-high gain mode) |
| 300Ω Balanced Output | L+R ≥950mW + 950mW (THD+N <1%, ultra-high gain mode) |
| RCA Output | L+R = 2.5Vrms + 2.5Vrms (1kHz @ 10kΩ) |
| XLR Output | L+R = 5Vrms + 5Vrms (1kHz @ 10kΩ) |
| Frequency Response | 20Hz–80kHz, attenuation <3dB |
| Signal-to-Noise Ratio | ≥125dB (A-weighted) |
| Noise Floor | <2.6μV (A-weighted) |
| THD+N | <0.0052% (1kHz/-8dB @ 32Ω) |

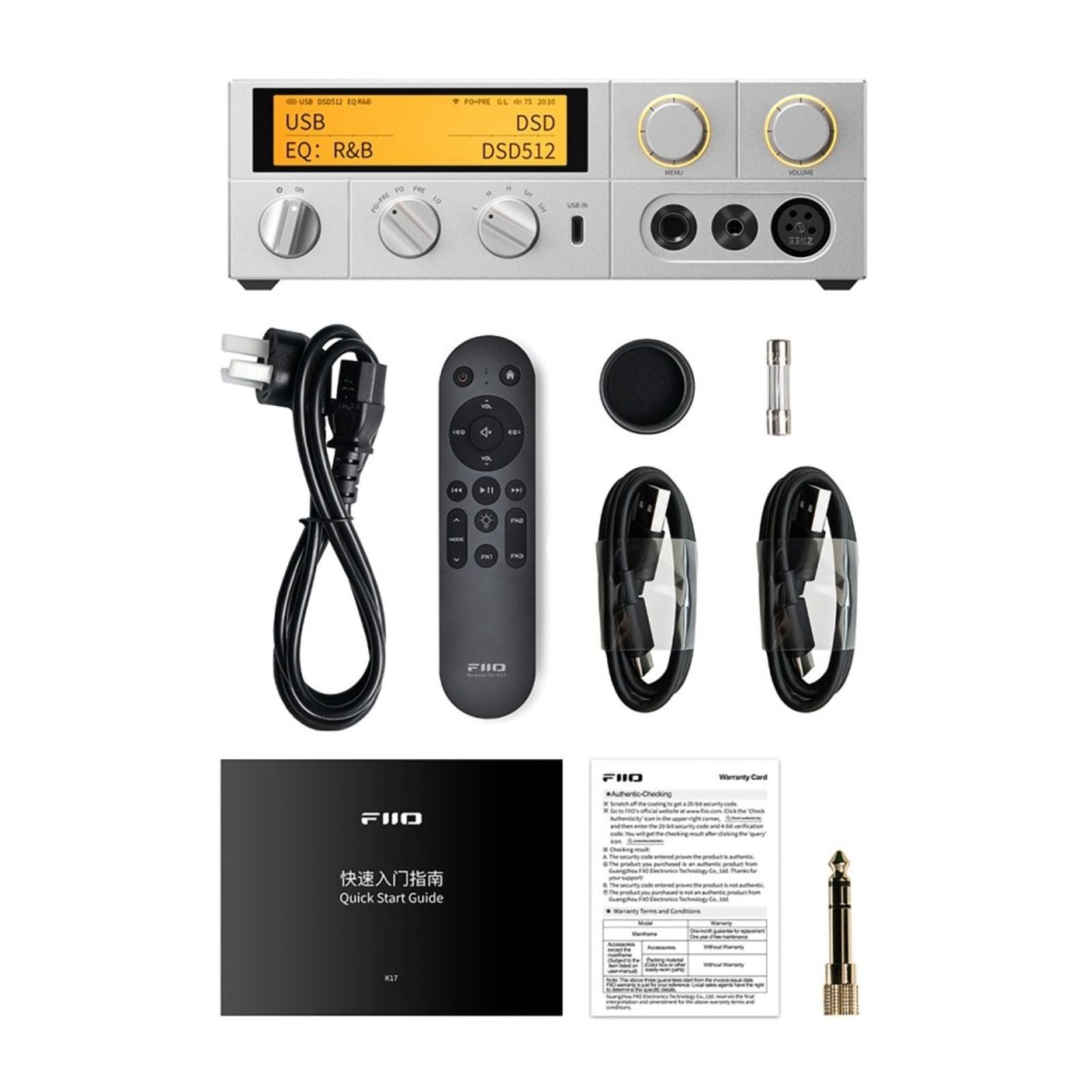

What's Included
- K17 R2R Silver
- AC Power Cord
- Remote Control
- XLR4 Plug
- Fuse
- USB Data Cable
- Headphone Plug Adapter
- Warranty Card
- Quick Start Guide
FiiO
About the FiiO FIIOK17-R2R-SILVER
From our tech experts at CEN
A FiiO digital-to-analogue converter, giving a cleaner signal path than a computer or phone output.
Who it suits
Listeners with a capable system who want the source to stop being the weak link. FiiO built its name making capable portable audio at prices that undercut the establishment.
Our tech experts advise
Match it to what you are driving, and remember that a good DAC reveals what is upstream rather than fixing it. get in touch and we will suggest a pairing rather than guessing.
Explore the full FiiO range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all FiiO
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
FiiO News & Guides
The latest FiiO product news, launches and guides from the CEN team in Nottingham.
New at CEN: FiiO M21 — Serious Portable Hi-Res for £329
The FiiO M21 has arrived at CEN — a compact hi-res digital audio player that brings FiiO's flagship engineering down...
The FiiO K15 DAC and Headphone Amplifier
The FiiO K15 is a testament to the brand's commitment to innovation and excellence. Boasting a sleek and modern design,...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from FiiO
More options from the same range, in stock and ready to go
Best Seller FiiO M21 DAP Portable Hi-Res Digital Audio Music Player Bluetooth 5.0 Dark Blue £339.00 /In stock
Best Seller FiiO M33 R2R DAP Portable Hi Resolution Digital Audio Music Player Black £649.00 /In stock
Best Seller Fiio DM13 BT Portable Stereo CD Player USB aptX HD Hi-Res Bluetooth Silver £139.99 /In stock
Frequently Asked Questions
Q: Can I switch between NOS and OS modes on the K17 R2R?
A: Yes. The R2R DAC supports both NOS (non-oversampling) and OS (oversampling) modes, and you can switch between them to suit your preference and source material.
Q: Does the FiiO K17 R2R stream music over the network?
A: Yes. It works as a DAC and streamer with dual-band Wi-Fi (2.4GHz and 5GHz), Gigabit Ethernet and QPlay support, alongside local playback and Bluetooth 5.1.
Q: Can the K17 R2R be used as a preamp in a hi-fi system?
A: It is designed to work both as a standalone headphone amplifier and as part of a wider hi-fi system, with RCA (2.5Vrms) and XLR (5Vrms) line outputs plus coaxial and optical digital outputs.
Q: What's in the box with the K17 R2R?
A: The K17 R2R Silver, AC power cord, remote control, XLR4 plug, fuse, USB data cable, headphone plug adapter, warranty card and quick start guide.
