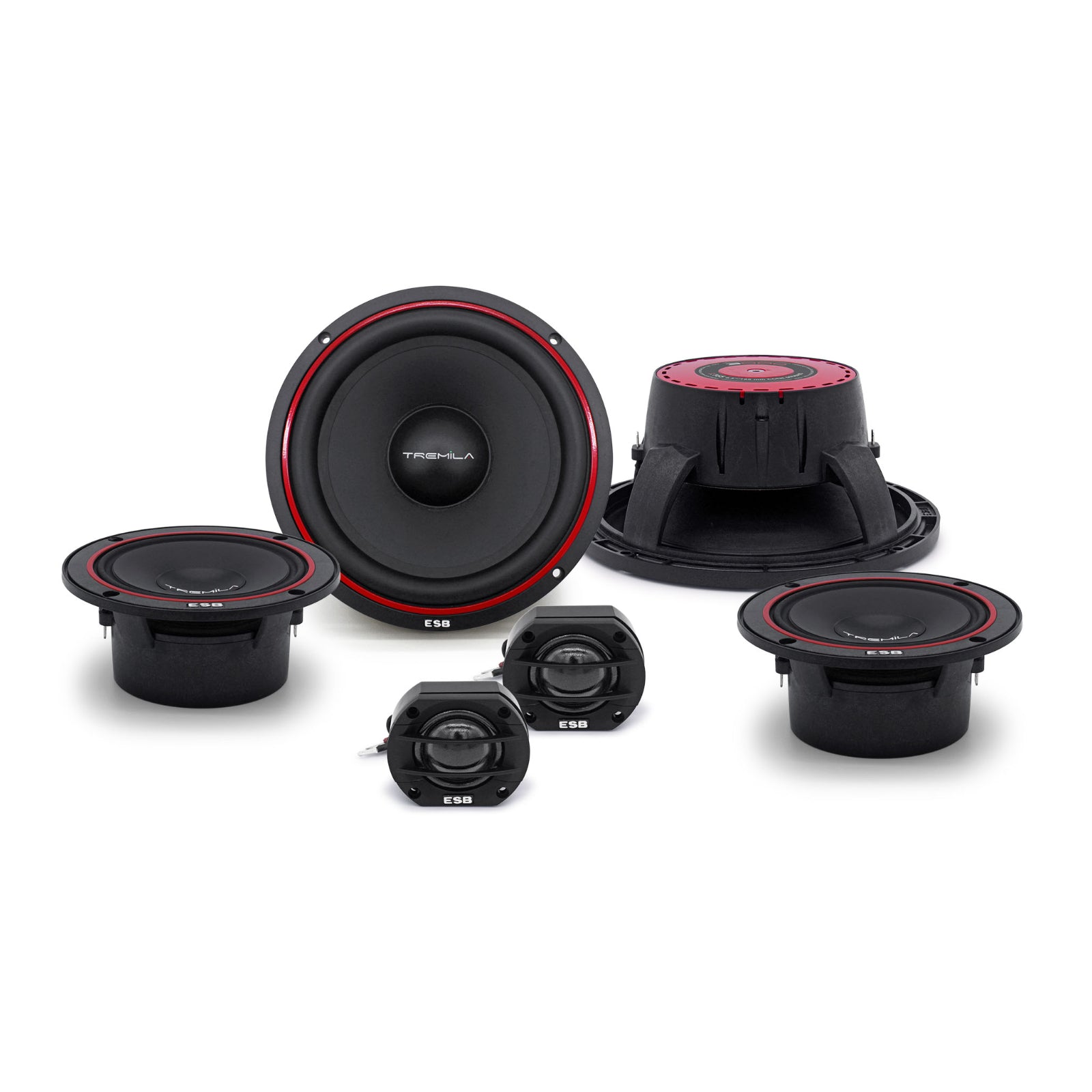

ESB 3.6K3 Tremila Series 3 Way Component Speaker System with Midrange and Tweeters
Couldn't Load Pickup availability
The ESB 3.6K3 is a 3-way component car speaker system from ESB Audio's Tremila Series, comprising 3.165 6.5 inch (165 mm) mid-woofers, 3.90 3.5 inch (90 mm) cone midranges and 3.28 1.1 inch (28 mm) Torcon® dome tweeters. All drivers are 4 ohm, with the mid-woofers rated at 120W RMS.
Prefer a 2-way set? See the ESB 3.6K2X. The 3.165 mid-woofer and 3.28 tweeter are also sold separately.
Key specifications
- Type: 3-way component system, 4 ohm
- Mid-woofer: 3.165, 6.5 inch / 165 mm, 120W RMS / 240W transient, 65 Hz to 9 kHz, 91.5 dB
- Midrange: 3.90, 3.5 inch / 90 mm, 60W RMS / 120W transient, 150 Hz to 7 kHz, 91.5 dB
- Tweeter: 3.28, 1.1 inch / 28 mm, 90W RMS / 180W transient, 900 Hz to 25 kHz, 94 dB
- Sensitivity reference: 2.83V/1m
- In the box: 3.28 tweeters, 3.90 midranges, 3.165 woofers
3.6K3 3-Way Speaker System
3.28 1.1"/28 mm Dome Tweeter
The tweeter uses a Torcon® diaphragm for smooth sound reproduction. The outer suspension is treated with a high-loss damping material to eliminate edge vibration and resonance. The extremely low-mass dome resists mechanical deformation and delivers a smooth, linear, extended frequency response.
The 28 mm voice coil features an aluminium support with light copper-coated aluminium wire. The coil is ventilated and damped with ferrofluid oil.
ESB's SVS ventilation design optimally cools the voice coil and prevents air compression behind the dome.
The neodymium N42 magnet is optimised via computer simulation for improved efficiency and linearity.
3.90 3.5"/90 mm Cone Midrange
Fibreglass-reinforced ABS basket engineered for maximum torsional rigidity with minimum resistance to air passage.
Waterproof-treated pressed paper cone, combining lightness, stiffness and effective damping of unwanted vibration.
Twin symmetrical wave rubber surround using Perbunan® rubber, which remains stable across a wide temperature range.
The 20 mm voice coil uses an aluminium support with double-layer copper wire and aluminium-core winding. High-grade ferrite magnet for strong performance.
3.165 6.5"/165 mm Mid-Woofer
Fibreglass-reinforced ABS basket engineered for maximum torsional rigidity with minimum resistance to air passage.
Waterproof-treated pressed paper cone, combining lightness, stiffness and effective damping of unwanted vibration.
High-damping single-wave Perbunan® rubber surround, stable across a wide temperature range.
The 25 mm voice coil uses an aluminium support with double-layer copper wire and aluminium-core winding. High-grade ferrite magnet for strong performance.
Explore the full range in ESB Tremila Series.
Specification
| Nominal Impedance | 4 Ohm |
|---|---|
| Nominal Power Handling | 90 Watt |
| Transient Power | 180 Watt |
| Frequency Response | 900 Hz ~ 25 KHz |
| Sensitivity | 94 dB 2.83v/1m |
| Nominal Impedance | 4 Ohm |
| Nominal Power Handling | 60 Watt |
| Transient Power | 120 Watt |
| Frequency Response | 150 Hz ~ 7 KHz |
| Sensitivity | 91.5 dB 2.83v/1m |
| Nominal Impedance | 4 Ohm |
| Nominal Power Handling | 120 Watt |
| Transient Power | 240 Watt |
| Frequency Response | 65 Hz ~ 9 KHz |
| Sensitivity | 91.5 dB 2.83v/1m |
More specs
| |
What's Included
- 3.28 Tweeters
- 3.90 Midrange
- 3.165 Woofers
ESB Audio
About the ESB Audio 3.6K3
From our tech experts at CEN
The ESB 3.6K3 is a 3-way component system from the Tremila Series. It combines 3.165 6.5 inch mid-woofers at 120w RMS, 3.90 3.5 inch cone midranges at 60w RMS and 3.28 1.1 inch Torcon dome tweeters at 90w RMS. All drivers are 4 ohm.
Who it suits
Drivers building a sound-quality front stage who want each driver doing a defined job, with vocals carried by a dedicated midrange. If you would rather keep the install simple, the 3.6K2X 2-way set uses the same mid-woofer with a 1 inch tweeter.
Our tech experts advise
Three-way sets need more space and planning: the 3.5 inch midranges usually go in the dash or upper door, the tweeters high on the pillar. They work best on an amplifier with a processor setting the crossover points and time alignment. Tweeter sensitivity is 94 dB, so level matching matters. Installation is priced per vehicle, so get in touch. See car audio installation.
Explore the full ESB Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all ESB Audio
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from ESB Audio
More options from the same range, in stock and ready to go
ESB 3.25 Tremila Series 1 Inch Dome Tweeter 90w RMS Pair
£69.99
View product
ESB 3.6C 2 Way 6.5 Inch Coaxial Car Speaker 80w RMS Pair
£139.99
ESB 3.WB6 Tremila Series 6.5 Inch Active Ported Subwoofer Enclosure 250w RMS
£299.99
ESB 3.6K2X 6.5 Inch 2 Way Component Speaker System with 1 Inch Tweeter Pair
£179.99
ESB 3.65 Tremila Series 2.5 Inch Component Cone Wide Range 60w RMS Pair
£99.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What's in the box with the ESB 3.6K3?
A: ESB 3.28 tweeters, 3.90 midranges and 3.165 woofers.
Q: What size are the drivers in the ESB 3.6K3?
A: The mid-woofers are 6.5 inch (165 mm), the midranges are 3.5 inch (90 mm) and the tweeters are 1.1 inch (28 mm).
Q: What is the power rating of the ESB 3.6K3?
A: The 3.165 mid-woofers handle 120W RMS, the 3.28 tweeters 90W RMS and the 3.90 midranges 60W RMS, all at 4 ohms.
