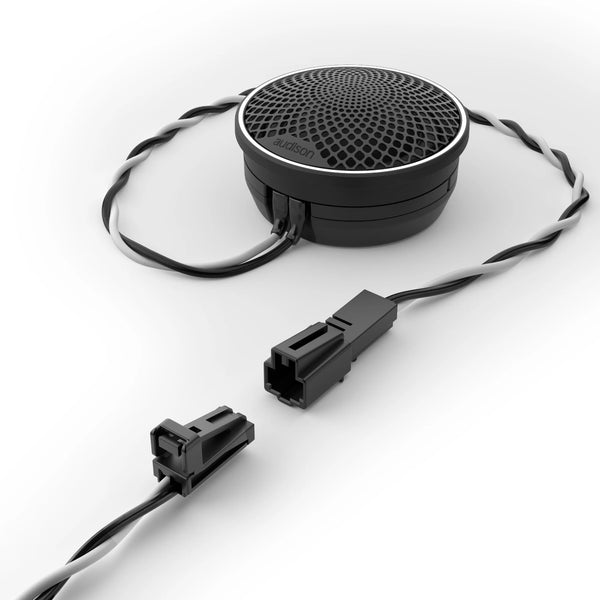

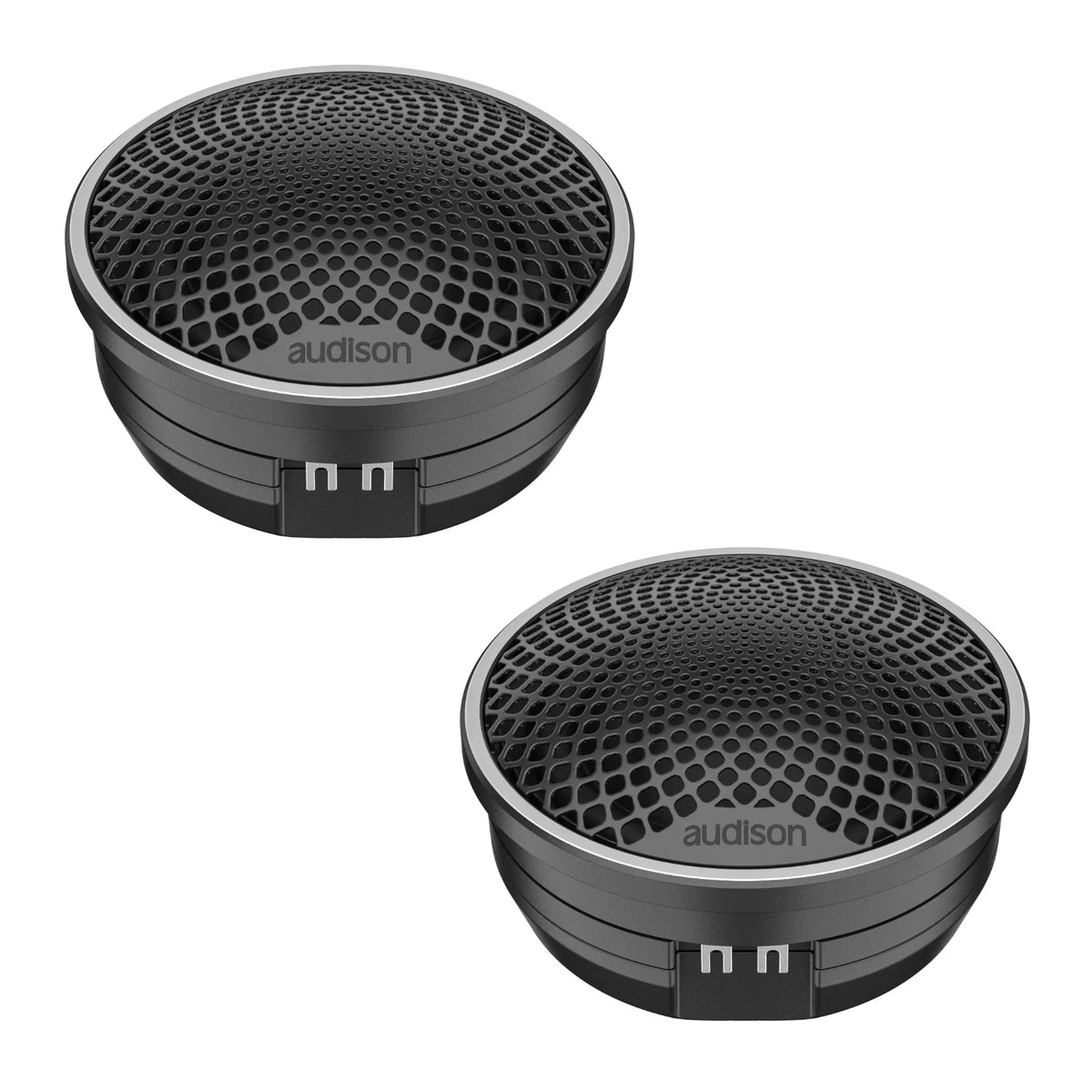

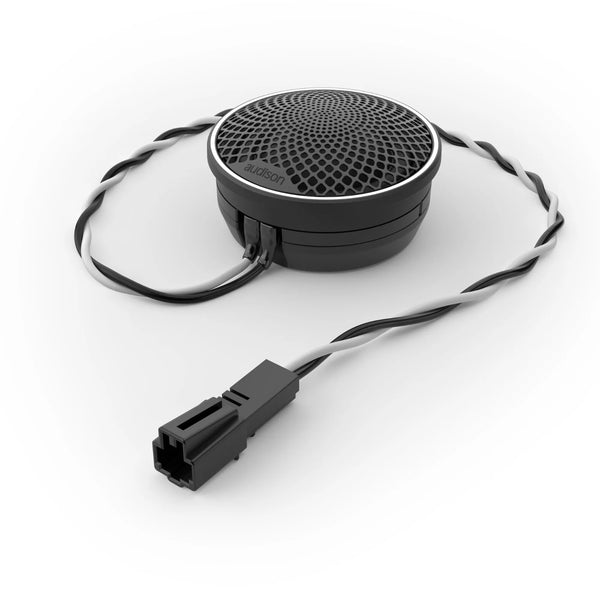

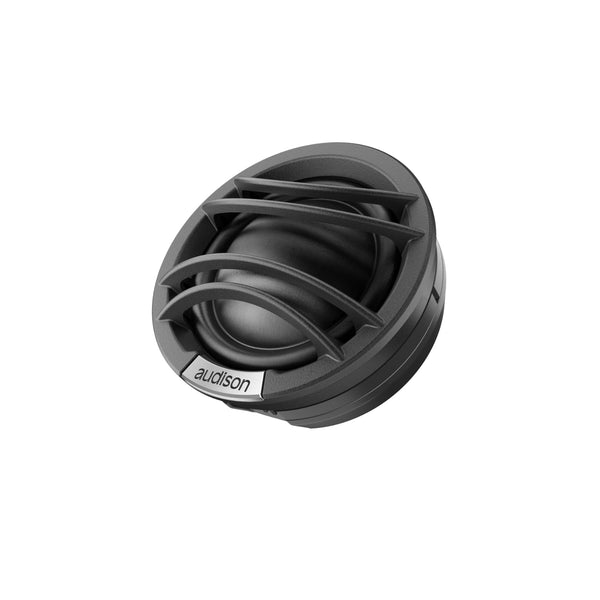

Audison Voce II AV 1.1 II Tetolon Soft Dome Tweeter Set 1.1 Inch 4ohm 180w Peak
Couldn't Load Pickup availability
The Audison AV 1.1 II is a pair of 28 mm (1.1-inch) Tetolon soft dome tweeters from the Voce II range, handling 180W peak at 4 ohms with a frequency response extending to 40kHz. They suit sound quality builds that need Hi-Res certified treble and flexible mounting options.
Key specifications
- Size: 28 mm (1.1 inch)
- Dome: Tetolon fibre soft dome
- Impedance: 4 ohms (minimum 3.9 ohms)
- Power handling: 180W peak / 10W continuous (high-pass filtered at 1.8kHz, 12dB/oct)
- Sensitivity: 91 dB (2.83V/1m)
- Frequency response: 1,000 – 40,000 Hz
- Voice coil: 28 mm CCAW
- Magnet: neodymium
Tetolon Dome, Hi-Res Certified
The Tetolon dome delivers accurate, natural timbre and earns the tweeter Hi-Res Audio certification. Frequency response extends to 40kHz for genuine high-resolution detail and clarity.
Explore the full range in Audison Voce II.
Specification
| Impedance | 4 Ohm |
|---|---|
| Power Handling | - Peak 180 W |
| Power Handling | - Continuous 10 W |
| Sensitivity | 91 dB |
| Frequency Response | 1000 - 40000 Hz |
| Voice Coil | Ø 28 mm |
| Magnet | Material NEODYMIUM |
| Voice Coil | Material CCAW |
More specs
| |
What's Included
- AV 1.1 II Tweeters
- FP1 Faceplate
- FP2 Faceplate
- Watch Band Mount
- Double Angle Cup
- Flush Mounting Ring
- Metal Mounting Spring
- Audison Badge
- Plug & Play Cable
- Fixing Kit
Audison
About the Audison AV 1.1 II
From our tech experts at CEN
The Audison Voce II AV 1.1 II is a pair of 28 mm (1.1 inch) Tetolon soft dome tweeters with neodymium magnets, rated at 180 W peak and 10 W continuous into 4 ohms. Response runs from 1 kHz to 40 kHz with 91 dB sensitivity, and it carries Hi-Res Audio certification.
Who it suits
Drivers building or repairing a Voce II front stage, and anyone wanting a detailed tweeter with plenty of mounting choice. The box includes two faceplates, a watch band mount, double-angle cup, flush ring, metal spring and a plug-and-play cable. It pairs with the AV 6.5 P II midbass, or add the AV 3.0 II midrange for three-way.
Our tech experts advise
The power figures assume a 1.8 kHz, 12 dB/oct high-pass, so run it through a crossover or a DSP channel set no lower. Aim it at the listening position and set levels by measurement. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison Voce II
More options from the same range, in stock and ready to go

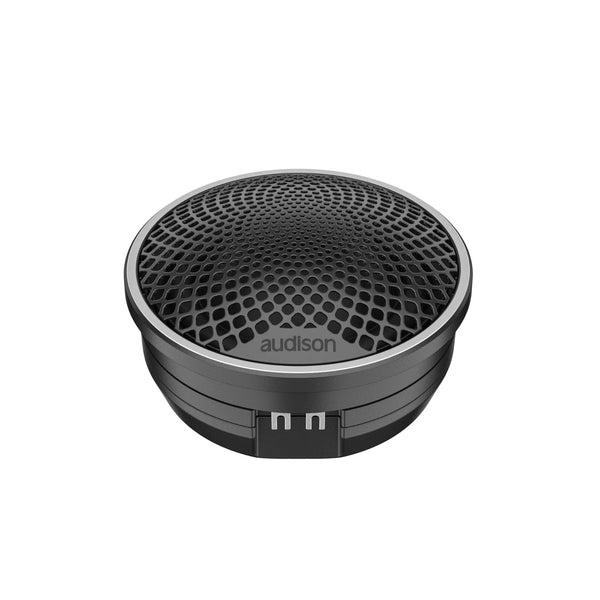

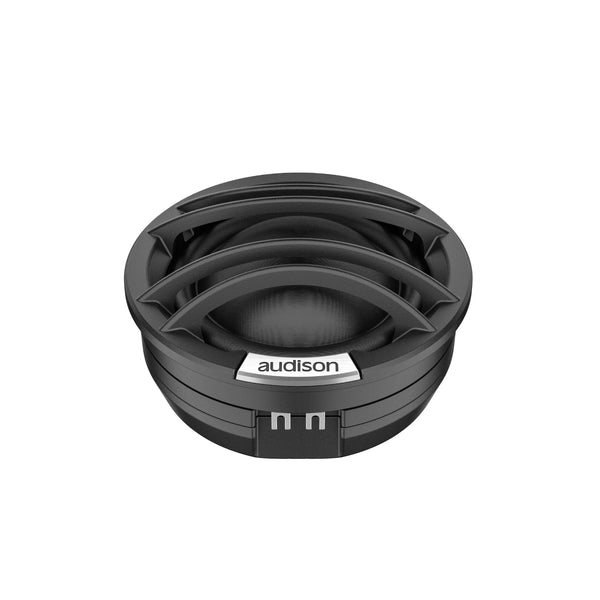

Audison Voce II AVK 6 P II 2 Way Passive Component Speaker Set 6.5 Inch 150w RMS
£699.99
View product
Audison Voce II AV 3.0 II Midrange Speaker Set 3.5 Inch 70mm 4ohm 50w RMS
£549.99
Audison Voce II AV 6.5 P II Midbass Speaker Woofer Set 6.5 Inch 4ohm 150w RMS
£369.99
Audison Voce II AVK 6A P II 2 Way Active Component Speaker Set 6.5 Inch 150w RMS
£619.99

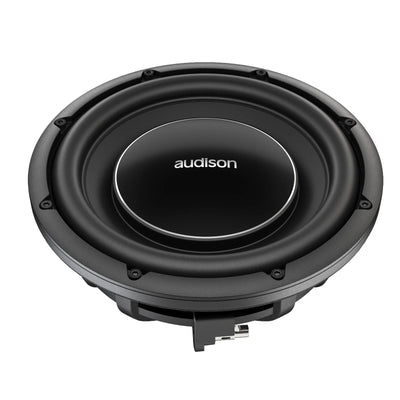

Audison Voce II AV 10 D2 II Subwoofer Dual 2ohm 10 Inch Sub 550w RMS with Grill
£419.99
Frequently Asked Questions
Q: How can the Audison AV 1.1 II tweeters be mounted?
A: The box includes FP1 and FP2 faceplates, a watch band mount, a double angle cup, a flush mounting ring and a metal mounting spring, so the tweeters can be flush, surface or angle mounted.
Q: Do the AV 1.1 II tweeters need a crossover?
A: Yes. The continuous power rating of 10W is quoted with the tweeter high-pass filtered at 1.8kHz at 12dB per octave, so they should be run through a passive crossover or an amplifier or DSP high-pass filter.
Q: Are the AV 1.1 II tweeters Hi-Res certified?
A: Yes. The Tetolon dome complies with Hi-Res Audio (JAS) requirements, with a frequency response extending to 40kHz.
Q: Can CEN fit these tweeters?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
