Audison Prima APK 690 6x9" 2 Way Car Component Door Speakers 100w RMS Pair
Couldn't Load Pickup availability

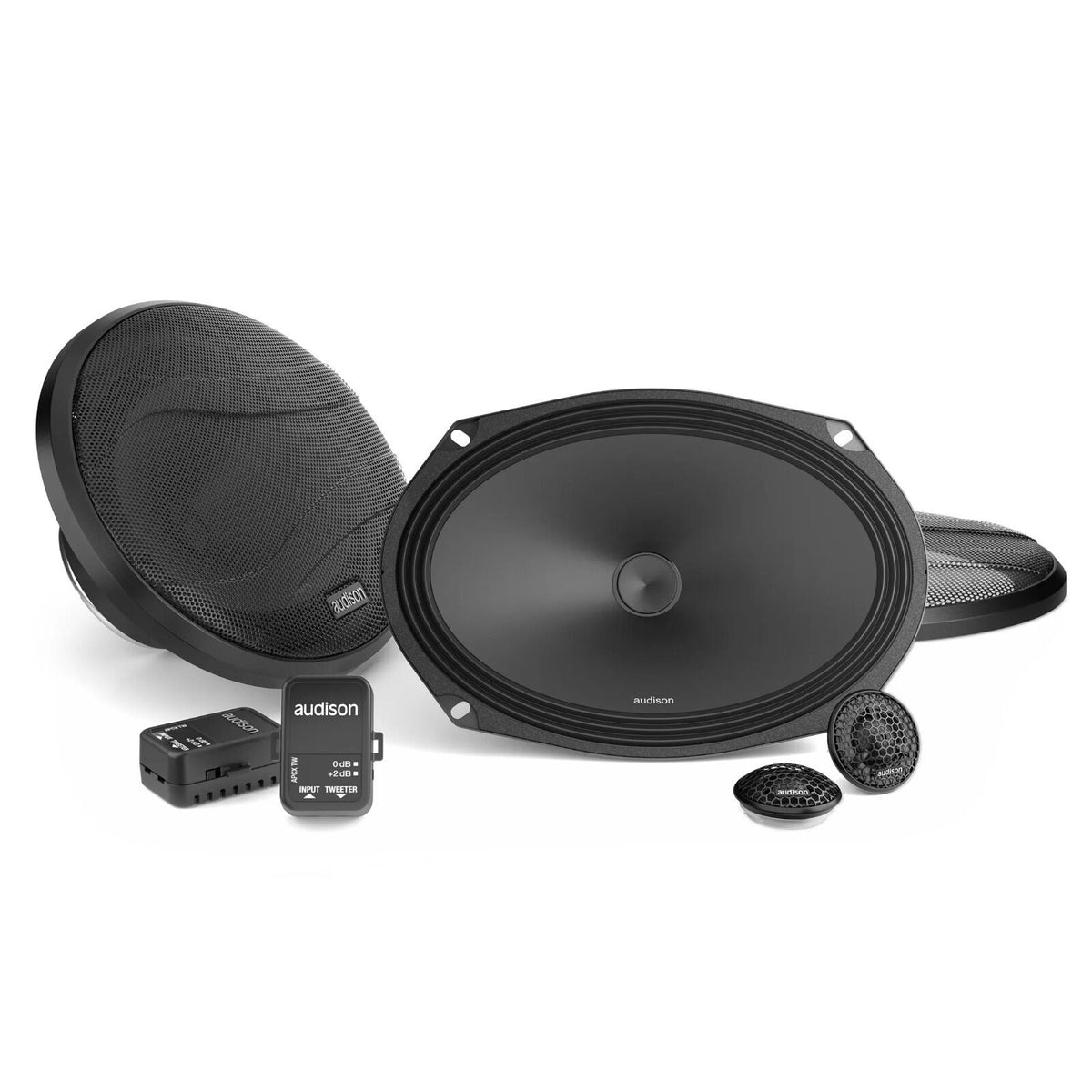

The Audison Prima APK 690 is a 6x9" 2-way component speaker kit from the Audison Prima range, comprising AP 690 elliptical woofers, AP 1 tweeters and APCX TW 690 crossovers, rated at 100W RMS (300W peak) at 4 ohms.
This listing is the 6x9" APK 690. The Audison Prima component speaker range is also available as the APK 165P in 6.5" (115W RMS).
Key specifications
- Woofer: AP 690, 6x9" elliptical, 25mm copper voice coil
- Tweeter: AP 1, 26mm with acoustic lens
- Power: 100W continuous / 300W peak
- Impedance: 4 ohms
- Frequency response: 40Hz–20kHz
- Crossover: APCX TW 690, high-pass at 3.3kHz, 6dB/octave
- Tweeter level: 0dB or +3dB
- Woofer sensitivity: 95dB
Audison Prima
Audison Prima is designed for car enthusiasts who want to hear every nuance of their music from components that integrate cleanly with factory (OEM) systems — without compromising on space.
The APK 690 suits car models with doors built to house elliptical speakers. The APCX TW 690 crossovers are ultra-compact for straightforward installation and include a tweeter output attenuation switch for fine-tuning. The woofer basket is compact by design, with electro-acoustic parameters optimised specifically for door installation.

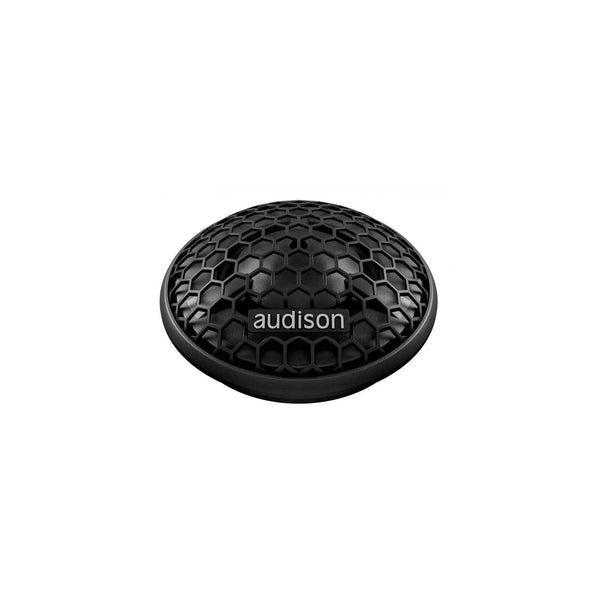

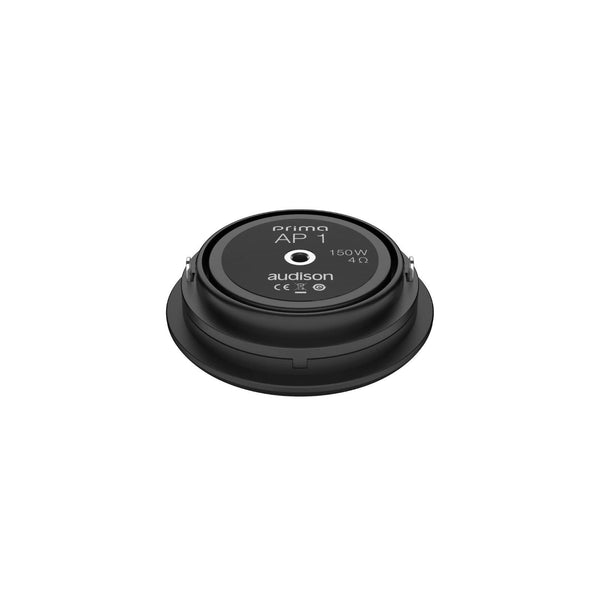

AP 1 Tweeter
- 26mm diameter diaphragm with wide-roll surround for maximum efficiency and reduced resonance frequency.
- Acoustic lens designed to compensate for in-car frequency response irregularities in the 10kHz–13kHz bandwidth caused by critical OEM placements.

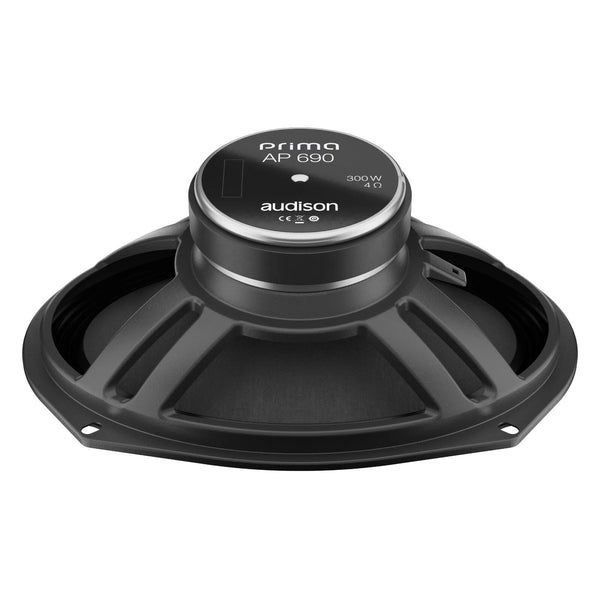

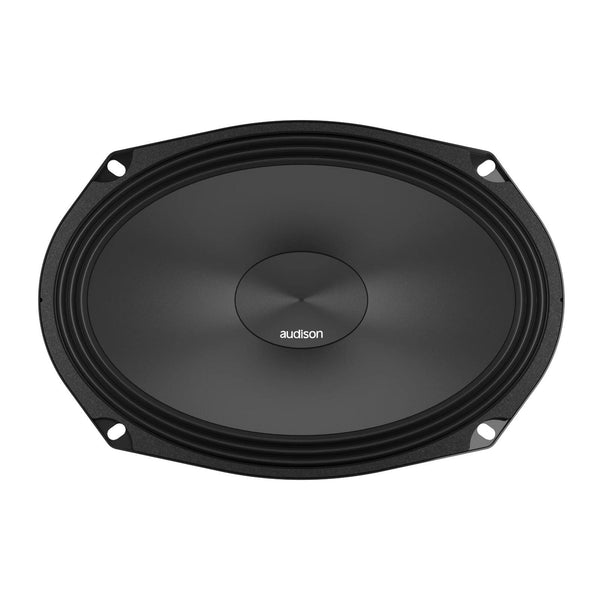

AP 690 Woofer
- 25mm pure copper voice coil for high power handling and low-frequency control.
- Water-repellent treated paper cone, profiled using FEM (Finite Element Method) simulation and optimised with the Klippel R&D Scan Vibrometer.
- Reduced mounting depth for ease of installation in OEM positions.
- "Triple wave" surround profile for maximum excursion linearity.
- Compact basket with abrasion-resistant, scratch-proof coating; motor fixed with damping epoxy adhesive.
- High-current fast-on terminals with double contact on positive and negative poles for quick, flexible connection.

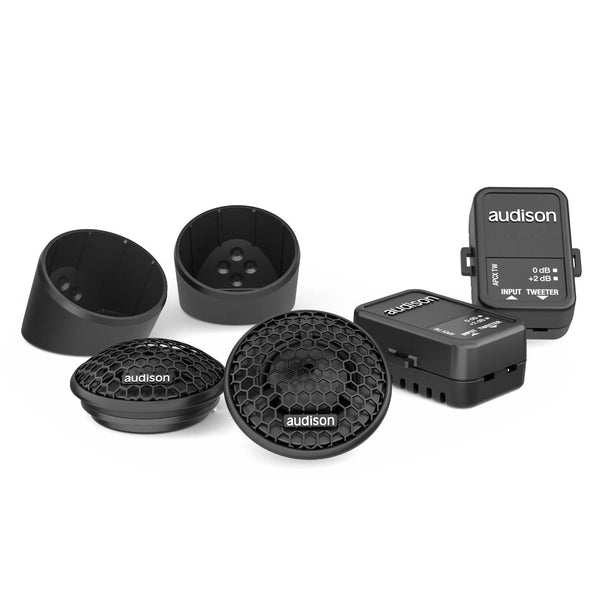

APCX TW 690 Crossover
- Attenuation switch (0dB / +3dB) to tune the in-car response to different installation conditions.
- Supplied with fast-on connectors to eliminate connection errors.
The mechanical cut-off of the woofer cone-dust cap system means the woofers can be used without a filter, maximising efficiency and making them easy to drive from any amplifier type. The large voice coil ensures high power handling and precise control through aggressive dynamic transients. Double Faston connectors with a direct link to the tweeter speed up installation and ensure a reliable contact.
Explore the full range in Audison Prima.
Specification
| Magnet | Size Woofer 90 x 32 x 15 |
|---|---|
| Power Handling | - Peak 300 W |
| Power Handling | - Continuous 100 W |
| Impedance | 4 Ohm |
| Frequency Response | 40 - 20 k |
| Weight | Woofer 1.17 kg |
| Weight | Tweeter 0.04 kg |
More specs
| |
What's Included
- Audison Prima APK 690 Speakers
Audison
About the Audison APK 690
From our tech experts at CEN
Audison Prima 6x9 inch two-way component speakers, with separate tweeters for mounting where you will actually hear them, rated at 100w RMS.
Who it suits
Drivers building a proper front stage, happy for tweeters to be mounted separately, which usually means a professional fit. Prima is the accessible end of the Audison range and still built to the same thinking.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and Audison drivers repay amplification and tuning. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison Prima
More options from the same range, in stock and ready to go
Best SellerAudison Prima APBX 10 AS2 10" Active Subwoofer Enclosure Compact Sub Box 400w
£529.99RRP £569.99Save 7%
Audison Prima AP SPK OUT 4.9 Speaker Output Cable for AP4.9
£24.99£30.99Save 19%
Audison Prima Tower Kit 3 APTK 3 Amplifier Stacking System
£69.99£119.99Save 41%
PopularAudison Prima AP 6.5 2 ohm 6.5" 17cm Car Midbass Woofer Door Speakers 70w RMS
(1)£109.99
Best SellerAudison Prima APBX 10 DS 10" Passive Sub Box Compact Subwoofer Enclosure 400w
£379.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Which cars suit the APK 690?
A: It is designed for car models whose doors are built to take 6x9-inch elliptical speakers. Contact CEN with your registration and we will confirm fitment.
Q: Can the APK 690 woofers run without a crossover?
A: Yes. The mechanical cut-off of the woofer cone and dust cap means the woofers can be used without a filter, so they are easy to drive from any type of amplifier. The tweeters use the supplied APCX TW 690 crossovers.
Q: Can I adjust the APK 690 tweeter level?
A: Yes. The APCX TW 690 crossover has an attenuation switch with 0dB and +3dB settings to suit different installation positions.
