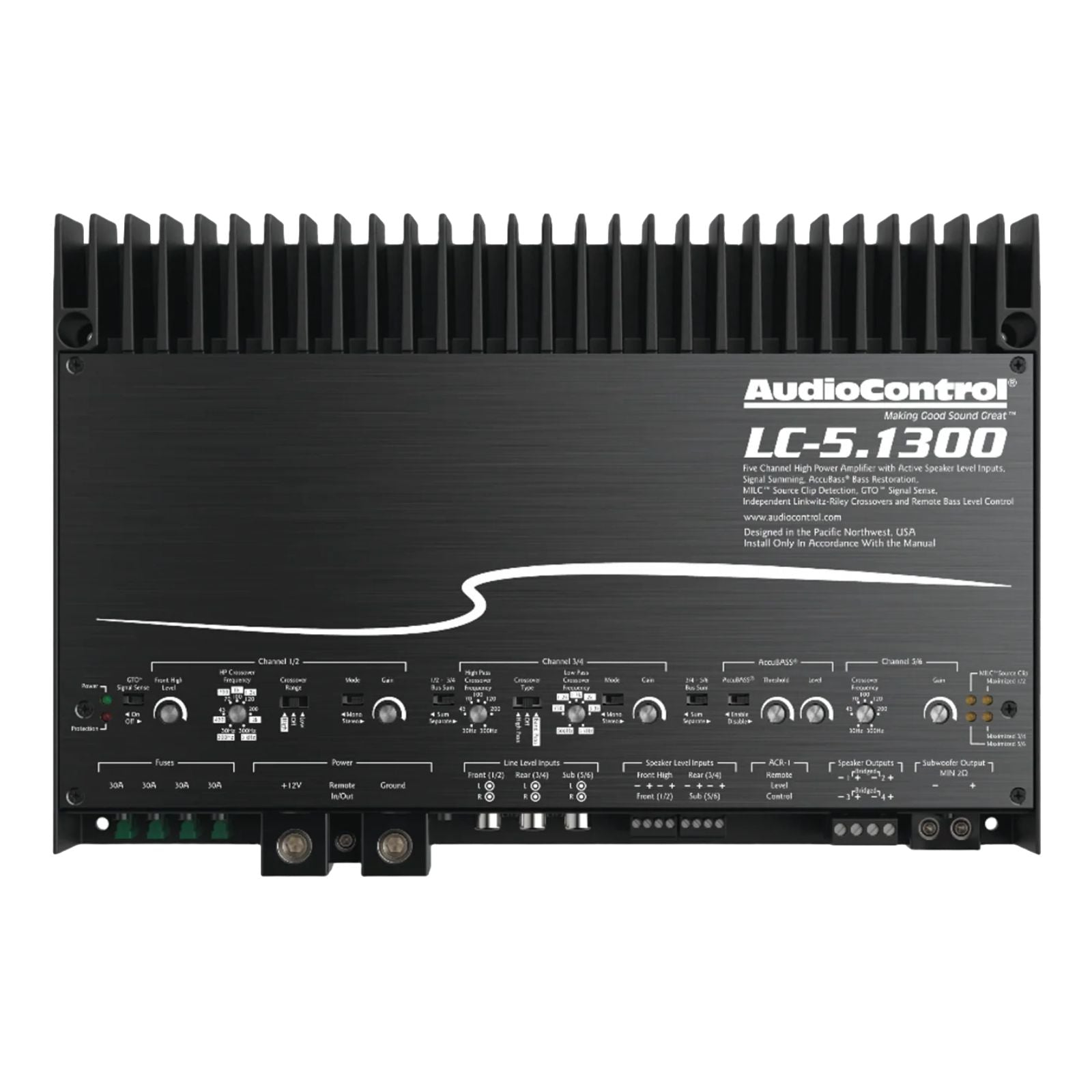

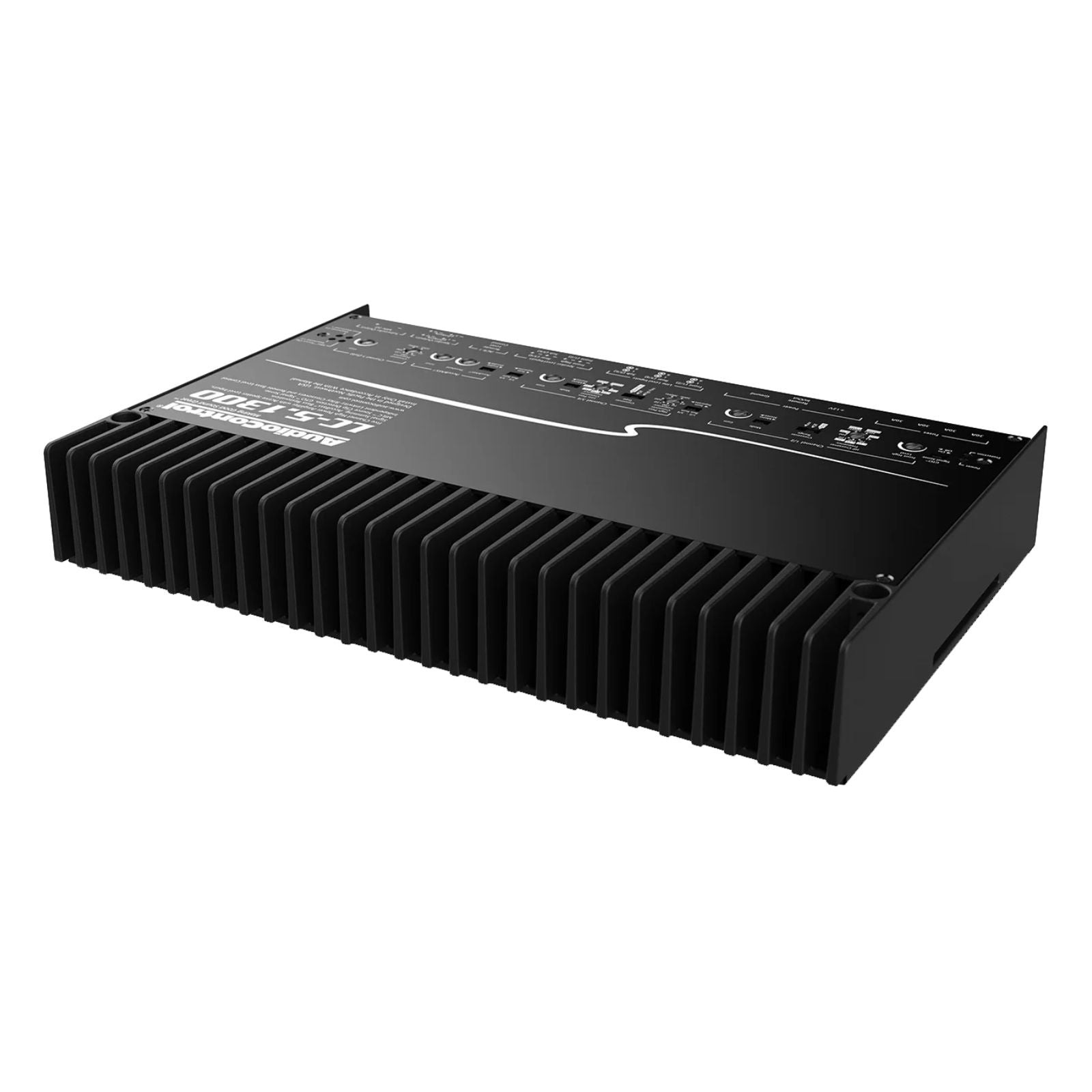

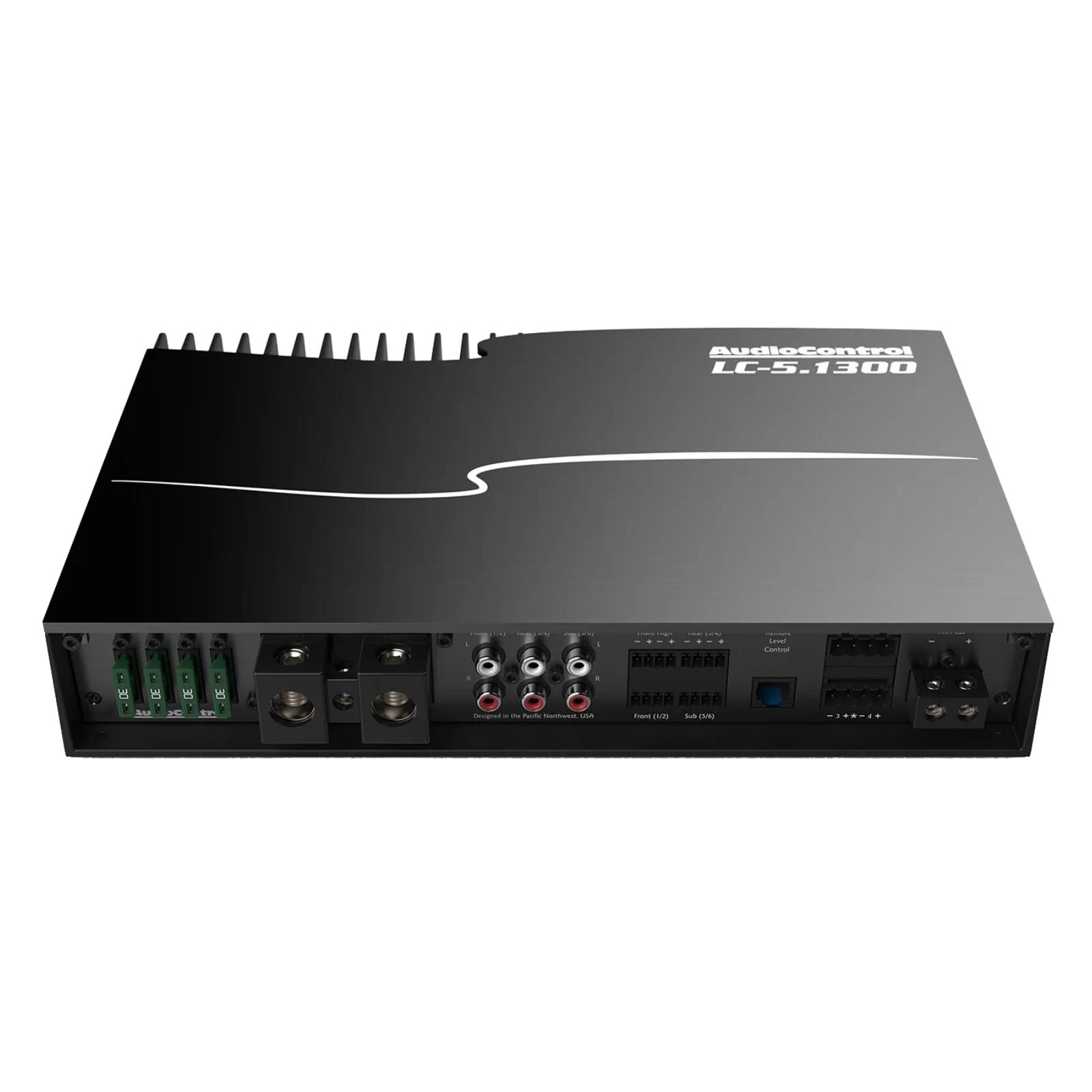

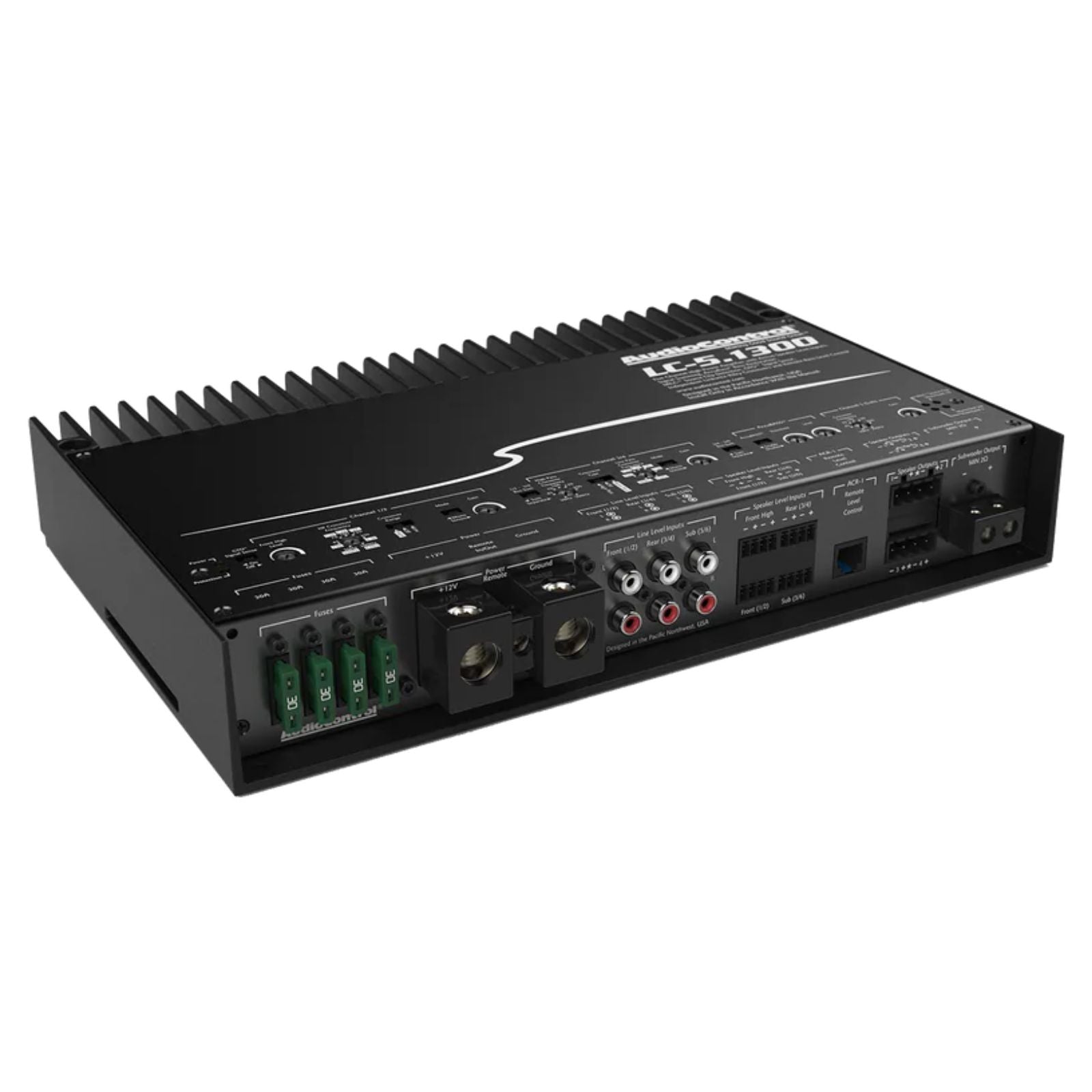

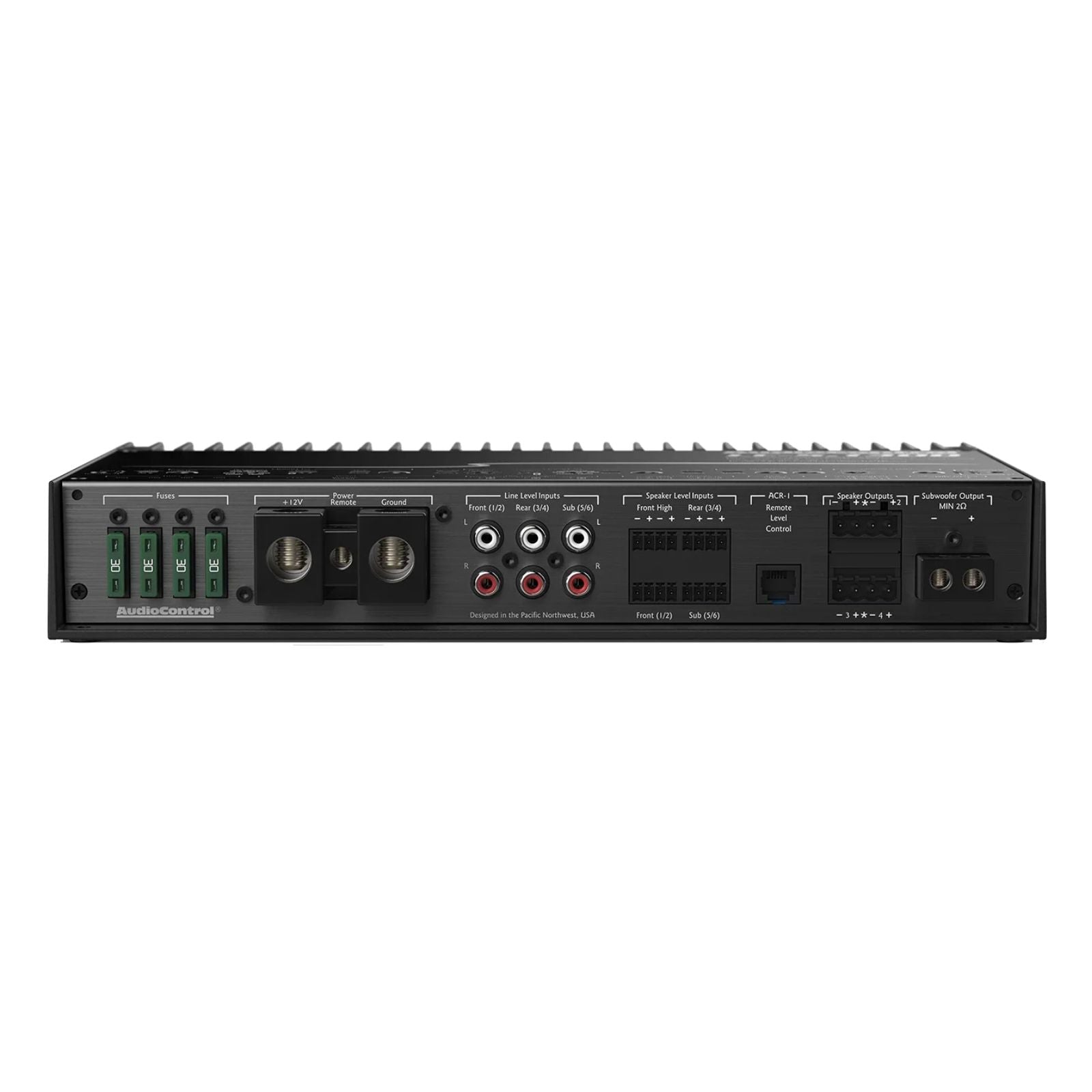

The AudioControl LC-5.1300 is a 5-channel car amplifier delivering 4 x 200W + 1 x 500W RMS at 2 ohms, from AudioControl's LC Series. It provides a single-amp solution for powering both speakers and a subwoofer from an OEM or aftermarket head unit.
This listing is for the LC-5.1300. The LC Series is also available in a 6-channel option — see the LC-6.1200.
Key specifications
- Channels: 5 (configurable as 5 or 3)
- Power at 2 ohms: 4 x 200W + 1 x 500W RMS
- Power at 4 ohms: 4 x 100W + 1 x 300W RMS
- Bridged: 400W at 4 ohms
- Inputs: 6 balanced preamp, 8 summable speaker-level
- Crossover: 3-way Linkwitz-Riley, 30 Hz to 5,000 Hz
- Minimum power/ground wire: 3 AWG
- Fuses: 4 x 30A
- Dimensions: 12.0 in W x 8.0 in D x 2.1 in H
Overview
The LC-5.1300 delivers five channels of high-level power within AudioControl's multi-channel amplifier range. Eight active speaker-level inputs and six line-level inputs make OEM and aftermarket integration straightforward. Setup controls cover high-pass, band-pass and low-pass filtering, automatic and selectable signal summing, and AccuBASS. Add the optional ACR-1 remote for level control.
Features
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS processing
- MILC Maximum Input Level Control (patent pending)
- GTO Signal Sense
- 3-way independent Linkwitz-Riley alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM subsonic filter
- Optional ACR-1 assignable remote control
- Solid one-piece aluminium chassis
Explore the full range in AudioControl Amplifiers.
Specification
| Preamp Inputs | 6 balanced |
|---|---|
| Preamp Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 8 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Frequency Response | 20 Hz – 22 kHz |
| Signal to Noise | 102 dBa, Ref 200 W @ 2 Ohm |
| THD+N | < 0.1% |
| Minimum Power / Ground Wire Gauge | 3 AWG wire |
| Fuse Rating | 4 x 30 A |
| Crossover | 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz |
| Dimensions | 12.0″W x 8.0″D x 2.1″H |
| Weight | 7.2lbs. (3.3kg) |
More specs
| |
What's Included
- LC-5.1300
- Speaker connectors
- Fuses
- Manual
- Warranty
AudioControl
About the AudioControl LC-5.1300
From our tech experts at CEN
A 5-channel amplifier from AudioControl, rated at 1300w RMS.
Who it suits
Drivers whose speakers have outgrown the head unit. AudioControl built its name on signal processing, and that thinking runs through the amplifiers too.
Our tech experts advise
Matching matters more than headline watts, the gains want setting with a meter, and it needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How much power does the LC-5.1300 deliver?
A: At 2 ohms it delivers 4 x 200W plus 1 x 500W RMS (1300W in total). At 4 ohms it delivers 4 x 100W plus 1 x 300W RMS. It can also deliver 400W bridged at 4 ohms.
Q: Can the LC-5.1300 run my speakers and a subwoofer?
A: Yes. Four channels run your speakers and the fifth, higher-power channel runs a subwoofer, with 3-way Linkwitz-Riley crossovers adjustable from 30 Hz to 5,000 Hz.
Q: Can the LC-5.1300 connect to a factory radio?
A: Yes. It has eight summable active speaker-level inputs for OEM integration, plus six balanced preamp inputs.
Q: Can CEN fit this amplifier for me?
A: Yes. CEN offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to book an installation slot or ask for a fitting quote.
