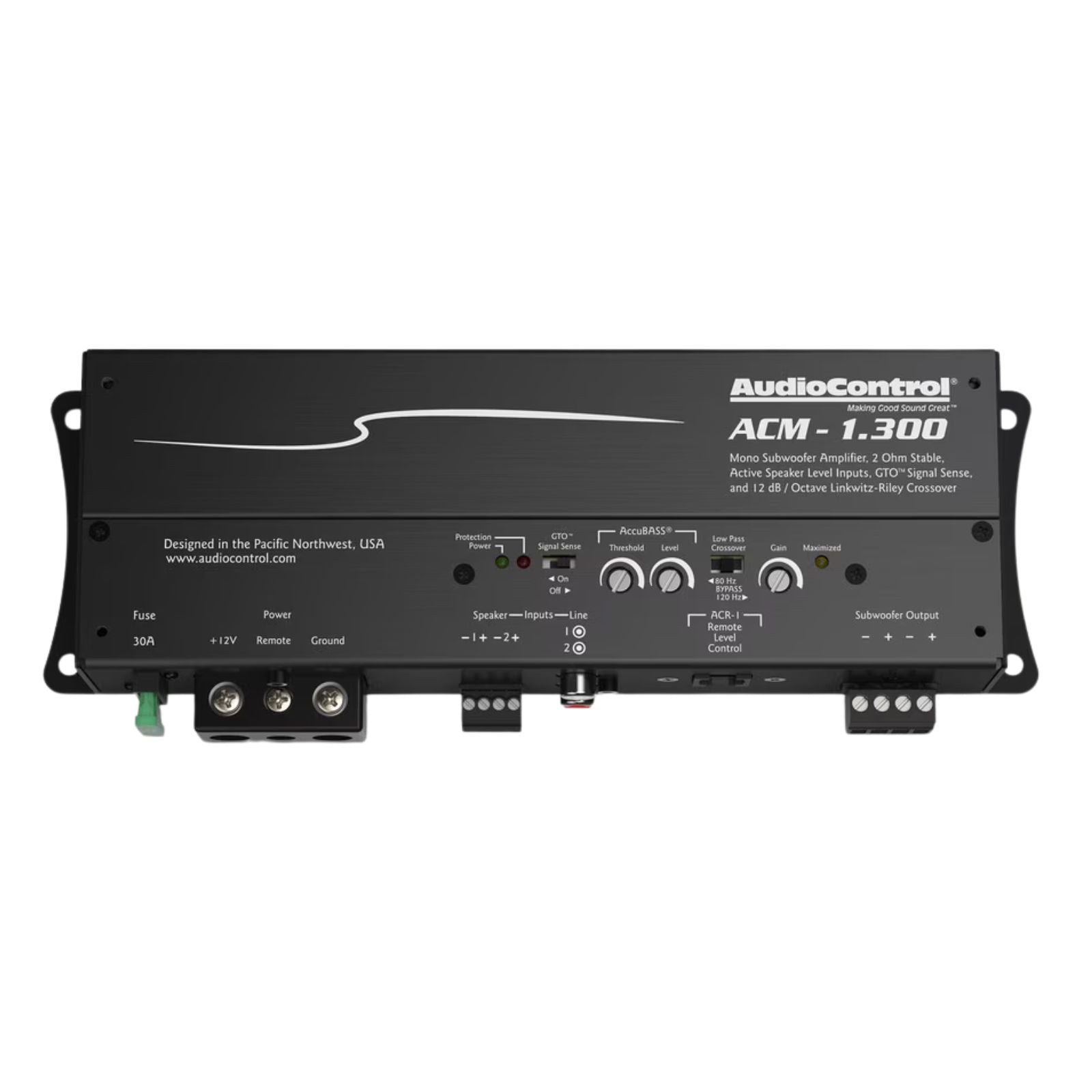

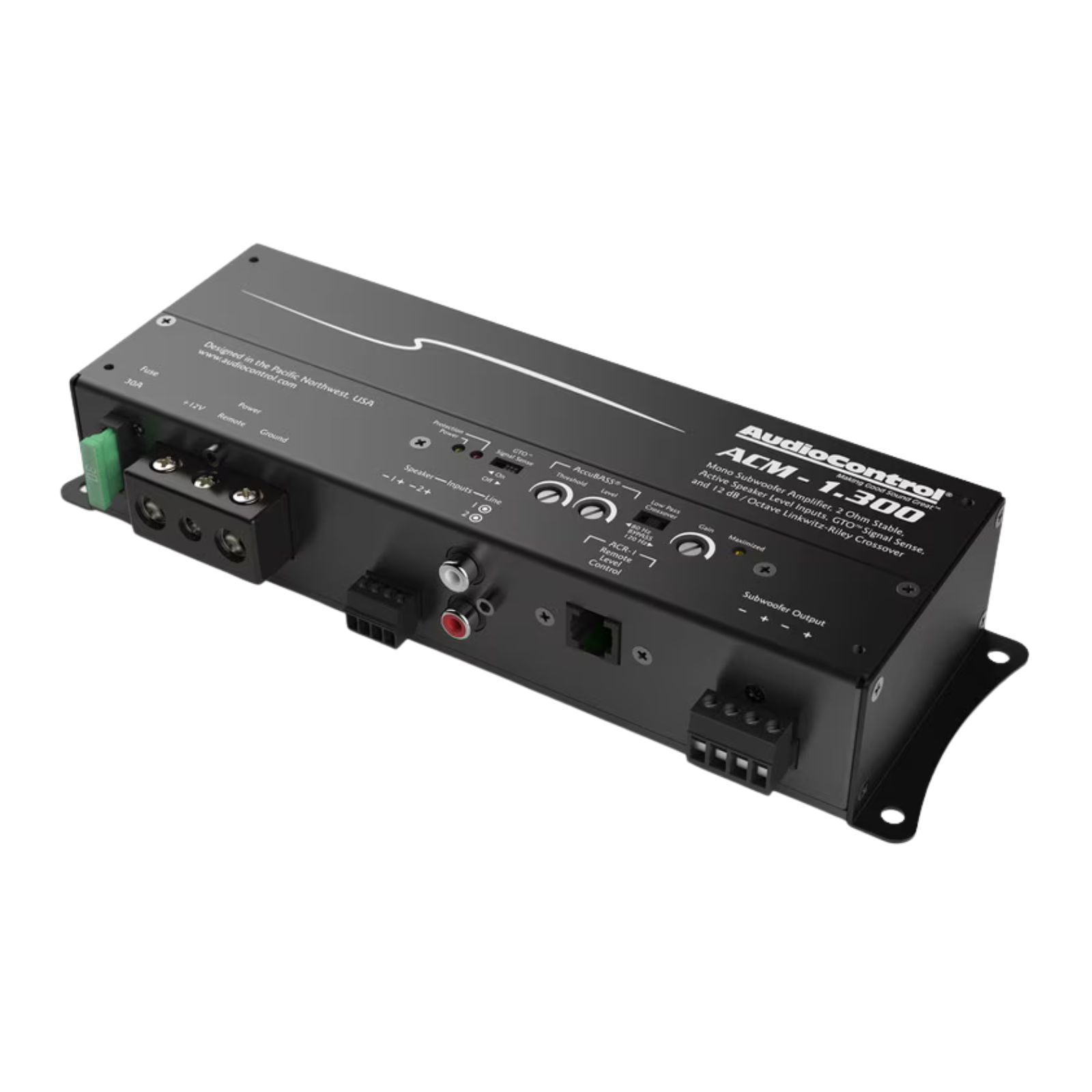

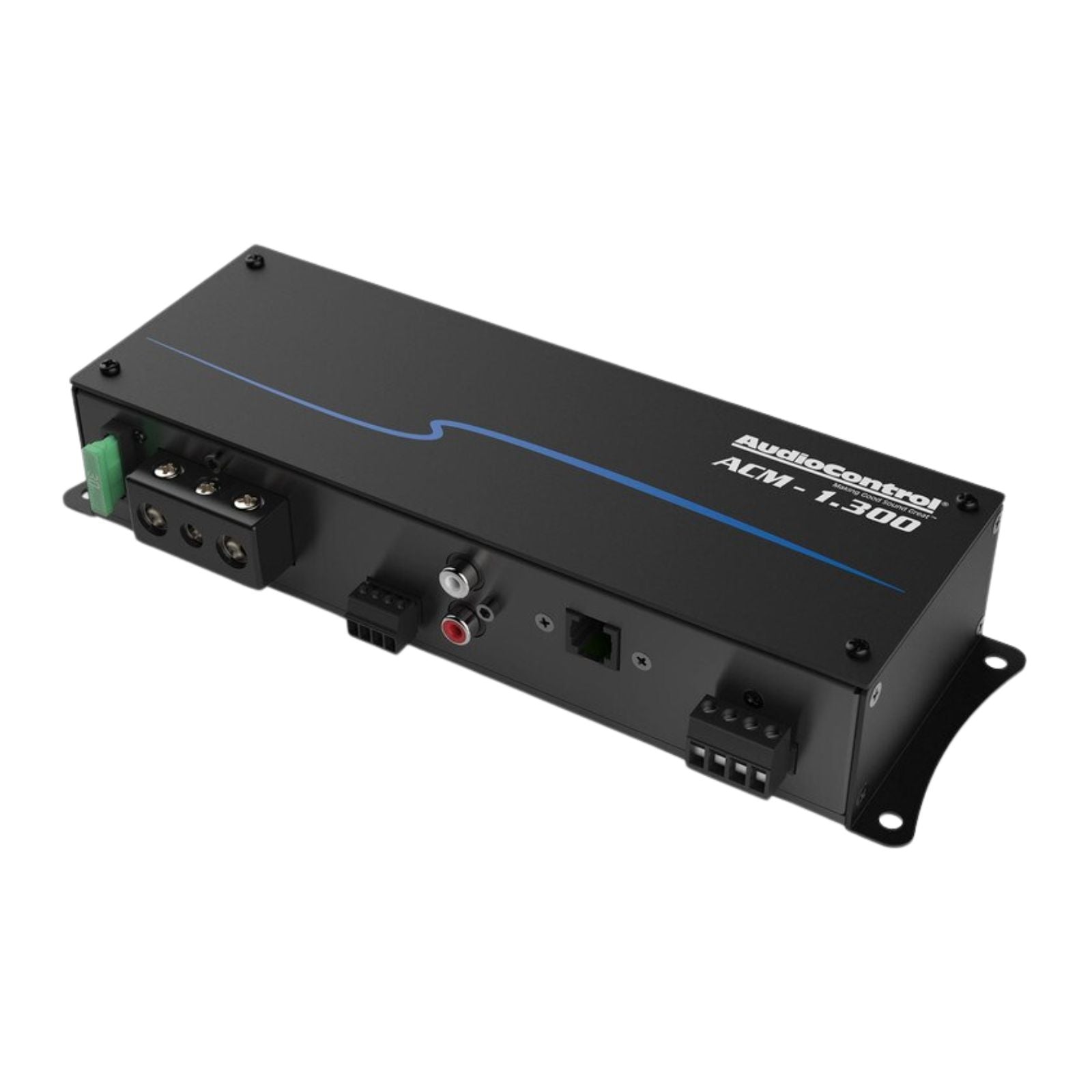

The AudioControl ACM-1.300 is a compact mono (monoblock) car amplifier delivering 300W RMS at 2 ohms or 175W RMS at 4 ohms, with built-in AccuBASS processing and active speaker-level inputs. It is part of AudioControl's ACM Series.
Bass level can be adjusted from the driver's seat with the optional ACR-1 remote level control.
Key specifications
- Power: 175W RMS at 4 ohms, 300W RMS at 2 ohms (14.4V)
- Inputs: 2 balanced preamp (500mV – 6Vrms), 2 speaker-level (3V – 40Vrms)
- Crossover: 12dB/octave Linkwitz-Riley, 80Hz, 120Hz or bypass
- Subsonic filter: 24Hz
- Frequency response: 10Hz – 22kHz
- Signal to noise: 102dBA (ref 175W at 4 ohms)
- Fuse: 1 x 30A; power/ground wire 10 to 4 AWG
- Size and weight: 9.4 x 3.0 x 1.75 in, 0.95 kg
ACM-1.300 Monoblock Micro Amplifier with AccuBASS®
ACM Series amplifiers from AudioControl combine compact dimensions with high power output and OEM integration features, making them suitable for a wide range of car audio builds. Active speaker-level inputs allow straightforward connection to factory stereos — pairing well with a line output converter such as the AudioControl LC2i if RCA outputs are preferred.
Reversible cover plates allow flexible mounting when used alongside AudioControl DM Series Processors or when fitting multiple ACM Series amplifiers in confined spaces.
Features
- 300W at 2 ohms
- 175W at 4 ohms
- AccuBASS® processing
- GTO™ Signal Sense
- Active speaker-level inputs for OEM integration
- RCA line inputs
- Linkwitz-Riley crossover
- Optional ACR-1 remote level control
- Reversible cover plate
- 5-year warranty when installed by an authorised AudioControl dealer
Explore the full range in AudioControl.
Specification
| Preamp Inputs | 2 Balanced |
|---|---|
| Preamp Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 2 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Frequency Response | 10 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 175 W @ 4 Ohm |
| THD+N | < 0.01% |
| Power / Ground Wire Gauge | 10 to 4 AWG wire |
| Fuse Rating | 1 x 30 A |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| PFM Subsonic Filter | 24 Hz |
| Dimensions | 9.4″W x 3.0″D x 1.75″H |
| Weight | 2.1 lbs. (0.95 kg) |
More specs
| |
What's Included
- ACM-1.300
- Speaker Connectors
- Fuse
- Manual
- Warranty
AudioControl
About the AudioControl ACM-1.300
From our tech experts at CEN
A monoblock subwoofer amplifier from AudioControl, in a micro chassis small enough to hide behind a panel, rated at 300w RMS.
Who it suits
Anyone adding a subwoofer that needs controlled power rather than a compact powered unit. Micro amplifiers are the answer in modern cars and vans where there is nowhere to put a full-size chassis. AudioControl built its name on signal processing, and that thinking runs through the amplifiers too.
Our tech experts advise
Matching matters more than headline watts, the gains want setting with a meter, and it needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Can the ACM-1.300 be added to a factory stereo?
A: Yes. It has active speaker-level inputs for OEM integration and GTO signal sense, so it can take its signal from a factory stereo. RCA line inputs are also provided.
Q: Can I control the bass level from the dashboard?
A: Yes, with the optional AudioControl ACR-1 remote level control, sold separately.
Q: What power wire does the ACM-1.300 need?
A: AudioControl specifies 10 to 4 AWG power and ground wire, and the amplifier uses a single 30A fuse.
