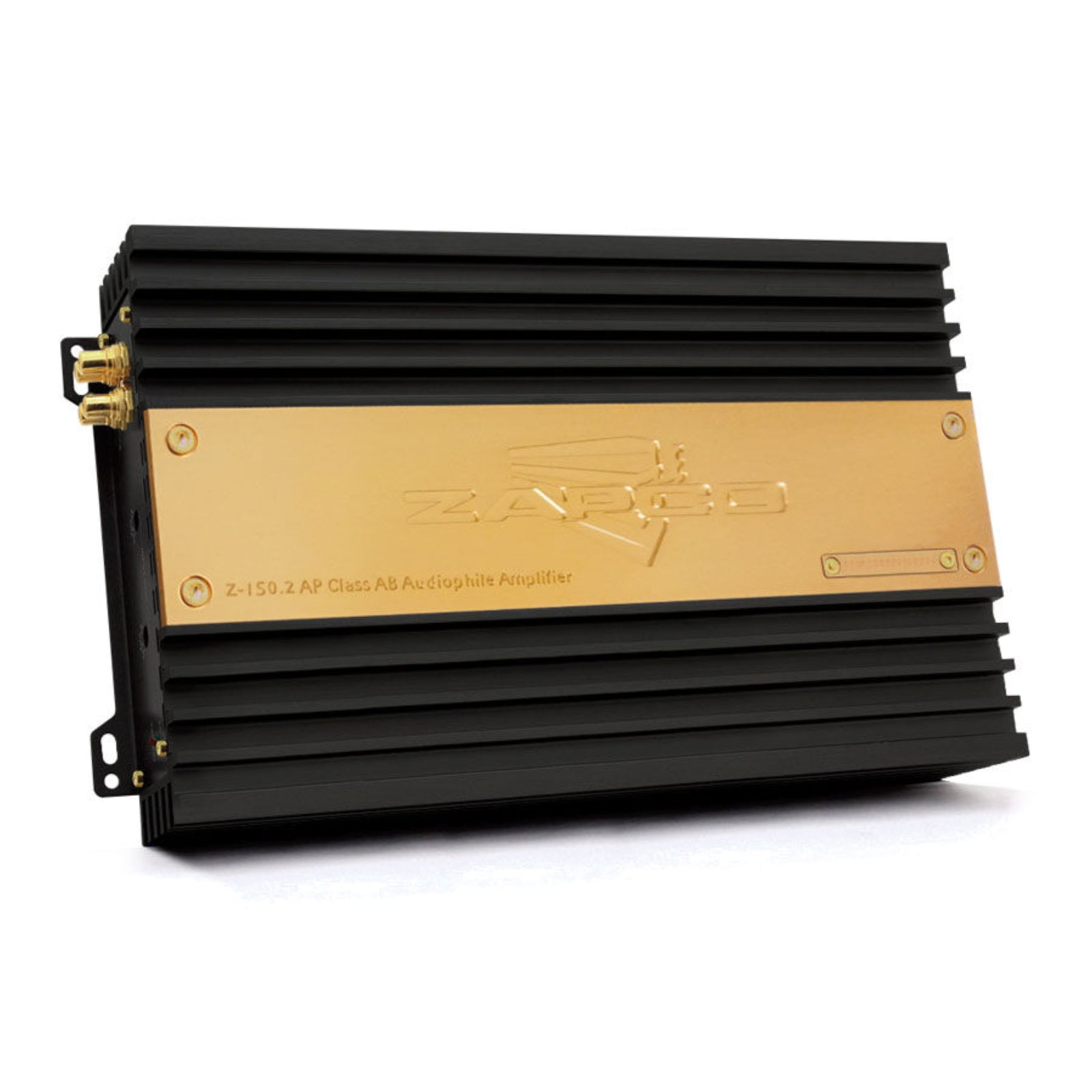

Zapco Z-150.2 AP Amp 2 Channel Class AB Bridgeable Amplifier 1000w RMS

Name: Zapco Z-150.2 AP Amp 2 Channel Class AB Bridgeable Amplifier 1000w RMS
Brand: Zapco
SKU: 92400
Price: 799.00 GBP
Availability: InStock

£799.00

Low stock

SKU: 92400MPN: Z-150.2 AP

Product variants

Part of the range · 34 productsPart of the Zapco Amplifiers range · 34 products See the range →

The Zapco Z-150.2 AP is a 2-channel Class AB competition audiophile amplifier rated at 2 x 150W at 4 ohms, bridgeable to 1 x 1000W at 2 ohms on music signal, with a signal-to-noise ratio of over 110dB. It is part of Zapco's AP (Audiophile) amplifier range.

This listing is the 2-channel version. The Zapco Z-150 AP is also available as the 4-channel Zapco Z-150.4 AP.

Key specifications

Model: Z-150.2 AP
Channels: 2, Class AB
Power @ 4 ohms: 2 x 150W
Power @ 2 ohms: 2 x 275W
Bridged @ 4 ohms: 1 x 550W
Bridged @ 2 ohms: 1 x 1000W (music signal, with proper ventilation)
Signal-to-noise ratio: >110dB
Frequency response: 10Hz – 30kHz ±1dB
Dimensions: 190 x 62 x 328 mm (W x H x L, overall)

Z-150.2 AP

2-Ch. Class AB Audiophile Amplifier

A two-channel Class AB amplifier built specifically for sound quality competition use, with competition-grade components throughout.

2-channel, Class AB competition audiophile amplifier
Signal-to-noise ratio of over 110dB
Coupled output drivers
Highest HFE (Gain) Sanken selected output devices
Differential balanced input stage
0.1% resistors for lowest possible noise floor
TI LME49720 (BJT) op-amps on the inputs
TI LME49720 (BJT) op-amps in the signal path
WIMA MKS2 series caps in the signal path
Extremely low ESR caps throughout
Proprietary patented RCA connectors

Explore the full range in 2 Channel Amplifiers.

Specification

Power @ 4Ω	2 x 150 watts
Power @ 2Ω	2 x 275 watts
Power @ 1Ω	2 x 500 watts *
Power @ 4Ω Bridged	1 x 550 watts
Power @ 2Ω Bridged	1 x 1000 watts *
Frequency Response	10Hz to 30,000Hz ±1dB
Net Dimensions (mm)	190(W) x 62(H) x 300(L)
Overall Dimensions (mm)	190(W) x 62(H) x 328(L)
More specs THD @ Rated Power < 0.1% Signal to Noise Ratio > 110dB Input Sensitivity 1v to 9v

What's Included

Zapco Z-150.2 AP

Product information

Zapco

About the Zapco Z-150.2 AP

From our tech experts at CEN

A 2-channel amplifier from Zapco, Class AB, rated at 1000w RMS.

Who it suits

Drivers building a front stage that needs each channel doing a defined job. Zapco amplifiers are bought by people who care what the power figure actually means rather than what it says on the box.

Our tech experts advise

Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Zapco Z-150.2 II Amp 2 Channel Class AB Bridgeable Amplifier 550w RMS £519.00

In stock

Zapco ST-204D SQ III 4 Channel Class D Amplifier 4x200w RMS £299.99

Low stock

Zapco ST-750D Amp Mono 1-Channel Class D Compact Subwoofer Amplifier 400w RMS £279.00

Low stock

Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier - CEN

Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier £349.00

In stock

Zapco ST-64D SQ MINI Amp 4 Channel Class D Bridgeable Mini Car Amplifier £259.00

In stock

Zapco HB 46II 4A DSP Amp 6 Channel DSP 4 Channel Class A/B Power Amplifier - CEN

Zapco HB 46 II 4A DSP Amp 6 Channel DSP 4 Channel Class A/B Power Amplifier £209.99

In stock

Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS - CEN

Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS £119.00

In stock

Zapco ST-501D SQ MINI Sub Amp 1 Channel Class D Mono Subwoofer Amplifier £259.00

In stock

Zapco HB 154D II Amp 4 Channel Class D Bridgeable Amplifier 4x150w RMS - CEN

Zapco HB 154D II Amp 4 Channel Class D Bridgeable Amplifier 4x150w RMS £249.00

In stock

Zapco ST-1B Sub Amp Mono 1 Channel Class AB Subwoofer Amplifier 200w RMS - CEN

Zapco ST-1B Sub Amp Mono 1 Channel Class AB Subwoofer Amplifier 200w RMS £119.00

In stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: Is the Z-150.2 AP stable at 1 ohm?

A: Zapco states the AP amplifiers are stable at 1 ohm, and at 2 ohms bridged, only when used with music signal and with proper ventilation. At 1 ohm it is rated at 2 x 500 watts.

Q: How much power does the Zapco Z-150.2 AP produce?

A: It is rated at 2 x 150 watts at 4 ohms, 2 x 275 watts at 2 ohms, 1 x 550 watts bridged at 4 ohms and 1 x 1000 watts bridged at 2 ohms (music signal).

Q: What components does the Z-150.2 AP use?

A: It uses selected Sanken output devices, TI LME49720 op-amps on the inputs and in the signal path, WIMA MKS2 capacitors in the signal path and 0.1% resistors.
