Zapco ASP-OE8 8 Channel OEM Speaker Level to Preamp with Bass Recovery
Couldn't Load Pickup availability
The Zapco ASP-OE8 is an 8-channel OEM speaker-level to preamp converter and line driver with Bass Recovery, part of Zapco's signal processing range. It converts factory head unit speaker outputs to a 9.5V RMS / 14V peak preamp signal, preserving signal integrity and bass response when adding an aftermarket amplifier.
Key specifications
- Channels: 8 in / 8 out
- Preamp output: 9.5V RMS / 14V peak
- Input signal summing by channel pair
- Bass Recovery for factory head units
- Signal to noise: over 110dB
- THD: under 0.01%
- Stereo separation: 90dB
- Dimensions: 119 x 39 x 214mm (245mm overall length)
8-Ch. OEM Speaker Level to Preamp with Bass Recovery
- 8-channel in / 8-channel out line driver at 9.5V RMS, 14V peak
- Input signal summing by channel pair

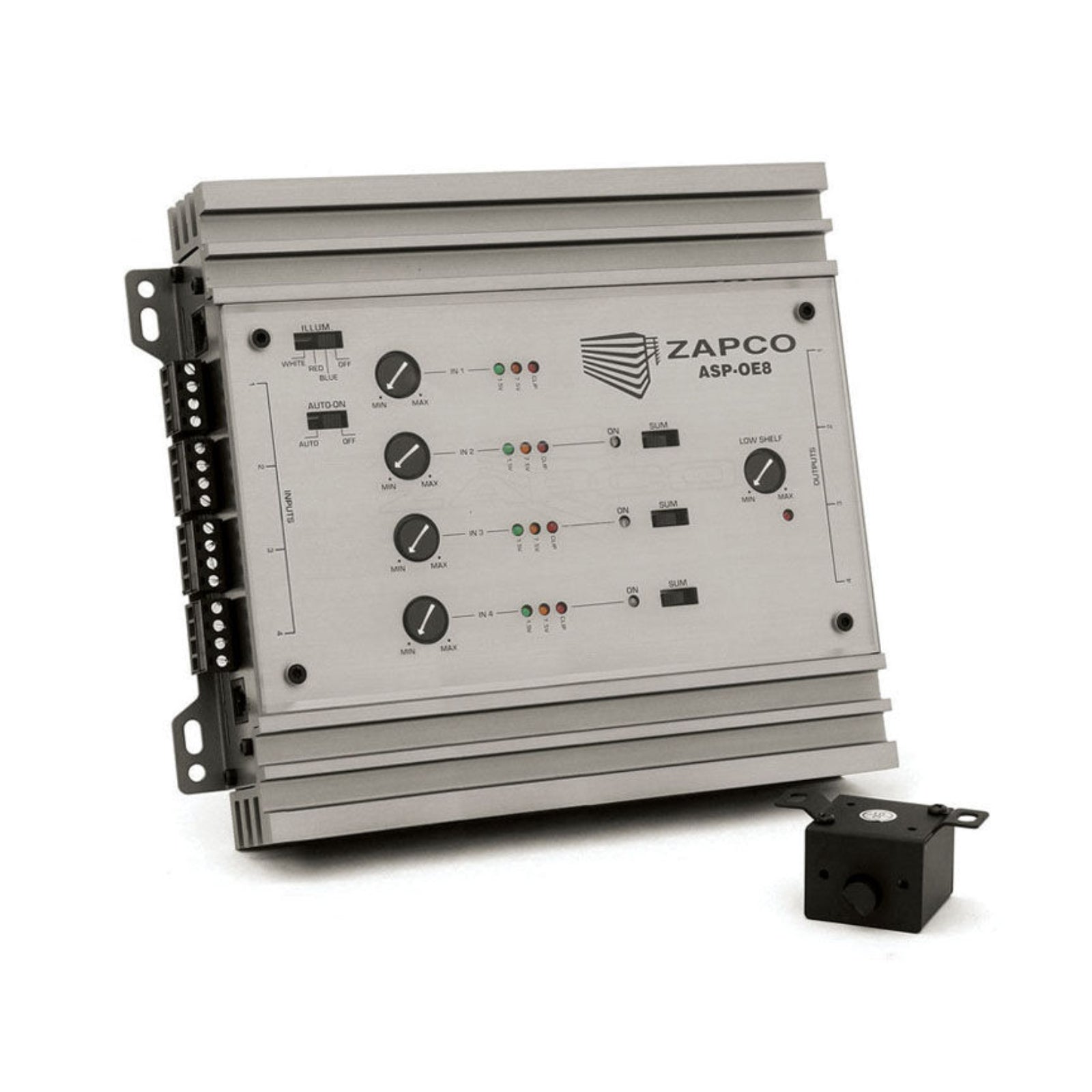

- Dash remote for volume and bass control
- Bass Recovery for factory head units
For a full digital signal processor to pair with your amplifier, Zapco also offer the Zapco DSP-Z8 IV AT 8-channel DSP with Cirrus Logic processor.
Explore the full range in Zapco DSP.
Specification
| Net Dimensions (mm) | 119(W) x 39(H) x 214(L) |
|---|---|
| Overall Dimensions (mm) | 119(W) x 39(H) x 245(L) |
More specs
| |
What's Included
- Zapco ASP-OE8
Zapco
About the Zapco ASP-OE8
From our tech experts at CEN
An OEM integration processor, converting factory speaker-level outputs into clean preamp signal for aftermarket amplification, 8 channel.
Who it suits
Drivers upgrading a modern car where the head unit cannot be replaced. These systems often split the signal across many channels and equalise it before it leaves the head unit, which is exactly what this is built to unpick.
Our tech experts advise
Factory systems vary enormously between manufacturers and model years, so we check what your vehicle actually outputs before specifying. get in touch. See car audio installation.
Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Zapco
More options from the same range, in stock and ready to go
Zapco ASP-Q2 7 Band Parametric Equalisation EQ/Crossover
£349.00
View product
Zapco ST-104D SQ MINI Amp 4 Channel Class D Bridgeable Mini Car Amplifier
£349.00
Zapco ST-A1 Amp Android Unit Class AB Amplifier Plug & Play 4x35w RMS
£109.00
Zapco HB 48 II 4A DSP Amp 8 Channel DSP 4 Channel Class A/B Power Amplifier
£249.00
Zapco ST-501D SQ MINI Sub Amp 1 Channel Class D Mono Subwoofer Amplifier
£259.00
Frequently Asked Questions
Q: What does the Zapco ASP-OE8 do?
A: It converts up to 8 channels of factory speaker-level signal into preamp (RCA) level, acting as an 8-channel in, 8-channel out line driver at 9.5V RMS (14V peak), so you can add aftermarket amplifiers to a factory head unit.
Q: Can the ASP-OE8 combine split factory signals?
A: Yes. It offers input signal summing by channel pair, and includes Bass Recovery for factory head units.
Q: Does the ASP-OE8 have a volume or bass control?
A: Yes. It has a dash remote for volume and bass control.
