RetroSound Technophonic 5 Channel Amplifier Bridgeable Amp 4x65w 1x225w RMS
Couldn't Load Pickup availability
The RetroSound Technophonic is a 5-channel Class D car amplifier delivering 65W RMS x 4 plus 225W RMS x 1 at 4 ohms (95W x 4 and 330W x 1 at 2 ohms). It powers a full classic car system with speakers and a subwoofer, and connects to a RetroSound radio or any aftermarket radio with RCA outputs.
For a smaller 4-channel option, see the RetroSound Quadraphonic amplifier.
Key specifications
- Channels: 5 (4 full-range + 1 subwoofer), Class D
- Full-range power: 65W RMS x 4 at 4 ohms, 95W RMS x 4 at 2 ohms
- Subwoofer power: 225W RMS x 1 at 4 ohms, 330W RMS x 1 at 2 ohms
- Input modes: 2, 4 or 5 channel
- Filters: HPF 40Hz - 400Hz, LPF 50Hz - 250Hz, 24dB slope
- Bass boost: 0 - 12dB at 50Hz, with remote gain control
- Signal to noise ratio: >95dB
- Fuse rating: 60-amp
- Dimensions: 330 x 134 x 47.5mm
RetroSound® Technophonic 5-channel Amplifier
The Technophonic delivers 65W RMS to all four speakers and up to 330W RMS to your subwoofer. Switch between 2, 4 or 5 channel input modes and the amplifier intelligently routes the selected inputs to all five balanced outputs.
The Technophonic is 2-ohm and 4-ohm stable and bridgeable, giving flexibility when building your system. Low-level RCA inputs connect it directly to a RetroSound radio or any aftermarket stereo with RCA outputs.
Class D digital circuitry keeps current draw low while delivering exceptional dynamic range and minimal distortion at higher volumes. High-pass and low-pass filters let you fine-tune the audio, and the remote gain control adjusts bass levels from the front seat.
- 5-channel amplifier
- Full-range Class D digital circuitry
- 65W RMS x 4 channels full-range @ 4 ohms (95W RMS x 4 @ 2 ohms)
- 225W RMS x 1 channel subwoofer @ 4 ohms (330W RMS @ 2 ohms)
- Selectable input mode switch for 2, 4 and 5 channel operation
- Bridgeable
- 2-ohm and 4-ohm stable
- Built-in variable low-pass and high-pass full-range filters
- Bass boost (0–12dB) and remote gain control
- Advanced protection circuitry
- Connects via RCA inputs to RetroSound radios or any aftermarket radio with low-level RCA outputs
- Dimensions: 12.9 in x 5.3 in x 1.87 in (33 cm x 13.4 cm x 4.75 cm)
- Fuse rating: 60-amp
Explore the full range in RetroSound Accessories.
Specification
| Dimensions | (inches) 12.9” W x 5.3” D x 1.87” H |
|---|---|
| Dimensions | (cm) 33 cm x 13.4 cm x 4.75 cm |
More specs
| |
What's Included
- Technophonic Amp
- Remote Gain Control
- Screws
RetroSound
About the RetroSound Technophonic
From our tech experts at CEN

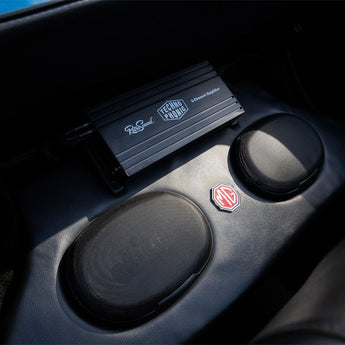

A compact amplifier suited to classic car installs, where space is tight and the original wiring was never designed for modern power.
Who it suits
Classic owners adding proper amplification behind a period-style radio, which is usually what turns a nice-looking install into one that sounds good too.
Our tech experts advise
In older cars the charging system, earths and wiring want checking before adding load. We do that as part of the job rather than discovering it later. get in touch. See car audio installation.
Explore the full RetroSound range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all RetroSound
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
RetroSound News & Guides
The latest RetroSound product news, launches and guides from the CEN team in Nottingham.
RetroSound Motor 4: DAB and Bluetooth for Classic Cars, Without the Modern Look
RetroSound's new Motor 4 stereos have arrived at CEN, and they solve the classic car owner's dilemma: modern sound and...
Bringing Back the Vintage Vibe: Discover RetroSound's Classic Car Audio Solutions
Classic cars deserve to sound as good as they look. The trouble is, modern head units look completely wrong in...
Compare - RetroSound® Radio Motors Feature Sets
Choose a Radio Motor to select the radio features that matter most for your classic vehicle.
Motor 1
- Built-in Bluetooth®
- Power Output 4×18w RMS
- Fixed White Display
- Auxiliary Inputs
- 1 Year Warranty
Motor 1 DAB
- Built-in Bluetooth®
- Built-in DAB/DAB+ Tuner
- Power Output 4×18w RMS
- Fixed White Display
- Auxiliary Inputs
- 1 Year Warranty
Motor 2
- Built-in Bluetooth®
- Power Output 4x25w RMS
- Adjustable Colour display
- 2.1A Charging via USB
- USB Port
- Dual RCA pre-outs
- Dedicated subwoofer output
- 1 Year Warranty
Motor 6
- Built-in Bluetooth®
- Built-in DAB/DAB+ Tuner
- Power Output 4×25w RMS
- Adjustable Colour Display
- Two USB Ports
- 2.1A Charging via USB
- Auxiliary Inputs
- Dual RCA pre-outs
- Dedicated subwoofer output
- 2 Year Warranty
More from RetroSound Accessories
More options from the same range, in stock and ready to go
Highly Rated RetroSound Quadraphonic 4 Channel Amplifier Full Range Class D Amp 4x45w RMS £199.99 /In stock
Popular RetroSound Radio Replacement Wiring Harnesses Main Radio Power and Speaker Loom £29.99 /Low stock
Popular RetroSound Chrome Panel & Dash Mount USB-A & USB-C Extension Harness 1.3m Cable £29.99 /Low stock
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How many channels does the RetroSound Technophonic have?
A: Five: four full-range channels at 65 watts RMS each (4 ohms) and one subwoofer channel at 225 watts RMS (4 ohms).
Q: Can the Technophonic be used with a 2-channel radio?
A: Yes. The input mode switch selects 2, 4 or 5 channel operation, and the amplifier routes the selected inputs to all five outputs.
Q: What fuse does the Technophonic need?
A: It uses two 30 amp ATC fuses on the amplifier, and an additional 60 amp fuse (not included) must be fitted on the battery positive wire as close to the battery as possible.
