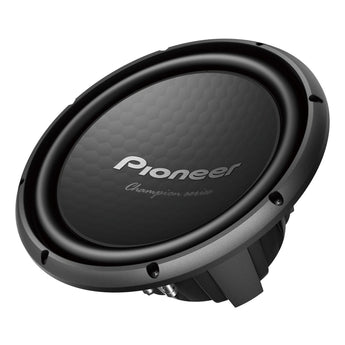

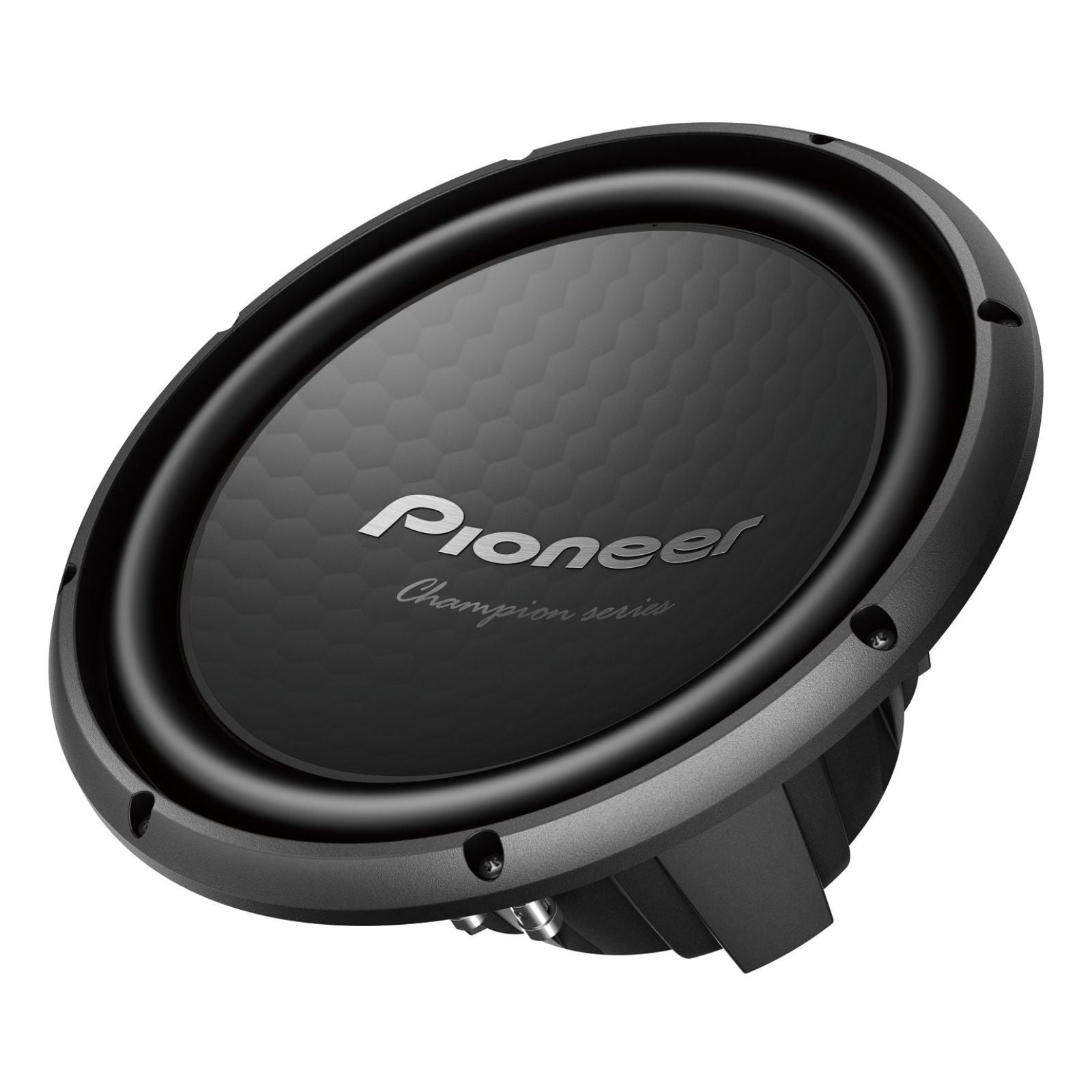

Pioneer TS-W32S4 12 Inch Single Voice Coil Subwoofer 400w
Couldn't Load Pickup availability

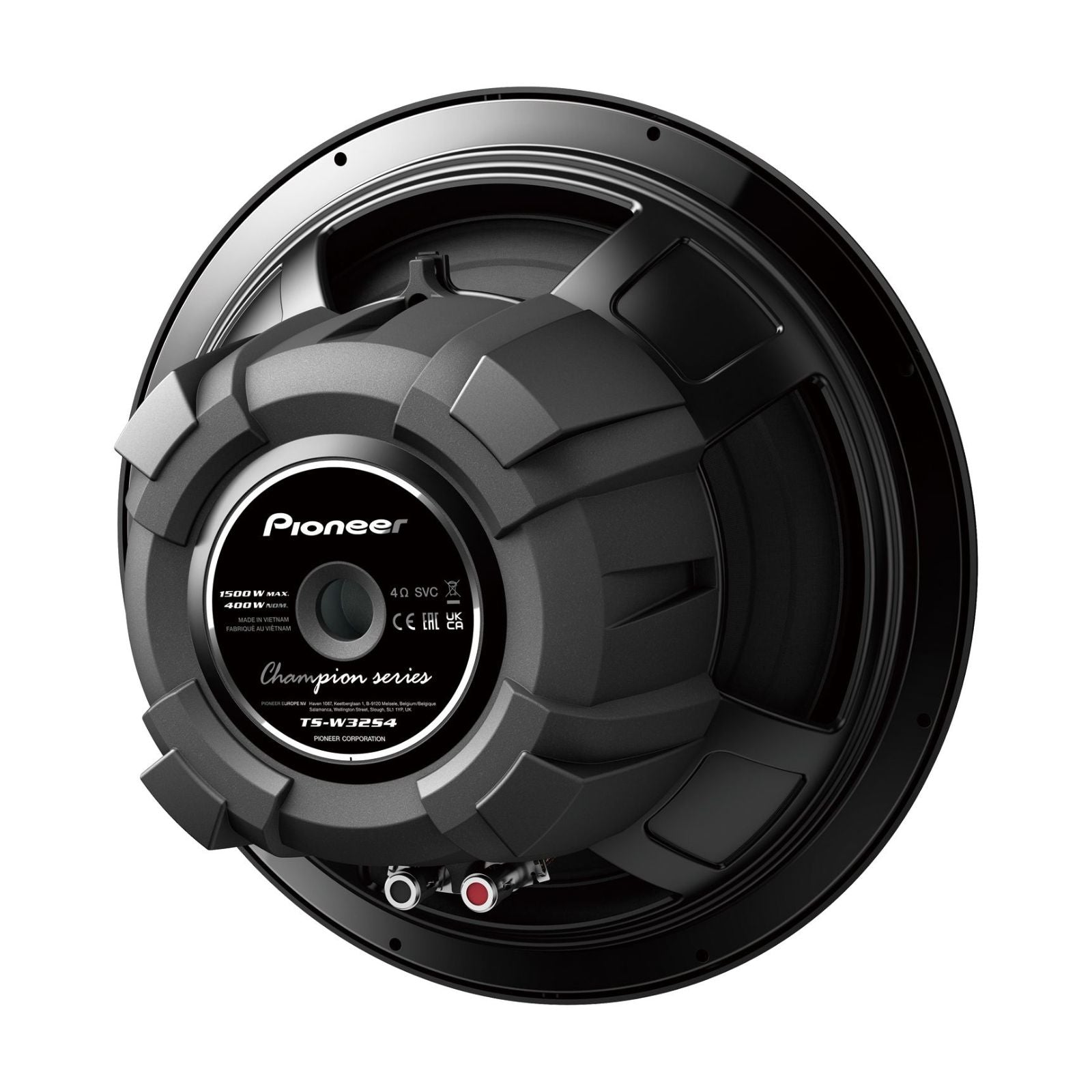

The Pioneer TS-W32S4 is a 30cm (12-inch) Champion Series single voice coil 4Ω component subwoofer, rated at 400W nominal and 1500W maximum, designed for enclosure installs.
This listing is the single voice coil version. The TS-W32S4 is also available as the Pioneer TS-W32D4 dual 4Ω voice coil version with the same power ratings.
Key specifications
- Size: 30cm (12 inch)
- Voice coil: single 4Ω
- Power: 400W nominal, 1500W maximum
- Frequency response: 22Hz – 1,600Hz
- Sensitivity: 90dB
- Recommended enclosure: 1.25 ft³ / 35.4 litres
- Cut-out hole: 281mm
- Mounting depth: 146mm
Champion Series subwoofer
The TS-W32S4 uses a light, rigid seamless cone for strong bass output, high power handling, and reliable performance at high sound pressure levels.
Strong sound
Champion Series subwoofers are built to handle heavy loads at high volumes without compromising sound quality. Compact and solid, they suit a wide range of enclosure installs.

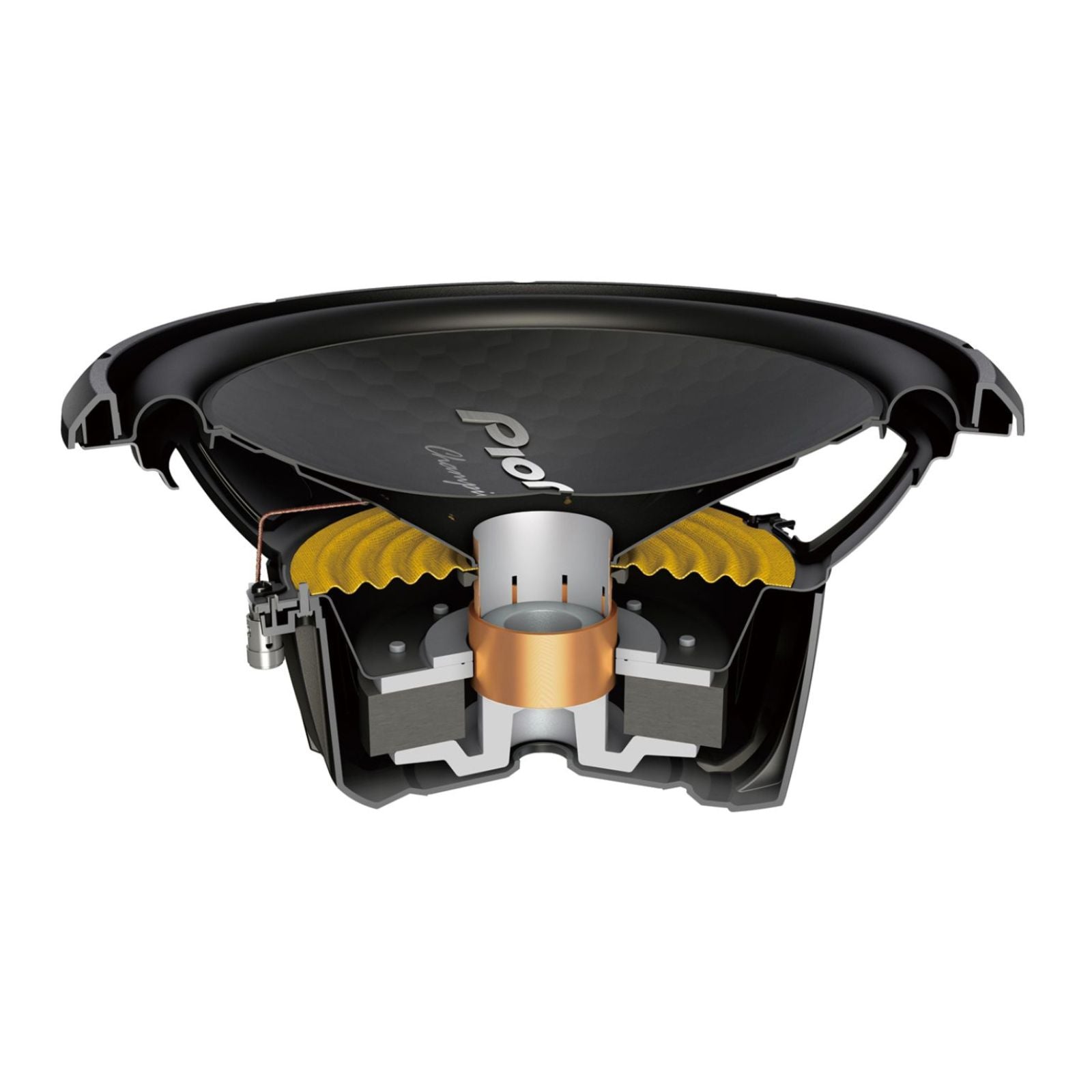

IMPP membrane
The IMPP membrane adds strength and rigidity to the cone, optimising bass response and long-term durability.
Explore the full range in Pioneer Subwoofers.
Specification
| Series | Champion Series |
|---|---|
| Diameter Size | 30 cm |
| Maximum input power | 1500W |
| Nominal input power | 400 W |
| Frequency response | 22 Hz - 1600 Hz |
| Sensitivity | 90 dB |
| Impedance | 4 Ω |
| Dimensions | 318 mm x 163 mm |
| Magnets | Ferrite |
| Woofer material | IMPP™ |
| Cut-out Hole | 281 mm |
| Mounting Depth | 146 mm |
| Recommended Enclosure (ft³/litre) | 1.25 / 35.4 |
| Speaker Grill | Not Included |
| Weight | 3.76 kg |
| Subwoofer Type | Component Subwoofer |
What's Included
- Pioneer TS-W32S4
Pioneer
About the Pioneer TS-W32S4
From our tech experts at CEN
A 12 inch subwoofer.
Who it suits
Drivers adding low end to a system, with an enclosure sized to suit the driver.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it. We build enclosures and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Pioneer News & Guides
The latest Pioneer product news, launches and guides from the CEN team in Nottingham.
Apple CarPlay Stereo Buying Guide: Single DIN, Double DIN, Wired vs Wireless
The short answer: almost any car with a standard stereo aperture can have wireless Apple CarPlay and Android Auto for...
Embrace the Past with the Pioneer SXT-C10PS Retro Style Car Radio
In the ever-evolving world of car audio, there's a growing appreciation for the timeless charm of classic designs. The Pioneer...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Pioneer Subwoofers
More options from the same range, in stock and ready to go
Save 11% Popular Pioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub RRP£179.00£159.00 / Save 11%In stock
Save 34% Popular Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS RRP£319.00£209.99 / Save 34%In stock
Save 9% Best Seller Pioneer TS-WX400DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub RRP£219.99£199.99 / Save 9%In stock
Best Seller Pioneer TS-WX300A Sub Active Powered 12" Subwoofer Built in Amplifier 350w RMS £199.00 /In stock
Save 12% Best Seller Pioneer TS-D10D4 Sub D Series 10" 25cm Dual 4ohm Voice Coil Subwoofer 500w RMS RRP£169.00£149.00 / Save 12%In stock
Save 12% Best Seller Pioneer TS-A300D4 Sub 12" 30cm Dual Voice Coil Subwoofer 500w RMS RRP£90.00£79.00 / Save 12%Low stock
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the Pioneer TS-W32S4 dual or single voice coil?
A: It is a single voice coil subwoofer with a 4 ohm impedance.
Q: What cut-out and mounting depth does the TS-W32S4 need?
A: It needs a 281mm cut-out hole and 146mm of mounting depth. A grille is not included.
