Pioneer SPH-EVO109DAB Car Stereo Apple CarPlay Dolby Atmos 10.1 Inch Screen
Couldn't Load Pickup availability

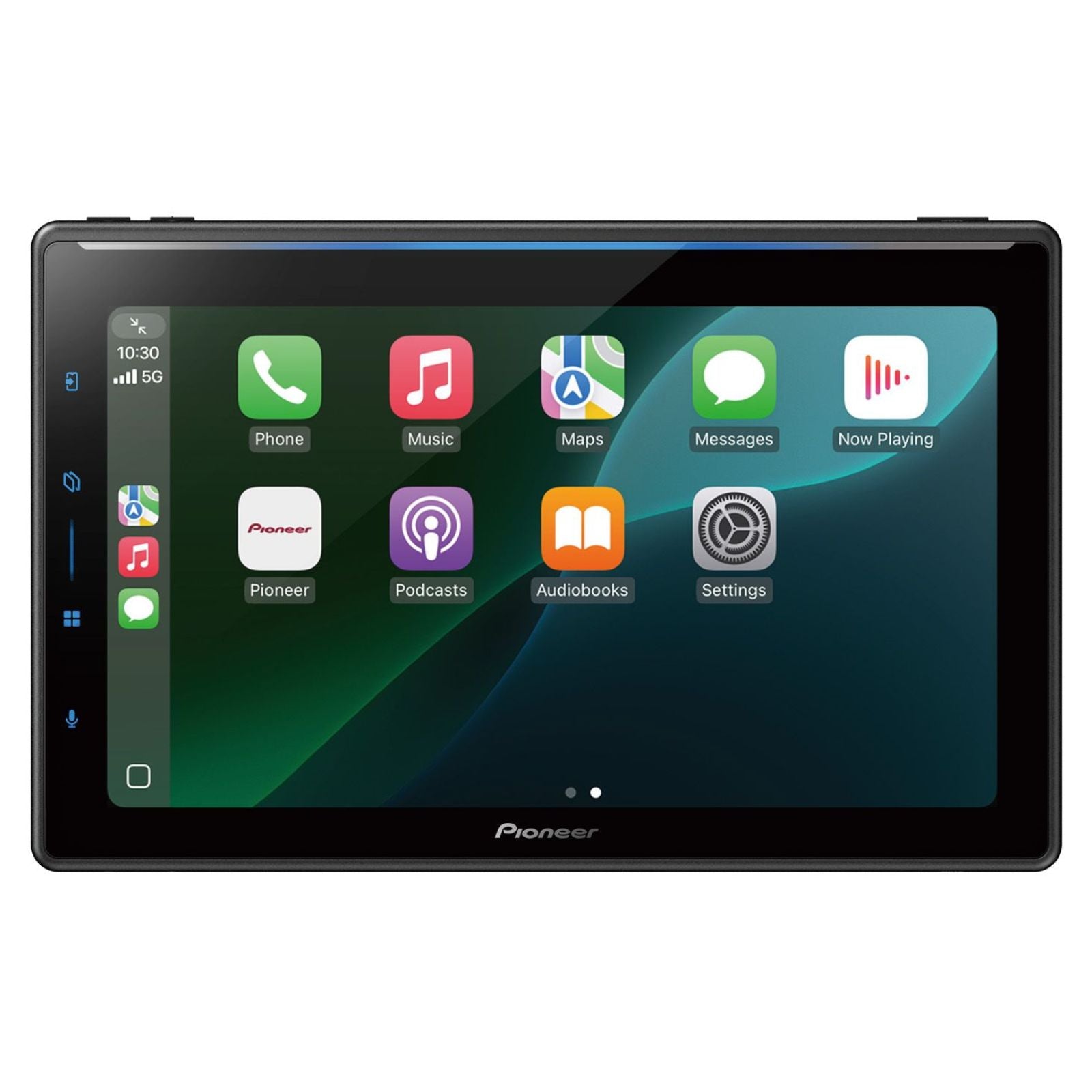

The Pioneer SPH-EVO109DAB is a 10.1-inch modular car stereo with wireless and wired Apple CarPlay and Android Auto, Wi-Fi, DAB+ digital radio, Bluetooth, and Dolby Atmos playback support. It belongs to Pioneer's SPH-EVO range and features flexible floating or separate screen installation to suit a wide range of vehicles.
Key specifications
- Screen: 10.1" capacitive touchscreen

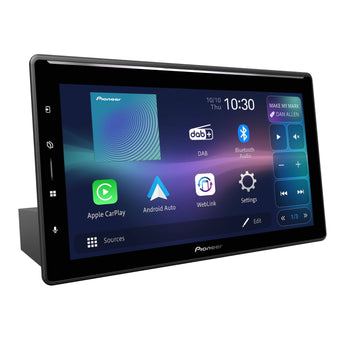

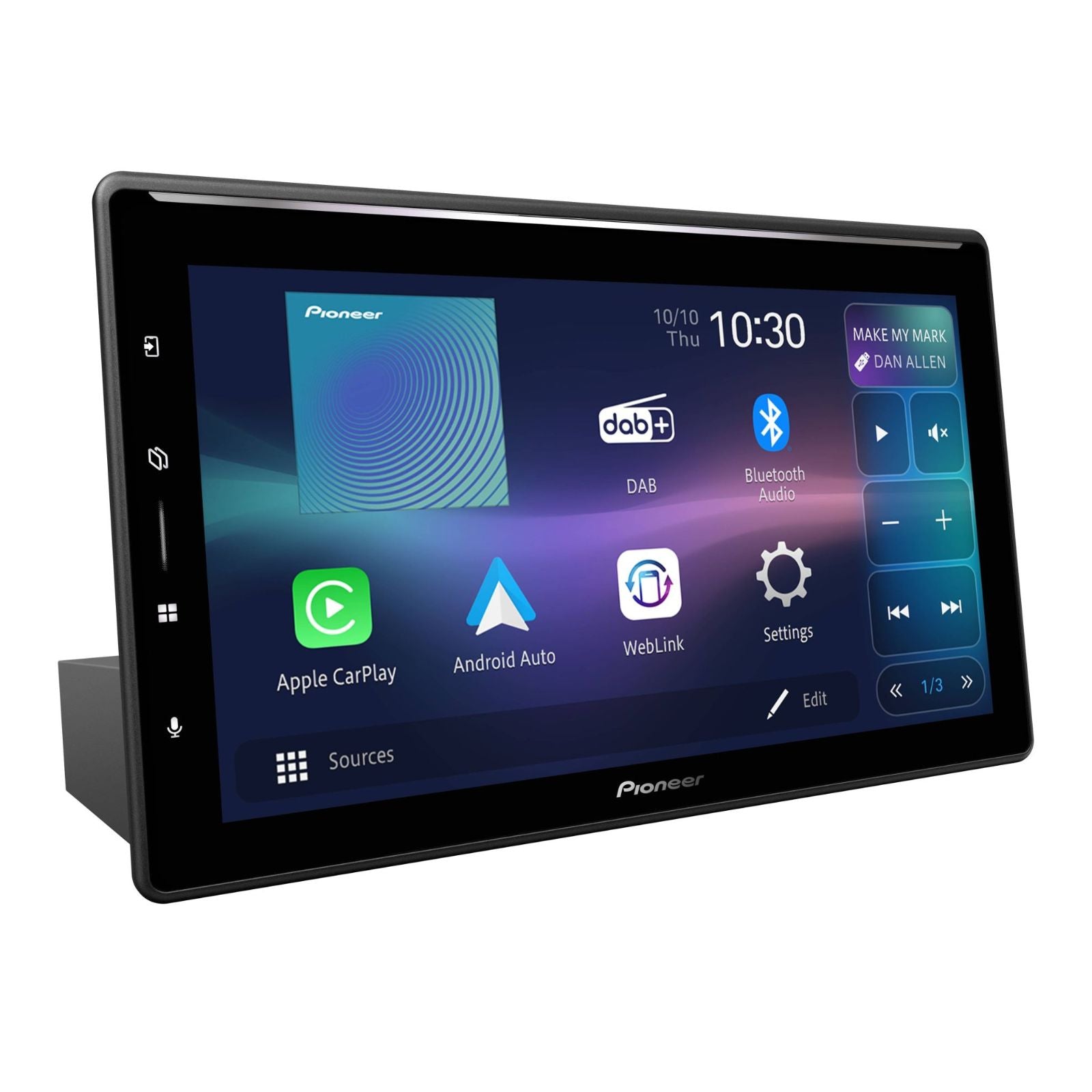

- Installation: modular — floating or separate screen mounting
- Apple CarPlay: wireless and wired
- Android Auto: wireless and wired
- Audio: Dolby Atmos (via Apple CarPlay), Spatial Audio
- Radio: built-in DAB+ and RDS FM (DAB antenna optional)
- Sound processing: 13-band graphic EQ, Advanced Sound Retriever
- Inputs: 2 camera inputs, rear AV aux-in
- Outputs: 3 RCA pre-outs (front, rear and subwoofer)
- Connectivity: Wi-Fi, Bluetooth
- FLAC playback supported
- Vehicle Bus support (optional adapter required)
- Luminous bar turn guidance feature
About the Pioneer SPH-EVO109DAB

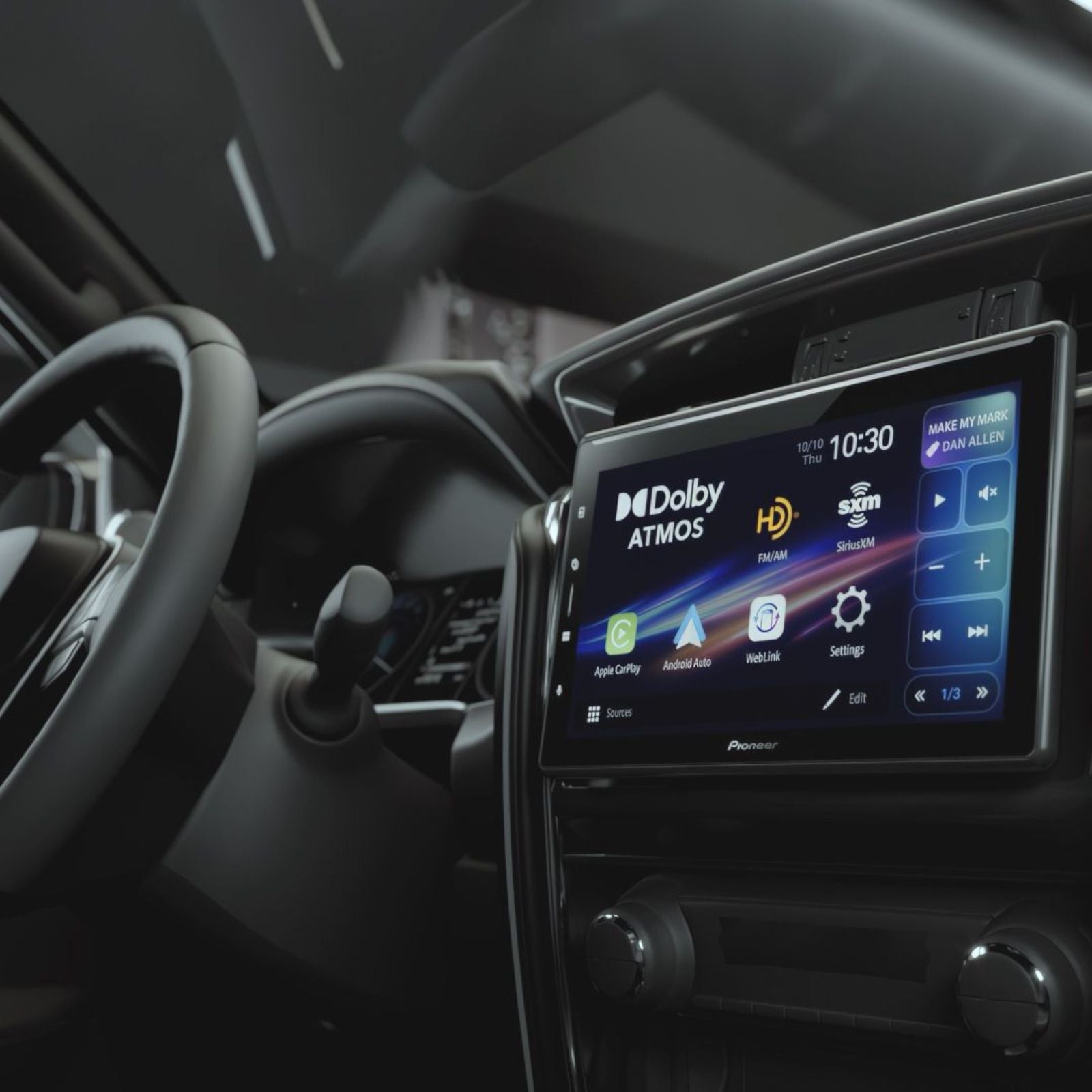

The 10.1" Wi-Fi-enabled SPH-EVO109DAB fits a wide range of vehicles thanks to its flexible floating or separate screen installation options. It supports Dolby Atmos playback in Apple CarPlay and Spatial Audio through compatible Apple CarPlay and Android Auto apps. Core features include wireless and wired Apple CarPlay, wireless and wired Android Auto, DAB+ digital radio, Bluetooth, and a Luminous bar that provides sensory light, sound and turn guidance.
Vehicle Bus: connecting the optional Pioneer Vehicle Bus adapter lets you retain and operate vehicle functions — including vehicle information, gauges, climate control and parking assist — directly on the Pioneer display.
Wi-Fi: the built-in Wi-Fi is designed specifically to support a cable-free connection between your smartphone and the receiver.
Apple CarPlay: a smarter, safer way to use your iPhone in the car. Get directions, make calls, send and receive messages and listen to music while staying focused on the road. If you need wireless CarPlay from a more compact unit, the Pioneer SPH-DA77DAB is also worth considering.

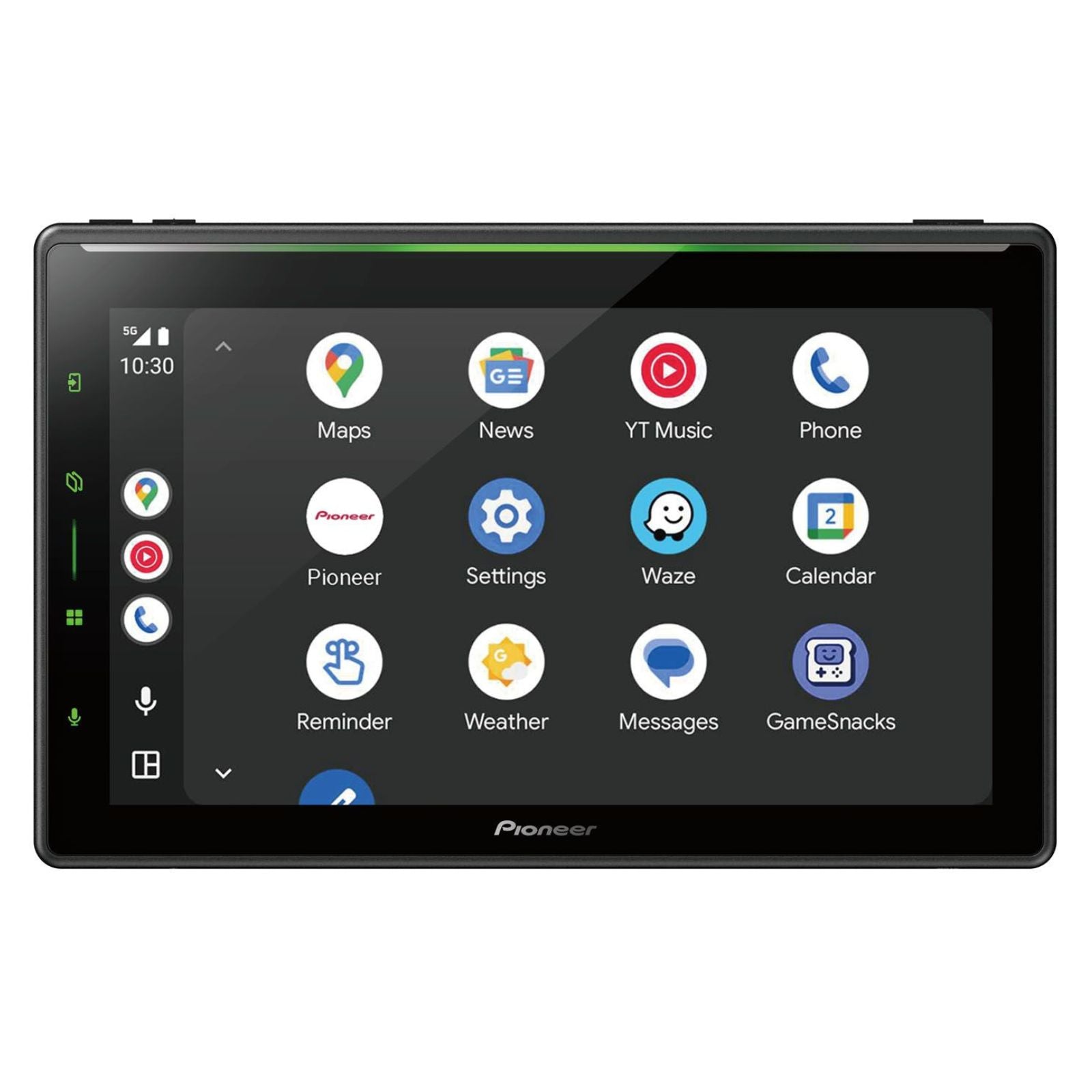

Android Auto: brings useful information organised into simple cards that appear when needed, designed to minimise distraction.
DAB+: the built-in digital radio tuner delivers crystal-clear digital audio quality. The SPH-EVO109DAB is Digital Radio Tick Mark approved, meaning it has been independently tested and verified against the minimum specification.
Bluetooth: built-in Bluetooth provides hands-free calling and audio streaming.
Capacitive touchscreen: supports responsive multi-touch gestures including pinch-to-zoom, swipe and scroll.
FLAC: play FLAC lossless audio files at CD quality directly in your vehicle, with no conversion required.
13-band graphic EQ: adjust acoustic settings in fine detail to suit your preferences.
Modular design: the screen panel can be installed separately from the main unit, ideal for vehicles with limited dashboard space.
Aux-in: plug in a compatible device for straightforward audio playback.
Advanced Sound Retriever: restores high-quality sound from compressed digital audio files and Bluetooth audio streams.
Explore the full range in Single Din CarPlay Stereos.
Specification
| Screen | Size 10.1 inch |
|---|---|
| LCD Screen Type | Capacitive Touchscreen |
| Apple CarPlay® Connection | Wireless / wired |
| Android Auto™ Connection | Wireless / wired |
| DAB Antenna | Optional CA-AN-DAB.001 (Sold separately) |
| Graphic Equaliser | 13-Band |
| Camera Input | 2 |
| RCA AV Input | 0 |
| RCA Pre Outs | 3. (Front, rear and subwoofer) |
| Aux-in | 1 Rear AV Aux-In |
| Rear View Camera | Optional ND-BC9 (Sold Separately) |
| Steering Wheel Control | Supported |
| GPS | antenna (included) |
More specs
| |
What's Included
- Pioneer SPH-EVO109DAB
- External Bluetooth microphone
- GPS antenna
- USB extension cable
Pioneer
About the Pioneer SPH-EVO109DAB
From our tech experts at CEN
The Pioneer SPH-EVO109DAB is a 10.1-inch mechafree car stereo with wireless and wired Apple CarPlay, Android Auto, built-in DAB+ radio, Bluetooth, and Dolby Atmos playback support via Apple CarPlay. Its modular design allows the screen to be fitted separately from the main unit, making it suitable for vehicles with limited dashboard space. Built-in Wi-Fi enables a cable-free smartphone connection to the receiver.
Who it suits
This suits drivers wanting a large touchscreen upgrade with wireless smartphone integration and Dolby Atmos audio. The separate screen mounting option makes it practical for vehicles where a standard double-DIN fit is not possible. Those preferring a smaller CarPlay unit could consider the Pioneer SPH-DA250DAB.
Our tech experts advise
The DAB antenna (CA-AN-DAB.001) is sold separately. A Vehicle Bus adapter is required to retain vehicle functions — such as climate control and parking assist — on the Pioneer display. Two camera inputs are included; an optional rear-view camera (ND-BC9) can be added. Installation is priced per vehicle; see our car audio installation page for details.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing

Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Frequently Asked Questions
Q: Will this stereo fit my car?
A: Most vehicles need a fascia panel, wiring harness and sometimes a steering wheel control interface to fit a new stereo. Contact CEN with your make, model and year and we will confirm the exact installation kit needed, or browse our Connects 2 installation kits.
Q: Will I keep my steering wheel controls?
A: Yes, in almost all cases. A steering wheel control interface retains your existing buttons with the new stereo. Parts are sold separately.
Q: Does this stereo support Apple CarPlay or Android Auto?
A: Check the Specification tab, which lists smartphone connectivity for each model including whether CarPlay and Android Auto are wired or wireless on that unit.
Q: What is the difference between single DIN and double DIN?
A: DIN refers to the chassis size. Single DIN units are the traditional slim format, while double DIN units are twice the height and typically carry a touchscreen. Your vehicle's dash aperture and fascia kit determine which fits.
Q: Can CEN supply and fit the stereo?
A: Yes. CEN offers professional supply and installation from our Nottingham premises, including fascia, wiring and steering control integration. Contact us for a fitted price.
Q: Does the SPH-EVO109DAB have wireless Apple CarPlay and Android Auto?
A: Yes. Apple CarPlay and Android Auto both work wirelessly or wired.
Q: What size is the SPH-EVO109DAB screen?
A: It has a 10.1 inch capacitive touchscreen. The screen panel can be installed separately from the main unit, which helps in cars with limited dashboard space.
Q: What is in the box with the SPH-EVO109DAB?
A: The Pioneer SPH-EVO109DAB, an external Bluetooth microphone, a GPS antenna and a USB extension cable. The DAB antenna (CA-AN-DAB.001) and ND-BC9 rear view camera are optional and sold separately.
