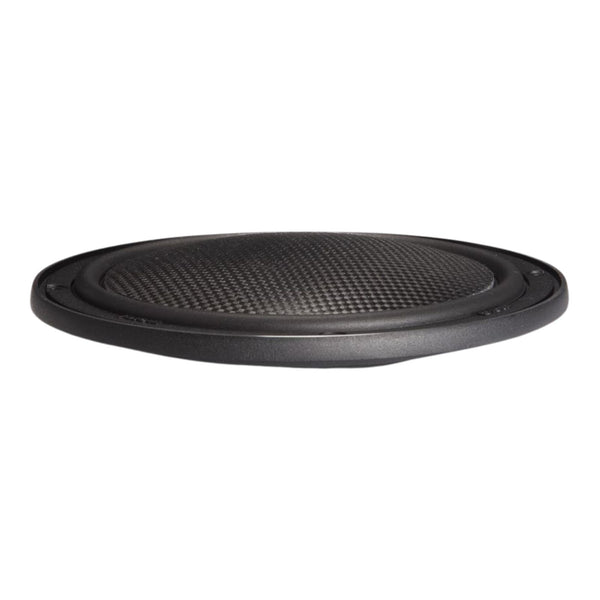

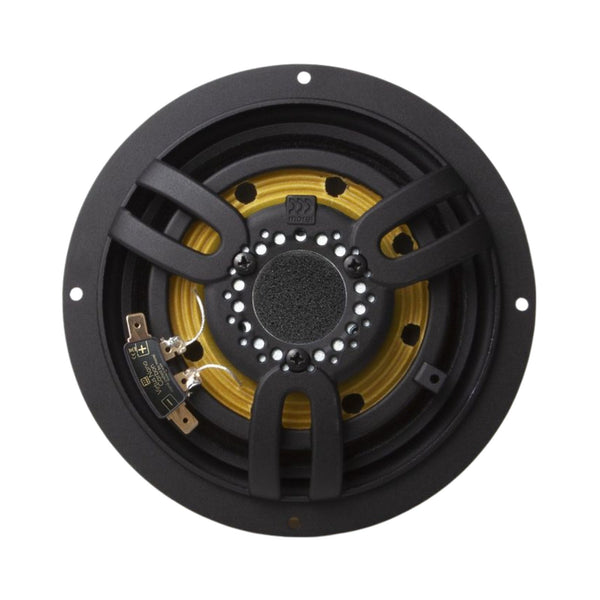

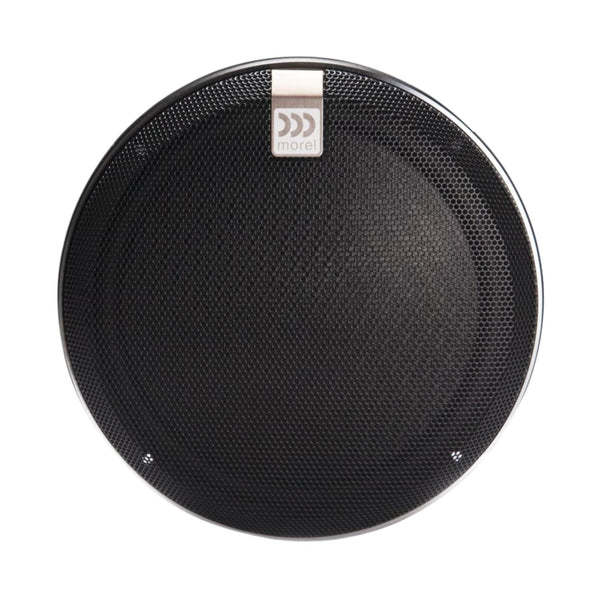

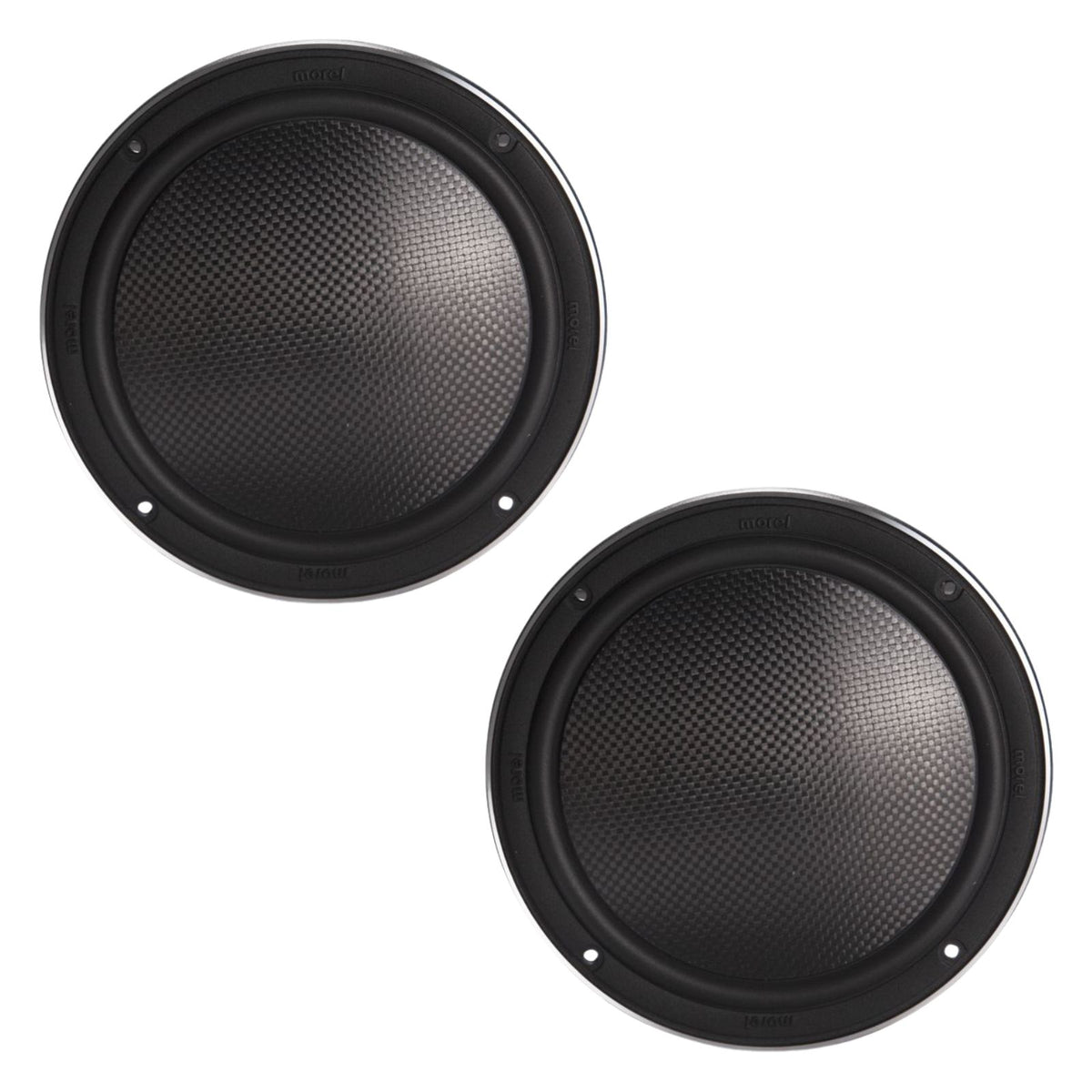

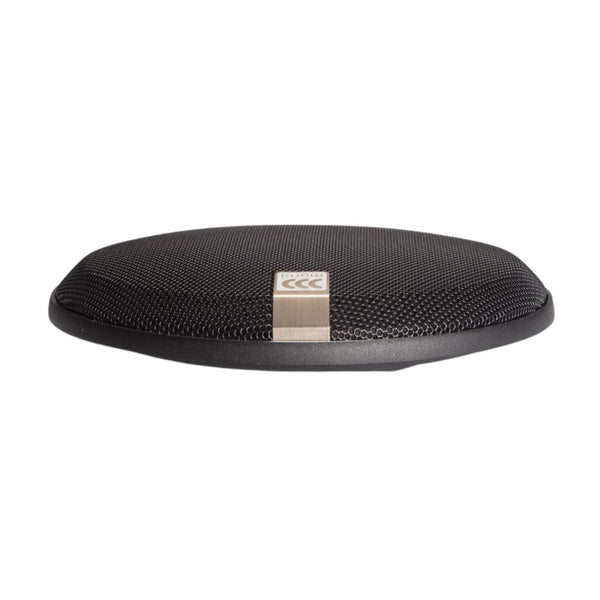

Morel Virtus Nano Carbon MW6 6.5 Inch Woofers 140w RMS
Couldn't Load Pickup availability
The Morel Virtus Nano Carbon MW6 is a pair of 6.5 inch carbon cone woofers rated at 140W RMS, with a mounting depth of only 17mm. They are part of the Morel Virtus Nano Carbon range, designed for component systems in vehicles where standard woofers are too deep.
For a smaller 4 inch woofer from the same range, see the Morel Virtus Nano Carbon MW4.
Key specifications
- Size: 6.5 inch
- Power handling: 140W RMS, 300W max transient
- Impedance: 4 ohm
- Frequency response: 50Hz to 5.5kHz
- Mounting depth: 17mm (0.7 inch)
- Mounting cutout: 137mm
- Voice coil: 54mm Hexatech aluminium wire
- Supplied as: pair
Morel Virtus Nano Carbon MW6 Woofer
Morel developed the Virtus Nano series to push acoustic and mechanical boundaries and offer practical solutions for car audio installations. The range covers two-way and three-way component and point source systems. The Virtus Nano Integra uses Morel's Integra design concept alongside Nano technology to deliver a point source solution, balancing tonality and sound dispersion in a compact form factor.
Features
Carbon Fibre Cone
Derived from the drivers used in Morel's award-winning Fat Lady speaker system, the cone comprises two exterior carbon fibre skins sandwiching a layer of Rohacell — a high-strength, lightweight foam. The result is a cone that is light, stiff and well damped for natural, uncoloured audio reproduction.
Grand Dome Geometry
Grand Dome Geometry membrane technology uses a stiff, convex cone design to provide strong off-axis performance, allowing flexible speaker placement within the vehicle. The well-damped cone delivers excellent mid-bass frequencies.
Explore the full range in Morel Virtus.
Specification
| Nominal Impedance (ohm) | 4 |
|---|---|
| Power Handling | Wrms 140 |
| Max. Trans. Pwr Handling Wrms | 300 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency response | Hz 50 - 5500 |
| Resonant Freq. Fs Hz | 68 |
| Voice Coil | Diameter mm (inch) 54 (2.16) |
| Voice Coil | Height mm (inch) 9.5 (0.4) |
| Voice Coil | Type/Former Aluminium |
| Voice Coil | Wire Hexatech™ Aluminium |
| DC Resistance (ohm) | 3 |
| Voice Coil | Induct. @1 kHz (mH) 0.17 |
| Magnet | System Neodymium Vented |
| HE-Magnetic Gap Height mm (inch) | 4 (0.16) |
| BL Product/BXL | 3.85 |
| Max. Linear Ex./Xmax mm (inch) | ±3mm (0.12) |
| Electrical Q Factor QES | 0.97 |
| QTS | 0.65 |
| QMS | 1.98 |
| Moving Mass MMS - gr/ounce | 14 (0.49) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 11 (0.38) |
| Cone | Type Carbon Cone |
| Cone | Material Carbon + Foam Core |
| Unit Diameter mm (inch) | 167 (6.5) |
| Mounting Depth | mm (inch) 17 (0.7) |
| Mounting Cutout | 137 (5.48) |
| Net Weight gr | 450 |
More specs
| |
What's Included
- 2 x Morel Virtus Nano Carbon MW6
Morel
About the Morel Virtus Nano Carbon MW6
From our tech experts at CEN
The Morel Virtus Nano Carbon MW6 is a pair of 6.5 inch carbon cone woofers with a mounting depth of only 17 mm. They are rated at 140 W RMS and 300 W transient at 4 ohms, with 54 mm Hexatech aluminium voice coils and a 50 Hz to 5.5 kHz response.
Who it suits
Doors and panels where a conventional 6.5 inch woofer is far too deep, such as thin door cards or custom builds. They are woofers only; pair them with the Virtus Nano MT120N tweeters, or choose the complete Virtus Nano Carbon 62 system.
Our tech experts advise
They need a 137 mm cut-out. Shallow drivers still need a sealed, rigid mounting to give good midbass, so treat the door properly. Use a crossover or DSP low-pass. Get in touch.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Virtus
More options from the same range, in stock and ready to go

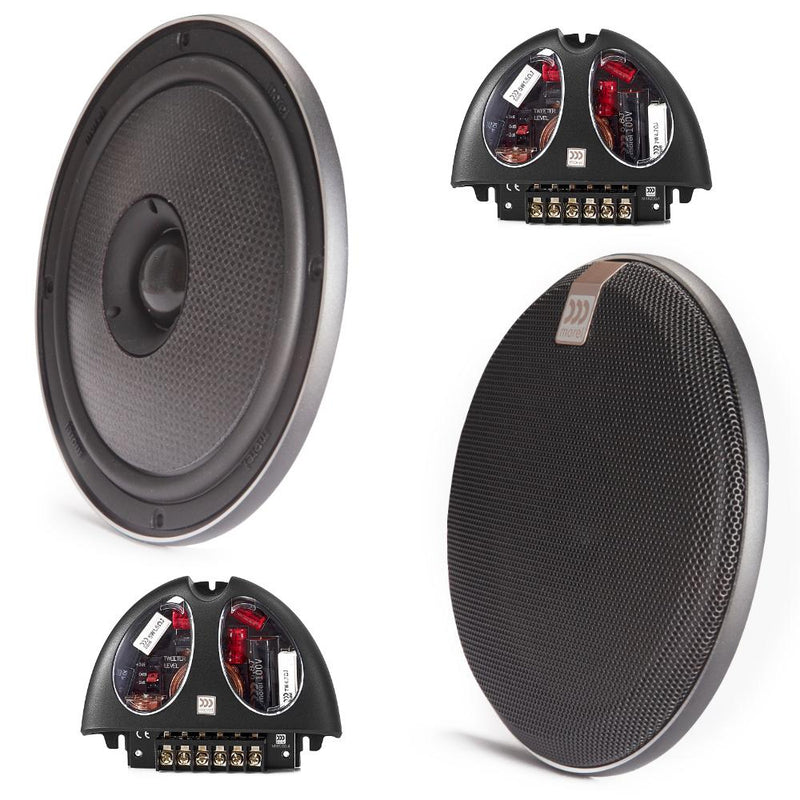

Morel Virtus Nano Carbon Integra 62 6.5” 2 Way Shallow Mount Speakers 100w RMS
£849.00
View product

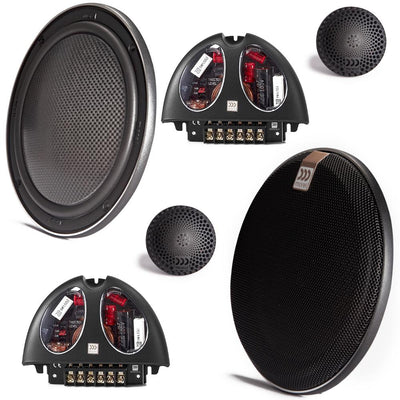

Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS
£899.00

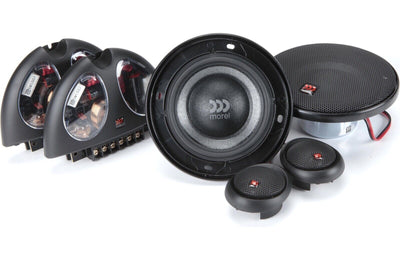

Morel Virtus 402 Reference Series 4" 2 Way Component Speaker 100w RMS
£399.00£849.00

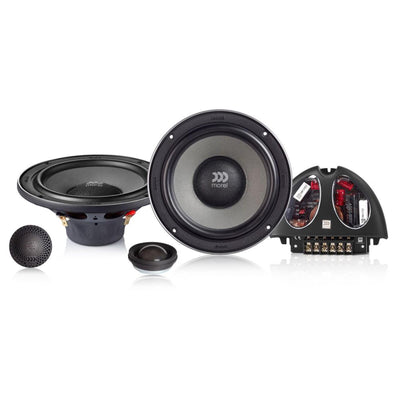

Morel Virtus 62.2 Reference Series 6.5" 2 Way Component Speaker 120w RMS 2 Ohm
£749.00

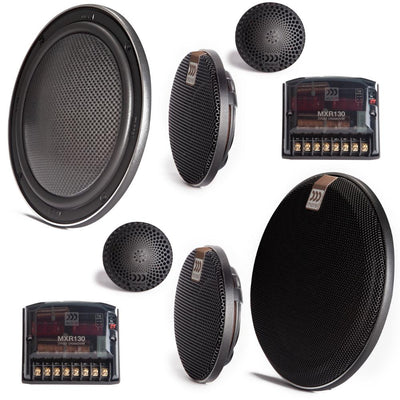

Morel Virtus Nano Carbon 63 3 Way Shallow Mount Component Speakers 100w RMS
