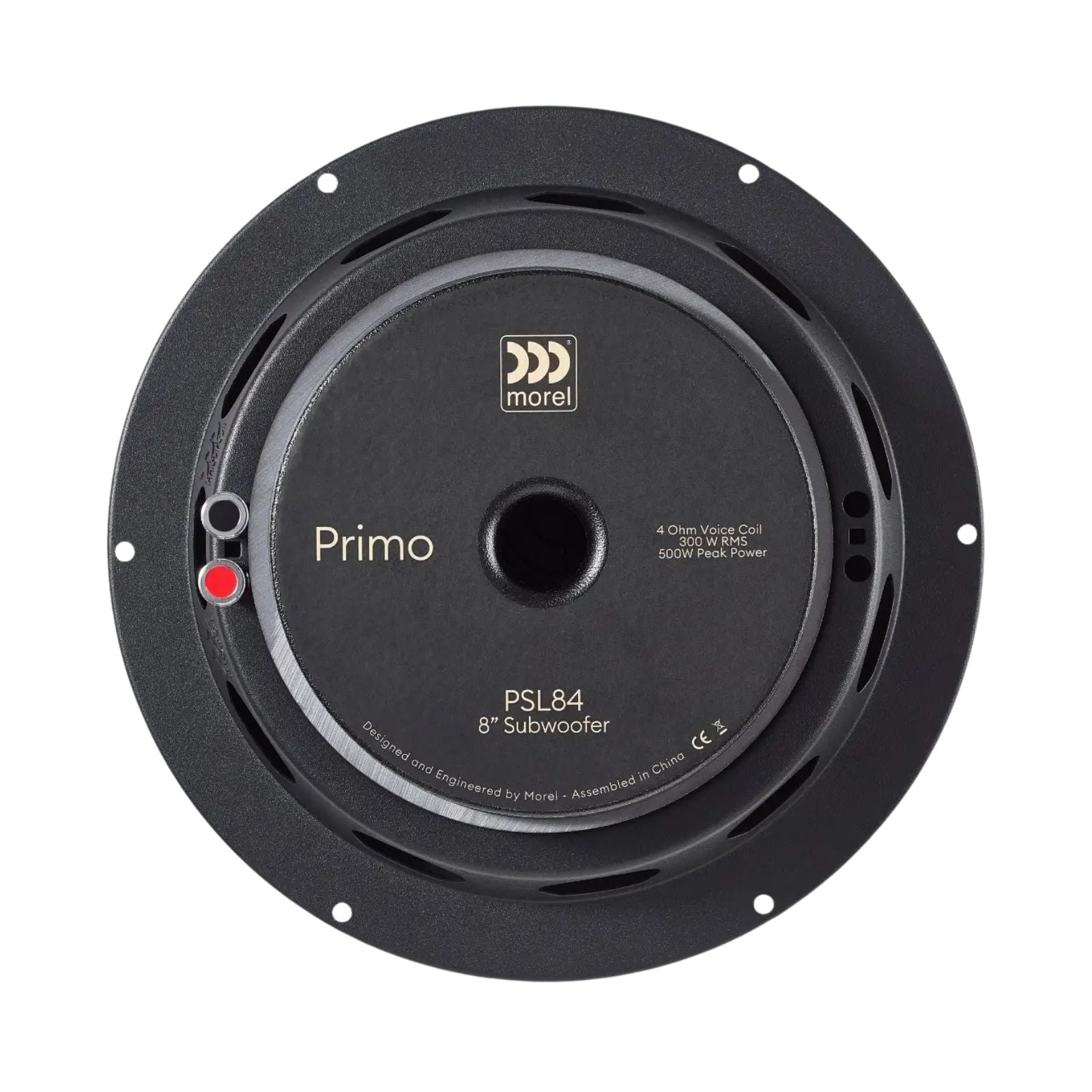

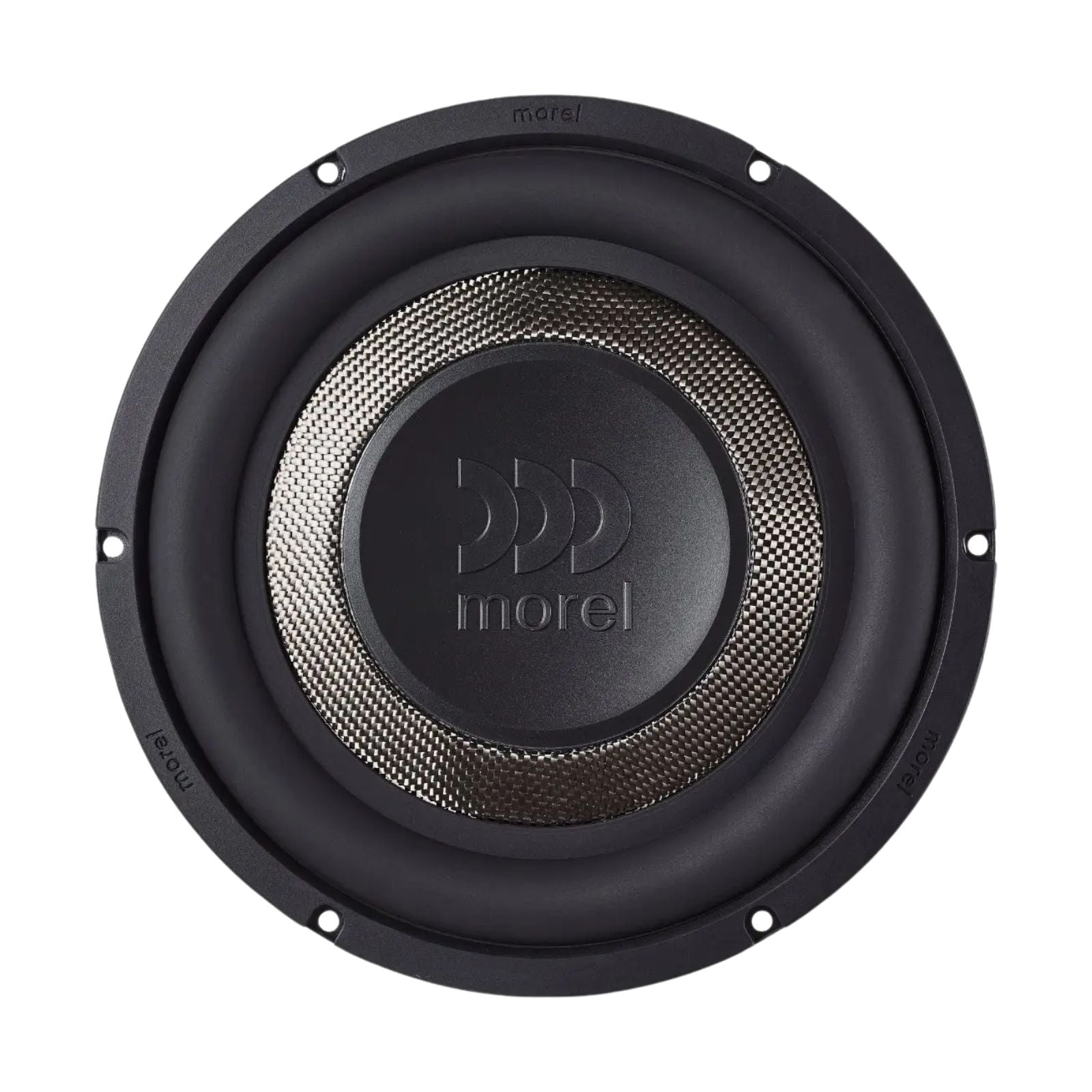

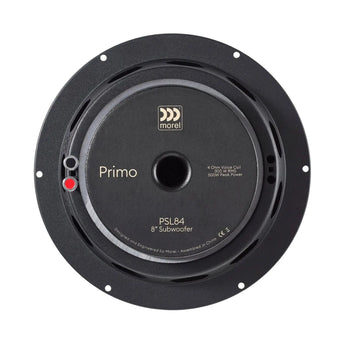

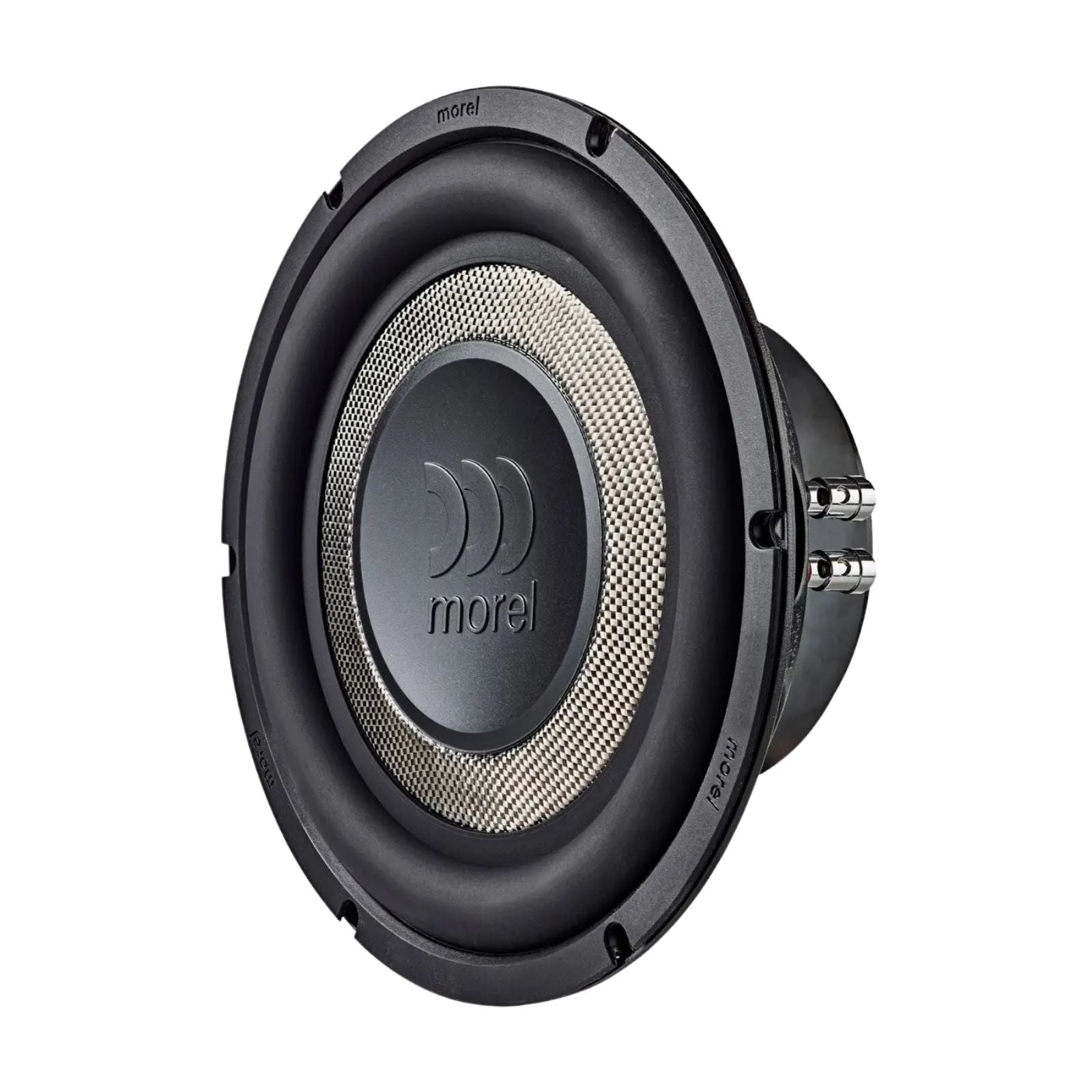

MOREL PRIMO SL PSL84 8 INCH SINGLE 4 OHM SUBWOOFER 250W RMS
The Morel PRIMO SL subwoofers are precision-engineered to deliver true high-fidelity bass where mounting depth and enclosure volume are extremely limited. Unlike conventional shallow subwoofers that compromise performance, the PRIMO SL was developed to outperform conventional subwoofers, using rigid carbon-weave cones with an exceptional stiffness-to-mass ratio for fast transient response, low distortion, high output, and natural musical integration.

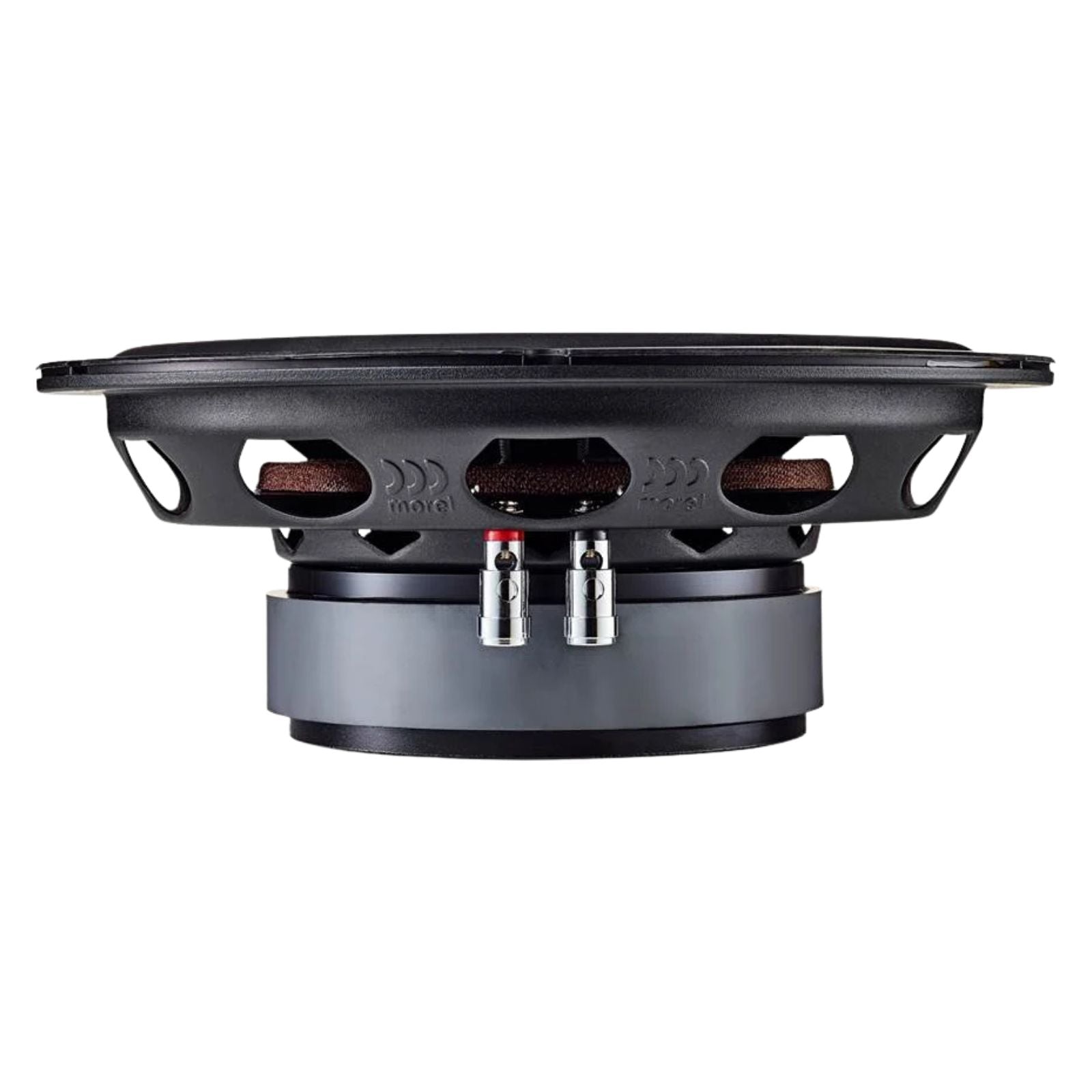

Available in 8” and 10” sizes, the PRIMO SL are optimized to perform with exceptional accuracy in compact sealed and vented enclosures alike, making them ideal for modern vehicles where space efficiency is critical. Heavy-gauge stamped steel Uniflow™ chassis, large 2-inch voice coils, and rear-vented motors ensure clean, controlled output and thermal stability. With ultra-slim mounting depths of just 3.125” and 3.5”, PRIMO SL delivers powerful bass where traditional subwoofers won’t fit.
Features
- Engineered to be the most dynamic, efficient and musical subwoofer in its category
- Optimized for extremely compact sealed and vented enclosures
- Exceptional shallow mounting depth
- High power handling, high excursion
- FEA perfected cone and suspension geometry for precision performance
- Low air resistance Uniflow chassis with thermal venting
- Heavy gauge steel chassis minimizes resonance
- Klippel optimized performance
Explore the full range in Morel.
Specification
| Overall Dimensions | 8” |
|---|---|
| Power Handling | Wrms 250 |
| Max. Trans. Pwr Handling Wrms | 500 |
| Sensitivity | (2.83 V/1M) dB 84.6 |
| Frequency response | Hz 15-500 |
| Resonance Freq. Fs Hz | 39 |
| Voice Coil | Diameter mm (inch) 51 (2.0) |
| Voice Coil | Height mm (inch) 29.2 (1.1) |
| Voice Coil | Type/Former Aluminum |
| Voice Coil | Wire Copper |
| DC Resistance (ohm) * VC in parallel | 3.6 |
| Voice Coil | Induct. @1 kHz (mH) 1.6 |
| Magnet | System Single magnet vented |
| HE-Magnetic Gap Height mm (inch) | 8 (0.3) |
| BL Product/BXL | 13.8 |
| Max. Linear Ex./Xmax mm (inch) | ±10mm (0.3) |
| Electrical Q Factor QES | 0.59 |
| QTS | 0.53 |
| QMS | 4.96 |
| Moving Mass MMS - gr/os | 136.7 (4.8) |
| Equiv. Can Air Load VAS - L (cu.ft) | 9.3 (0.33) |
| Cone | Type Shallow design cone |
| Cone | Material Carbon Fiber |
| Unit Diameter mm(inch) | 222 (8.74) |
| Mounting Depth | mm (inch) 69.9 (2.75) |
| Mounting Cutout | 182 (7.16) |
More specs
| |
What's Included
- PRIMO SL PSL84
