The Morel Maximo Ultra 603 MKII is a 6.5-inch 3-way component speaker set with a dedicated 2.5-inch midrange, 1-inch soft dome tweeter and passive crossovers. It handles 100W (180W max transient) and is part of Morel's Maximo Ultra MKII range.
Running a DSP? The Maximo Ultra 603A MKII is the active version, supplied without passive crossovers.
Key specifications
- Type: 3-way component set with passive crossovers
- Woofer: 6.5", high-grade ferrite magnet, 25mm voice coil
- Midrange: 2.5" (51mm), double neodymium magnet
- Tweeter: 1" (25mm) soft dome, neodymium magnet
- Power handling: 100W, 180W max transient
- Sensitivity: 90.5dB (2.83V/1m)
- Frequency response: 50Hz–20kHz
- Impedance: 4 ohms
- Mounting depth: woofer 60mm, midrange 35mm, tweeter 20mm
Maximo Ultra 603 MKII
The Morel Maximo Ultra MKII is the latest evolution in the long-running Maximo lineage, delivering impressive sound quality at an affordable price. The updated component systems improve on their predecessors sonically, with cosmetic updates that add a clean, understated look.
The Maximo Ultra MKII components are designed to drop into factory speaker locations in most vehicles, with excellent off-axis dispersion, high resolution and crisp detail to overcome the acoustic limitations of standard speaker placement.

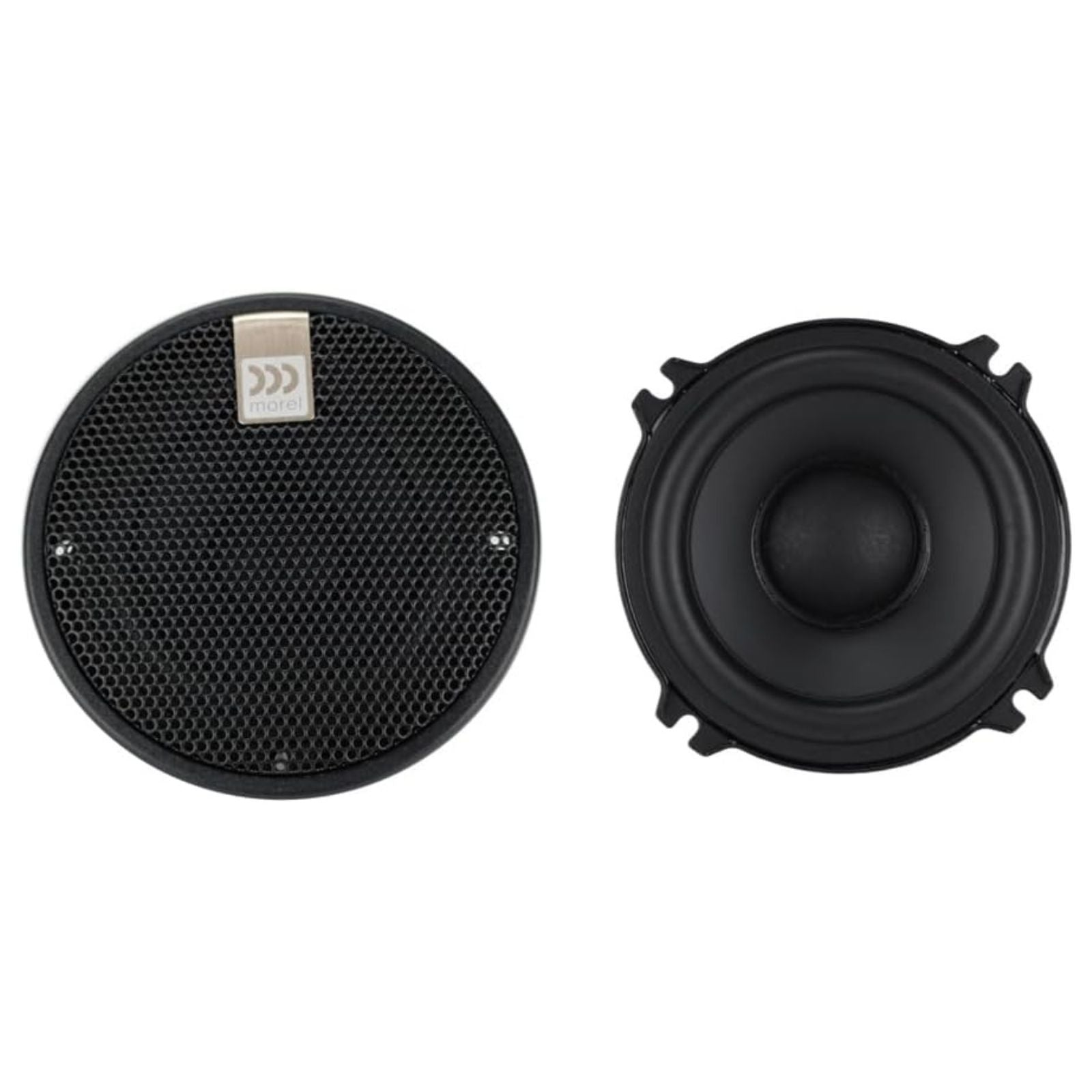

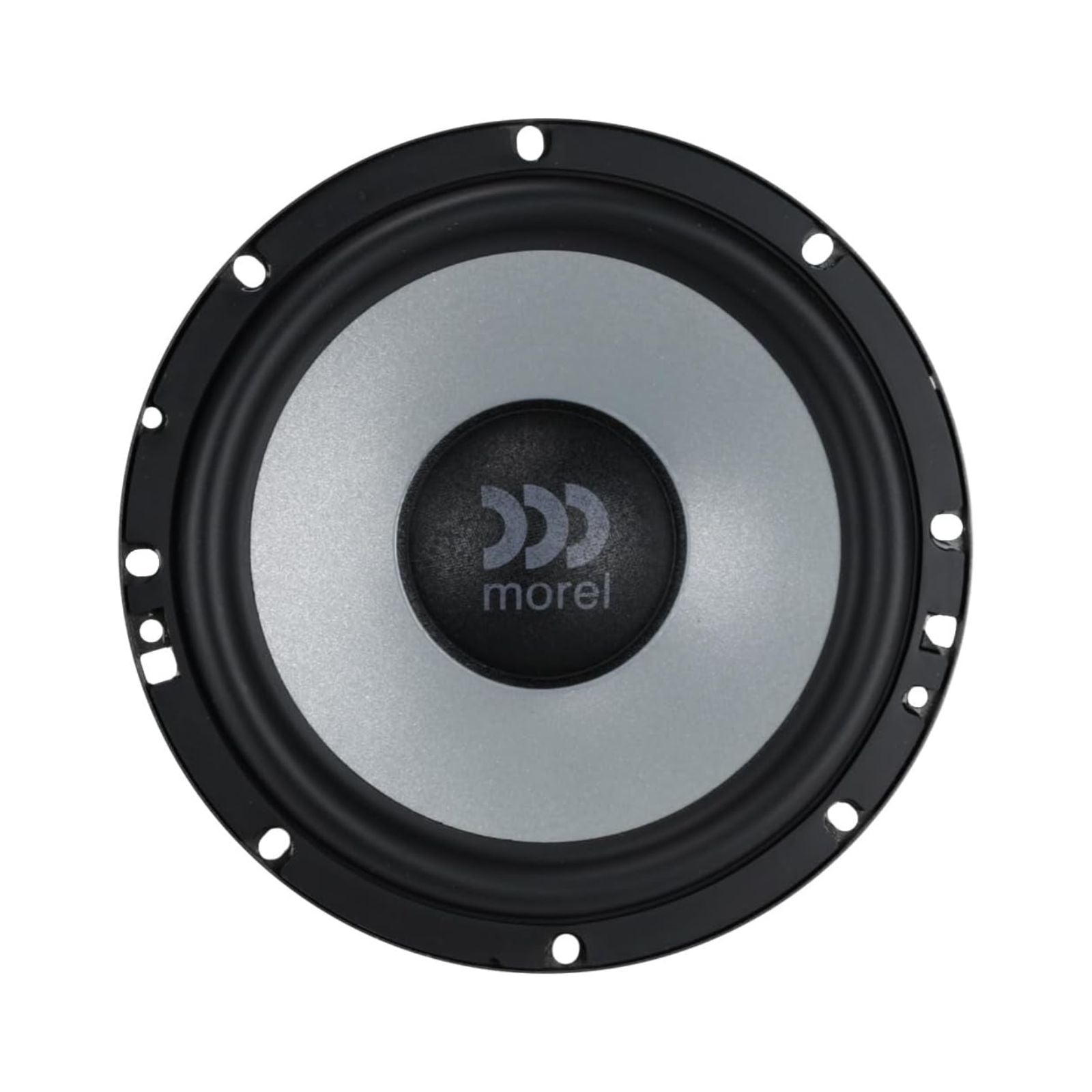

The 1-inch (25mm) soft dome tweeter and 2.5-inch (51mm) midrange both use Morel's EVC technology for high power handling and natural response. The 6.5-inch woofer uses a large 1-inch diameter voice coil and a high-grade ferrite magnet motor, delivering the warm, detailed bass Morel is known for.

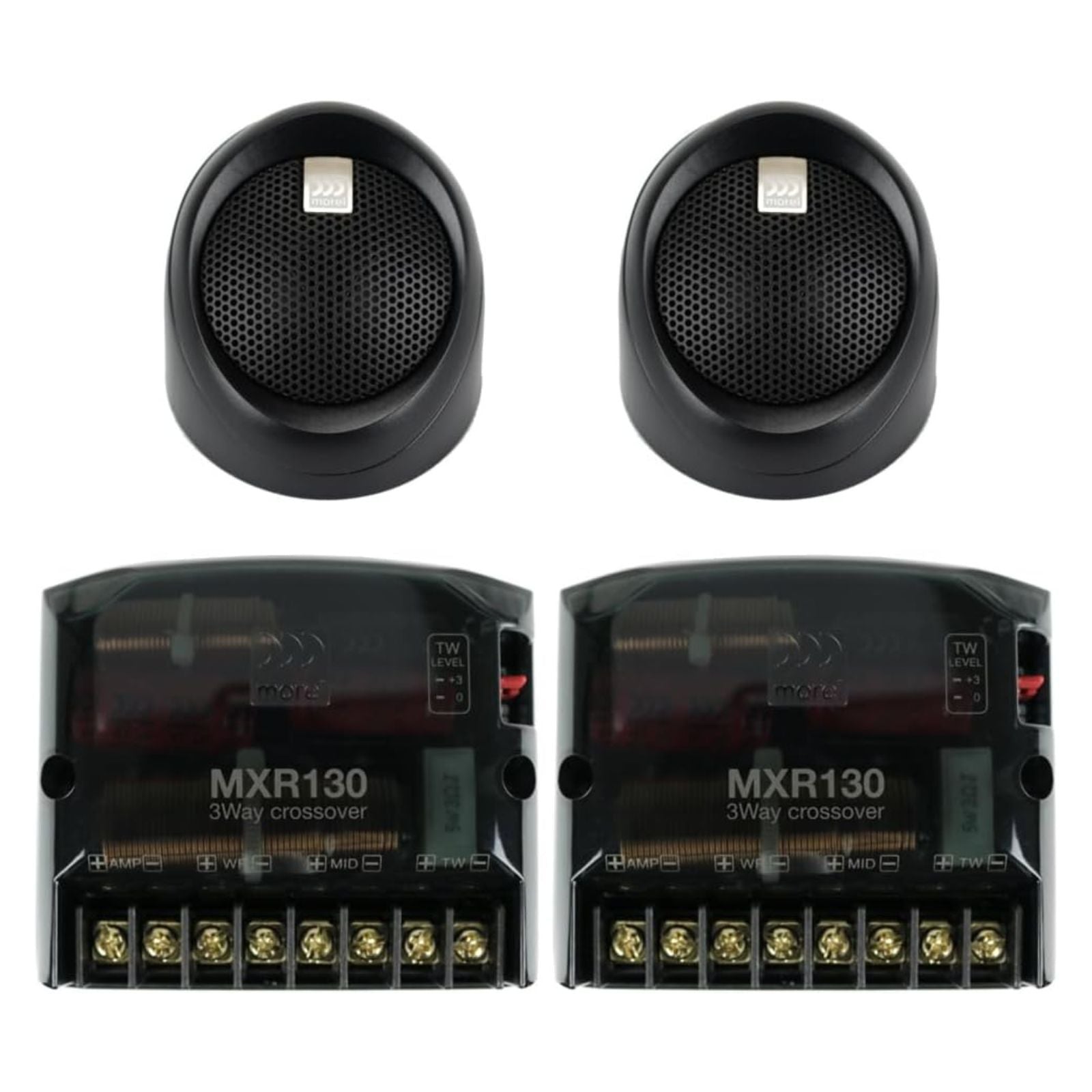

Each model includes its own passive crossover network, bringing highs, mids and lows together and providing up to 100W of power handling. If you prefer a 2-way setup, the Maximo Ultra 602 HE MKII is a 6.5-inch 2-way component alternative from the same range.
The Maximo Ultra MKII suits a wide range of vehicles and listening tastes, offering a significant upgrade over factory audio.
Explore the full range in Morel Maximo Ultra.
Specification
| Nominal Impedance | 4 ohm |
|---|---|
| Power Handling | 100W |
| Max. Transient Power Handling | 180W |
| Sensitivity | (2.83V / 1M) 90.5dB |
| Frequency Response | 50Hz - 20000Hz |
| Voice Coil | Diameter Woofer: (25mm) - Tweeter: (25mm) - Mid: (20mm) |
| Voice Coil | Wire Copper |
| Magnet | System Woofer: High-Grade Ferrite - Tweeter: Neodymium - Mid: Double Neodymium Magnet |
| Mounting Depth | Woofer: 60mm - Tweeter: 20mm - Mid: 35mm |

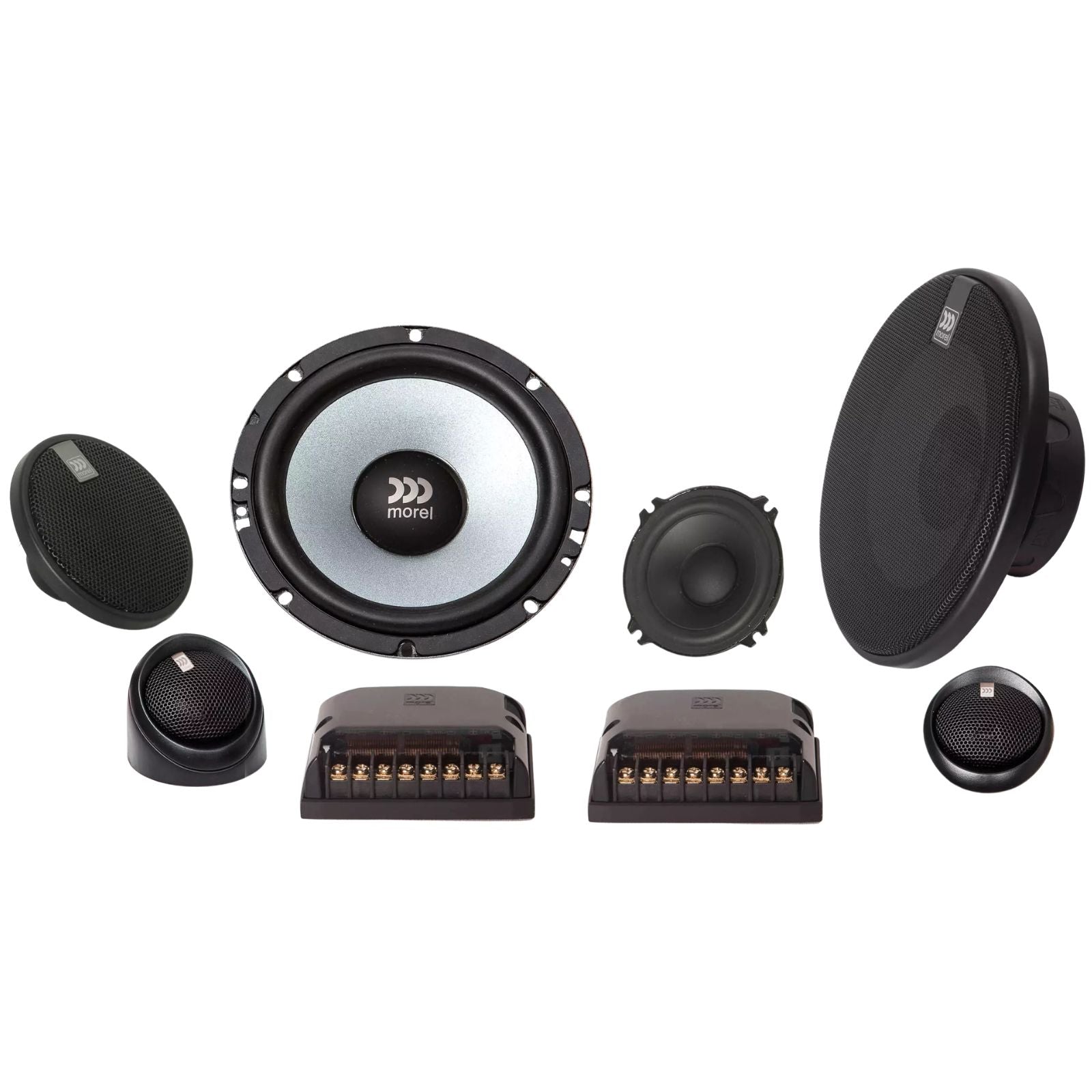

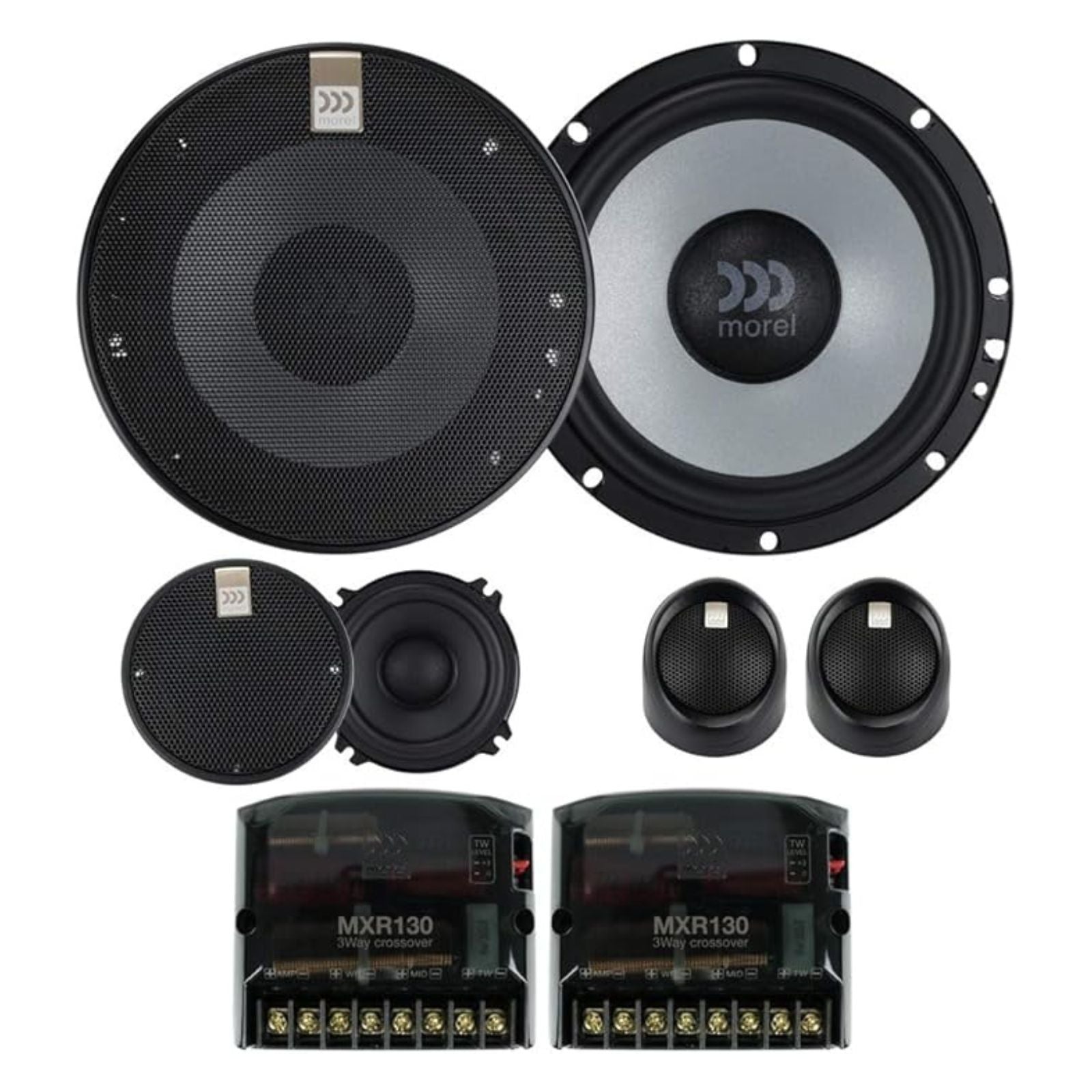

What's Included
- 2 x Woofers
- 2 x Midrange Speakers
- 2 x Tweeters
- 2 x Crossovers

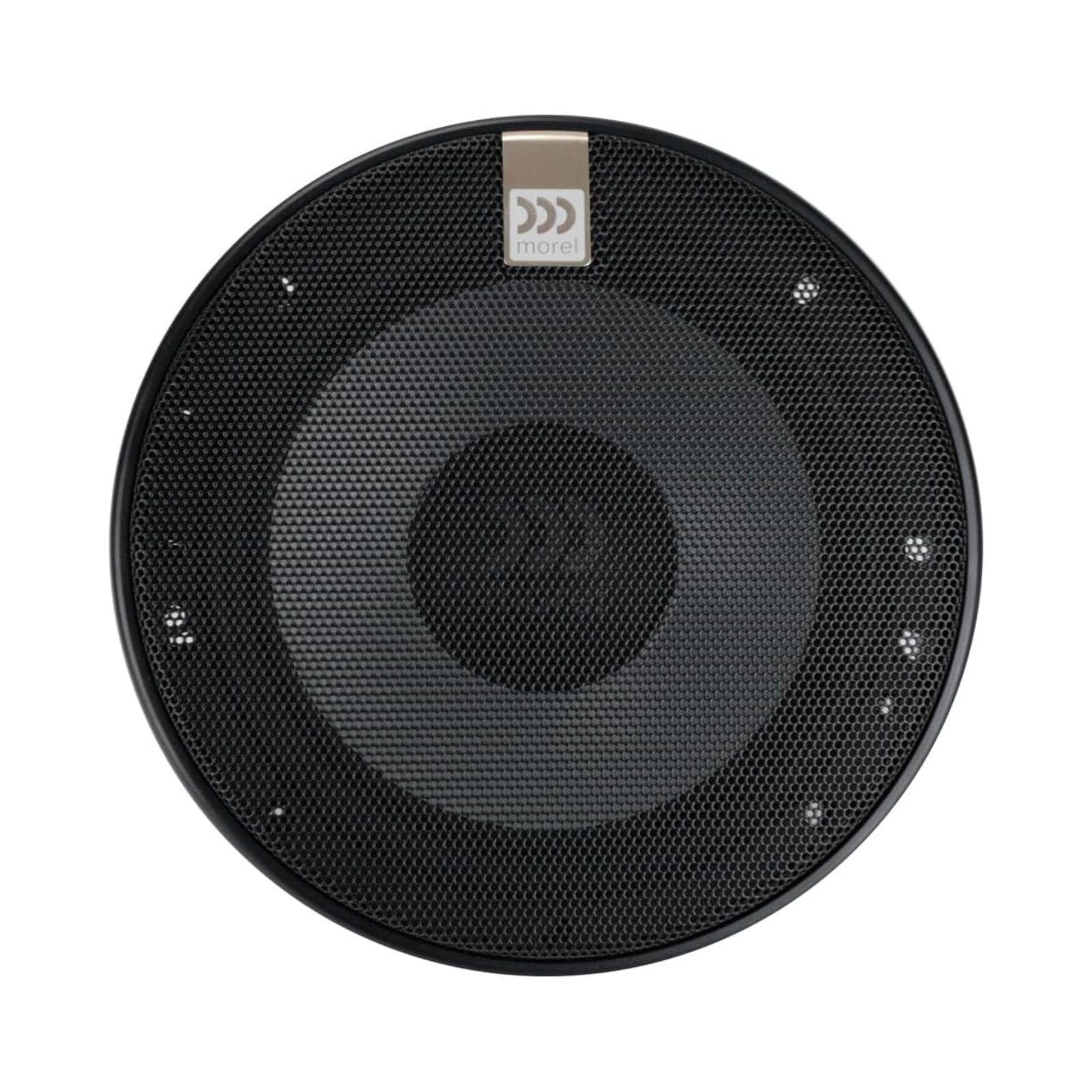

- Grilles
Morel
About the Morel MAXIMO ULTRA 603 MKII
From our tech experts at CEN
The Morel Maximo Ultra 603 MKII is a 6.5-inch 3-way component speaker set comprising a 6.5-inch woofer, a 2.5-inch midrange and a 1-inch soft dome tweeter, with passive crossovers included. It handles 100W RMS (180W max transient) at 4 ohms and covers 50Hz to 20kHz. The set is designed to fit standard factory speaker locations in most vehicles.
Who it suits
This suits drivers wanting a genuine step up from factory audio with more midrange clarity than a 2-way set can offer. If you prefer fewer drivers and a simpler installation, the Maximo Ultra 602 MKII 2-way component is from the same range.
Our tech experts advise
Check mounting depth before ordering: the woofer needs 60mm, midrange 35mm and tweeter 20mm. If you run a DSP, Morel also offer the 603A MKII active version without passive crossovers. Fitting is priced per vehicle; see our car audio installation page for details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Maximo Ultra
More options from the same range, in stock and ready to go
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w
£329.00
View product
Morel Maximo Ultra 502 MKII 5.25" 2 Way Coaxial Car Door Speakers 80w RMS Pair
£219.00
Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 90w RMS
RRP £319.00Save 31%£219.00
Morel Maximo Ultra 692 MKII 6x9 Inch Coaxial Car Parcel Shelf Speakers 110w RMS
£229.00
Morel Maximo Ultra 502 MKII 5.25 Inch 2 Way Component Car Door Speakers 90w RMS
£319.00
Frequently Asked Questions
Q: What is the difference between the Maximo Ultra 603 MKII and 603A MKII?
A: The 603 MKII includes two passive crossovers so it can run from a standard amplifier. The 603A MKII is the active version, supplied without crossovers, for systems where a DSP handles the crossover points.
Q: What drivers are in the Maximo Ultra 603 MKII?
A: Two 6.5-inch woofers, two 2.5-inch (51mm) midranges and two 1-inch (25mm) soft dome tweeters, plus two crossovers and grilles.
Q: What mounting depth do the drivers need?
A: The woofer needs 60mm, the midrange 35mm and the tweeter 20mm.
Q: How much power can the Maximo Ultra 603 MKII handle?
A: 100W power handling and 180W max transient power, with 4 ohm nominal impedance and 90.5dB sensitivity (2.83V/1m).
