Morel IP-VWB25.4 2.5 Inch Multi Mount Wide-Band Speakers
Couldn't Load Pickup availability

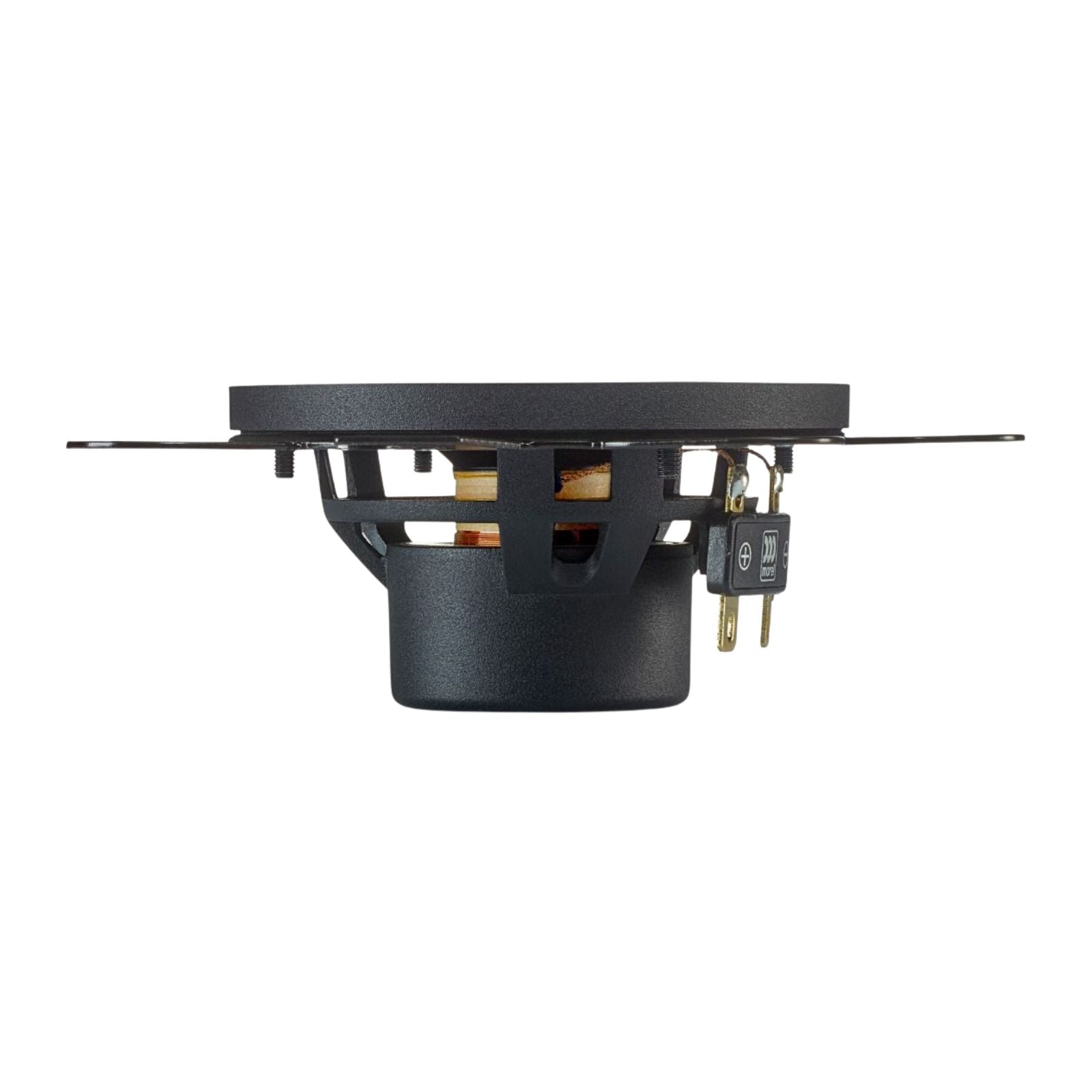

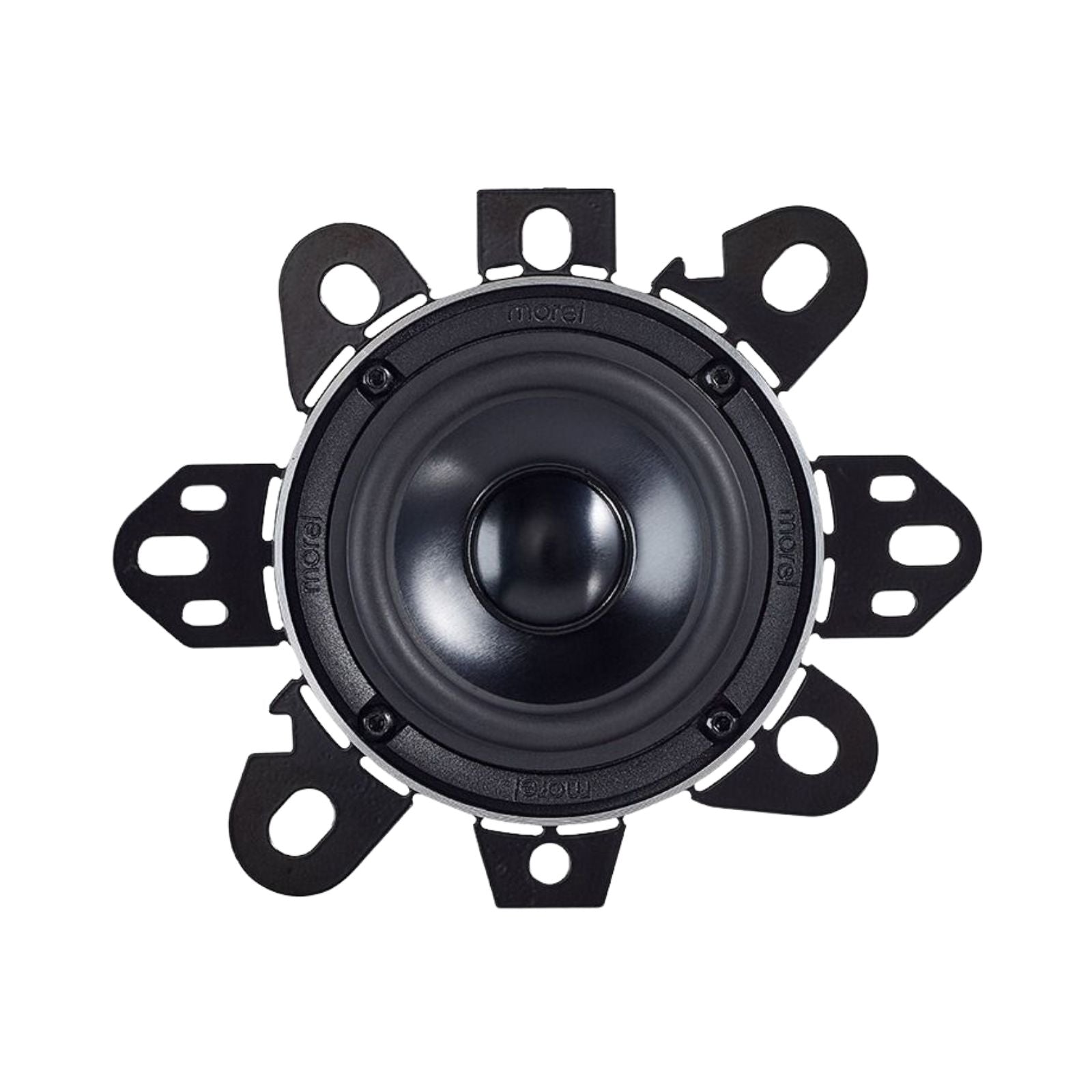

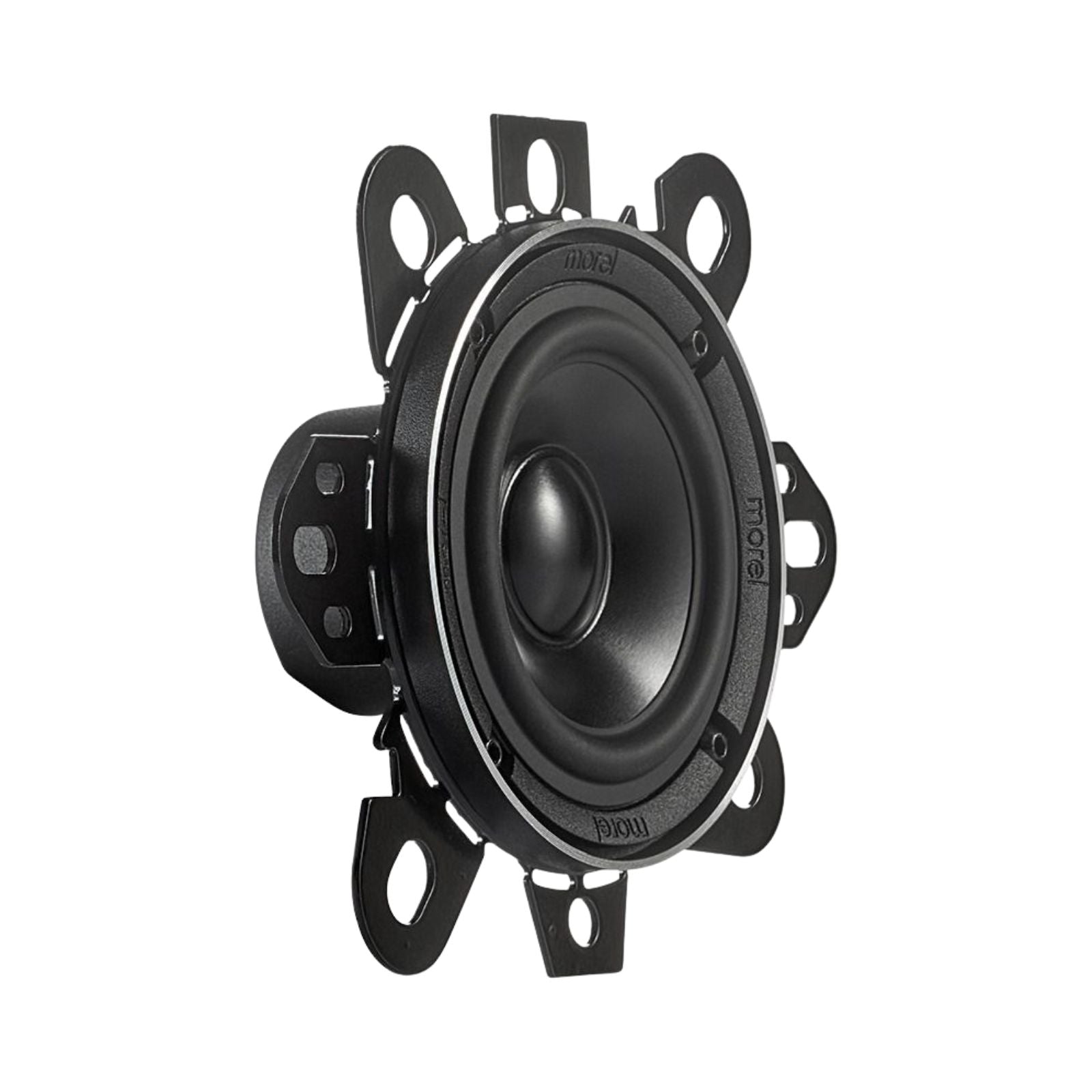

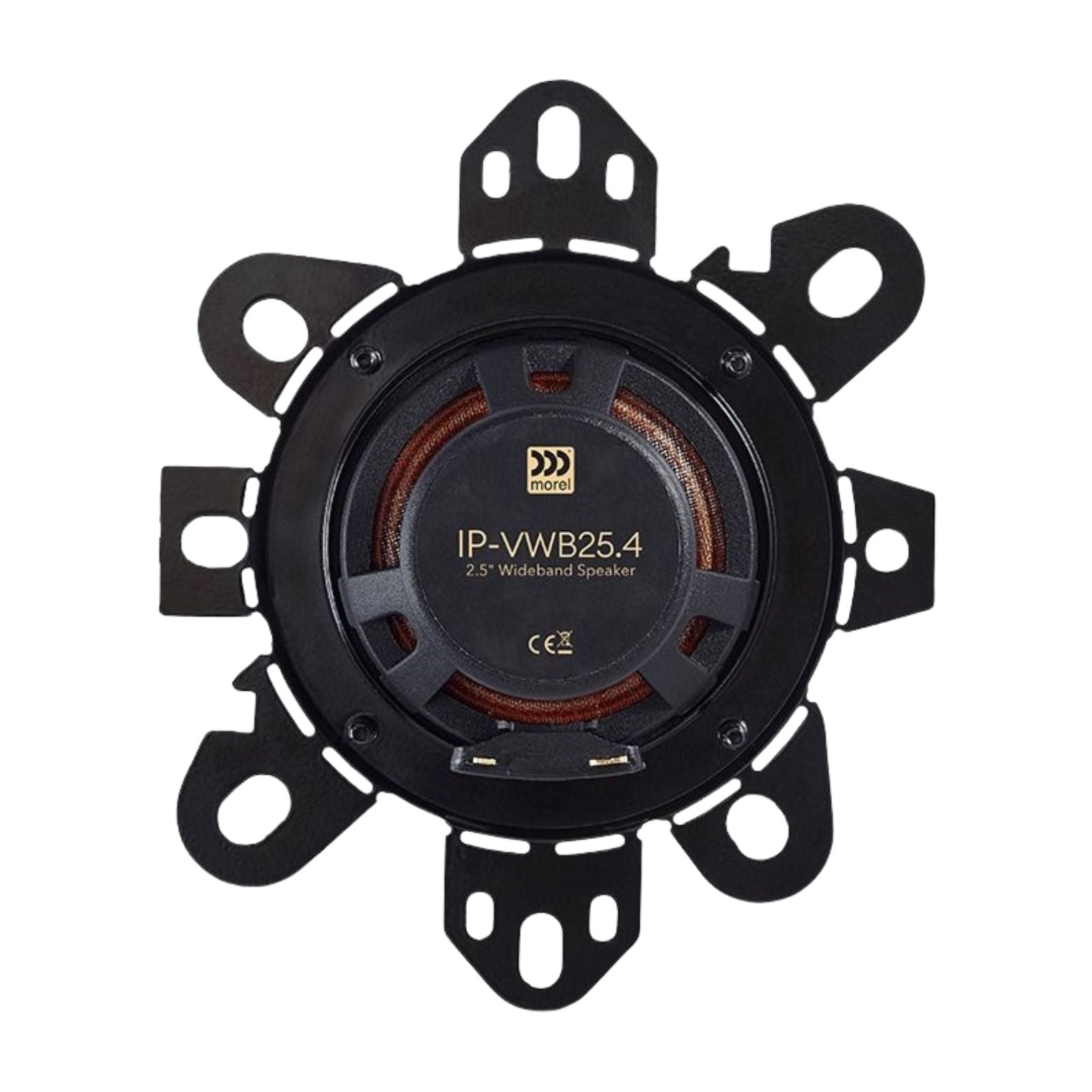

The Morel IP-VWB25.4 is a pair of 2.5 inch multi-mount wide-band speakers from Morel's Universal Integration Series, with a double neodymium motor and aluminium cone covering 90Hz to 20kHz. A fitment tabs ring allows installation in the A-pillar, front centre channel or front doors.
Key specifications
- Size: 2.5" (77mm unit diameter)
- Type: wide-band (midrange)
- Impedance: 4 ohms
- Power handling: 40W RMS, 80W max (10ms)
- Sensitivity: 86 dB (2.83 V/1m)
- Frequency response: 90 - 20,000 Hz
- Cone: aluminium, double neodymium magnet
- Mounting cutout: 63mm, mounting depth 34.2mm
- Supplied as: pair (2 x IP-VWB25.4)
Morel Universal 2.5" wide-band speaker: IP-VWB25.4 multi-mount midrange speakers

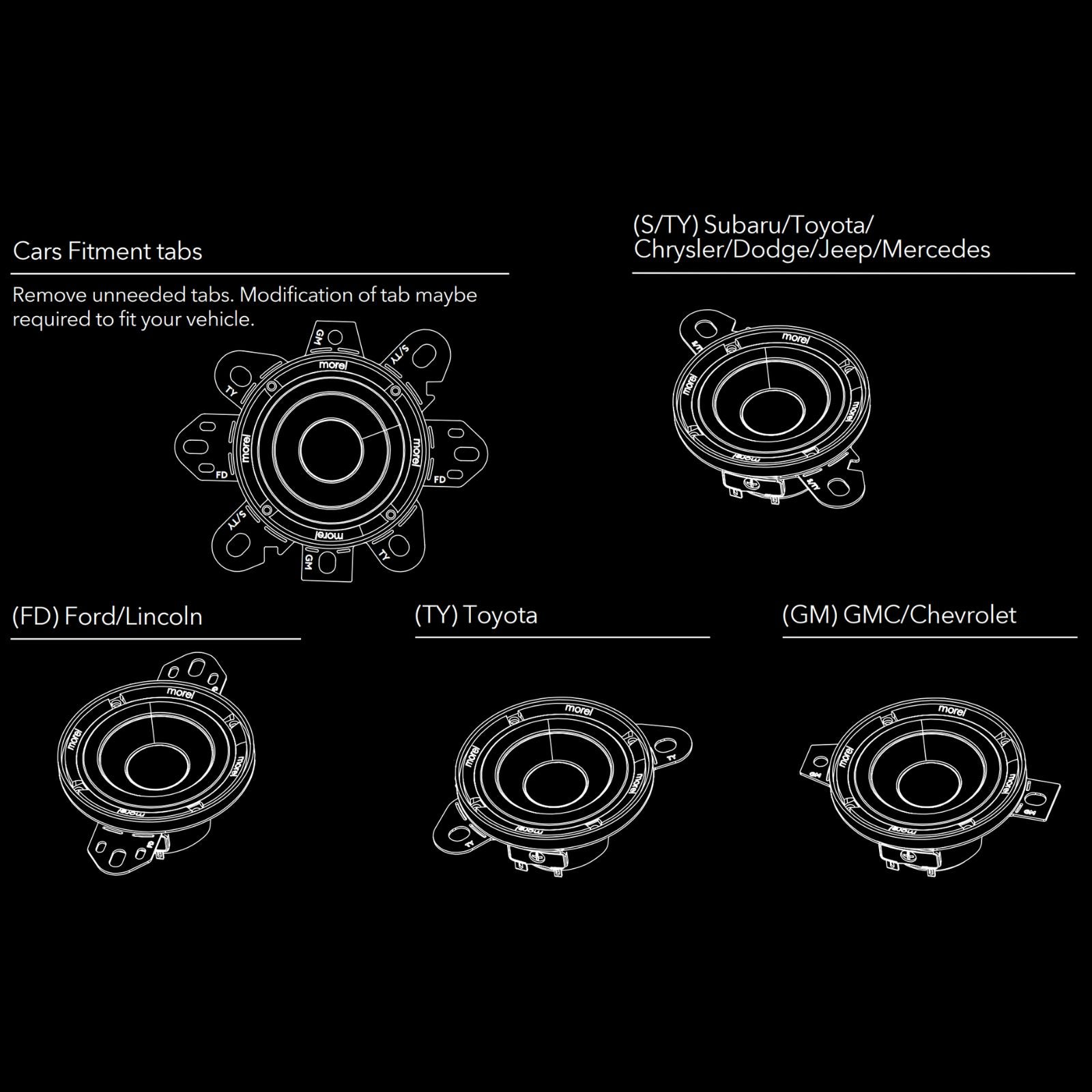

The IP-VWB25.4 is part of Morel's Universal Integration Series — a 2.5" multi-mount wide-band speaker designed to integrate into a range of car brands. Its fitment tabs ring allows flexible installation in the A-pillar, front centre channel or front doors.
It delivers a frequency response of 90Hz–20kHz, driven by a large fibreglass voice coil former and double neodymium magnet motor. The Uniflow™ aluminium die-cast chassis improves both structural rigidity and airflow.
Key advantages
- 2.5" compact multi-mount wide-band speaker
- Frequency response of 90Hz–20kHz
- Double neodymium magnet motor
- Uniflow™ aluminium die-cast chassis
- Large fibreglass voice coil former
Explore the full range in Morel Integration Speakers.
Specification
| Nominal Impedance (Ohm) | 4 |
|---|---|
| Power Handling | (WRms) 40 |
| Max Power Handling W (10MS) | 80 |
| Sensitivity | (2.83V/1M) dB 86 |
| Frequency Response | Hz 90-20000 |
| FS Hz | 110 |
| Voice Coil | Diameter mm (inch) 20 (0.78) |
| Voice Coil | Former Fiberglass |
| Voice Coil | Wire Copper |
| DC Resistance Ohm | 5.2 |
| Magnet | System Double Neodymium |
| Cone | / Dome Type Formed Aluminium |
| Cone/ Dome Material | Aluminium |
| Unit Diameter mm (inch) | 77 (3) |
| Mounting Depth | mm (inch) 34.2 (1.34) |
| Mounting Cutout mm (inch) | 63 (2.48) |
| Net Weight Kg(lb) | 0.15 (0.33) |
What's Included
- 2 x IP-VWB25.4
Morel
About the Morel IP-VWB25.4
From our tech experts at CEN
The Morel IP-VWB25.4 is a pair of 2.5 inch wide-band speakers from Morel's Universal Integration Series, with aluminium cones and double neodymium motors. They cover 90 Hz to 20 kHz at 4 ohms, handling 40 W RMS and 80 W maximum with 86 dB sensitivity.
Who it suits
Cars with small factory speakers in the A-pillar, dash centre or doors, as a fitment tabs ring allows several mounting styles. One driver covers midrange and treble, so it suits locations designed for a single wide-band speaker. The Maximo Ultra CCWR254 is another 2.5 inch wide range option.
Our tech experts advise
They need a 63 mm cut-out and 34.2 mm of depth. Use a high-pass from an amplifier or DSP to keep deep bass away. Get in touch with your vehicle details and we will confirm fitment.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Integration Speakers
More options from the same range, in stock and ready to go
Morel BMW Integration Performance IP-BMW42 2 Way Plug & Play Component Speakers
£449.00
View product
Morel BMW Integration Performance IP-BMW4C 2 Way Plug & Play Coaxial Speakers
£399.00
Morel IR ME INT 42 Mercedes Premium 4 inch 2 Way Coaxial Speaker Set
£929.00
Morel IR ME 42 Mercedes Premium 4 inch 2 Way Component Speaker Set
£1,149.00
Morel Integration Performance 8 Inch 2 Way Component Slim Car Speakers 100w RMS
£499.00
Frequently Asked Questions
Q: Where can the Morel IP-VWB25.4 be mounted?
A: Its fitment tabs ring allows flexible installation in the A-pillar, front centre channel or front doors.
Q: Are the IP-VWB25.4 speakers sold as a pair?
A: Yes. The box contains 2 x IP-VWB25.4 speakers.
Q: What size hole does the IP-VWB25.4 need?
A: The mounting cutout is 63mm and the mounting depth is 34.2mm.
