JL Audio HD1200/1 HD Series 1 Channel Monoblock Subwoofer Amplifier 1200w RMS

The JL Audio HD1200/1 is a monoblock Class D wide-range amplifier producing 1200W RMS into any impedance from 1.5 to 4 ohms. It is the most powerful amplifier in JL Audio's HD Series, designed primarily for subwoofer systems but capable of driving high-performance mid-range speakers too.

Key specifications

• Channels: 1 (monoblock), Class D wide-range
• RMS power: 1200W x 1 at 1.5, 2, 3 or 4 ohms, at both 14.4V and 12.5V
• Frequency response: 6Hz – 8kHz (+0, -1dB)

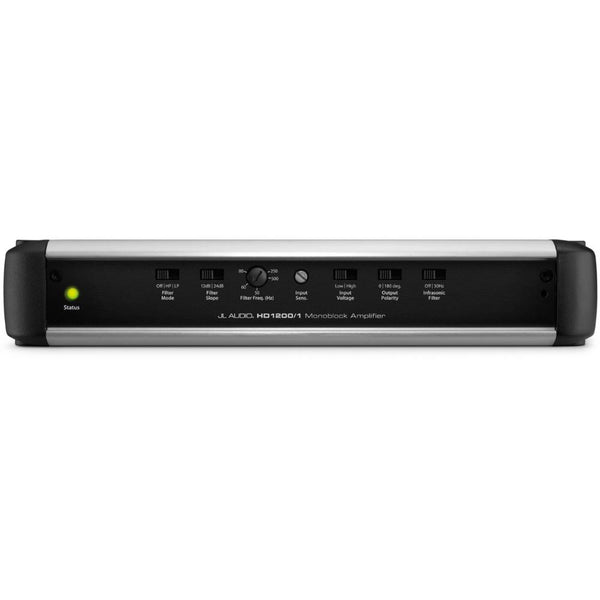

• Filters: low-pass or high-pass, 12/24dB/octave, 50–500Hz; 30Hz infrasonic filter (defeatable)
• THD+N at rated power: below 0.03% at 4 ohms
• Remote level control: optional HD-RLC
• Fuse rating: 100A; minimum power/ground wire 2 AWG
• Dimensions (H x W x D): 49 x 273 x 211 mm; weight 2.99 kg

HD1200/1: monoblock Class D wide-range amplifier, 1200W

1200W x 1 at 1.5–4 ohms

JL Audio's most powerful HD amplifier uses its Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200W of clean power into any impedance between 1.5 and 4 ohms. This gives maximum flexibility when designing your subwoofer system. Tight power supply regulation keeps distortion low and bass quality high.

Although aimed primarily at subwoofer applications, the HD1200/1 is a wide-range amplifier and can also drive high-performance mid-range speaker systems.

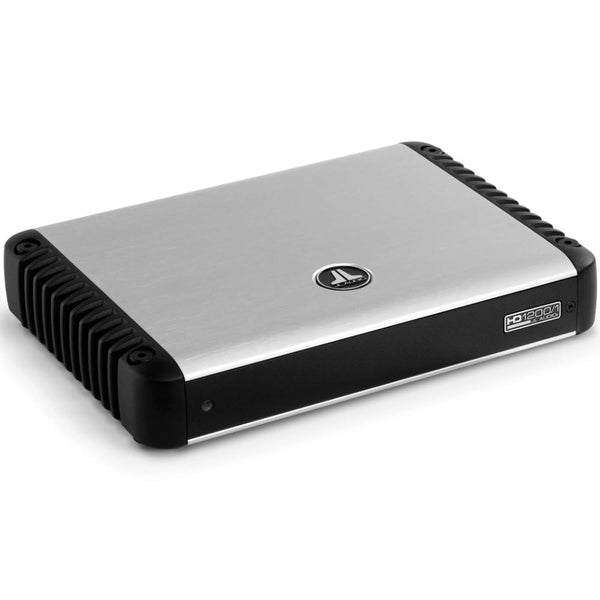

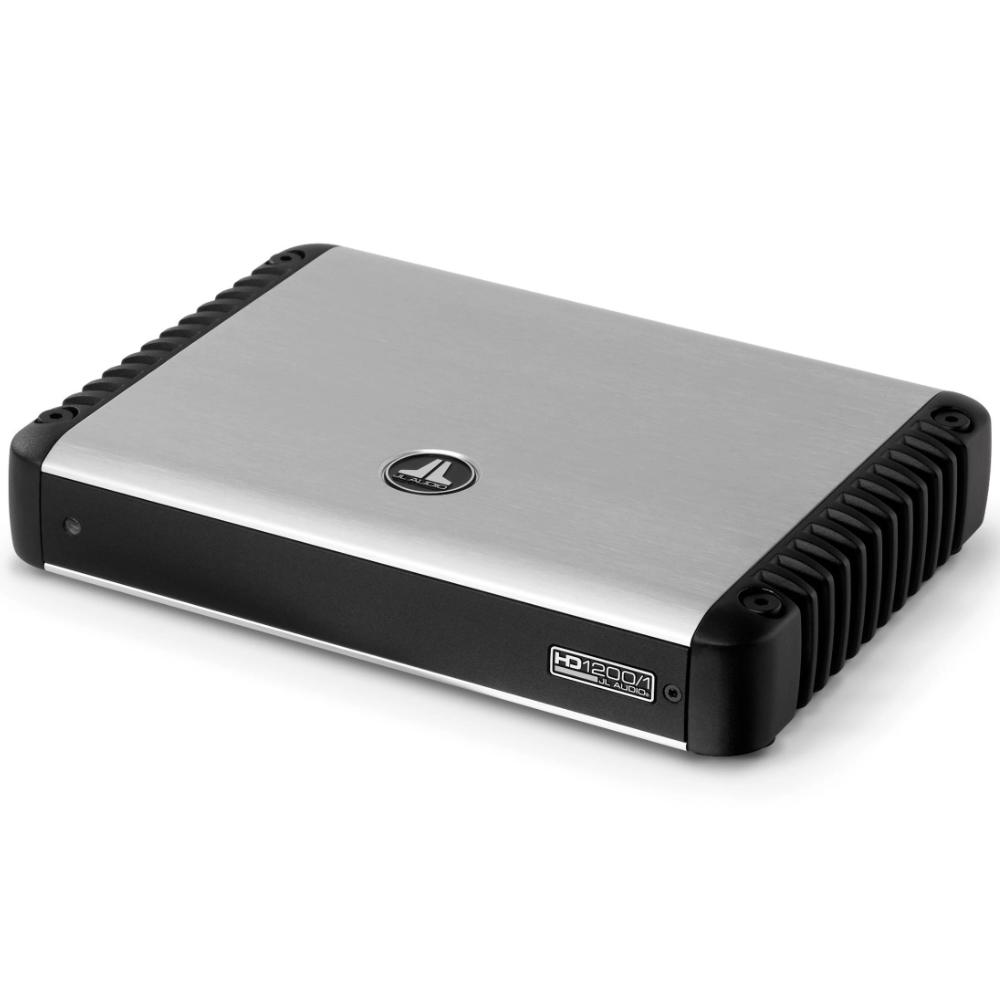

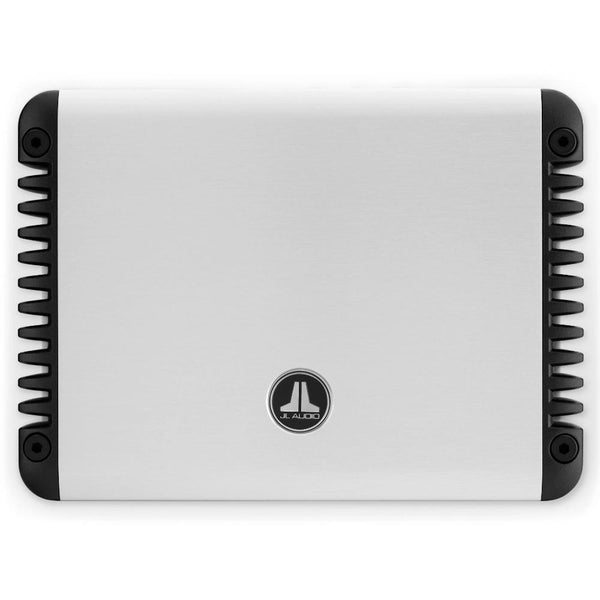

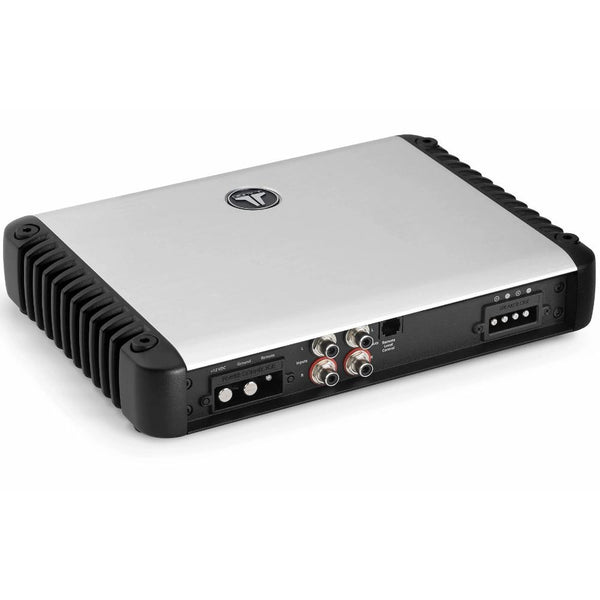

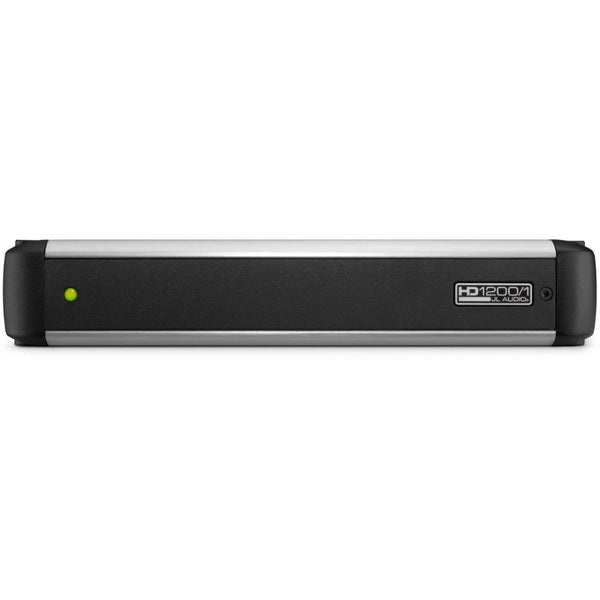

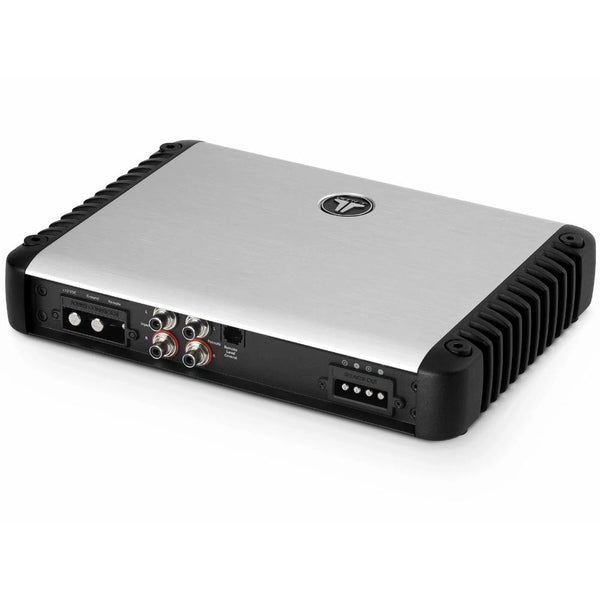

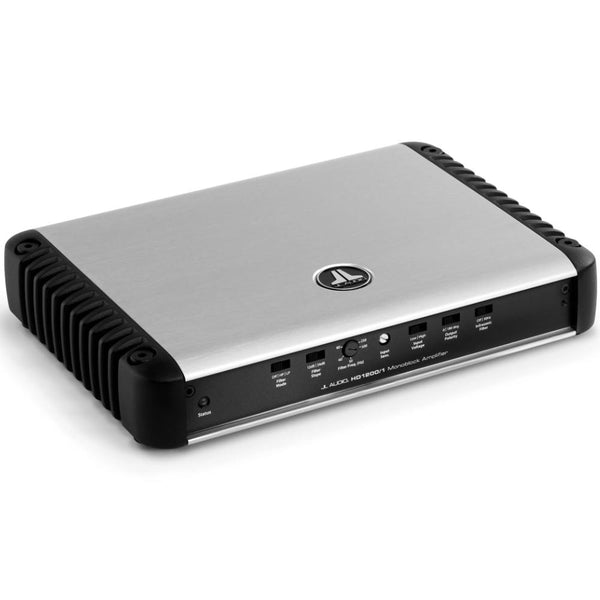

The amplifier features a brushed aluminium finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is included to protect the controls.

R.I.P.S.: Regulated, Intelligent Power Supply

R.I.P.S. (Regulated, Intelligent Power Supply) is a central feature of JL Audio's HD and 'Slash' amplifiers, ensuring consistent power delivery across a wide range of battery voltages and load impedances.

"Regulated" means the power supply adjusts its operation to maintain rated power output and low distortion across vehicle voltages from 11V to 14.5V. Conventional unregulated power supplies allow rail voltages to sag when supply voltage drops, causing power loss and audible distortion — even during brief voltage dips. With R.I.P.S., the rail voltage and clean power output remain completely stable, resulting in superior fidelity and stability.

The "Intelligent" element is a circuit that monitors output current to optimise output power across load impedances from 1.5 ohms to 4 ohms per channel. Conventional amplifiers are designed to produce optimum power at one specific impedance — run them above that impedance and they lose power. The R.I.P.S. system detects the actual impedance being driven and adjusts operation automatically to deliver optimum output, taking into account real impedance rather than relying on a speaker's rated impedance. The result is consistent power for a wide range of subwoofer configurations and strong dynamics for satellite channels.

In short: optimum power, at any impedance between 1.5 ohms and 4 ohms per channel, at any vehicle voltage between 11V and 14.5V.

Advanced Rollback Protection

JL Audio's Advanced Rollback Protection monitors the amplifier's thermal condition and adjusts operation to prevent unwanted shut-down events.

If the amplifier reaches an unsafe operating temperature, the circuit rolls back peak power output — without changing gain — until it cools to a safe temperature. This condition is indicated by a red "Thermal" or "Status" LED. Once the amplifier cools down, full peak power is restored and the indicator returns to its normal state. In most cases the rollback is inaudible, keeping music playing even under the most demanding conditions.
