JL Audio C6-653 6.5" 3 Way Component Speakers 100w RMS
Couldn't Load Pickup availability

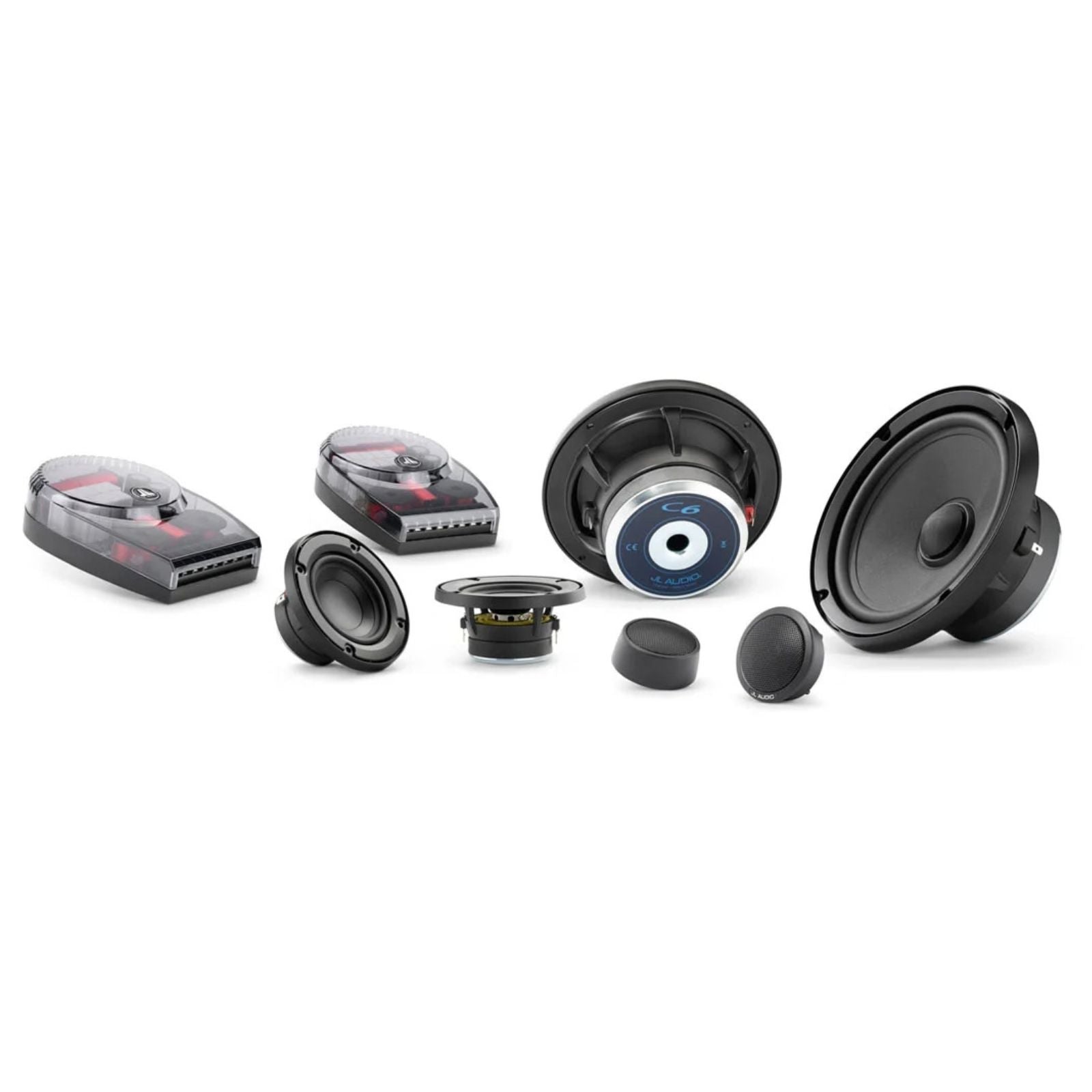

The JL Audio C6-653 is a 6.5" (165 mm) 3-way component speaker system from the Evolution C6 Series, rated at 100W RMS (woofer). It includes 6.5" woofers, 2.75" midrange drivers and 1" silk dome tweeters, with passive crossover networks offering four tweeter and four midrange level adjustments.
Key specifications
- Type: 6.5" (165 mm) 3-way component
- Drivers: 1" silk dome tweeter, 2.75" midrange, 6.5" woofer
- Power handling (RMS): tweeter 75W, midrange 50W, woofer 100W
- Recommended amplifier power: 25–150W RMS per channel
- Impedance: 4 Ω
- Sensitivity (1W / 1m): tweeter 90 dB, midrange 83.5 dB, woofer 87.37 dB
- Frequency response: approx. 53 Hz – 21 kHz
- Woofer mounting hole: 139 mm; mounting depth: 66 mm
- Midrange mounting hole: 64 mm; mounting depth: 36 mm
- Crossover: passive, four tweeter levels and four midrange levels
C6-653 6.5" (165 mm) 3-way component car speaker system
The JL Audio C6-653 is a 6.5" (165 mm) three-way component speaker system built around the same engineering principles as JL Audio's flagship designs. The Evolution C6 Series combines advanced acoustic design with premium materials for accurate, powerful sound reproduction. For the 2-way version, see the JL Audio C6-650.

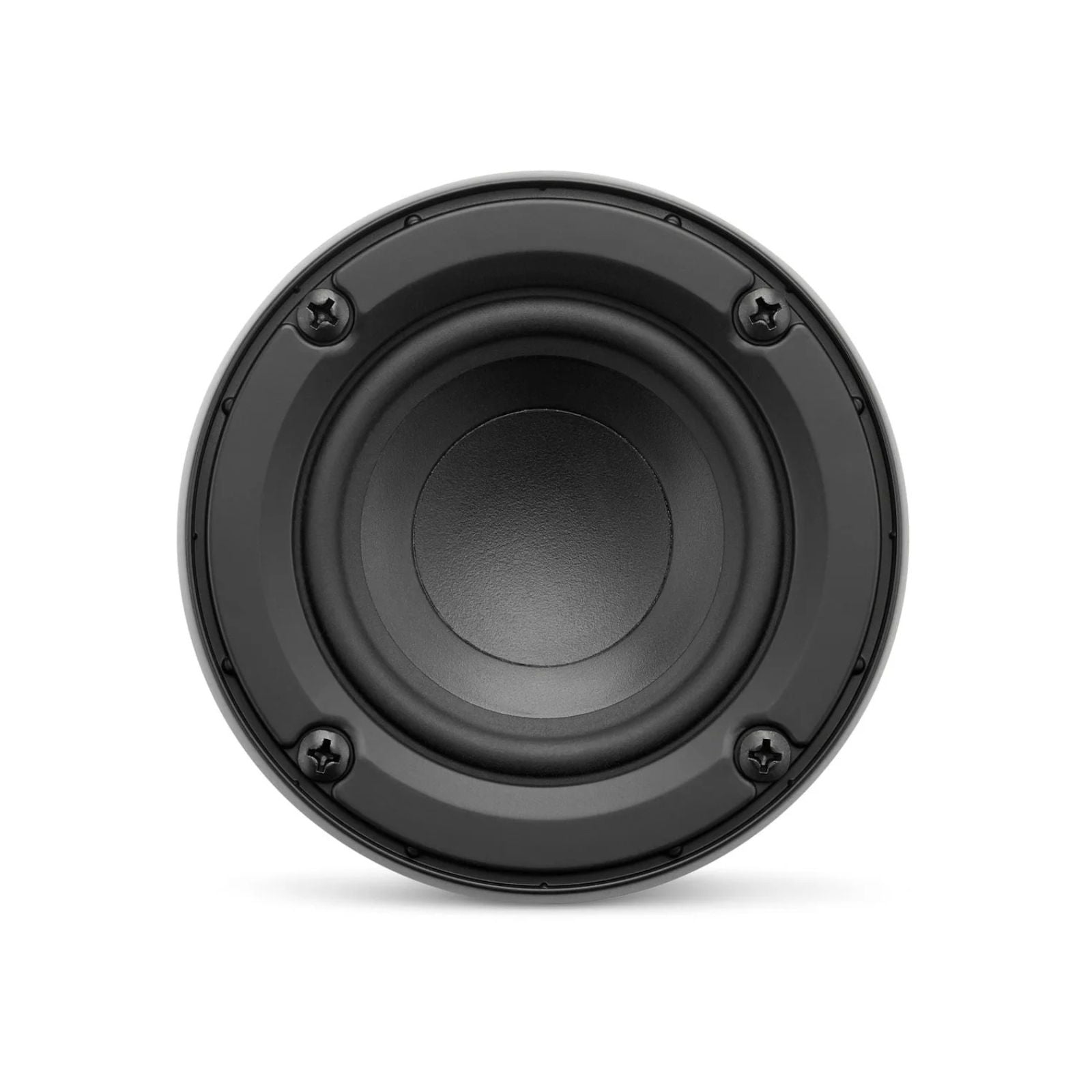

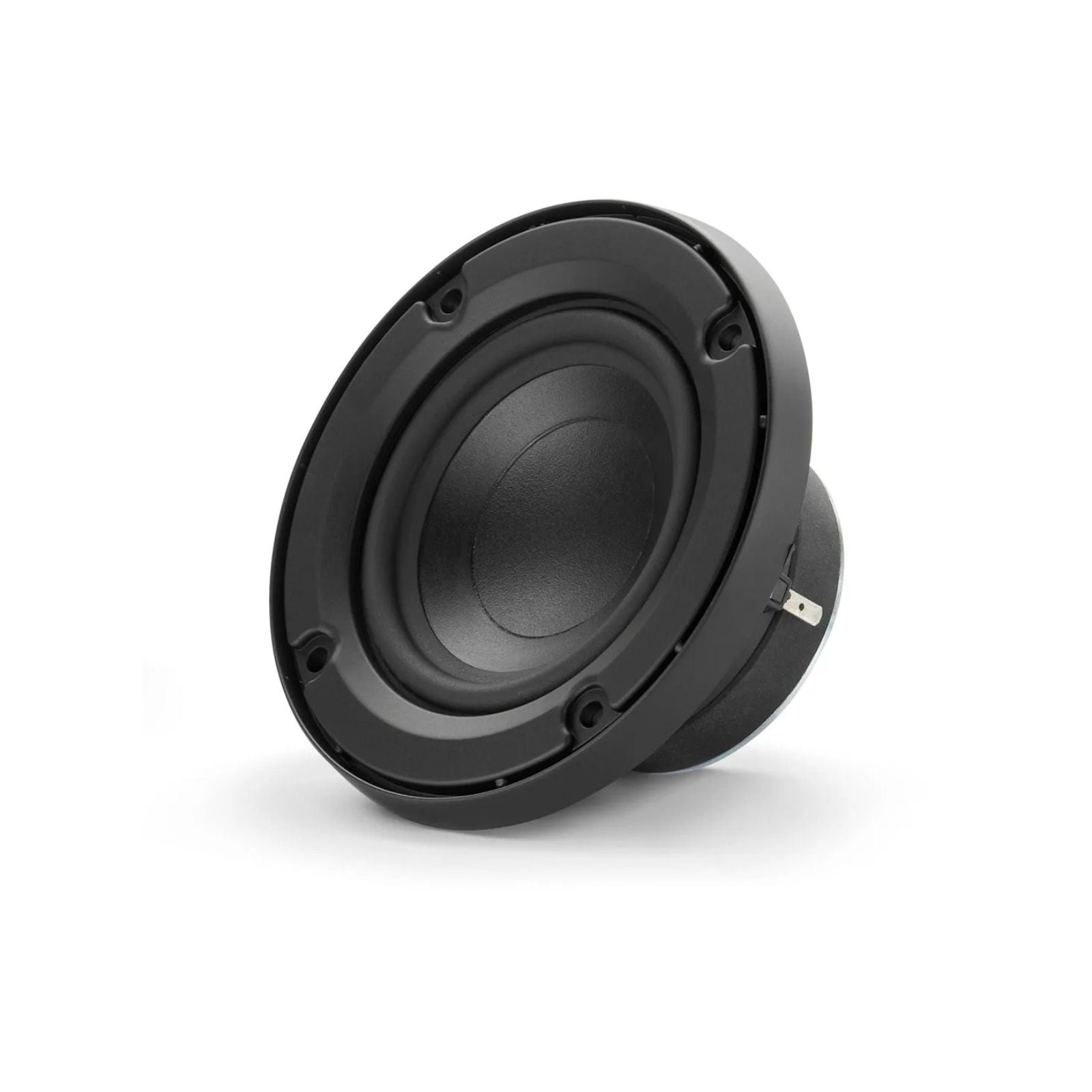

The system includes 6.5" mineral-filled polypropylene woofers, dedicated 2.75" midrange drivers and 1" silk dome tweeters, each optimised for a specific frequency range. The tweeters deliver smooth, detailed high-frequency reproduction with strong off-axis response, while the midrange drivers handle accurate vocal and instrument reproduction.
Premium external passive crossover networks are included, built with polyester film capacitors and air-core inductors. Four tweeter and four midrange level adjustments let installers tune the system to the vehicle's acoustics and speaker placement.
With 100W RMS power handling, a recommended amplifier range of 25–150W per channel and a frequency response of approximately 53 Hz – 21 kHz, the C6-653 is well suited to a quality amplified install.

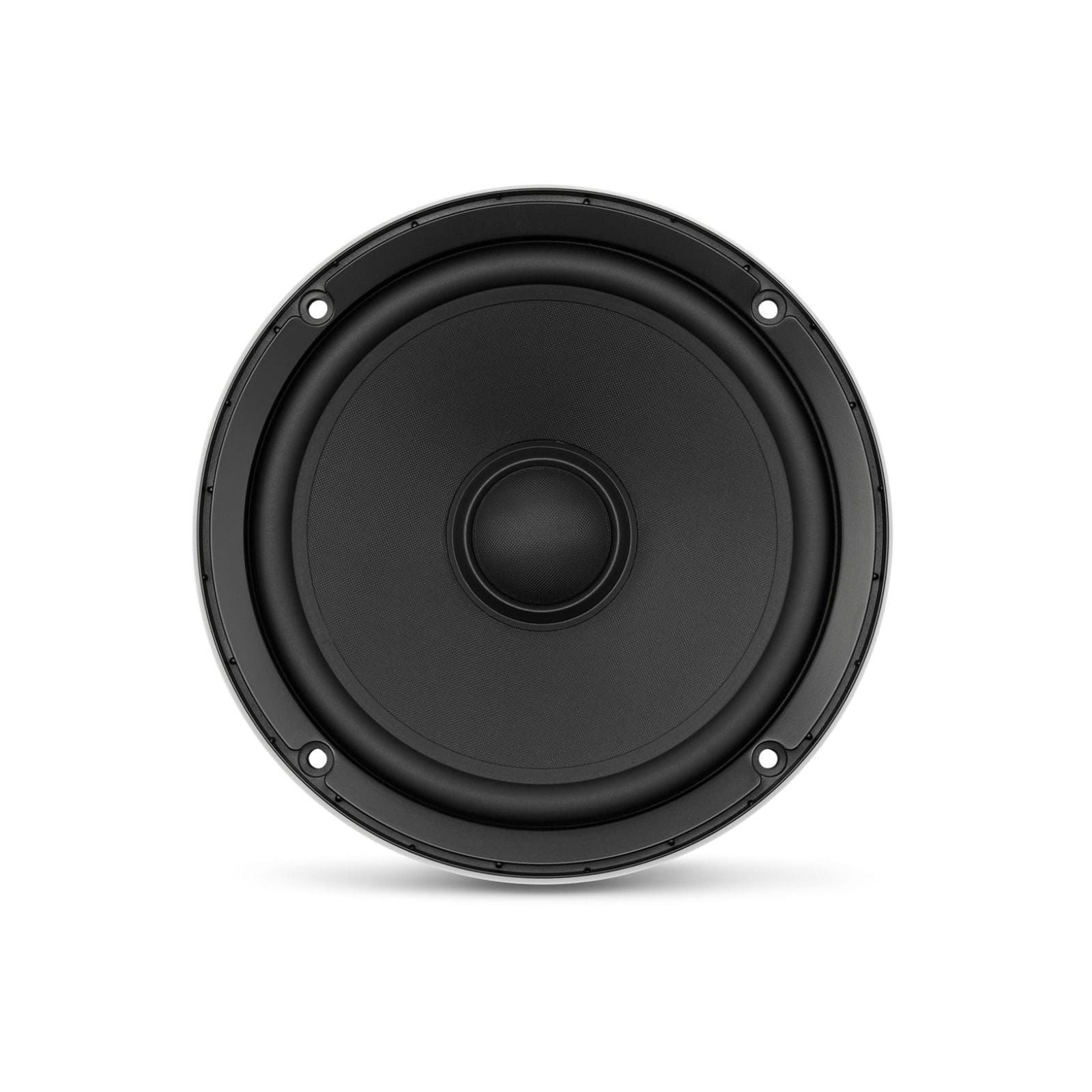

DMA-optimised woofers
Proprietary motor, suspension and cone modelling reduces distortion and improves transient performance. The woofer's centre cap is shaped to optimise high-frequency response for a seamless transition to the tweeter. Cast-alloy frames incorporate JL Audio's Elevated Frame Cooling technology, and the oversized voice coil extends power handling while minimising thermal compression at higher volumes.

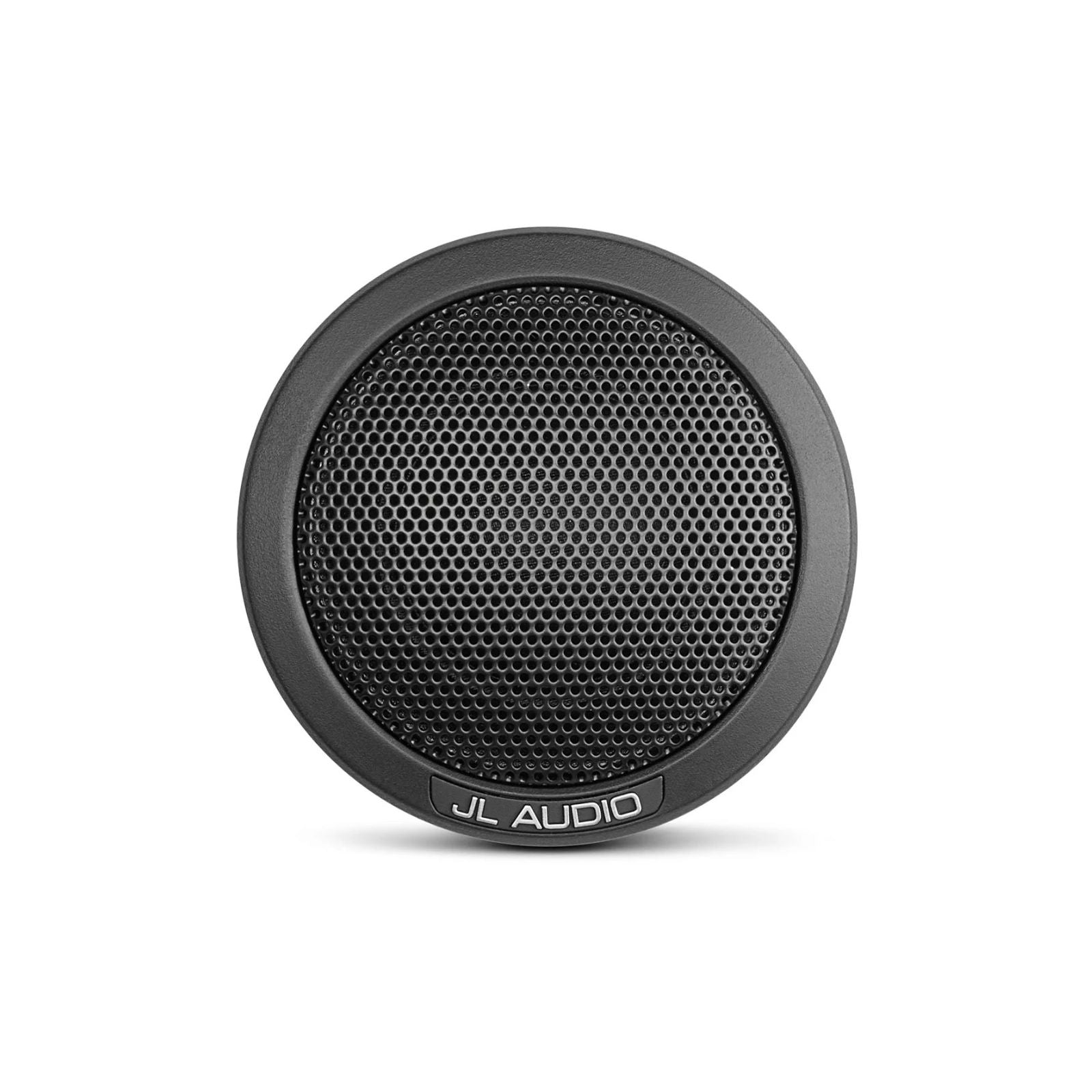

Silk dome tweeters
The edge-driven pure silk dome tweeter produces detailed highs with excellent off-axis response and damping. An automatic solid-state tweeter protection circuit reduces the risk of tweeter failure.

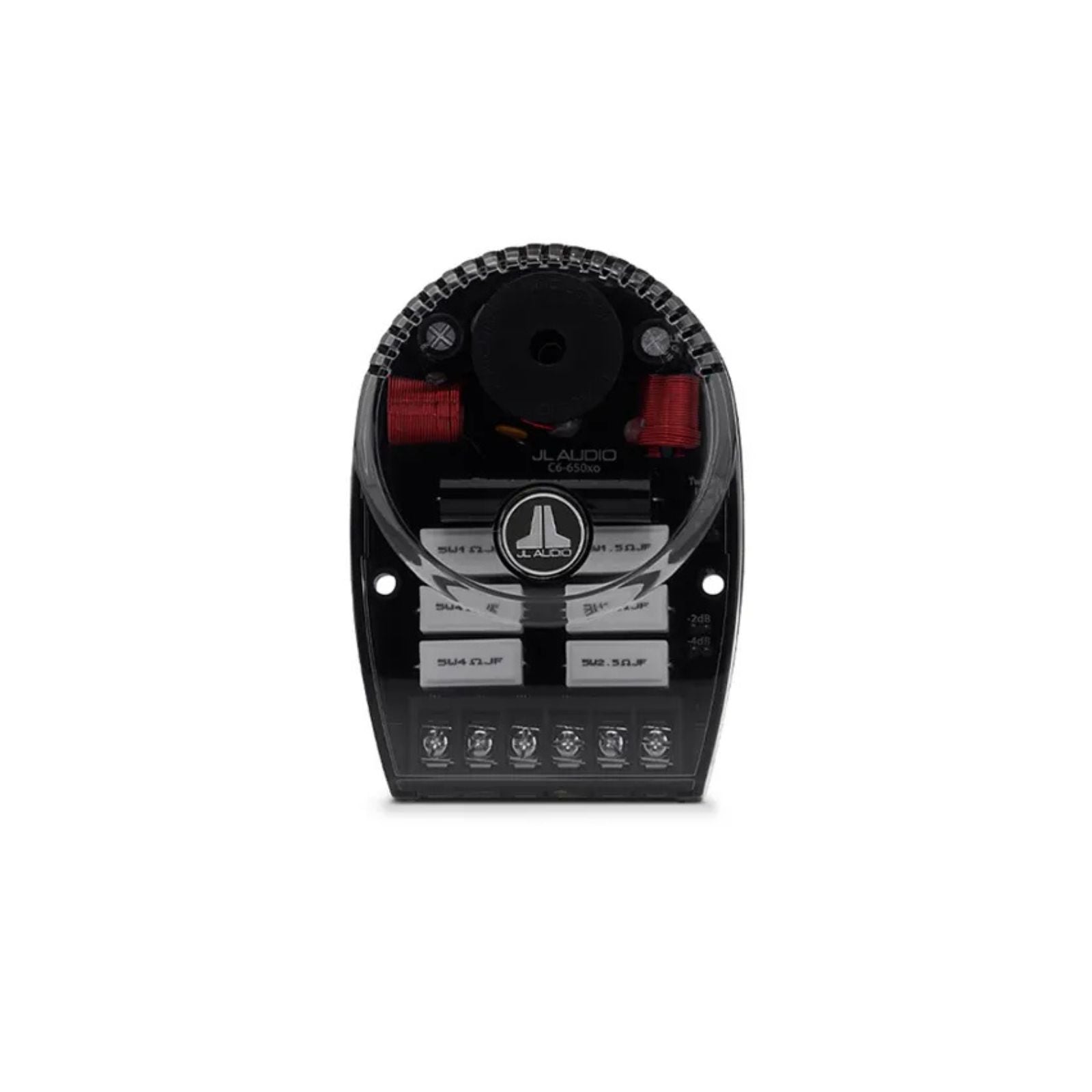

Passive crossover networks
Each C6-653 set includes premium passive crossover networks with four levels of tweeter adjustment and four levels of midrange adjustment. Components include polyester film and electrolytic capacitors and low-loss air-core inductors, all housed beneath a protective polycarbonate cover.
Explore the full range in JL Audio Speakers.
Specification
| Sizes | 1″ Tweeter / 2.75″ Midrange / 6.5″ Woofer |
|---|---|
| Weight | 2.75": 4.65 g / 6.5": 16.42 g |
| Continuous power handling (RMS) | 1": 75 W / 2.75": 50 W / 6.5": 100 W |
| Sensitivity | (SPL @ 1 W/1 m) 1": 90 dB / 2.75": 83.50 dB / 6.5": 87.37 dB |
| Sensitivity | (SPL @ 2.83 Volt/1 meter) 1": 93 dB / 2.75": 86.50 dB / 6.5": 90.33 dB |
| Frequency response | (+/- 3 dB) 1": 3 kHz-21 KHz / 2.75": 350 Hz-4.8 KHz / 6.5": 55 Hz-6 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 25-150 W/Channel |
| Voice coil | diameter 2.75": 20.5 mm (0.8") / 6.5": 32 mm (1.27") |
| Cone | material Vacuum-formed, mineral-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 25 mm (1") |

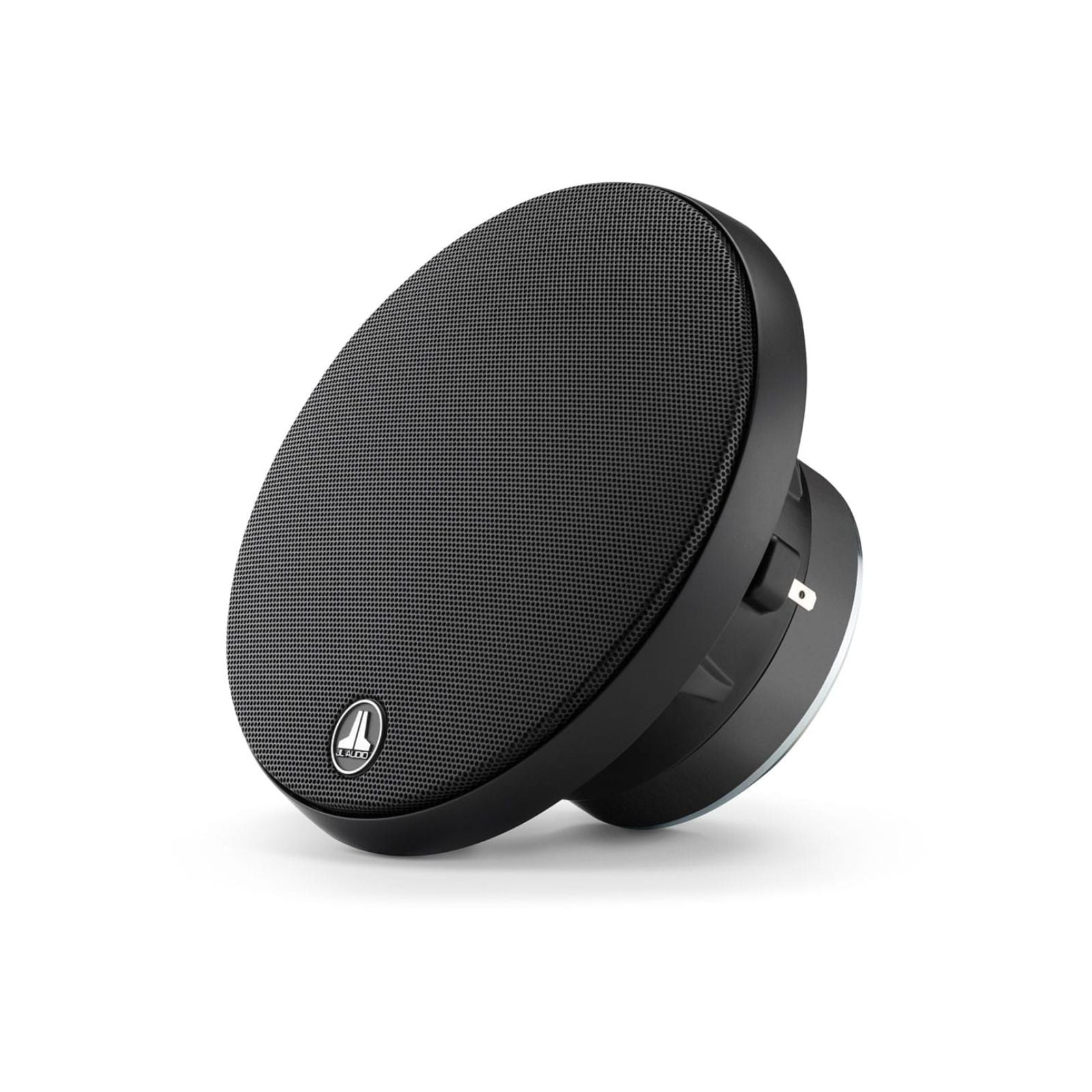

| Grille(s) included | Yes |
| Speaker connections | Spade Connectors |
| Frame outer diameter | 2.75: 77 mm (2.52") / 6.5": 165 mm (6.5") |
| Mounting depth | clearance 2.75": 36 mm (1.42") / 6.5": 66 mm (2.60") |
| Frontal grille protrusion | 2.75": 12 mm (0.47") / 6.5": 25 mm (1") |
| Mounting hole | 2.75": 64 mm (2.52") / 6.5": 139 mm (5.46") |
| Grille tray outer diameter | 2.75": 91 mm (3.58") / 6.5": 172 mm (6.76") |
| Bolt hole circle | 2.75": 77 mm (3.03") / 6.5": 156 mm (6.12") |
| Motor outer diameter | 2.75": 69 mm (2.75") / 6.5": 90 mm (3.54") |
| Free Air Resonance (FS) | 1": 1500 Hz / 2.75": 185 Hz / 6.5": 52.8 Hz |
| Electrical “Q” (Qes) | 2.75": 0.769 / 6.5": 0.647 |
| Mechanical “Q” (Qms) | 2.75": 7.848 / 6.5": 5.076 |
| Total “Q” (Qts) | 2.75": 0.700 / 6.5": 0.574 |
| Equivalent Compliance (Vas) | 2.75": 0.125 L (0.0353 cu ft) / 6.5": 15.069 L (0.532 cu ft) |
| One-way linear excursion | 2.75": 1.50 mm (0.059") / 6.5": 3.75 mm (0.148") |
| Reference Efficiency (NO) | 1": 0.602 % / 2.75": 0.1414 % / 6.5": 0.344 % |
| Moving mass (Mms) | 2.75": 4.65 g / 6.5": 16.42 g |
| Mechanical compliance (Cms) | 2.75": 0.00031 m/N / 6.5": 0.000581 m/N |
| Magnetic strength (BL) | 2.75": 5.03 / 6.5": 5.186 |
| Effective piston area (SD) | 2.75": 0.00236 m² (3.66 in²) / 6.5": 0.013807 m² (21.4 in²) |
| DC resistance (RE) | 1"/6.5": 3.20 Ω / 2.75": 3.58 Ω |
| Flush mount tweeter fixture diameter | 54 mm (2.13") |
| Surface mount tweeter fixture diameter | : 54 mm (2.11") |
| Flush mount tweeter mounting depth | 47 mm (1.85") |
| Flush mount tweeter frontal protrusion | 8 mm (0.30") |
More specs
| |

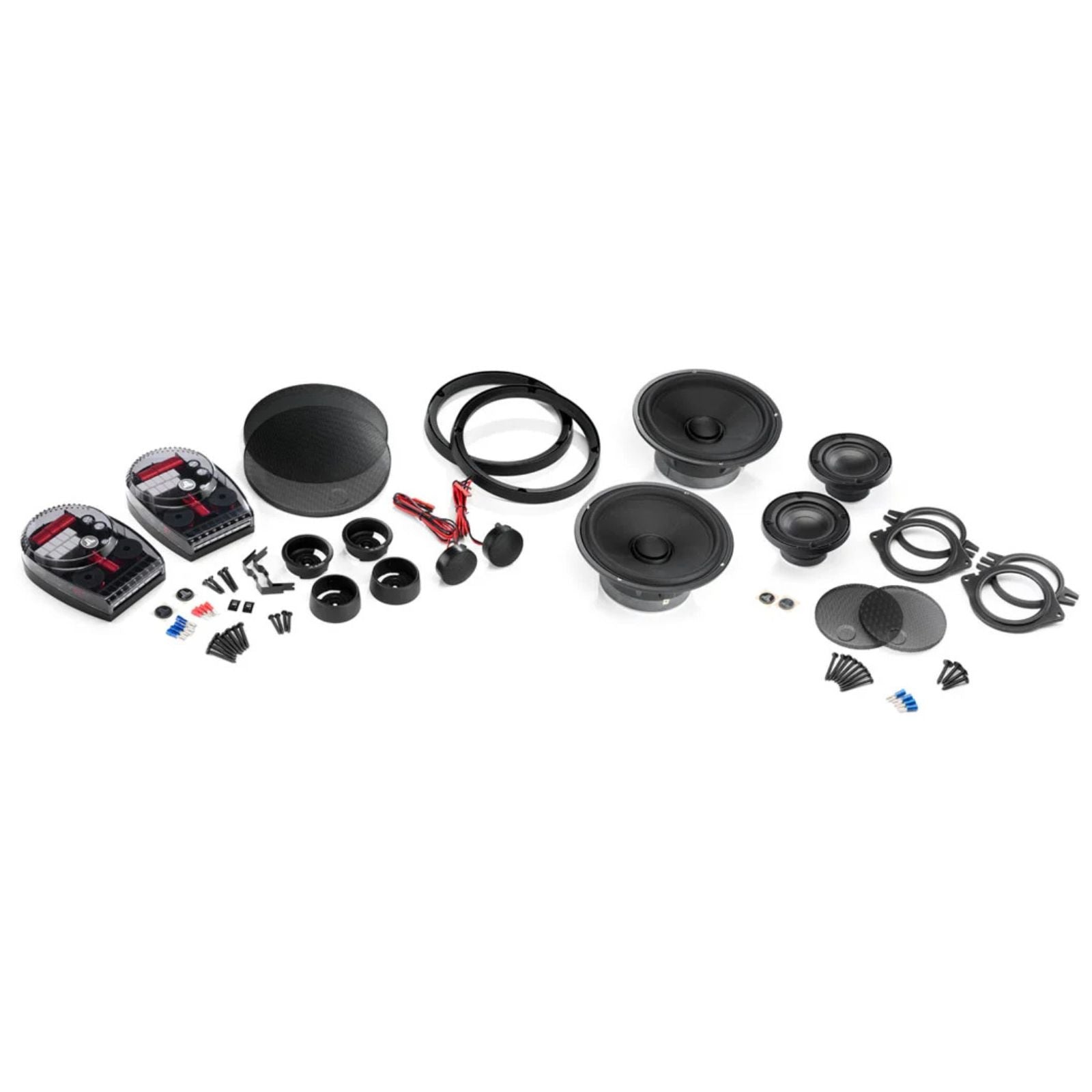

What's Included
- Two woofers
- Two tweeters
- Two crossovers
- Two midranges
- Eight speed clips
- Two 0.250″ female crimpable connectors
- Two 0.185″ female crimpable connectors
- Two 0.185″ male crimpable connectors
- Two 0.110″ male crimpable connectors
- Eight 1-1/4" mounting screws
- Four 1″ pan head screws
- Two 1″ flat head screws
- Two flush mount tweeter housings
- Two surface mount tweeter housings
- Two metal spring clips (for flush mounting)
- Two M4x30 mm machine screws
- Two grille frames, grilles and JL Audio logo badges
- Two 0.185″ female crimpable connectors
- Two 0.110″ female crimpable connectors
- Eight 1-1/4" mounting screws
- Two grille frames, grilles and JL Audio logo badges
- Four OEM adapter rings
JL Audio
About the JL Audio C6-653
From our tech experts at CEN
The JL Audio C6-653 is a 6.5" three-way component speaker system from the Evolution C6 Series, rated at 100W RMS at the woofer. The system includes 6.5" mineral-filled polypropylene woofers, 2.75" midrange drivers and 1" silk dome tweeters. Premium passive crossover networks with four tweeter and four midrange level adjustments are supplied for acoustic tuning.
Who it suits
These speakers suit drivers building an amplified front-stage, as they require an external amplifier delivering 25–150W RMS per channel. The three-way design adds a dedicated midrange driver for more accurate vocal and instrument reproduction than a two-way system. For a simpler 6.5" option, the JL Audio C2-650x is a coaxial alternative.
Our tech experts advise
Check your door cavity against the woofer's 139mm mounting hole and 66mm mounting depth before purchasing. The 2.75" midrange drivers need a separate mounting location — door panel or A-pillar — with a 64mm cutout and 36mm depth. The system is 4Ω nominal, so confirm amplifier compatibility. Installation is priced per vehicle; speak to us about a quote at our Nottingham fitting centre.
Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from JL Audio Speakers
More options from the same range, in stock and ready to go
JL Audio CF-350MT Custom Fit Series 3.5" 9cm Mid-Tweeter Speaker System 35w RMS
£169.00
View product
JL Audio C2-525 C2 Series 5.25" 13cm Component Car Door Speakers 60w RMS Pair
£219.00
JL Audio C6-650 C6 Series 6.5" 17cm 2 Way Component Car Speakers 100w RMS Pair
£849.00
JL Audio C2-690tx C2 Series 6x9" Coaxial Car Parcel Shelf Speakers 70w RMS Pair
£199.00
JL Audio C1-570x C1 Series 5x7" 6x8" Coaxial Car Door Speakers 50w RMS Pair
£84.90
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What drivers are in the JL Audio C6-653?
A: Each side has a 6.5 inch mineral-filled polypropylene woofer, a 2.75 inch midrange and a 1 inch silk dome tweeter, with a passive 3-way crossover.
Q: Can I adjust the tweeter and midrange levels on the C6-653?
A: Yes. The crossovers offer four levels of tweeter adjustment and an additional four levels of midrange adjustment.
Q: What is the difference between the C6-653 and C6-650?
A: The C6-653 is a 3-way system that adds a dedicated 2.75 inch midrange driver, while the C6-650 is a 2-way system with a woofer and tweeter only.
