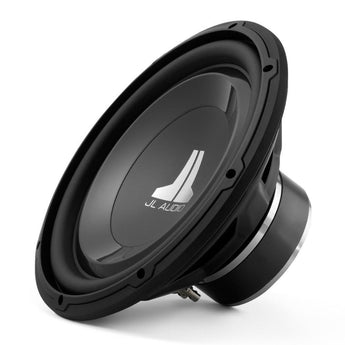

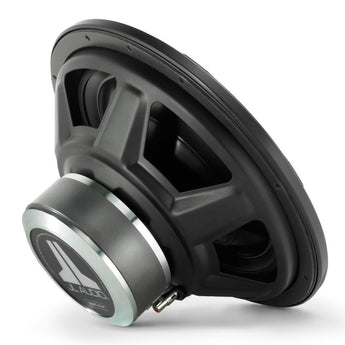

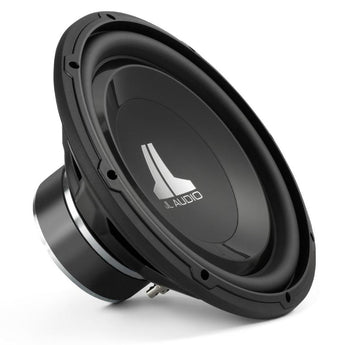

JL Audio 12W1v3-4 12" 30cm W1 Series Car Sub Subwoofer Driver 4ohm 300w RMS

RRP £289.00 £264.00 Save 9%
Black Friday
In stock
SKU: 90932MPN: 12W1V3-4
Part of the range · 60 productsPart of the JL Audio Subwoofers range · 60 products See the range →

The JL Audio 12W1v3-4 is a 12" (300 mm) single 4-ohm voice coil subwoofer driver from the W1 Series, rated at 300W RMS. It is a shallow-mount, lightweight driver suited to moderate-power systems of 75–300W, optimised for a compact sealed enclosure.

This listing is the 4-ohm version. The 12W1v3 is also available as the 12W1v3-2 with a single 2-ohm voice coil.

Key specifications

  • Size: 12 inch (300 mm)
  • Power handling: 300W RMS
  • Recommended amplifier power: 75–300W RMS
  • Impedance: 4 ohm (single voice coil)
  • Recommended sealed enclosure: 1.10 cu ft (31.15 l)
  • Mounting depth: 5.41 in / 137 mm
  • Mounting hole diameter: 11.0625 in / 281 mm
  • Linear excursion (Xmax, one way): 0.45 in / 11 mm

W1v3 12-inch Subwoofer Driver (300W, 4Ω)

A capable, no-fuss 12-inch subwoofer that delivers strong sub-bass performance without needing a large enclosure or high amplifier power.

The 12W1v3 is a lightweight 12-inch driver with solid performance at moderate power levels. Its shallow mounting depth and absence of a pole-vent mean the rear of the motor structure can sit directly against an enclosure boundary. Strong excursion capability and linearity allow it to reproduce deep sub-bass with real extension and clarity. Several of JL Audio's proprietary technologies support its performance and long-term reliability.

The 12W1v3-4 works best with amplifier power in the 75–300W range and is optimised for a compact sealed enclosure of 1.10 cu ft (31.15 l). Full enclosure recommendations are available in the Specifications tab.

Specification
Mounting Depth(E)    5.41 in / 137 mm
More specs
  • Continuous Power Handling (RMS)    300 W
  • Recommended Amplifier Power (RMS)    75 - 300 W
  • Nominal Impedance (Znom)    4 Ω
  • Nominal Diameter    12.0 in / 300 mm
  • Overall Diameter (A)    12.5 in / 318 mm
  • Mounting Hole Diameter (B)    11.0625 in / 281 mm
  • Bolt Hole Circle Diameter (C)    11.7 in / 297 mm
  • Motor Outer Diameter (D)    5.25 in / 133 mm
  • Driver Displacement    0.052 cu ft / 1.47 L
  • Net Weight    12.2 lb / 5.5 kg
  • Free Air Resonance (Fs)    26.21 Hz
  • Electrical “Q” (Qes)    0.535
  • Mechanical “Q” (Qms)    8.2
  • Total Speaker “Q” (Qts)    0.502
  • Equivalent Compliance (Vas)    2.706 cu ft / 76.63 L
  • One-Way Linear Excursion (Xmax)*    0.45 in / 11 mm
  • Reference Efficiency (no)    0.25%
  • Efficiency (1 W / 1 m)**    86.1 dB SPL
  • Effective Piston Area (Sd)    81.426 sq in / 0.0525 sq m
  • DC Resistance (Re)    3.915 Ω
What's Included
  • 12W1v3-4
  • Black plastic trim ring
  • Owner's manual
Product information

JL Audio

About the JL Audio 12W1V3-4

From our tech experts at CEN

A JL Audio 12 inch W1 Series subwoofer driver, 4 ohm, handling 300w RMS.

Who it suits

Drivers building a system around a properly specified enclosure rather than a box off the shelf. W1 sits a step above W0, with more control for the money.

Our tech experts advise

This is a driver, not a finished system: enclosure volume and tuning decide most of what you hear, and JL publish specifications worth building to, and the 4 ohm coil decides how it should be wired to your amplifier. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Do I need an amplifier for this subwoofer?

A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.

Q: What size enclosure does this subwoofer need?

A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.

Q: What does RMS power mean?

A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.

Q: Sealed or ported enclosure - which should I choose?

A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.

Q: Can CEN build or supply an enclosure and fit everything?

A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.

Q: What amplifier power does the JL Audio 12W1v3-4 need?

A: JL Audio recommends 75 - 300W RMS of amplifier power for the 12W1v3-4. It is rated at 300W RMS continuous power handling (4 ohm impedance).

Q: What box size is recommended for the 12W1v3-4?

A: The 12W1v3-4 is optimised for a 1.10 cu ft sealed enclosure. Full enclosure details are in the Specification tab.

Q: How deep is the 12W1v3-4 and what cut-out does it need?

A: The 12W1v3-4 has a mounting depth of 5.41 in / 137 mm and needs a mounting hole (cut-out) diameter of 11.0625 in / 281 mm.
