JBL Stage GT 90041 Amp Powerful 4 Channel Class D Speaker Car Amplifier 520w RMS
Couldn't Load Pickup availability

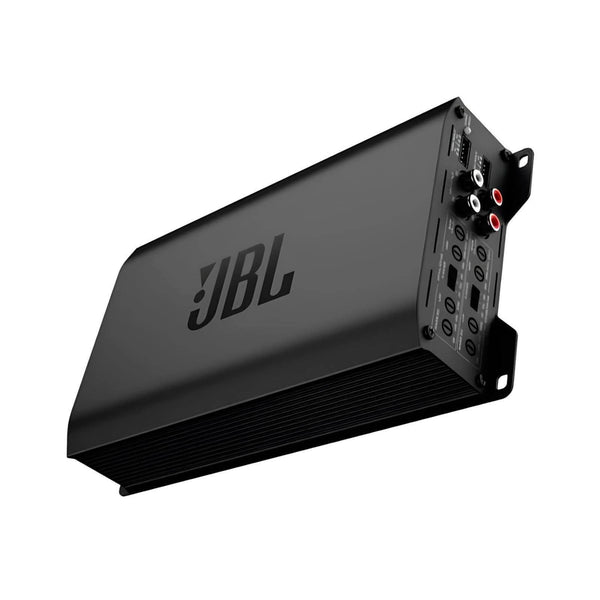

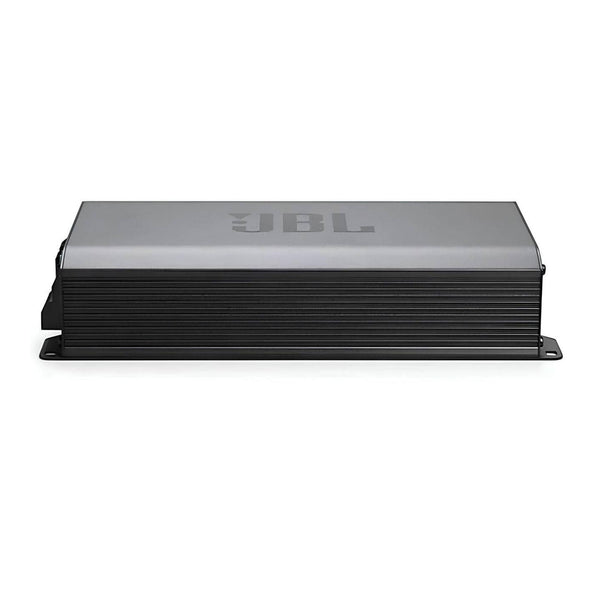

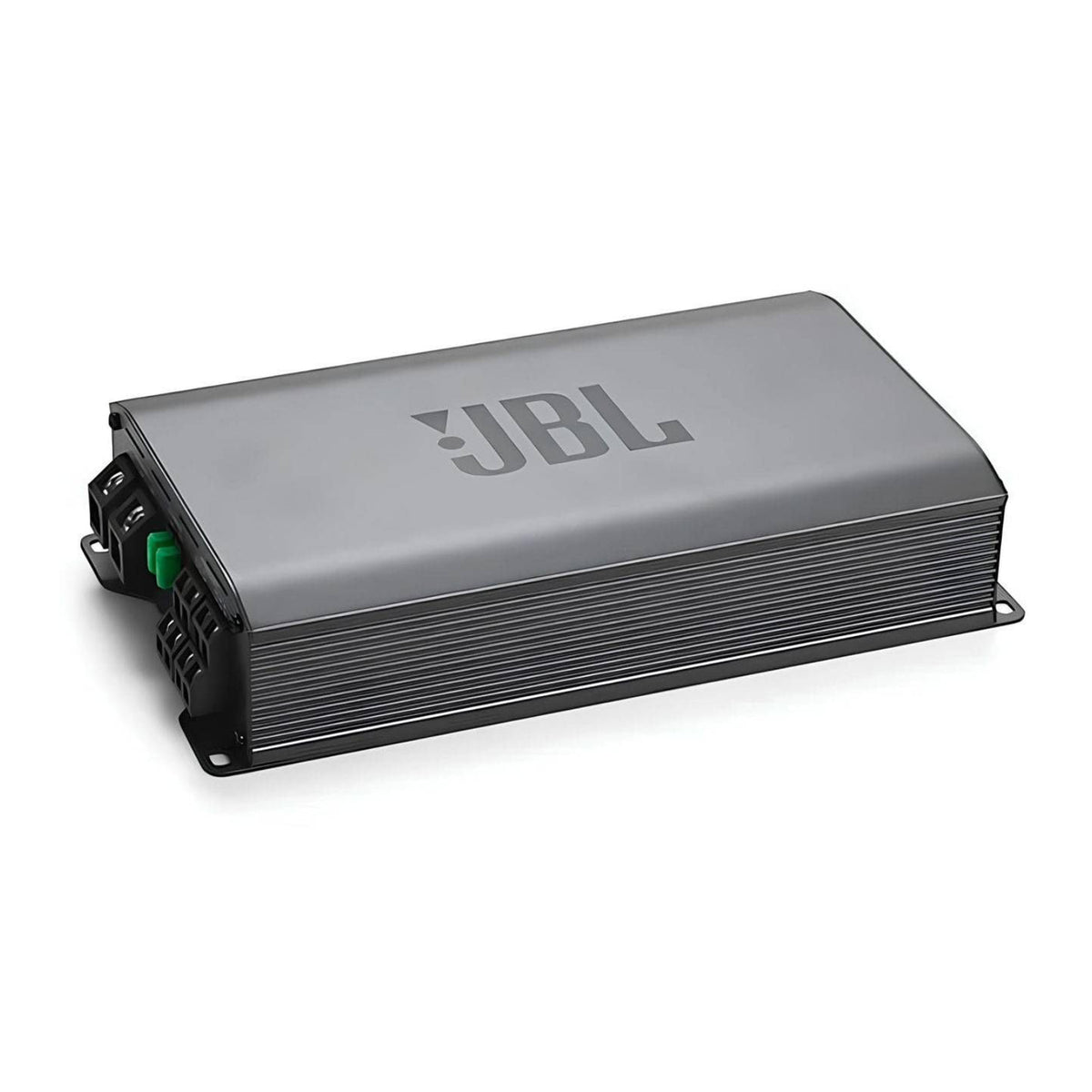

The JBL Stage GT 90041 is a compact 4-channel Class D car amplifier from the JBL Stage GT range, delivering 130W x 4 RMS at 2 ohms (520W RMS total) and bridgeable to 260W x 2 at 4 ohms.
Key specifications
- Channels: 4 (bridgeable to 2)
- Amplifier class: Class D
- RMS power: 130W x 4 @ 2 ohms / 90W x 4 @ 4 ohms
- Bridged power: 260W x 2 @ 4 ohms
- Maximum power: 1480W peak
- High/low-pass filters: 32Hz – 320Hz adjustable
- Bass EQ: 0–12dB at 45Hz

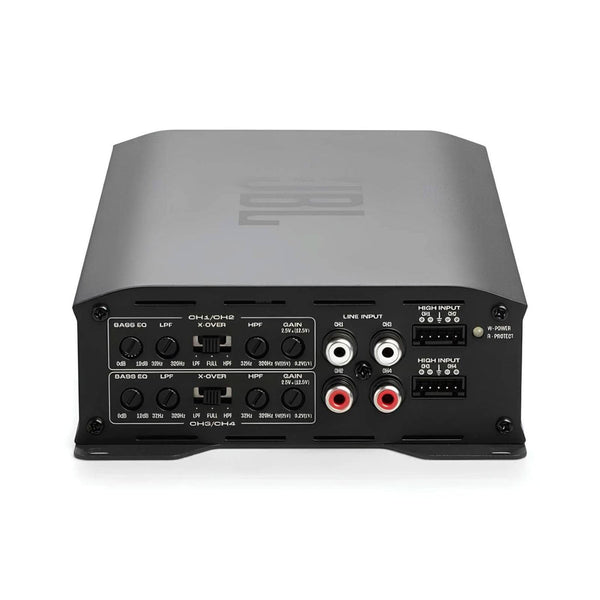

- Inputs: low level 0.2V – 5V, high level 1V – 25V
- Fuses: 2 x 30A
JBL Stage GT 90041 Class D 4-channel amplifier
High-power 4-channel amplifier for any audio setup
The JBL Stage GT 90041 is a versatile 4-channel amplifier suited to both complete speaker setups and subwoofer use. Bridging options, adjustable filters and a bass boost give full control over your sound. Pair it with speakers such as the JBL Stage 3 627F 6.5-inch coaxial speakers or add the JBL Stage GT 50011 monoblock amplifier for a dedicated subwoofer channel alongside it.
- Maximum power: 1480W peak
- RMS power: 130W x 4 @ 2 ohm / 90W x 4 @ 4 ohm / 260W x 2 @ 4 ohm (bridged)
- Frequency response: 20Hz – 20kHz ±1dB
- Total Harmonic Distortion (THD+N): 1%
- Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
- Adjustable bass EQ: 0–12dB at 45Hz
- High/low-pass filters: 32Hz – 320Hz (adjustable)
Explore the full range in JBL Stage.
Specification
| Maximum power | 1480W peak |
|---|---|
| RMS power | 130W x 4 @ 2 ohm / 90W x 4 @ 4 ohm / 260W x 2 @ 4 ohm (bridged) |
| Frequency response | 20Hz – 20kHz ±1dB |
| Total Harmonic Distortion (THD+N) | 1% |
| Input sensitivity | 0.2V – 5V (low); 1V – 25V (high) |
| Adjustable bass EQ | 0–12dB at 45Hz |
| High/Low-pass filters | 32Hz – 320Hz (adjustable) |
| Protection | against short circuit, over/under voltage and overheating |
| Supply voltage | 9V – 16V |

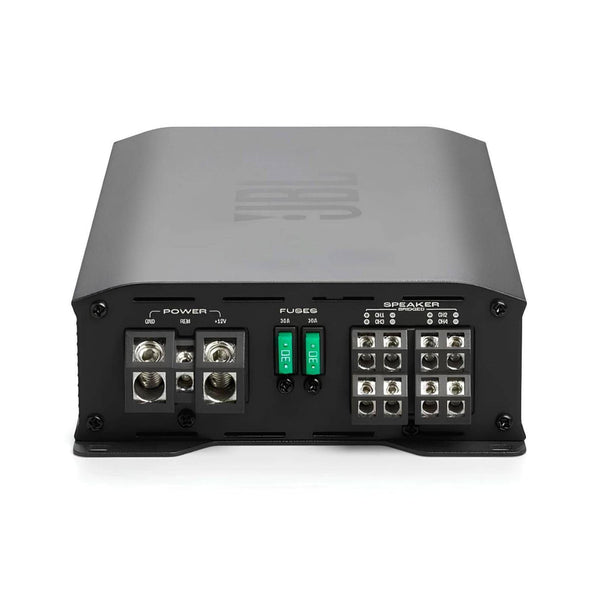

| Fuses | 2x 30A |

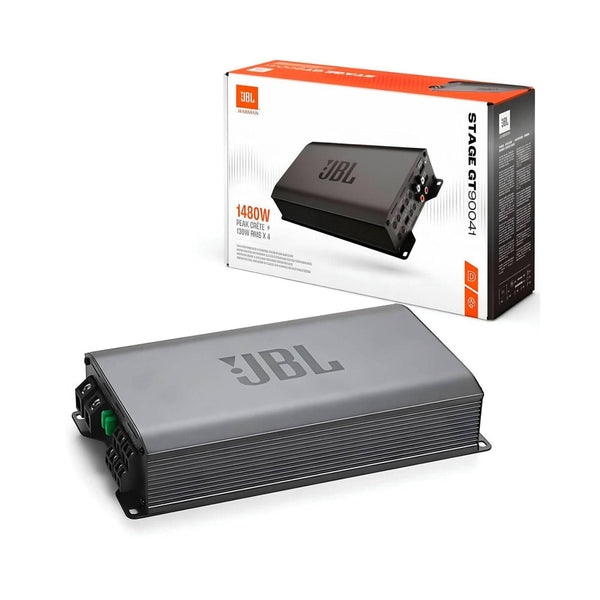

What's Included
- 1x JBL Stage GT 90041 amplifier
- 2x Spare fuse
- 2x High-level input cable
- 4x Mounting screw with washer
- 2x Allen key
- 2x JBL sticker
- 1x QR code for manual
- 1x Safety Instruction
JBL
About the JBL Stage GT 90041
From our tech experts at CEN
A 4-channel amplifier from JBL, rated at 520w RMS.
Who it suits
Drivers who have upgraded their speakers and found the head unit cannot drive them properly.
Our tech experts advise
Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full JBL range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JBL
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from JBL Stage
More options from the same range, in stock and ready to go

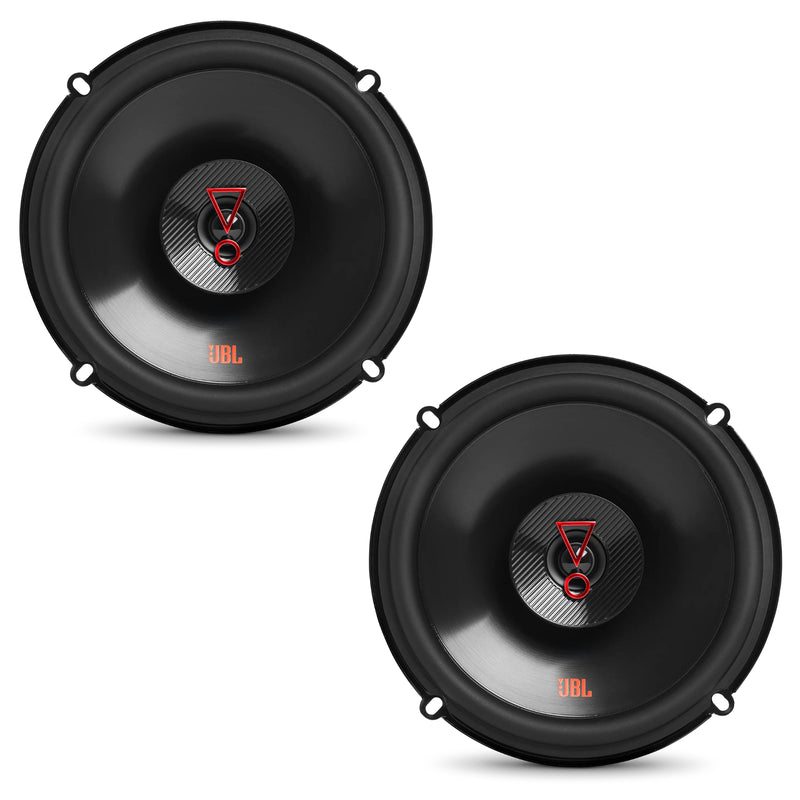

JBL Stage 3 627F 6.5 Inch 2 Way Coaxial Car Door Speakers 45w RMS Pair
£84.99RRP £89.99Save 5%

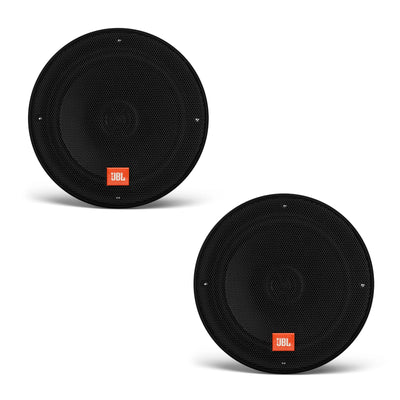

JBL Stage 2 634 6.5 Inch 3 Way Coaxial Car Speakers 40w RMS Pair
£59.99
Best Seller
JBL Stage 2 624 6.5 Inch 2 Way Coaxial Car Door Speakers 40w RMS Pair
£54.99£64.99

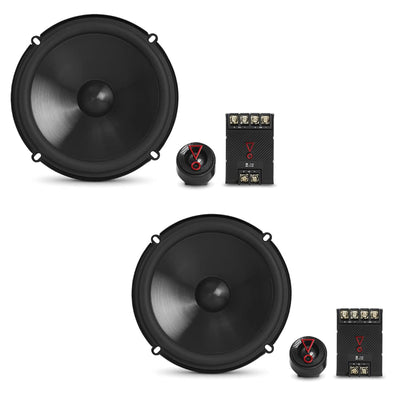

JBL Stage 3 607C 6.5 Inch 2 Way Component Car Door Speaker System 50w RMS
£104.99£129.99

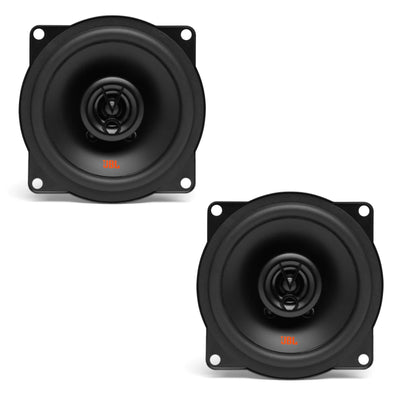

JBL Stage 2 524 5.25 Inch 2 Way Coaxial Car Door Speakers Pair
£40.99£49.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: Can the JBL Stage GT 90041 power a subwoofer?
A: Yes. Two channels can be bridged to give 260W x 2 at 4 ohms, so you can run front speakers from two channels and a subwoofer from the bridged pair, or bridge both pairs.
Q: Will the Stage GT 90041 work with a factory head unit?
A: Yes. It accepts high-level speaker inputs from 1V to 25V as well as low-level RCA inputs from 0.2V to 5V, and two high-level input cables are included in the box.
Q: What is in the box with the JBL Stage GT 90041?
A: The amplifier, two spare fuses, two high-level input cables, four mounting screws with washers, two Allen keys, two JBL stickers, a QR code for the manual and a safety instruction sheet.
