Hertz Marine HMX 8 LD-TC 8 Inch 2 Way RGB LED Coaxial Speakers 100w RMS
Couldn't Load Pickup availability

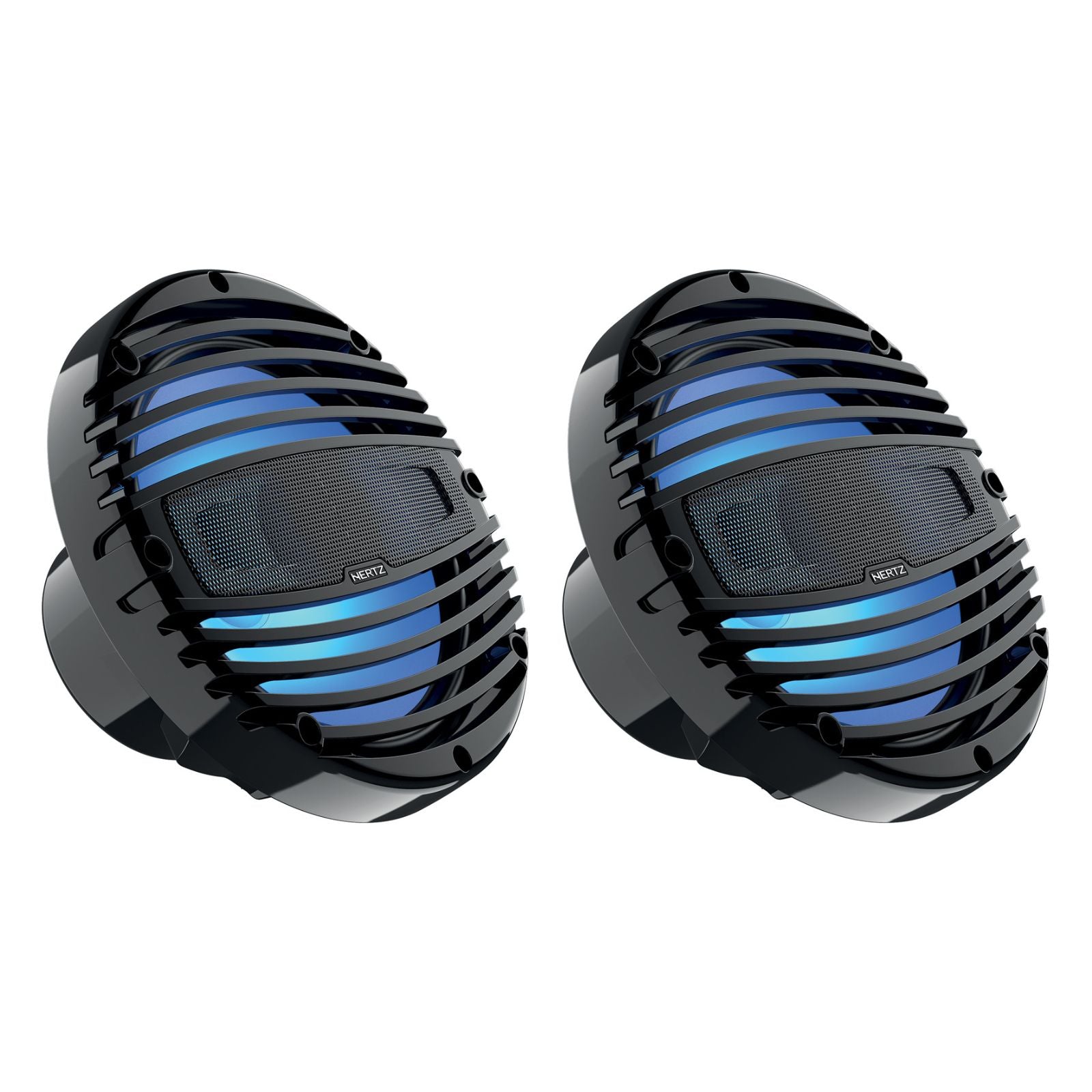

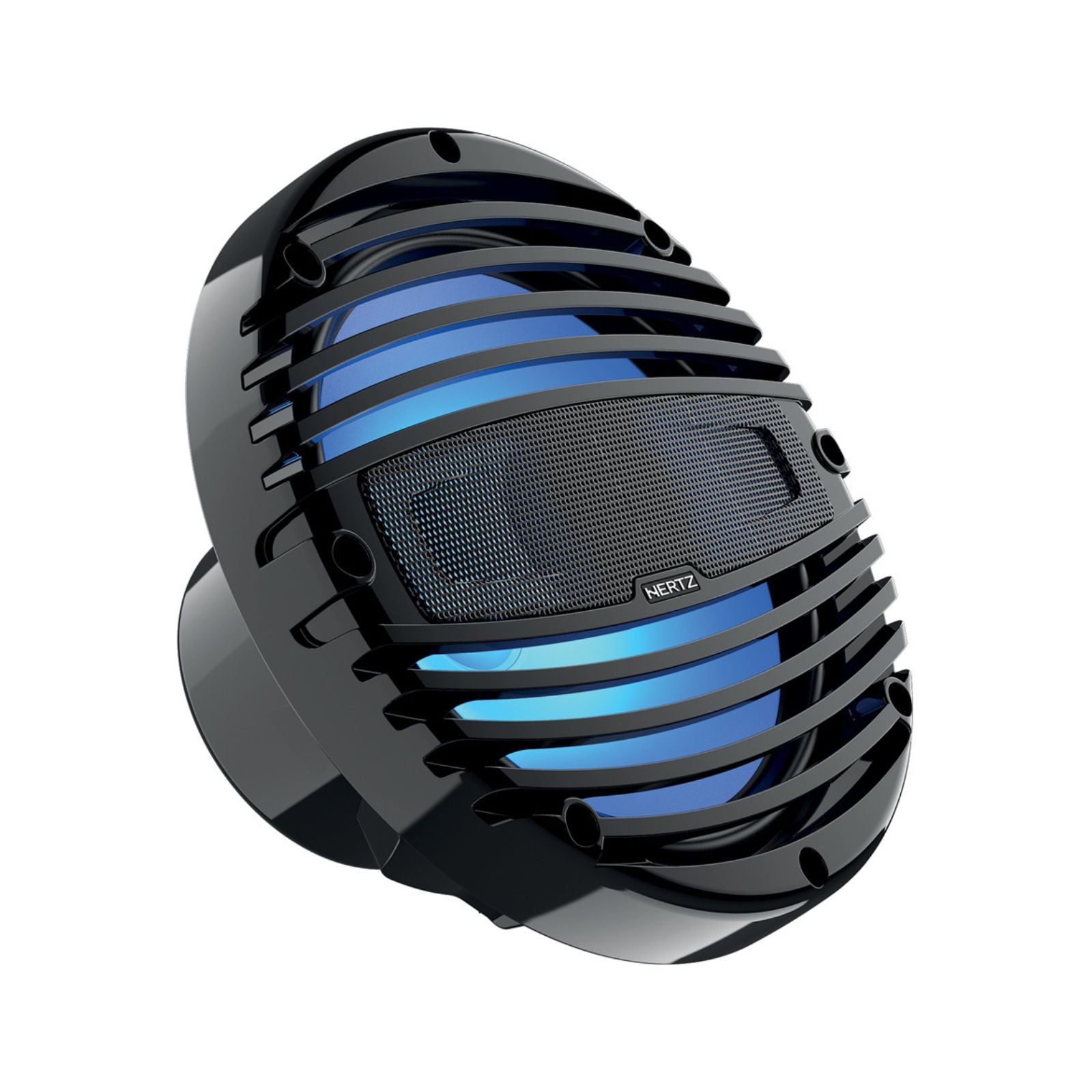

The Hertz Marine HMX 8 LD-TC is an 8-inch 2-way coaxial marine speaker from the Hertz Marine HMX range, rated at 100W RMS (200W peak) at 4 ohms, with integrated RGB LED lighting and a tone-on-tone carbon-coloured front mesh grille.
This listing is the carbon (TC) version. The HMX 8 LD is also available in white as the Hertz Marine HMX 8 LD-TW.
Key specifications
- Size: 8 inch (200 mm)
- Power handling: 100W RMS, 200W peak
- Impedance: 4 ohm
- Mounting depth: 91 mm (3.58 in); overall depth 123 mm (4.84 in)
- Frequency response: 45 Hz to 25 kHz
- Tweeter: 36 mm (1.4 in) PEI dome, neodymium magnet
- Woofer voice coil: 32 mm (1.26 in)
- Weight: 1.66 kg per speaker
- Lighting: integrated RGB LEDs (HM RGB 1 BK accessory)
About the HMX 8 LD-TC
The HMX 8 LD-TC is built for boats and open-air installs. The RGB LED lighting circuit sits below the tweeter, protected by a polypropylene transparent cover that acts as a light diffuser. The UV-resistant polypropylene cone is co-moulded with a Santoprene rubber surround, and the basket and grille are injected with a high-temperature, UV-resistant polymer to resist water, dust and mud. An aramid fibre spider with silicone-insulated lead wires provides long-term durability. The tweeter acoustic lens optimises off-axis dispersion and maximises SPL.
Features
- Integrated RGB LED lighting, compatible with the HM RGB 1 BK accessory.
- Engineered and tested for UV, salt-fog, vibrations, water spray, thermal shock and dust.
- 1.4 in neodymium magnet tweeter with PEI dome, faceplate and acoustic lens optimised for off-axis dispersion and maximum SPL.
- Sound-transparent tone-on-tone stainless steel tweeter mesh grille for high-frequency transfer and protection.
- Long-throw 32 mm (1.26 in) voice coil woofer with UV-inhibited polypropylene cone and co-moulded Santoprene surround, fine-tuned for infinite baffle use.
- Aramid fibre spider with silicone-insulated lead wires for durability and consistent performance.
- FEM-optimised high-excursion mobile equipment driven by a large magnetic group, encapsulated in a marine-grade polymer injected basket.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- Gold-plated, corrosion-resistant terminals.
Explore the full range in Speakers.
Specification
| Component | HI-END LED COAX |
|---|---|
| Size mm (in.) | 200 (8) |
| Power Handling | - Continuous W 100 |
| Power Handling | - Peak W 200 |
| Impedance | Ohm 4 |
| Depth mm (in.) | 123 (4.84) |
| Mounting depth | mm (in.) 91 (3.58) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response | Hz 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight | of one speaker kg (lb.) 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
What's Included
- HMX 8 LD-TC
Hertz
About the Hertz HMX 8 LD-TC
From our tech experts at CEN
Marine-grade 8 inch coaxial speakers handling 100w RMS, built with UV-stable materials and corrosion-resistant hardware for life in sun, salt and spray.
Who it suits
Boats, ribs and open builds, and campers with an outdoor listening area. Anything mounted where rain reaches it should be marine-rated, whatever the vehicle.
Our tech experts advise
In a marine install the wiring decides longevity: tinned cable, sealed joints and a properly fused feed. Mounting position affects the sound more than the speaker choice, because there are no cabin walls to help you. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Speakers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What makes marine speakers different from car speakers?
A: Marine speakers are built with UV-stable, water-resistant cones, grilles and hardware designed for open-air and wet environments. They are the right choice for boats, jet skis, hot tubs and outdoor installs.
Q: Are these speakers fully waterproof?
A: Marine speakers are water-resistant to marine ratings rather than submersible. The IP rating, where provided, is listed in the Specification tab.
Q: Do I need a marine amplifier as well?
A: For best results, yes. Marine amplifiers carry conformal-coated boards that resist moisture and salt air. Match the amplifier to the RMS rating in the Specification tab as you would with any system.
Q: Will these work outside of marine use?
A: Yes. Marine speakers are popular for motorcycles, quads, hot tubs, garden bars and anywhere the weather reaches. Their durability makes them a strong outdoor choice.
Q: What size is the HMX 8 LD-TC?
A: The HMX 8 LD-TC is an 8 inch coaxial speaker with a mounting depth of 91 mm (3.58 in) and an overall depth of 123 mm (4.84 in).
Q: How much power can the HMX 8 LD-TC handle?
A: It is rated at 100W continuous and 200W peak power handling, with a 4 ohm impedance.
Q: Does the HMX 8 LD-TC have LED lighting?
A: Yes. It has integrated RGB LED lighting, designed to be used with the Hertz HM RGB 1 BK accessory.
