Hertz Marine HEX 6.5 IC-W 6.5 Inch 2 Way In-Ceiling Coaxial Speaker 50w RMS
Couldn't Load Pickup availability
The Hertz Marine HEX 6.5 IC-W is a 6.5 inch (165 mm) 2-way in-ceiling coaxial speaker, sold as a single unit, rated at 50W RMS (100W peak) at 6 ohms. It is part of the Hertz Marine range, built to IP65 standard with full UV and salt fog resistance for marine and outdoor environments.
Key specifications
- Size: 6.5 inch (165 mm) 2-way in-ceiling coaxial
- Sold as: Single speaker
- Power: 50W RMS, 100W peak
- Impedance: 6 ohms
- Mounting depth: 87 mm (3.43 in)
- Tweeter: 24 mm Tetolon soft dome
- Frequency response: 50 Hz – 22 kHz
- Protection: IP65, ASTM-D4329 UV, ASTM-B117 salt fog
Hertz Marine HEX 6.5 IC-W (sold as single)

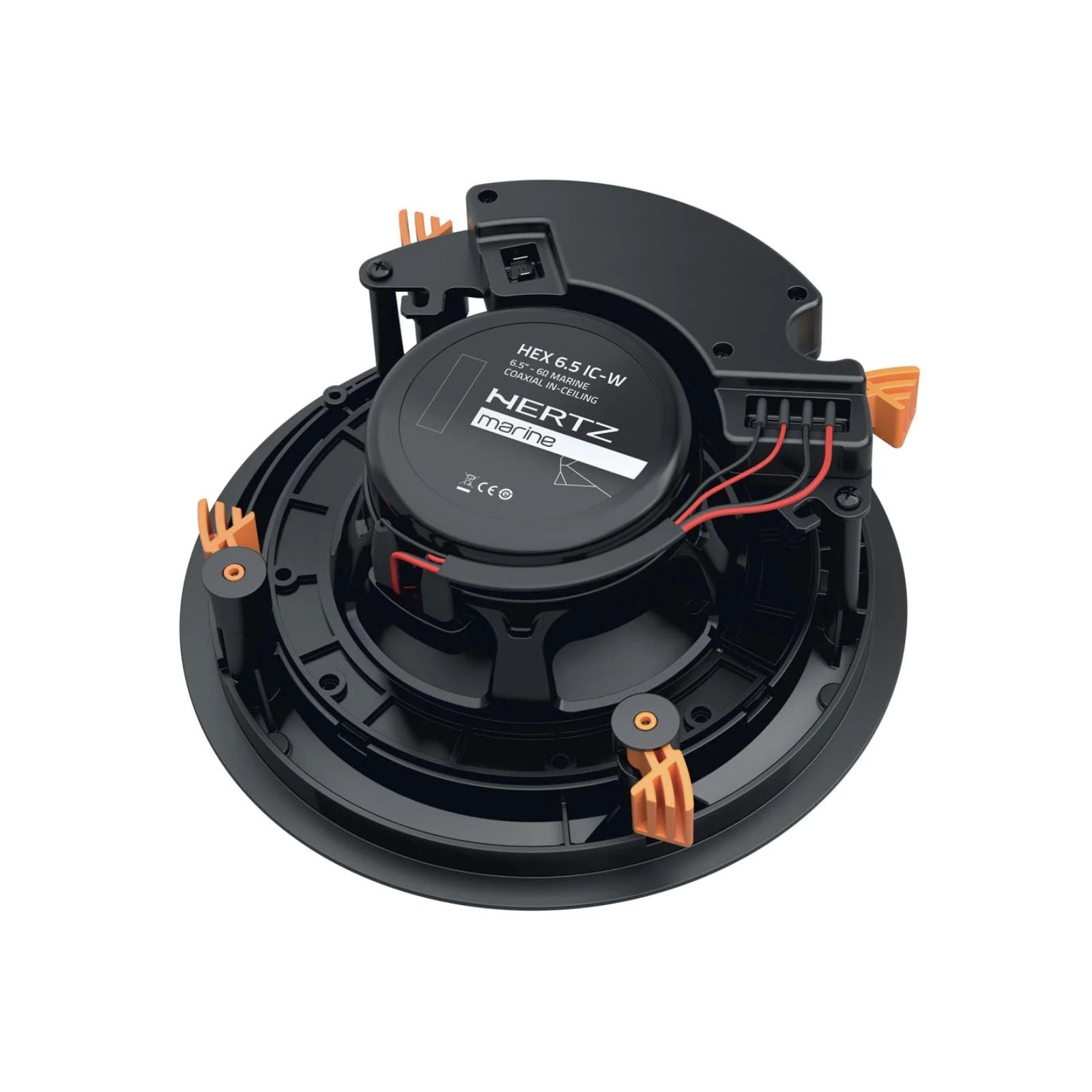

Designed for in-ceiling or in-wall installation, the HEX 6.5 IC-W delivers high-quality audio in a near-stealth form factor. The speaker is engineered for marine environments, with a fully sealed design and a marine conformal coated crossover PCB encapsulated in a sealed enclosure to prevent corrosion.
Features
- Hertz Pure Marine Certified: IP65 protection, ASTM-D4329 UV resistance, and ASTM-B117 salt fog operability.
- Totally sealed design with marine-grade coated crossover PCB to resist corrosion from salt fog.

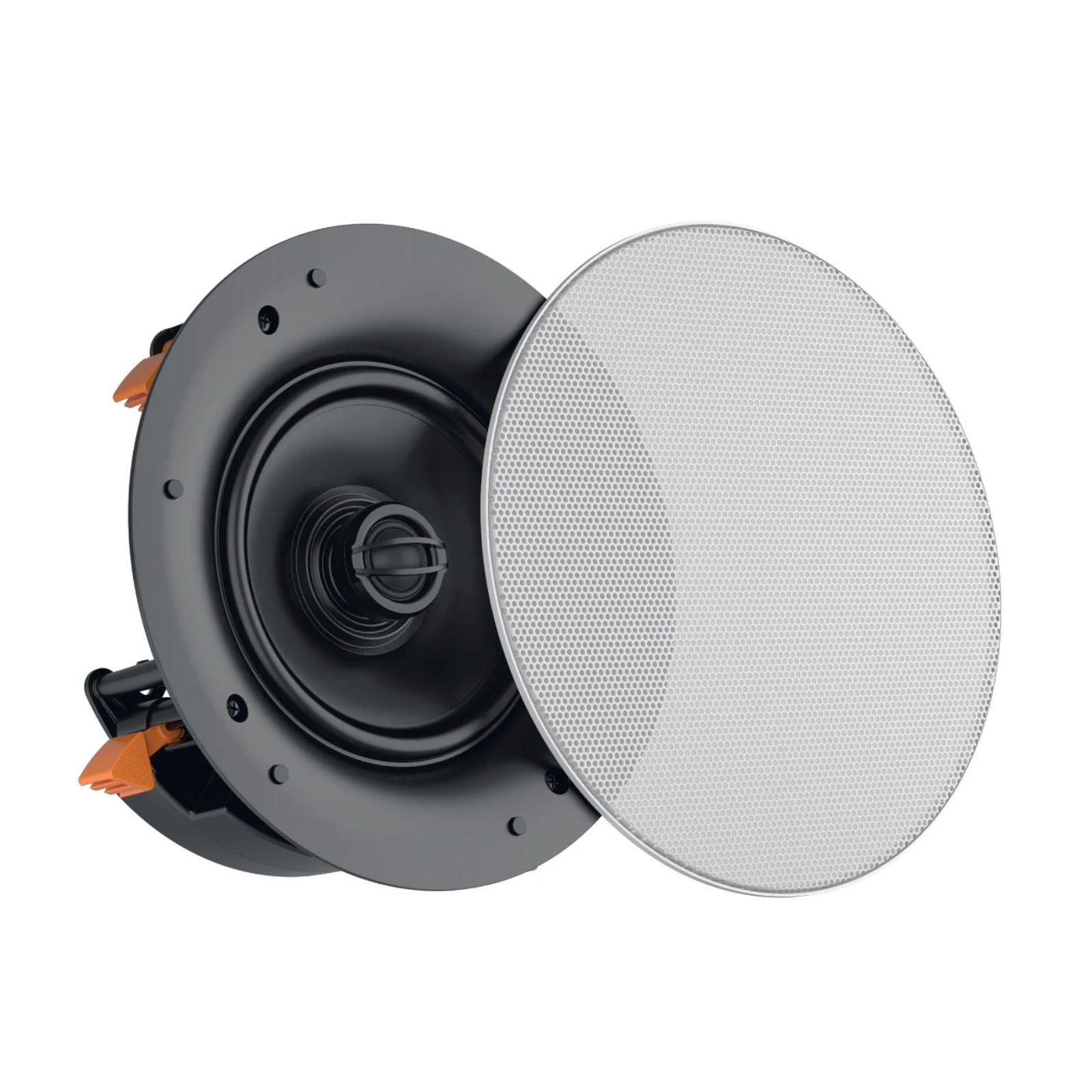

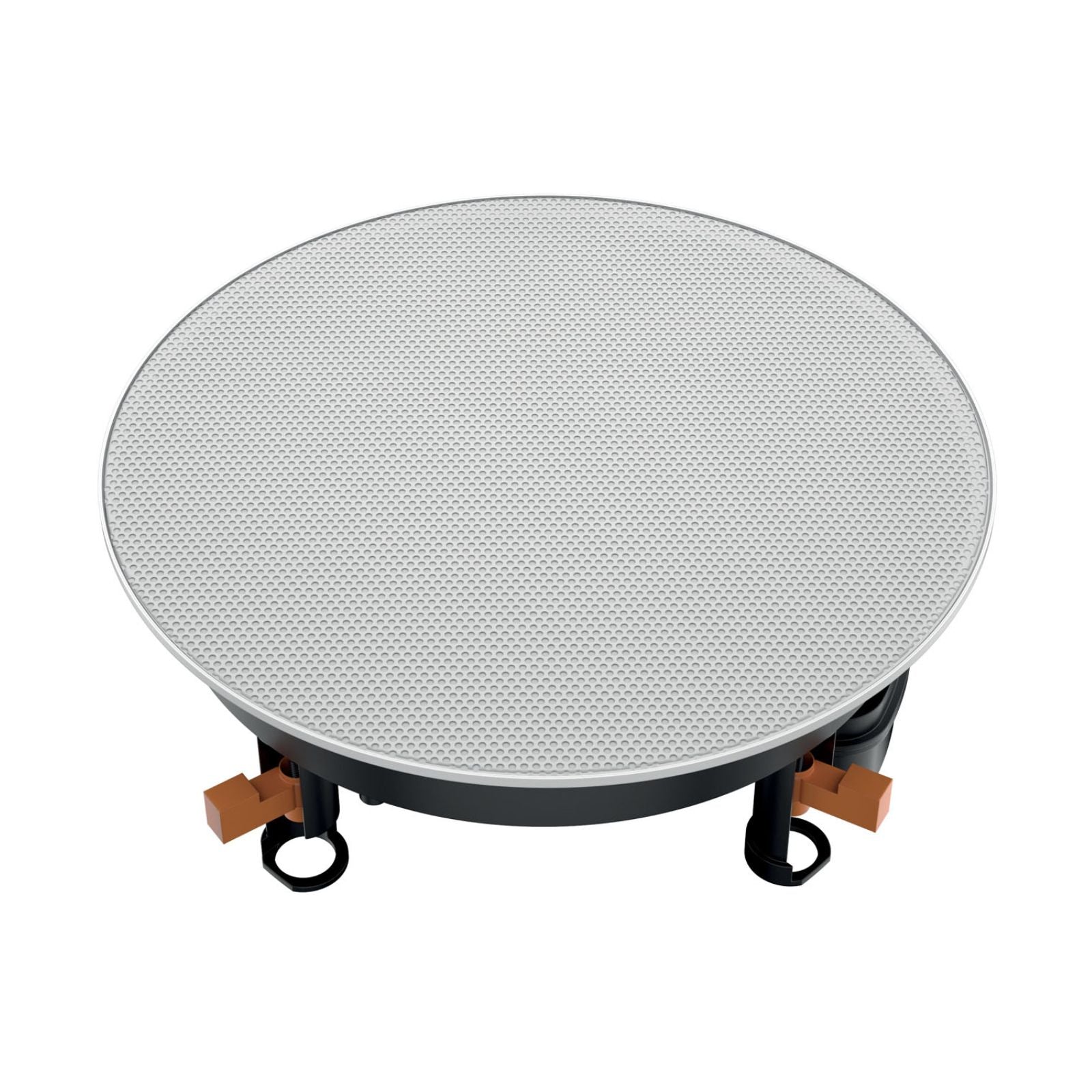

- Edgeless magnetic mesh grille with locking system for a near-stealth in-wall or in-ceiling fit.
- Crossover fine-tuned for in-wall and in-ceiling sound emission.
- Marine-certified 24 mm soft dome tweeter designed using FEM simulation to maximise sound projection in ceiling and wall installations.
- 25 mm (1") voice coil woofer with 6 Ω impedance, compatible with 12V, 24V and rack amplifier systems.
- Silicone-insulated lead wires for extended durability in outdoor use.
- Robust hooking system for fast, easy installation.
Explore the full range in Speakers.
Specification
| Component | IN-CEILING COAX |
|---|---|
| Size mm (in.) | 165 (6.5) |
| Power Handling | - Continuous W 50 |
| Power Handling | - Peak W 100 |
| Impedance | Ohm 6 |
| Depth mm (in.) | 87 (3.43) |
| Tweeter diaphragm mm (in.) | 24 (0.9) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response | Hz 50 ÷ 22k |
| Woofer Magnet size D x d x h mm (in.) | 75 x 32 x 15 (2.95 x 1.26 x 0.59) |
| Tweeter Magnet size D x h mm (in.) | 19 x 3 (0.75 x 0.12) |
| Weight | of one speaker kg (lb.) 1.75 (3.86) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | Tetolon |
| Xmech mm (in.) | ≤4,8 (0.19) |
What's Included
- HEX 6.5 IC-W
Hertz
About the Hertz HEX 6.5 IC-W
From our tech experts at CEN
Marine-grade HEX series 6.5 inch coaxial speakers handling 50w RMS, built with UV-stable materials and corrosion-resistant hardware for life in sun, salt and spray.
Who it suits
Boats, ribs and open builds, and campers with an outdoor listening area. Anything mounted where rain reaches it should be marine-rated, whatever the vehicle.
Our tech experts advise
In a marine install the wiring decides longevity: tinned cable, sealed joints and a properly fused feed. Mounting position affects the sound more than the speaker choice, because there are no cabin walls to help you. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Speakers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What makes marine speakers different from car speakers?
A: Marine speakers are built with UV-stable, water-resistant cones, grilles and hardware designed for open-air and wet environments. They are the right choice for boats, jet skis, hot tubs and outdoor installs.
Q: Are these speakers fully waterproof?
A: Marine speakers are water-resistant to marine ratings rather than submersible. The IP rating, where provided, is listed in the Specification tab.
Q: Do I need a marine amplifier as well?
A: For best results, yes. Marine amplifiers carry conformal-coated boards that resist moisture and salt air. Match the amplifier to the RMS rating in the Specification tab as you would with any system.
Q: Will these work outside of marine use?
A: Yes. Marine speakers are popular for motorcycles, quads, hot tubs, garden bars and anywhere the weather reaches. Their durability makes them a strong outdoor choice.
Q: Is the HEX 6.5 IC-W sold as a pair?
A: No. The HEX 6.5 IC-W is sold as a single speaker.
Q: What impedance is the HEX 6.5 IC-W?
A: 6 ohms, optimised to be driven by any amplifier system, including 12 volt, 24 volt and rack amplifiers.
Q: What depth does the HEX 6.5 IC-W need?
A: It has a mounting depth of 87 mm (3.43 in).
