Helix Compose FlexMount 25 CFMK25 VW.1 Tweeter Adaptor Ring for VW Skoda Seat
Couldn't Load Pickup availability

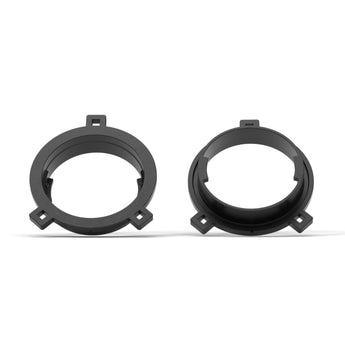

The Helix CFMK25 VW.1 is a pair of two-part FlexMount25 tweeter adaptor rings for Volkswagen, Skoda and Seat vehicles, from the Helix Compose range. They allow a 1" / 25 mm or 0.75" / 20 mm Helix Compose FlexMount tweeter to fit in the original factory tweeter position.
Suitable tweeters include the Ci3 T20FM-TI, which is also supplied in the Ci3 K100.2FM-S3 component set.
Key specifications
- Type: Two-part FlexMount25 tweeter adaptor ring
- Tweeter sizes supported: 1" / 25 mm and 0.75" / 20 mm Helix Compose FlexMount tweeters
- Vehicle fit: Various Volkswagen, Skoda and Seat vehicles with a factory-installed tweeter
- Tweeter fixing: Snap lock
- Compatible tweeters: Ci7 T20FM-SC, Ci5 T25FM-CA, Ci3 T20FM-TI, CB T20FM-S
- In the box: 2 x FlexMount25 ring, 2 x FlexMount25 to FlexMount20 ring
FlexMount is Helix's proprietary mounting system, using specially developed adaptor rings. The two-part design converts a universal 1" / 25 mm or 0.75" / 20 mm Helix Compose FlexMount tweeter into a vehicle-specific speaker, enabling straightforward, acoustically optimised installation in the original mounting position.
- Vehicle-specific adaptor ring for professional, acoustically optimised integration in the original tweeter location
- Two-part design supports both 1" / 25 mm and 0.75" / 20 mm Helix Compose tweeters
- Snap lock fixing for easy installation and secure tweeter retention
Explore the full range in Helix Compose FlexMount.
Specification
| Shape | Round |
|---|---|
| Type | Installation Kit |
| Series | FlexMount |
| Article Number | CI42503 |
| Country of Manufacture | China |
More specs
| |
What's Included
- 2 x FlexMount25 adaptor ring
- 2 x FlexMount25 to FlexMount20 adaptor ring
Helix
About the Helix CI42503
From our tech experts at CEN
The Helix CFMK25 VW.1 is a two-part FlexMount25 tweeter adaptor set for a range of Volkswagen, Skoda and Seat vehicles. It contains two FlexMount25 rings and two reducer rings, so it takes either a 1 inch (25 mm) or a 0.75 inch (20 mm) Helix Compose FlexMount tweeter.
Who it suits
Volkswagen, Skoda and Seat owners who want the option of the 1 inch Ci5 T25FM-CA. With the reducers fitted it also takes 20 mm tweeters such as the Ci3 T20FM-TI. For a 20 mm-only fit in a different VW mount, Helix also makes the CFMK20 VW.2.
Our tech experts advise
Volkswagen group cars use more than one tweeter mount, so check your model before choosing between this and the CFMK20 VW.2. Fit the reducer only when using a 20 mm tweeter. Installation is priced per vehicle, so send us your make, model and year and we will confirm the right ring.
Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Helix News & Guides
The latest Helix product news, launches and guides from the CEN team in Nottingham.
What Is a DSP? In-Car Sound Processing Explained
A DSP (digital sound processor) is the component that makes a good car system sound like a great one: it...
New at CEN: Helix Next DSP Ultra XT — The New Flagship of In-Car Processing
The Helix Next DSP Ultra XT has arrived: a 16-channel standalone processor that now sits at the very top of...
Helix Ci5 Compact Speakers with Audiophile Sound
Intelligent, Compact Construction M50FM-S3 & M80FM-S3 The M50FM-S3 and M80FM-S3 boast an intelligent, compact construction that allows for seamless integration...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Audiotec Fischer Brands
High-End Car Hifi components from Audiotec Fischer
More from Helix Compose FlexMount
More options from the same range, in stock and ready to go
Best Seller Helix Compose FlexMount 200 CFMK200 POR.1 8 Inch Woofer Adaptor for Porsche £104.99 /In stock-
-
-
-
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Which tweeters does the CFMK25 VW.1 fit?
A: It suits HELIX COMPOSE FlexMount tweeters: Ci7 T20FM-SC, Ci5 T25FM-CA, Ci3 T20FM-TI and CB T20FM-S tweeters, plus the tweeters in the Ci3 K100.2FM-S3, K130.2-S3, K165.2FM-S3, K165.2FM-S2, K200.2FM-S3, K200.2FM-S2 and CB K100.2-S3, K130.2-S3, K165.2-S3 component sets.
Q: Does the CFMK25 VW.1 work with 20 mm tweeters?
A: Yes. The two-part design takes 1 inch / 25 mm tweeters directly, and the supplied FlexMount25 to FlexMount20 rings adapt it for 0.75 inch / 20 mm tweeters.
Q: Which vehicles is the CFMK25 VW.1 for?
A: It is for various Volkswagen, Skoda and Seat vehicles with a factory-installed tweeter. Contact CEN with your registration if you want fitment confirmed before ordering.
