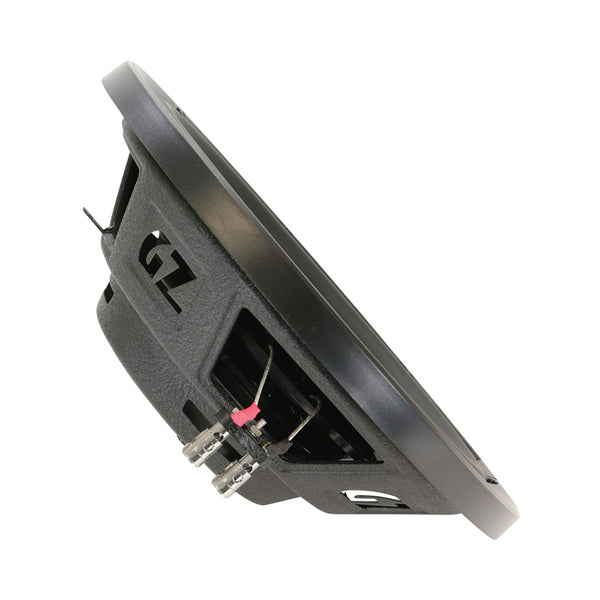

Ground Zero GZRW 300-D2 FLAT 12″ Shallow Subwoofer 450w RMS
Couldn't Load Pickup availability

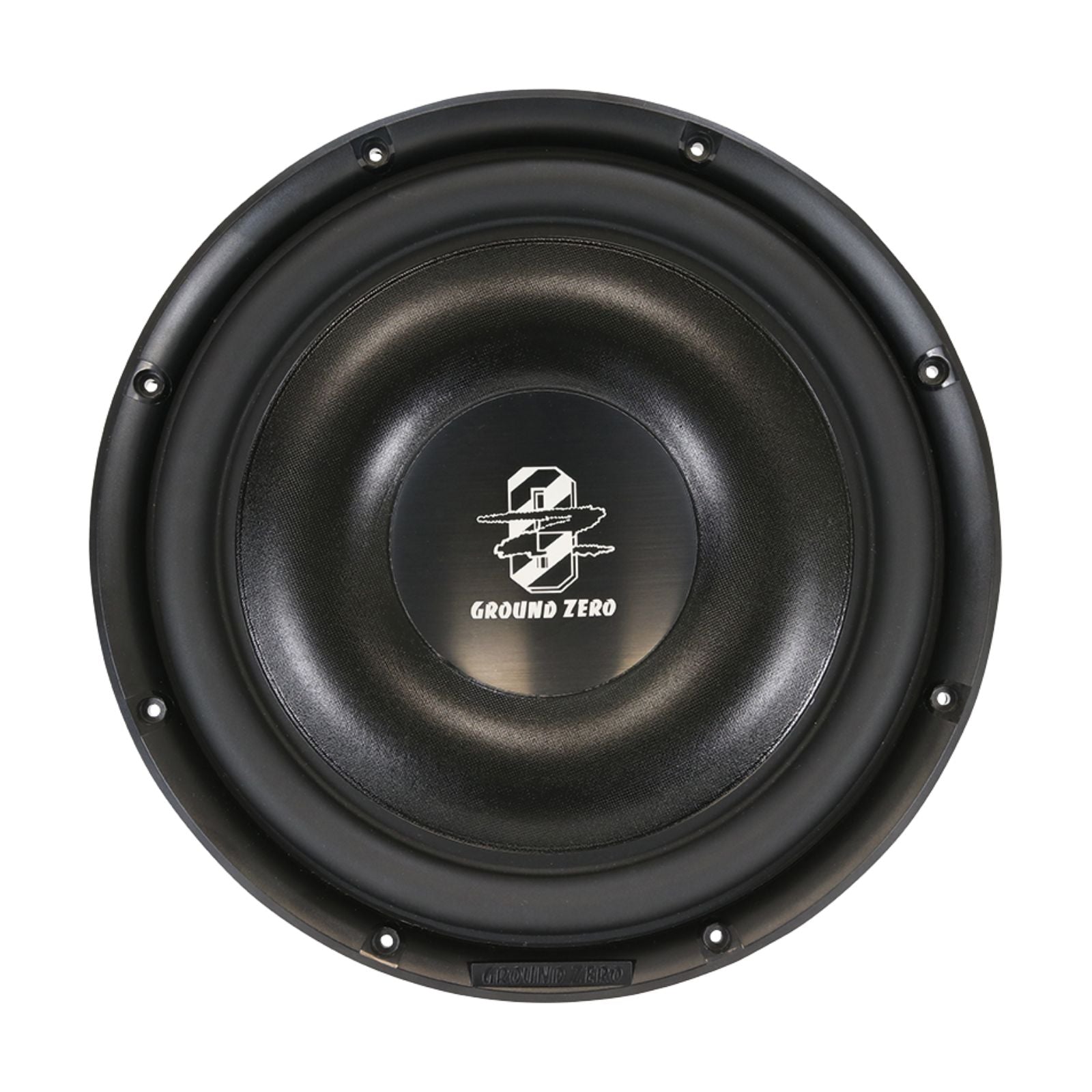

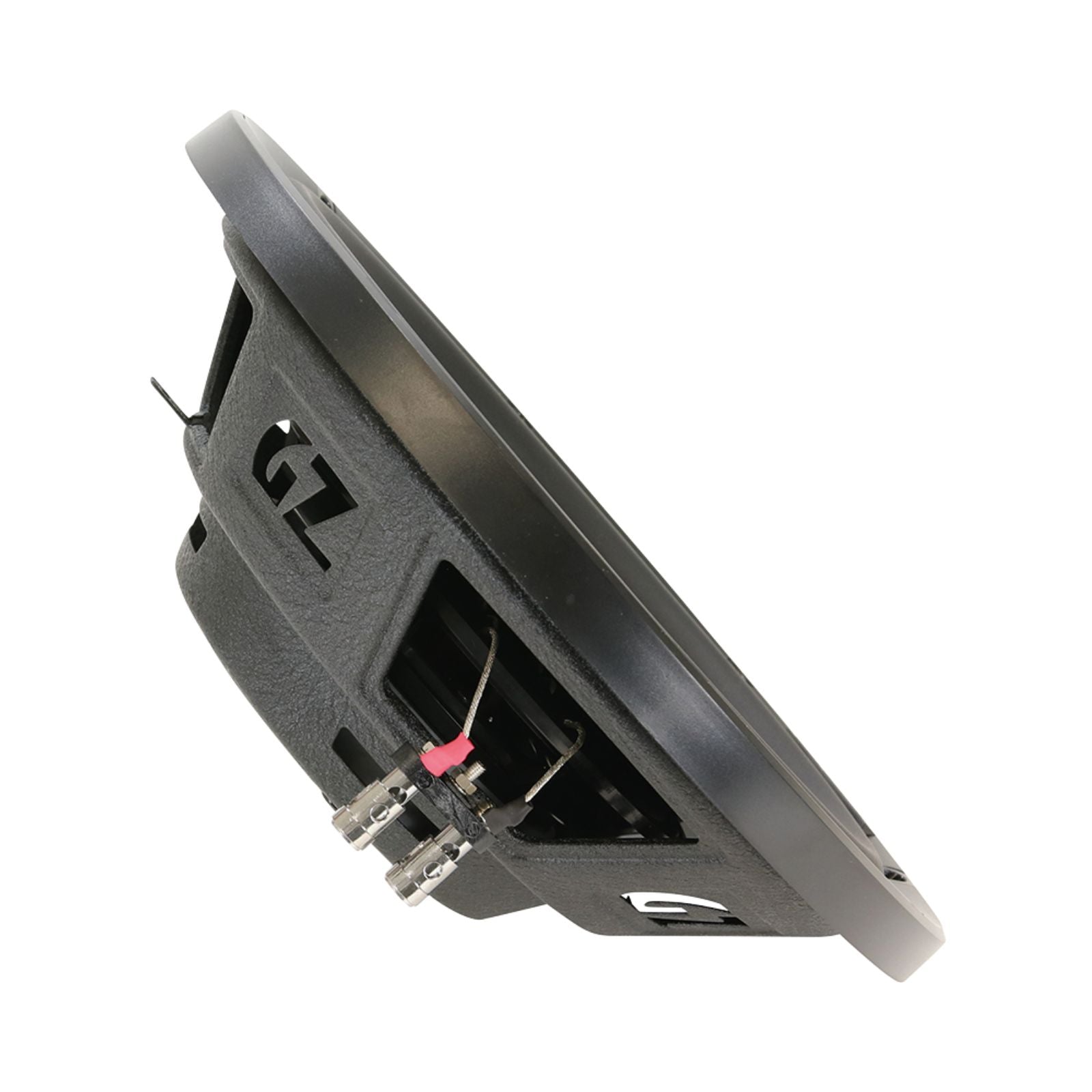

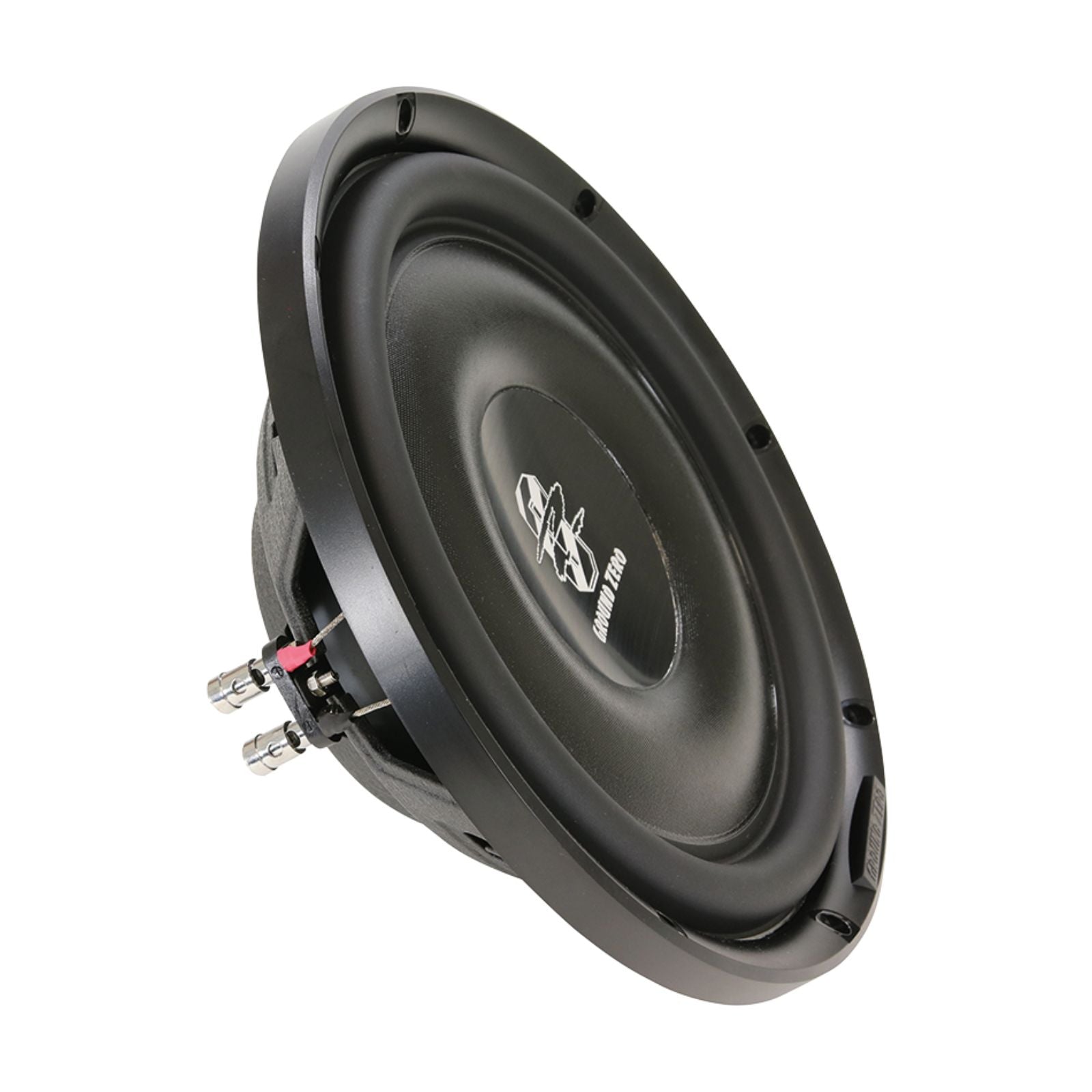

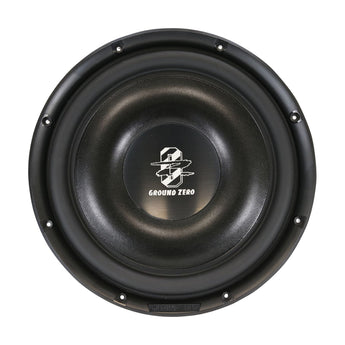

GZRW 300-D2 FLAT
30 cm / 12″ high quality subwoofer
12” subwoofer with shallow installation depth
Features
- 12″ flat subwoofer
- Efficient ferrite motor
- Paper sandwich cone
- Durable rubber surround
- Shallow GZ-design steel basket
- 50 mm / 2″ copper voice coil
- Polycot spider
- Aluminum dust cap
Explore the full range in Ground Zero.
Specification
| Model | High-Quality SPL Subwoofer |
|---|---|
| Diameter | 30 cm / 12″ |
| Power handling | (RMS) 450 Watts |
| Impedance | 2x2 Ohms |
| Efficiency | 84 dB |
| Power recommendation | 200 – 800 Watts |
| Voice coil | 50 mm / 2″ copper |
| Cone | Paper sandwich cone |
| Max. Excursion (Xmax) | 30 mm / 1.18″ |
| Mounting diameter | 278 mm / 10.94″ |
| Mounting depth | 93 mm / 3.66″ |
| Resonance frequency (Fs) | 23.5 Hz |
| Damping ratio (Qts) | 0.44 |
| Equiv. air volume (Vas) | 60,2 L / 2.13 cu.ft. |
What's Included
- GZRW 300-D2 FLAT
