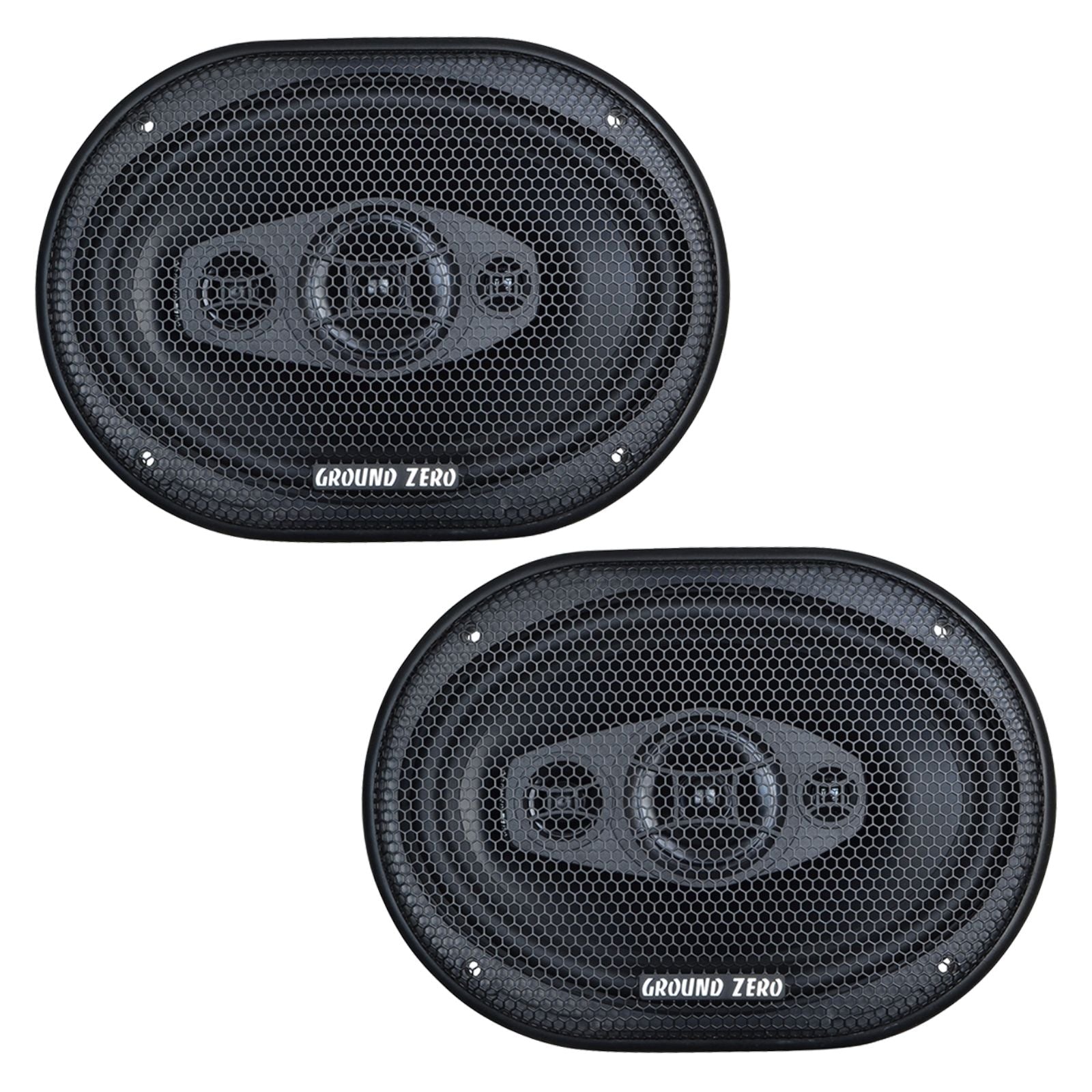

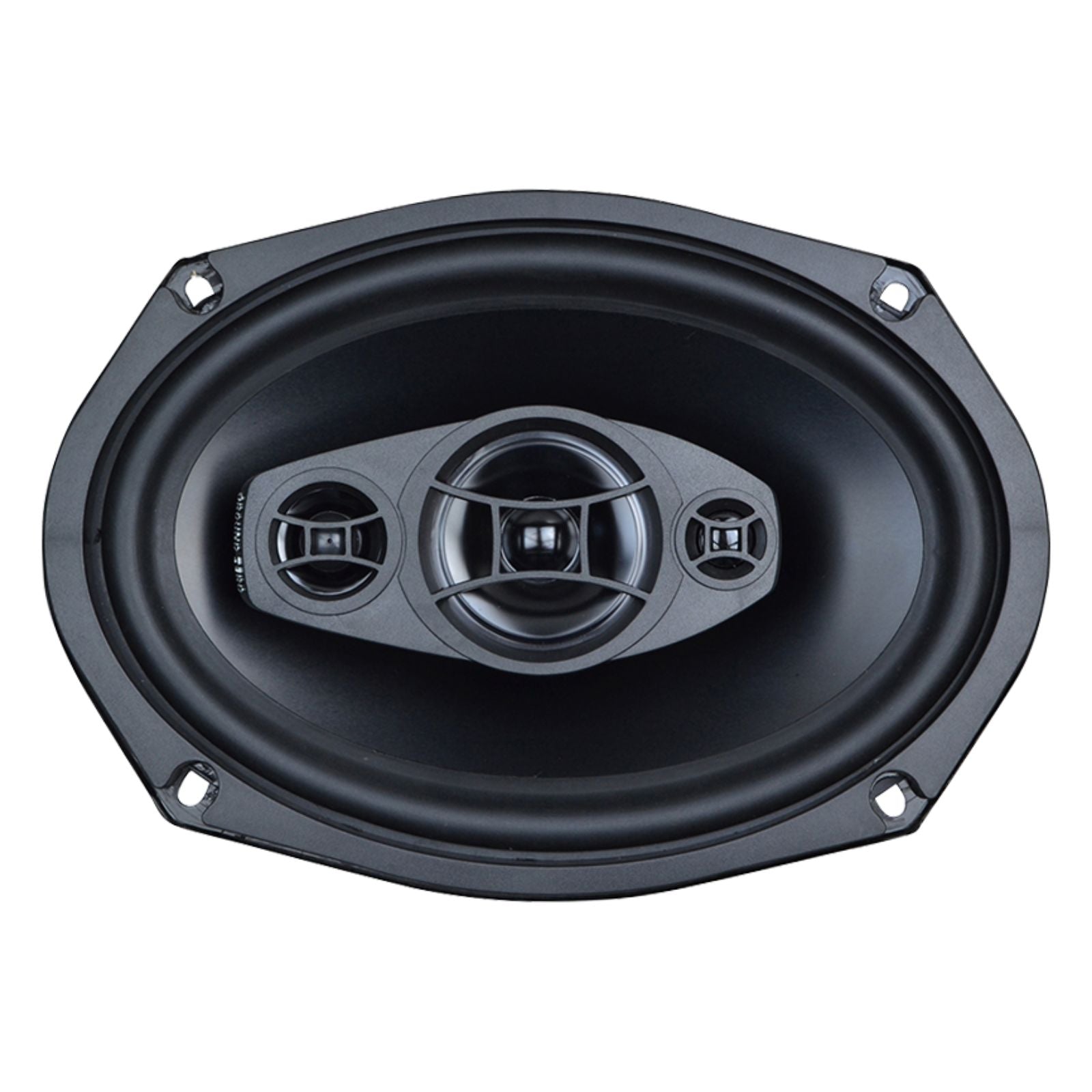

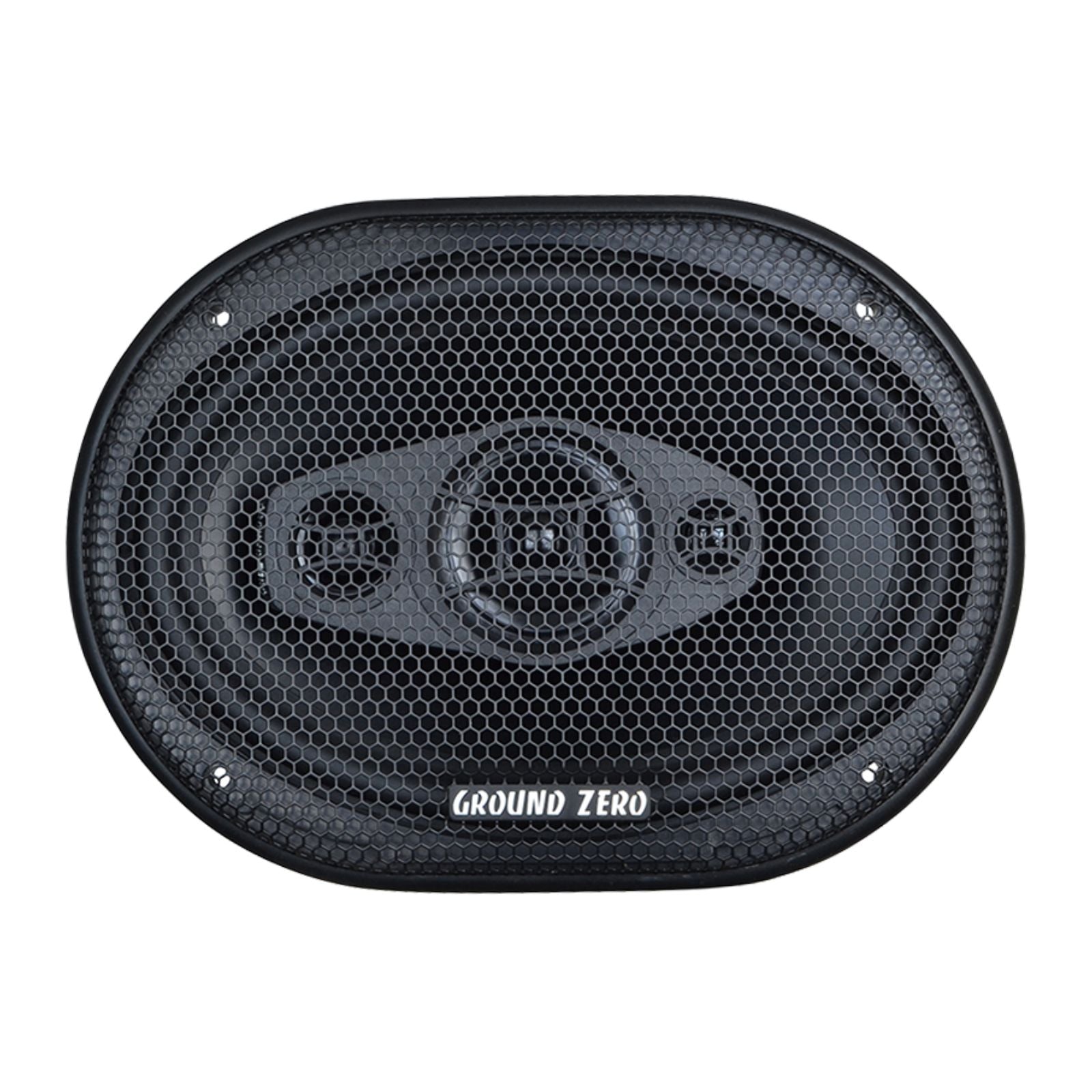

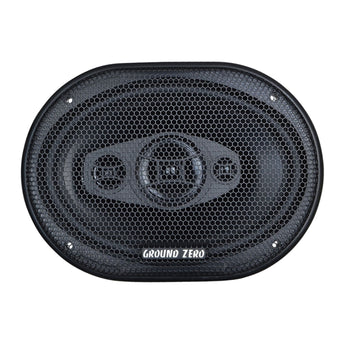

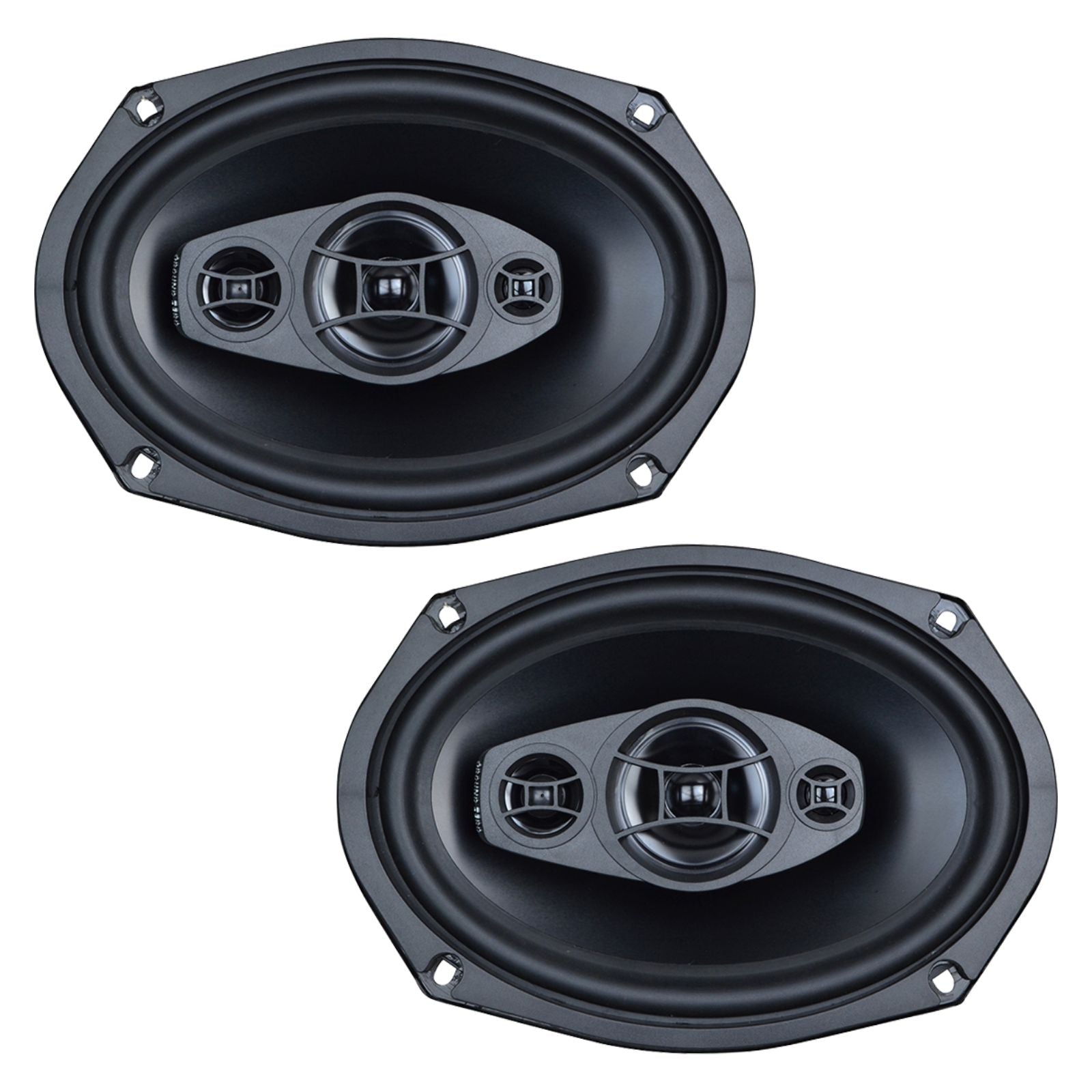

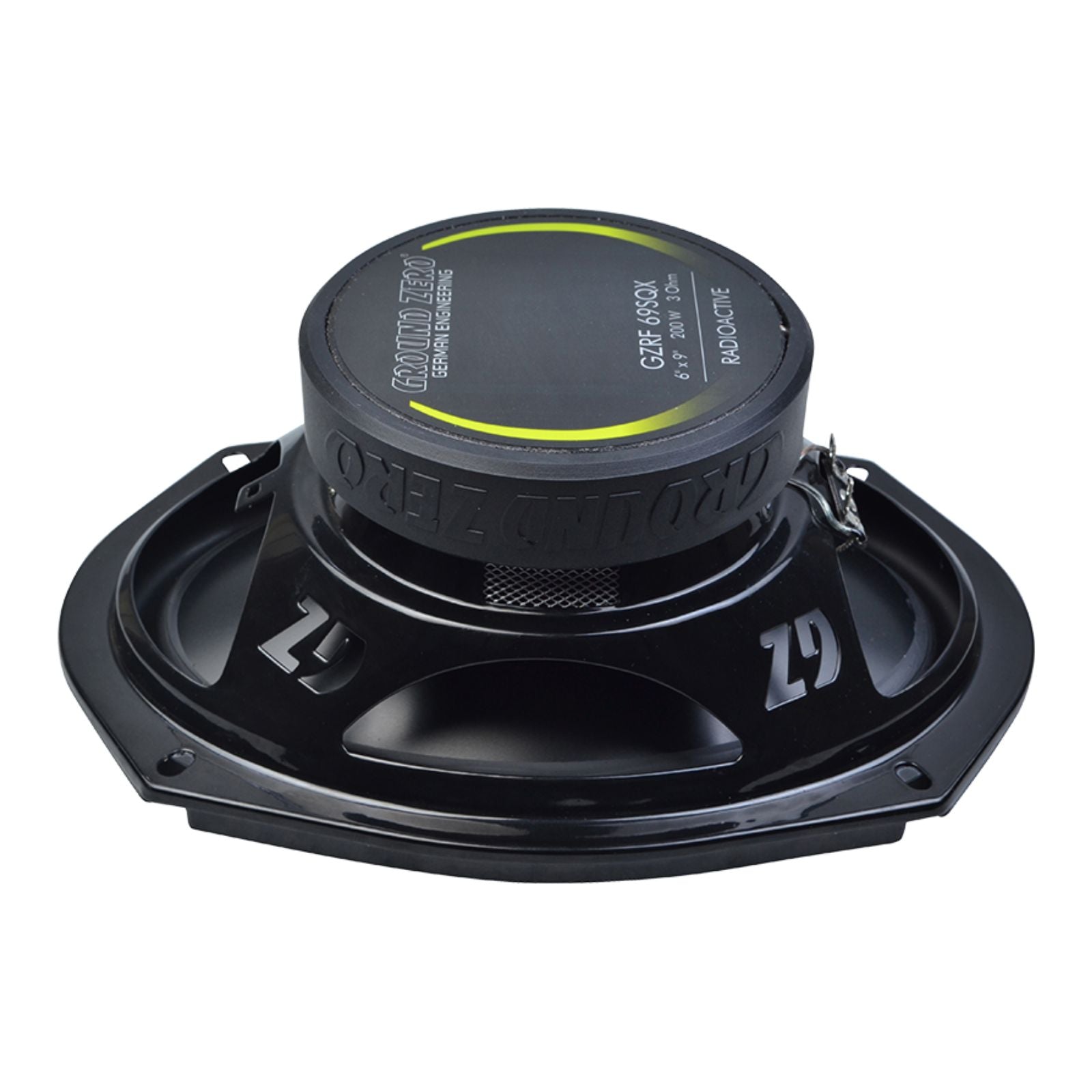

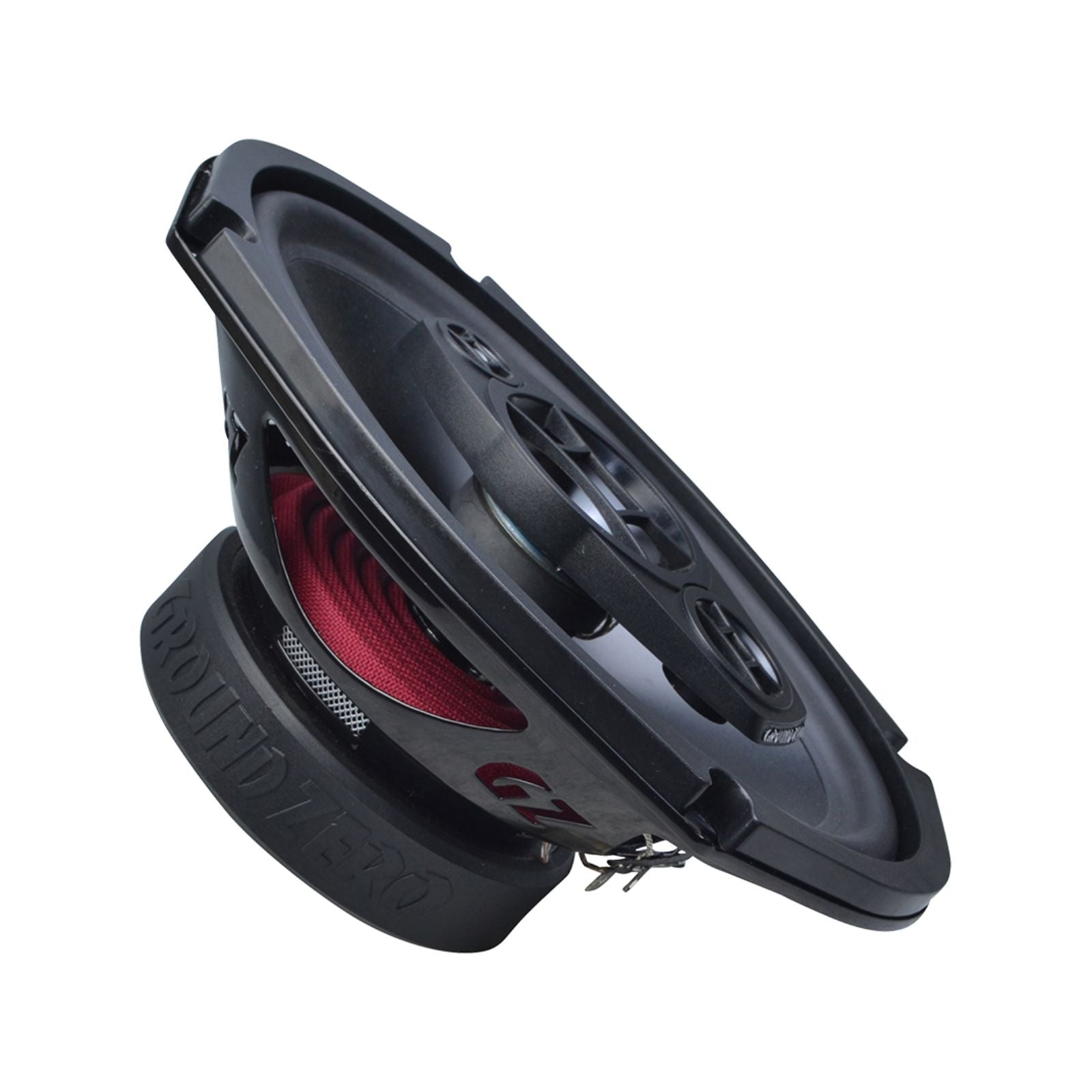

The Ground Zero GZRF 69SQX is a 6x9 inch 3-way coaxial car speaker rated at 130W RMS (200W max) at 3 ohms. It combines a black anodised aluminium cone with a 13 mm PEI tweeter and 50 mm PEI midrange for full-range sound from factory 6x9 inch positions.
Key specifications
- Size: 6x9 inch
- Type: 3-way coaxial
- Power handling: 130W RMS / 200W max
- Impedance: 3 ohms
- Efficiency: 92 dB
- Frequency response: 40 Hz to 25 kHz
- Tweeter / midrange: 13 mm PEI / 50 mm PEI
- Mounting diameter: 152 x 214 mm / 5.98 x 8.43 inch
- Mounting depth: 82 mm / 3.23 inch
GZRF 69SQX: 6×9″ 3-way coaxial speaker system
A solid 6×9″ 3-way coaxial speaker with a black anodised aluminium cone and 3 ohm impedance, rated at 130w RMS for clean, efficient output.
Features
- 3-way coaxial speaker system
- Aluminium cone with rubber surround
- Conex® spider for controlled cone movement
- Resonance-free steel basket
- High-efficiency 3 ohm impedance
- 13mm / 0.51″ PEI tweeter
- 50mm / 2″ PEI midrange speaker
- Built-in tweeter and overload protection
- Protection grille included
Explore the full range in Ground Zero.
Specification
| Model | 3-way coaxial speakers |
|---|---|
| Diameter | 6×9″ |
| Power handling | (RMS/max.) 130 / 200 Watts |
| Impedance | 3 ohms |
| Efficiency | 92 dB |
| Frequency Response | 40 Hz – 25 kHz |
| Tweeter | 13 mm / 0.51″ PEI |
| Midrange speaker | 50 mm / 2″ PEI |
| Mounting Ø | 152 x 214 mm / 5.98 x 8.43″ |
| Mounting depth | 82 mm / 3.23″ |
What's Included
- GZRF 69SQX
Ground Zero
About the Ground Zero GZRF 69SQX
From our tech experts at CEN
Ground Zero 6x9 inch coaxial speakers, rated at 130w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker, and these repay an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Ground Zero range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Ground Zero
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Ground Zero
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What mounting depth does the GZRF 69SQX need?
A: It needs 82 mm (3.23 inch) of mounting depth and a 152 x 214 mm (5.98 x 8.43 inch) mounting opening.
Q: Is the GZRF 69SQX a 3-way speaker?
A: Yes. It has a 6x9 inch aluminium cone woofer, a 50 mm PEI midrange and a 13 mm PEI tweeter in one coaxial unit.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
