GZRA 700.1-MICRO
Micro subwoofer amplifier

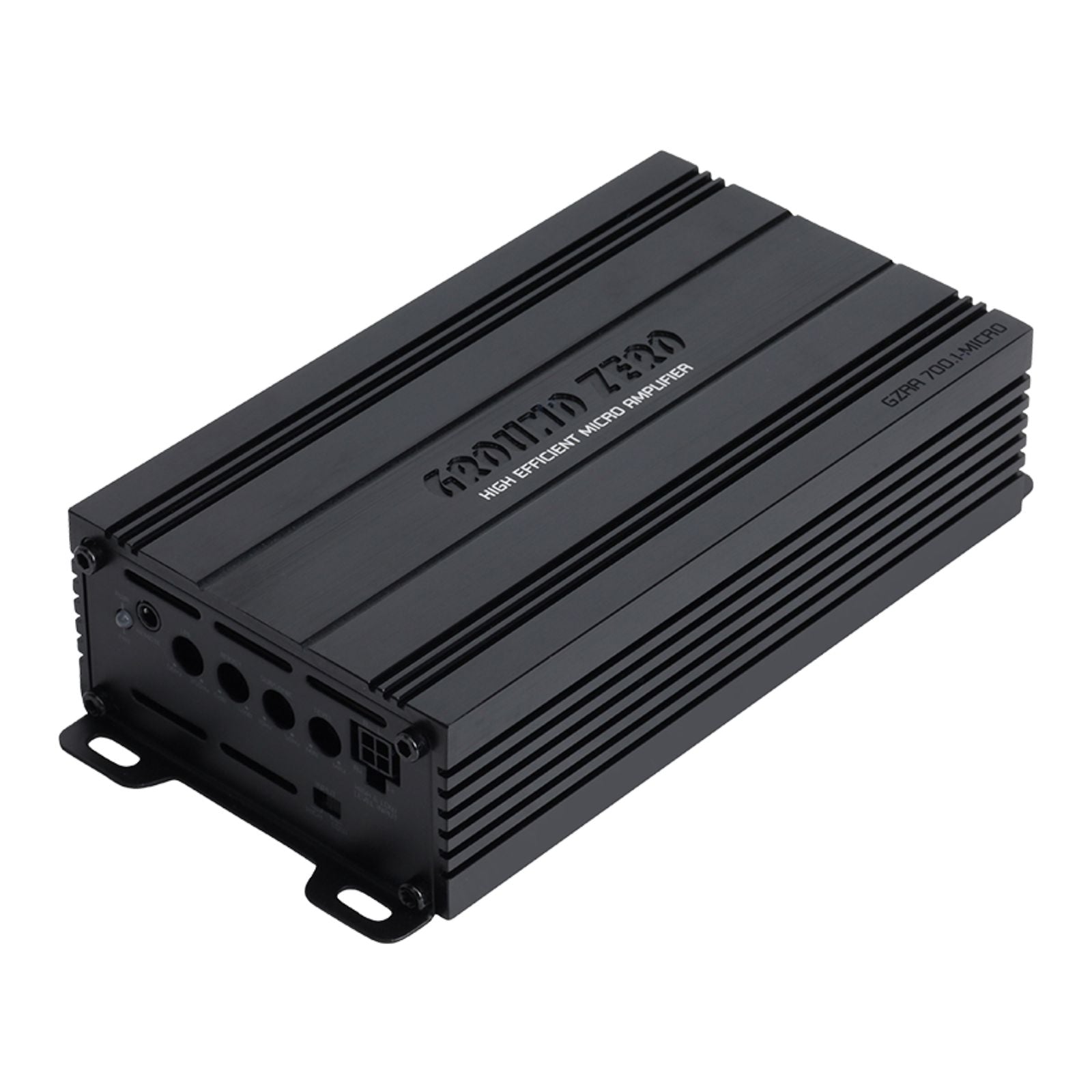

The Ground Zero GZRA 700.1-MICRO is an ultra-compact mono subwoofer amplifier designed to deliver impressive power in a minimal footprint. Thanks to its Class D technology and surface-mount components, it fits easily under a seat or in a trunk, while still delivering 700W RMS into 1 ohm to drive your subwoofer. Its variable active crossover and bass boost allow for precise sound adjustment, while the included bass remote lets you control the bass from your seat.
Features
- Micro subwoofer amplifier
- SMD components
- Class D technology
- Variable active crossover and bass boost
- Stable power supply
- Compact heatsink with engraved Ground Zero lettering
- Bass remote control included
- High-level input with auto-on function
Specification
| Type | Class D mono amplifier |
|---|---|
| Channels | 1 |
| Output Power (@ 4Ω) | 250 Watts RMS |
| Output Power (@ 2Ω) | 450 Watts RMS |
| Output power (@ 1Ω) | 700 Watts RMS |
| Input sensitivity RCA / high-level | 0.4 – 8.3 V / 1.3 – 25 V |
| Frequency Response | 10 – 250 Hz |
| Subsonic / LPF / BPF | Yes / Yes / Yes |
| Bass Boost / Phase Shift | Yes / No |
| High level input / Auto-on | Yes / Yes |
| Remote Control | included |
| BIAS Setting | No |
| Linkmode | No |
| Dimensions | (w x l x h) 82 x 167 x 40 mm / 3.23″ x 6.57″ x 1.57″ |
More specs
| |

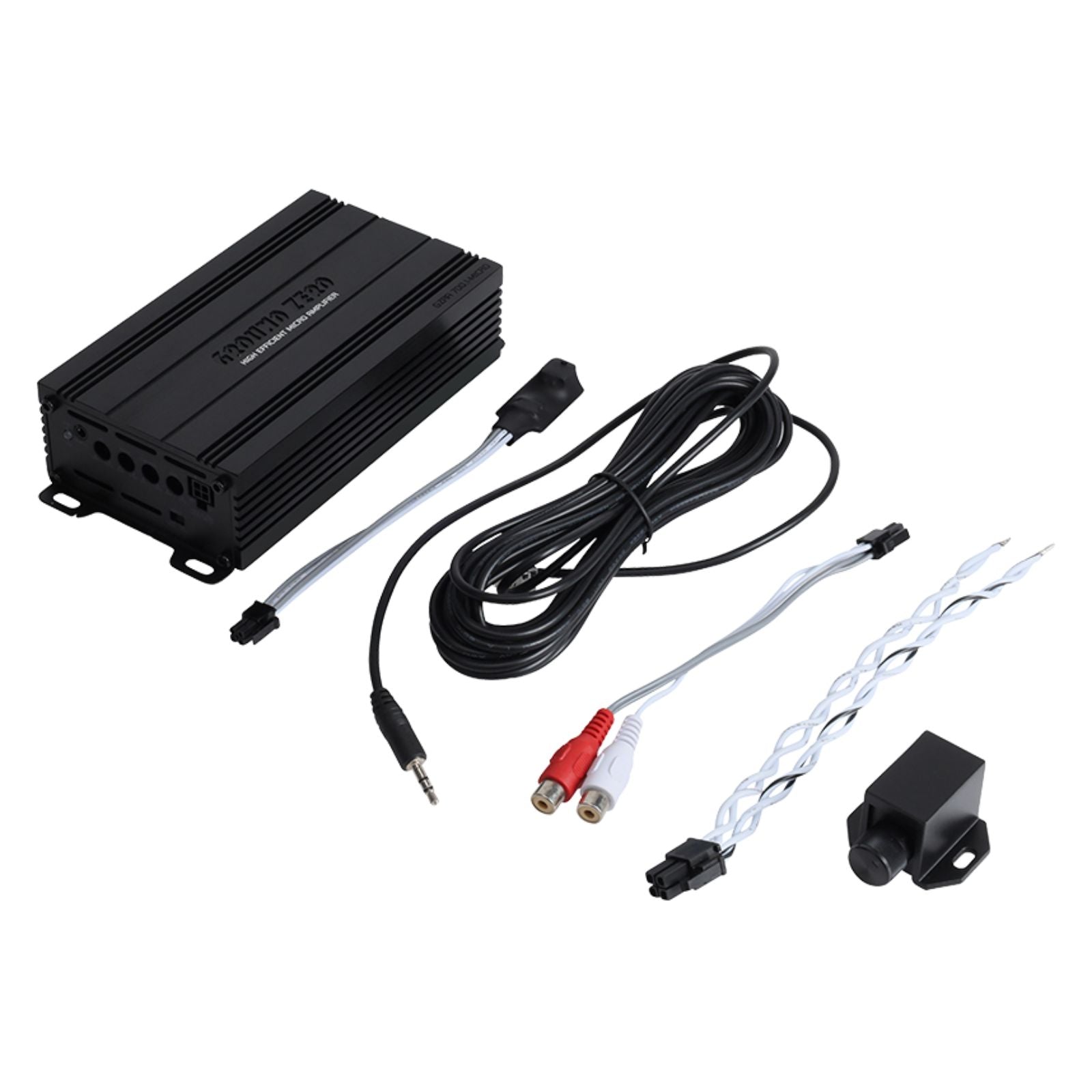

What's Included
- GZRA 700.1-MICRO
About the brand
Ground Zero
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Ground Zero
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
