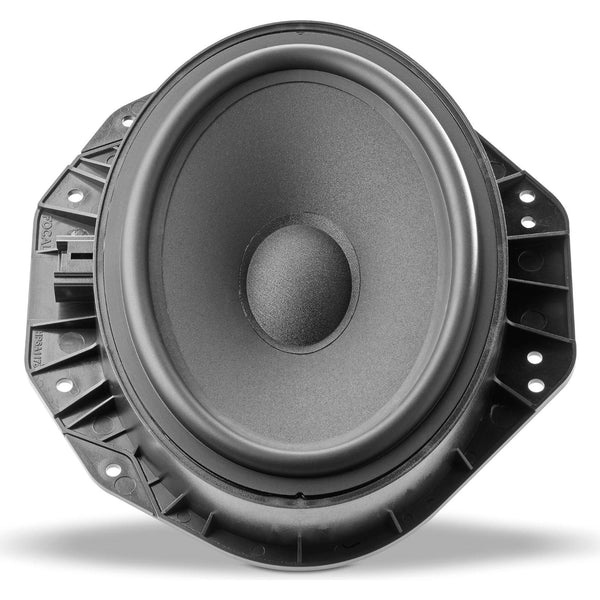

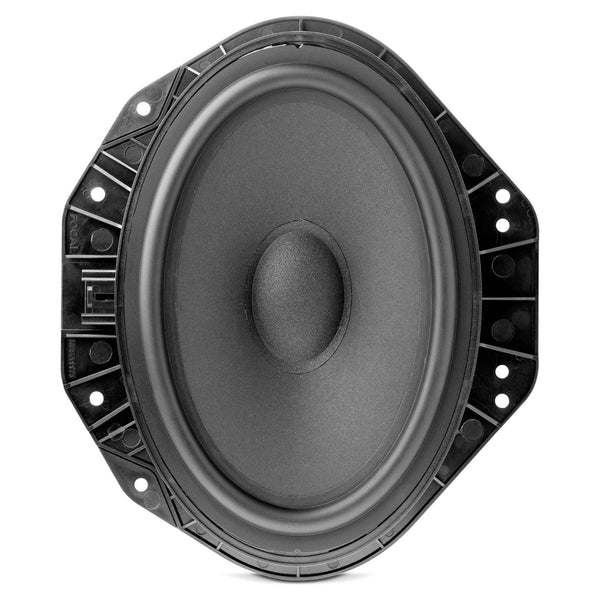

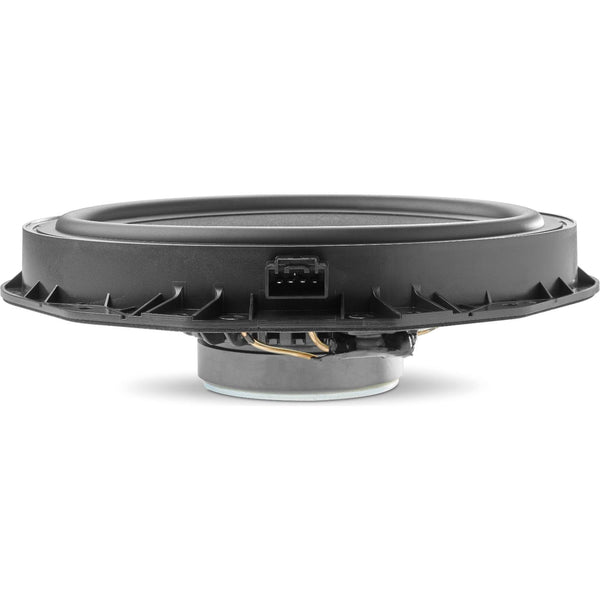

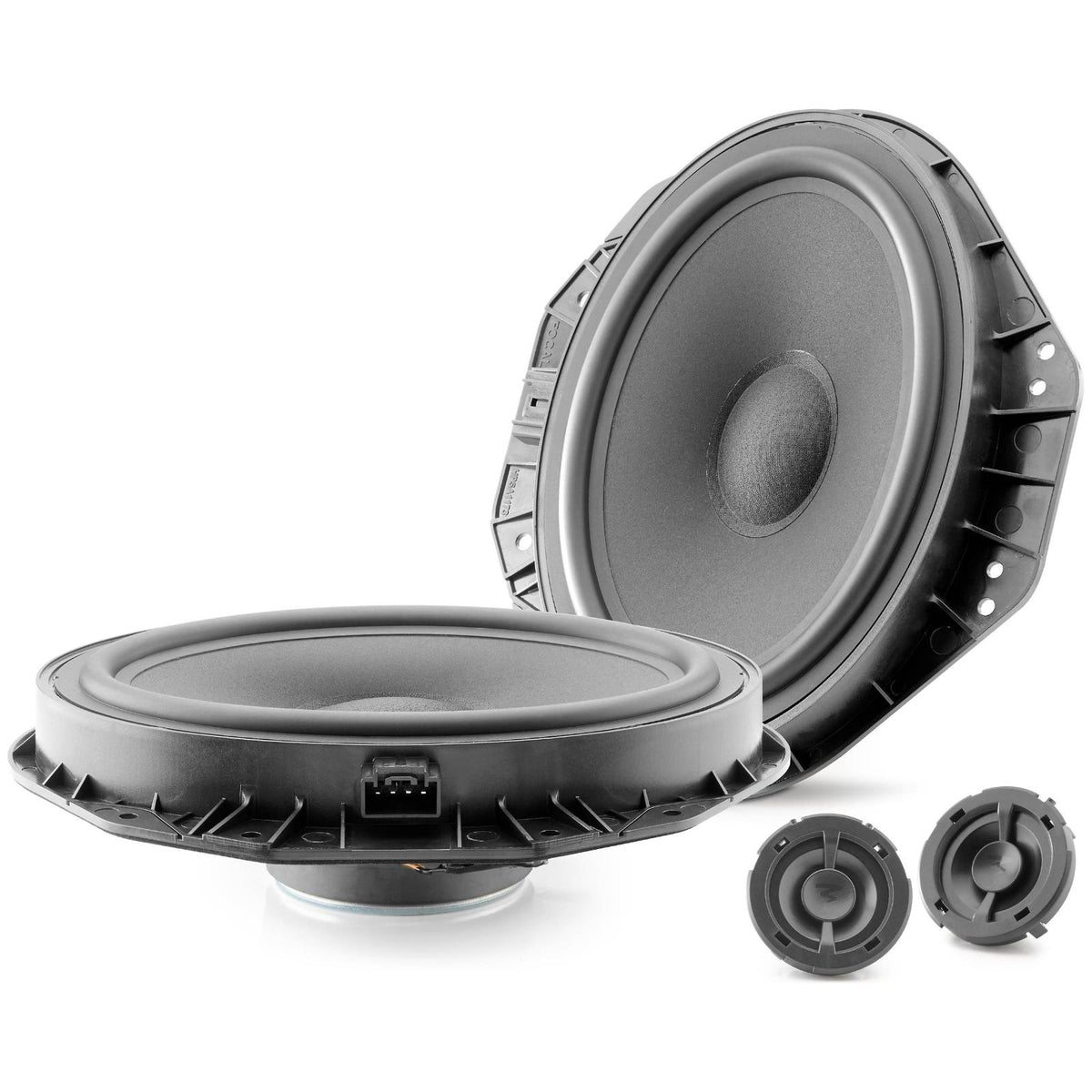

Focal IS FORD 690 Inside Series Direct Fit Ford 6x9 Inch Component Speakers
Couldn't Load Pickup availability
The Focal IS FORD 690 is a direct-fit 6x9 inch 2-way component speaker kit for Ford vehicles, rated at 75W RMS. Part of Focal's Inside Series, it includes vehicle-specific connectors, tweeter brackets and in-line crossovers for a no-cut, no-solder installation in vehicles with existing tweeter slots.
Focal Inside kits are matched to specific vehicles. Check compatibility by contacting CEN or using the Focal Inside website before ordering. For Ford vehicles without tweeter slots, the coaxial alternative is the Focal IC FORD 690.
The Inside Series is also available for other platforms, including the Focal IS VW 165 direct-fit Volkswagen component speakers.
Key specifications
- Size: 6x9" woofers
- Type: 2-way component kit with in-line crossovers, sold as a pair
- Power handling: 75W RMS (150W peak)
- Sensitivity: 92 dB
- Frequency response: 60Hz – 21kHz
- Impedance: 4 ohms
- Woofer top mount depth: 1 5/8"
- Woofer: Polyglass cone with butyl surround
- Grilles: not included
IS FORD 690: 2-way component kit
A direct-fit 6x9 inch component speaker upgrade built specifically for Ford vehicles. No cutting, soldering or vehicle modification required.
Focal Inside for Ford
The woofer uses Polyglass cone technology for clear, natural midrange and bass. The aluminium inverted dome tweeter handles treble with precision. Both are established Focal technologies.
Designed for vehicles with existing tweeter slots, the fitment is completely hidden once installed. Insulation foams are included to reduce vibration and improve sound accuracy.
- Quick and easy installation
- No vehicle modifications needed
- Polyglass cone: natural sound without coloration
- Butyl surround: excellent durability
- Insulation foams included: improved sound accuracy and vibration absorption
Explore the full range in Focal Inside.
Specification
| impedance | 4 ohms |
|---|---|
| power handling | 75 watts RMS (150 watts peak) |
| frequency response | 60-21,000 Hz |
| sensitivity | 92 dB |
| woofer top mount depth | 1-5/8" |
More specs
| |
What's Included
- IS FORD 690 Woofers
- T FORD Tweeters (each with a 4" wire attached containing an in-line crossover)
- Adhesive backed foam gaskets
- Tweeter mounting brackets
- Factory tweeter wire adapters
- Two M4x4mm Machine screws
- Two 10" Wire extensions (woofer)
- Eight 3/4" Screws
- 8 Rivets
- 2 Focal Inside badges
- User manual
- Focal window sticker
Focal
About the Focal IS FORD 690
From our tech experts at CEN
The Focal IS FORD 690 is a direct-fit 6x9 inch 2-way component speaker kit for Ford and Lincoln vehicles, rated at 75W RMS. Part of the Inside Series, it includes vehicle-specific wiring connectors, tweeter brackets and in-line crossovers — no cutting or soldering required. Polyglass cone woofers with butyl surrounds pair with aluminium inverted dome tweeters, covering 60Hz to 21kHz.
Who it suits
These speakers suit Ford owners who want a clean, factory-integrated audio upgrade without any vehicle modification. They require existing tweeter slots in the door or dashboard; if your Ford does not have these, a coaxial alternative may suit better. Browse the full Focal range for other options.
Our tech experts advise
Always confirm compatibility with your specific Ford model and year before ordering — contact CEN or check the Focal Inside website. The speakers are rated at 4 ohms impedance and 92 dB sensitivity. Grilles are not included with this kit. For professional fitting, car audio installation is priced per vehicle; see our Nottingham installation page.
Explore the full Focal range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Focal
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Plug & Play Kits
Configure the solution best suited to your needs in just a few clicks.
Focal Inside Series
The Focal Inside offer is aimed at all drivers wishing to replace their car's original system with a hi-fi quality Plug & Play solution that integrates easily, without modifying the interior. Different configurations are available by brand (over 50 brands), by car model (1000 vehicle models).
Focal Car Audio
Deliver exceptional sound clarity and precision for your vehicle.
More from Focal Inside
More options from the same range, in stock and ready to go

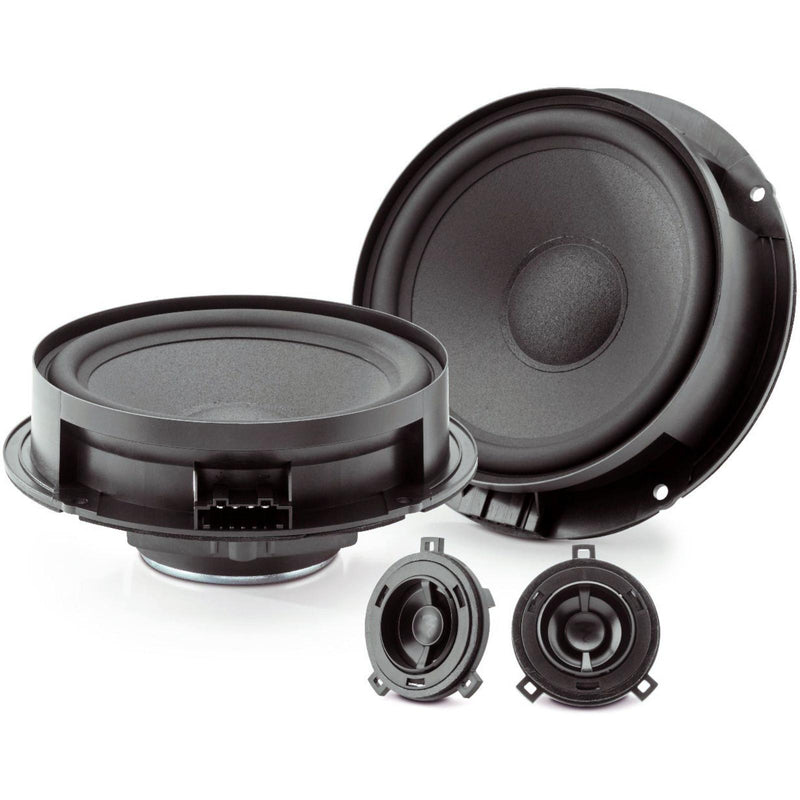

Best SellerFocal IS VW 155 Inside Series Direct Fit Volkswagen 6.1 Inch Component Speakers
£159.99
View product

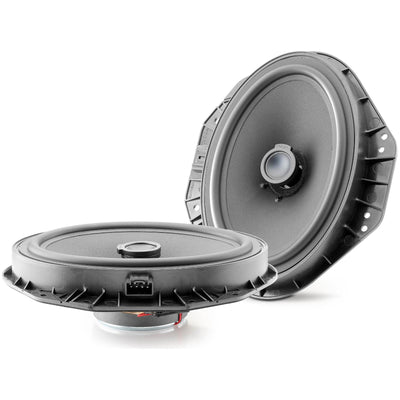

Focal IC FORD 690 Inside Series Direct Fit Ford 6x9 Inch Coaxial Speakers
£149.99

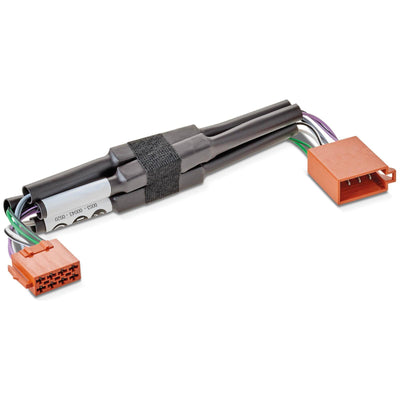

Focal Inside SPK Sim Impedance Simulator for Impulse 4.320 4 Channel Amplifier
£69.99

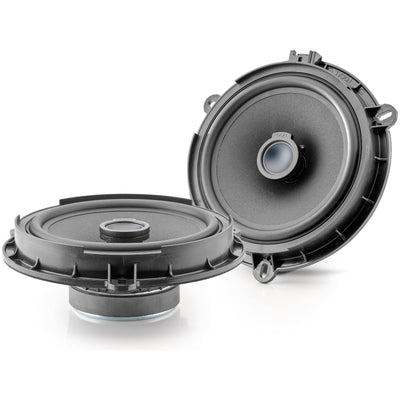

Focal IC FORD 165 Inside Series Direct Fit Ford 6.5 Inch Coaxial Speakers
£139.99

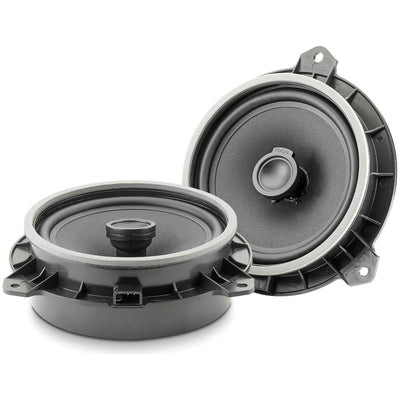

Focal IC TOY 165 Inside Series Direct Fit Toyota 6.5 Inch Coaxial Speakers
£139.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Does my Ford need tweeter slots for the Focal IS FORD 690?
A: Yes. The IS FORD 690 is designed for vehicles that have existing tweeter slots. Factory tweeter wire adapters and tweeter mounting brackets are included.
Q: What's in the box with the Focal IS FORD 690?
A: IS FORD 690 woofers, T FORD tweeters (each with a 4 inch wire containing an in-line crossover), adhesive backed foam gaskets, tweeter mounting brackets, factory tweeter wire adapters, two M4x4mm machine screws, two 10 inch woofer wire extensions, eight 3/4 inch screws, 8 rivets, 2 Focal Inside badges, the user manual and a Focal window sticker.
Q: How much power can the Focal IS FORD 690 handle?
A: Focal rates the IS FORD 690 at 75W RMS (150W peak) at 4 ohms, with 92 dB sensitivity.
