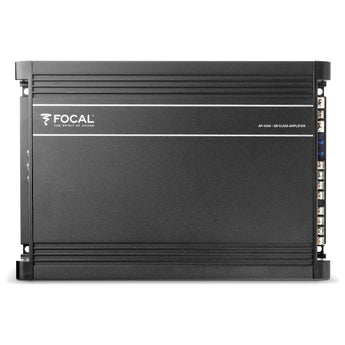

Focal AP 4340 Auditor Series 4 Channel Amp Class A B Car Amplifier 4 x 70w RMS

£164.99 Out of stock
Black Friday
Out of Stock
SKU: 90483MPN: AP 4340
Part of the range · 73 productsPart of the Focal Speaker Kits range · 73 products See the range →

The Focal AP 4340 is a 4-channel Class AB car amplifier from the Auditor Series, delivering 70W RMS x 4 at 4 ohms. It supports 4-, 3- or 2-channel operation, making it suitable for powering full speaker setups or a combination of speakers and a subwoofer.

Key specifications

  • Channels: 4 (4, 3 or 2-channel operation)
  • Power at 4 ohms: 70W RMS x 4
  • Power at 2 ohms: 95W RMS x 4
  • Bridged power: 190W RMS x 2 at 4 ohms
  • Amplifier class: AB
  • Frequency response: 10Hz – 30kHz
  • Total harmonic distortion: 0.06%
  • Signal to noise ratio: 76dB
  • Dimensions: 13 5/16" x 2 3/16" x 9 5/16" (W x H x D)

Focal Auditor AP 4340: 4/3/2-channel Class AB amplifier

High-fidelity Class AB amp

Focal is known for sound quality across home, car and studio audio. The Auditor Series AP 4340 delivers 70W RMS per channel with 0.06% THD and a 10–30,000Hz frequency response, ensuring speakers and subwoofers perform at their best. It is CEA-2006 compliant and includes preamp inputs and outputs.

  • 4-channel car amplifier
  • 70W RMS x 4 at 4 ohms (95W RMS x 4 at 2 ohms)
  • 190W RMS x 2 at 4 ohms (bridged mode)
  • CEA-2006 compliant
  • Class AB amplifier technology
  • Channel 1–2: variable high-pass filter (60–1200Hz)
  • Channel 3–4: high-pass filter (100–2200Hz) or low-pass filter (50–250Hz)
  • Channel 3–4: selectable bass boost (0, 6, 12dB at 45Hz)
  • Preamp inputs and outputs
  • 8-gauge power and ground leads recommended; wiring and hardware not included
  • Total harmonic distortion: 0.06%
  • Frequency response: 10–30,000Hz

4-, 3- or 2-channel operation

Running four speakers? Use the high-pass filters on the front and rear channels to roll off low bass for a cleaner sound. For a front speaker and subwoofer setup, apply the high-pass filters to the front channels, then bridge the rear channels to drive the sub via the low-pass filter. The Focal ISUB Active is a compact subwoofer option worth considering alongside this amp.

In 2-channel mode, the AP 4340 delivers 190W RMS per channel, suitable for powering a pair of high-performance speakers or subwoofers. The selectable bass boost (0, 6 or 12dB at 45Hz) lets you extend low-frequency response as needed.

Specification
SeriesAuditor
Article NumberAP 4340
Country of ManufactureChina
More specs
  • RMS Power Output (Watts x Channels)    70 x 4
  • Peak Power Output (Watts x Channels)    N/A
  • Power at 2 Ohms (Watts x Channels)    95 x 4
  • Power at 1 Ohm (Watts x Channels)    ---
  • Bridged Power (Watts x Channels)    190 x 2
  • Minimum Impedance Bridged    4
  • Minimum Impedance Unbridged    2
  • Minimum Impedance    2
  • Best Frequency Response    10-30k Hz
  • THD at Rated RMS Power    0.06%
  • Signal to Noise Ratio    76 dB
  • Input Voltage    14.4v
  • Features
  • Amplifier Class    AB
  • Low-Pass Crossover Frequency    50-250 Hz
  • Low-Pass Slope (dB/octave)    N/A
  • High-Pass Crossover Frequency    60-1200/100-2200Hz
  • High-Pass Slope (dB/octave)    N/A
  • Bass Boost    0, +6, +12 dB
  • Bass Boost Frequency    N/A
  • Fan Cooled    No
  • Fuse Rating    30
  • Speaker Level Inputs    No
  • Preamp Outputs    2
  • Width (inches)    13-5/16
  • Height (inches)    2-3/16
  • Depth (inches)    9-5/16
What's Included
  • 4-channel amplifier
  • Four 15A ATO fuses (2 installed in amp)
  • Self-tapping screws (length=1-3/16")
  • Plastic spacers (large)
  • Plastic spacers (small)
  • Flat washers
  • Split lock washers
  • Amplifier User Manual
  • Focal brand card

Focal

About the Focal AP 4340

From our tech experts at CEN

A Focal Auditor 4-channel amplifier, Class AB, rated at 70w RMS.

Who it suits

Drivers who have upgraded their speakers and found the head unit cannot drive them properly. Auditor sits above Access, with more output and better detail for a modest step up.

Our tech experts advise

Matching the amplifier to the speakers matters more than headline watts, and the gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Focal range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Focal

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Focal Car Audio

To combine the pleasure of driving with the love of sound, make sure your car is fitted with quality hi-fi equipment. Focal high-fidelity sound promises sensational musical emotions to enhance every journey.

Speaker Kits

With Focal's dedicated car speakers, take advantage of a wide choice of models to compose your own customized audio system, according to your vehicle and your desires. From the Focal discovery with the Universal range to the Utopia M excellence, listening in the car takes on a whole new dimension

Discover

Subwoofer

Choose one of Focal's subwoofers (passive, active, bass-reflex, ultra-flat...) and bring powerful, deep bass. Offering a variety of models in different formats, our range meets every installation need and is the ideal audio complement.

Discover

DSP & Amplifiers

To optimize the sound quality of your installation and enhance in-car listening, we offer a range of amplifiers and DSPs to match your loudspeakers. These Focal electronics let you experience the sensations of precise, controlled and stable sound.

Discover

Accessories & Cables

Discover Focal's range of amplifiers and cables for a complete solution. As a complement to your installation, amplifiers let you experience the sensations of precise, controlled sound, and cables answer questions linked to amplification and connections between components.

Discover

Focal Car Audio

Deliver exceptional sound clarity and precision for your vehicle

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: Can the Focal AP 4340 power speakers and a subwoofer at the same time?

A: Yes. In 3-channel mode, use the high-pass filter on channels 1-2 for the front speakers, then bridge channels 3-4 to drive a subwoofer using the 50-250 Hz low-pass filter. Bridged output is 190W RMS x 2 at 4 ohms.

Q: Does the Focal AP 4340 have speaker-level inputs?

A: No. The AP 4340 has preamp (RCA) inputs and outputs only, so a head unit without RCA outputs will need a line output converter.

Q: What power cable does the Focal AP 4340 need?

A: 8-gauge power and ground leads are recommended. Wiring and hardware are not included with the amplifier. The fuse rating is 30A, supplied as two 15A ATO fuses installed in the amp, with two spares in the box.
