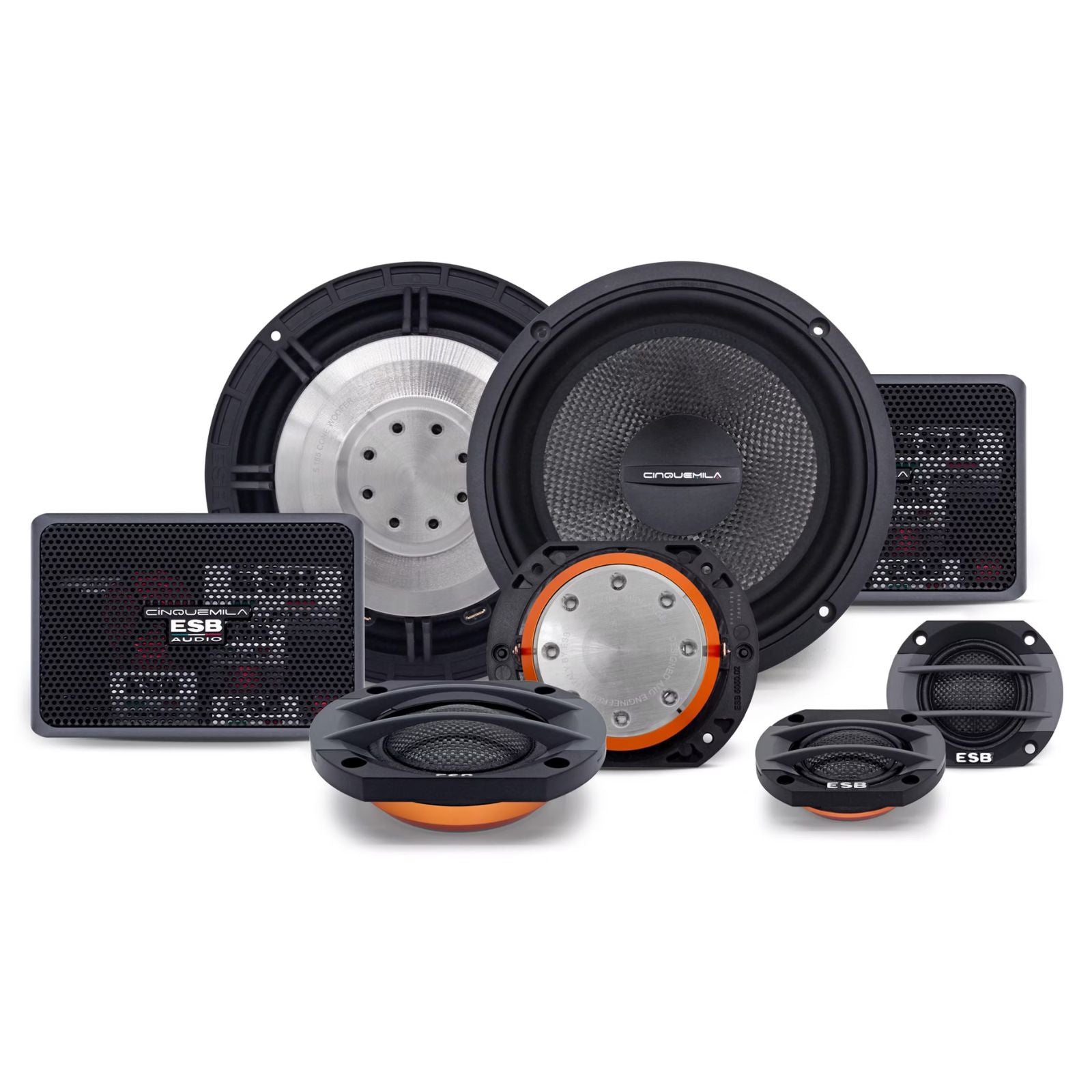

5.6K3X 3-Way Speaker System with Crossover
The ESB Audio 5.6K3X is a premium 3-way component speaker system from the 5000 Series, engineered in Italy for ultra-high transient response, low distortion, and accurate sound reproduction. Designed for SQ (sound quality) builds, it delivers detailed mids, crisp highs, and controlled midbass performance when properly amplified and tuned.
Features
- Premium 3-way component speaker system
- Designed for high-end sound quality installations (SQ builds)
- Ultra-light, fast-response driver design for improved transient accuracy
- Built using carbon fiber reinforced composite materials
- Engineered for low distortion and high clarity across all frequencies
- Optimized for use with DSP tuning and external amplification
- Includes 1.1″ tweeter, 2″ midrange, and 6.5″ mid-woofer for full-range audio reproduction
- High-quality motor structures and reinforced baskets for durability and performance
- Designed for flexible integration in passive or active system configurations
Explore the full range in ESB Audio.
Specification
| Tweeter Nominal Impedance | 4 Ohm |
|---|---|
| Tweeter Nominal Power Handling | 110 Watt |
| Tweeter Transient Power | 220 Watt |
| Tweeter Frequency Response | 900 Hz ~ 25 KHz |
| Tweeter Sensitivity | 94 dB 2.83v/1m |
| Midrange Nominal Impedance | 4 Ohm |
| Midrange Nominal Power Handling | 120 Watt |
| Midrange Transient Power | 240 Watt |
| Midrange Frequency Response | 500 Hz ~ 6 KHz |
| Midrange Sensitivity | 94 dB 2.83v/1m |
| Woofer Nominal Impedance | 3 Ohm |
| Woofer Nominal Power | 160 Watt |
| Woofer Transient Power | 320 Watt |
| Woofer Frequency Response | 50 Hz ~ 3.5 KHz |
| Woofer Sensitivity | 95 dB 2.83v/1m |
| Crossover Frequency | 900/3600 Hz |
| Slope | 12 dB/Oct LP/HP, 6 dB/Oct BP Butterworth |
| High Frequency Level | 0/-3 dB |
| Mid Frequency Level | 0/-2 dB |
| Low Frequency section | 5.165 |
| Mid Frequency section | 5.050 |
| High Frequency section | 5.028 |
| Power Handling | 300 Watt |
What's Included

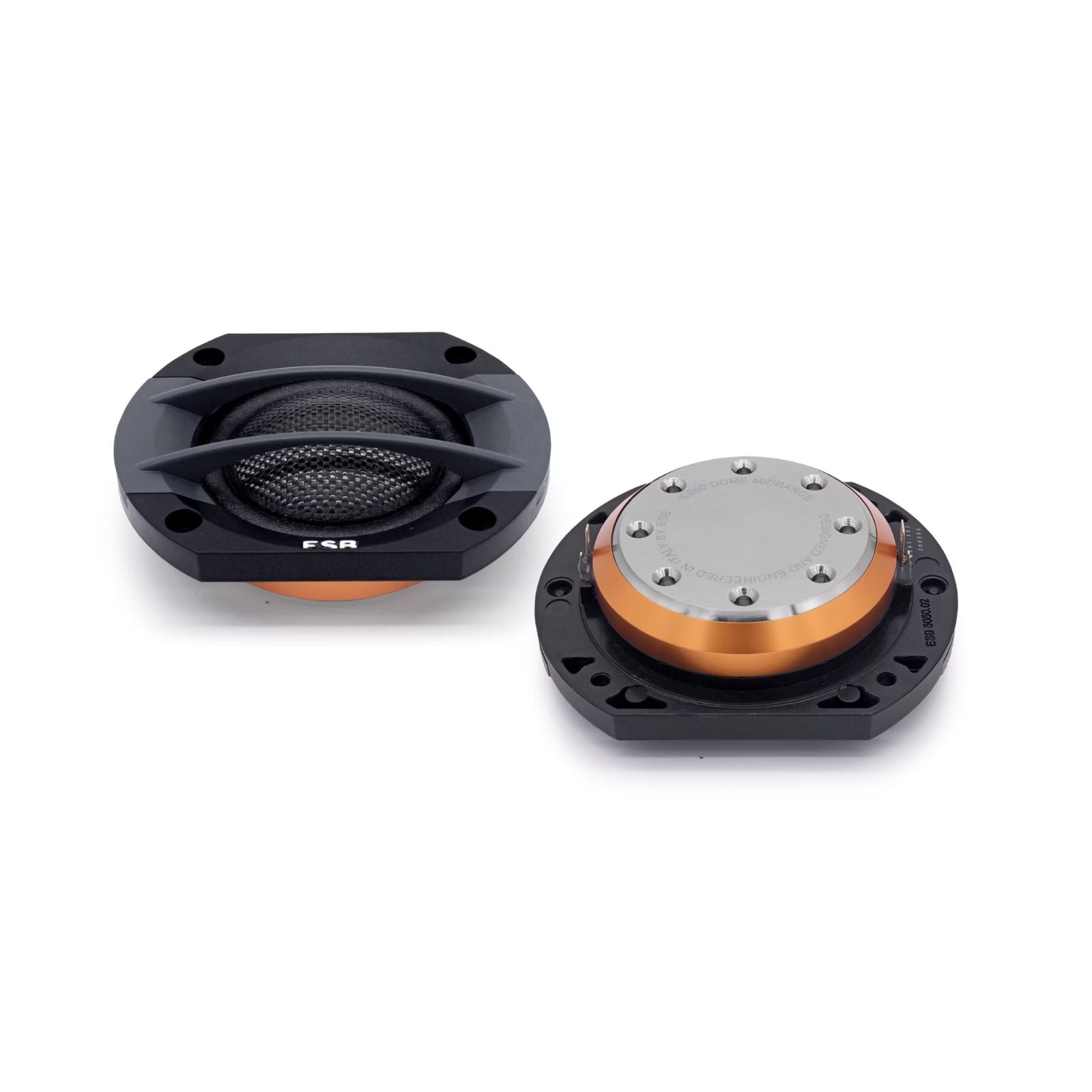

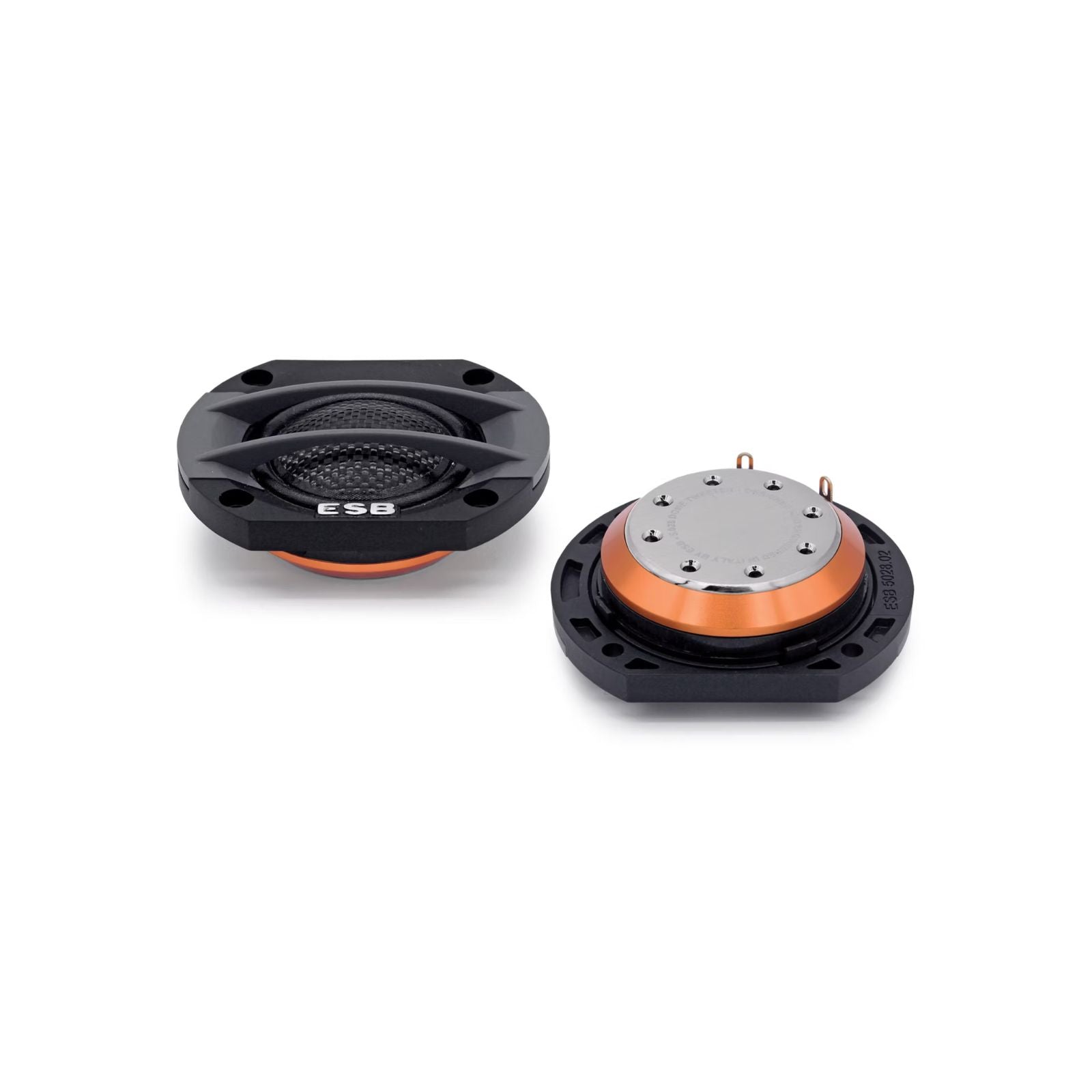

- 5.028 Tweeters
- 5.050 Midrange

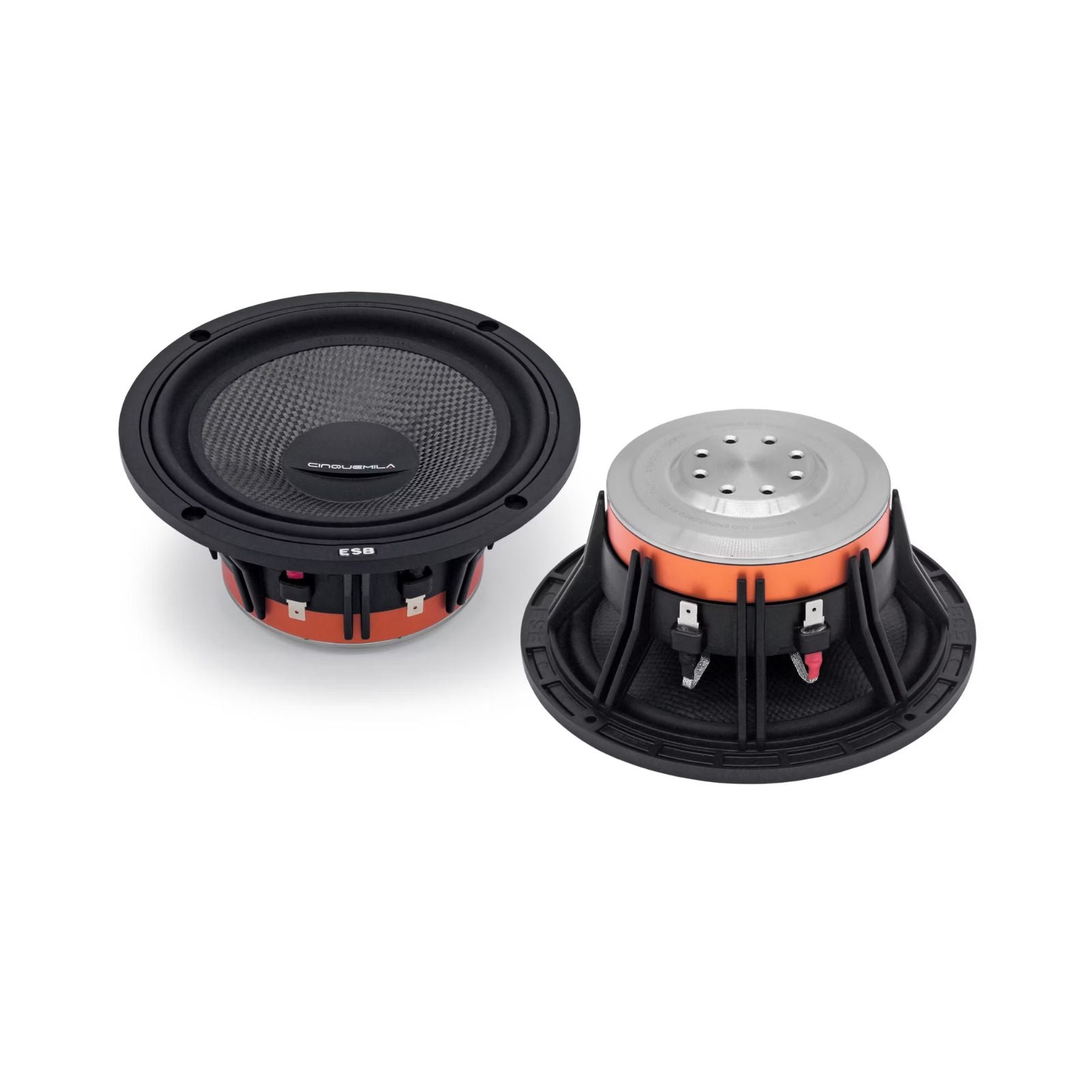

- 5.165 Woofers

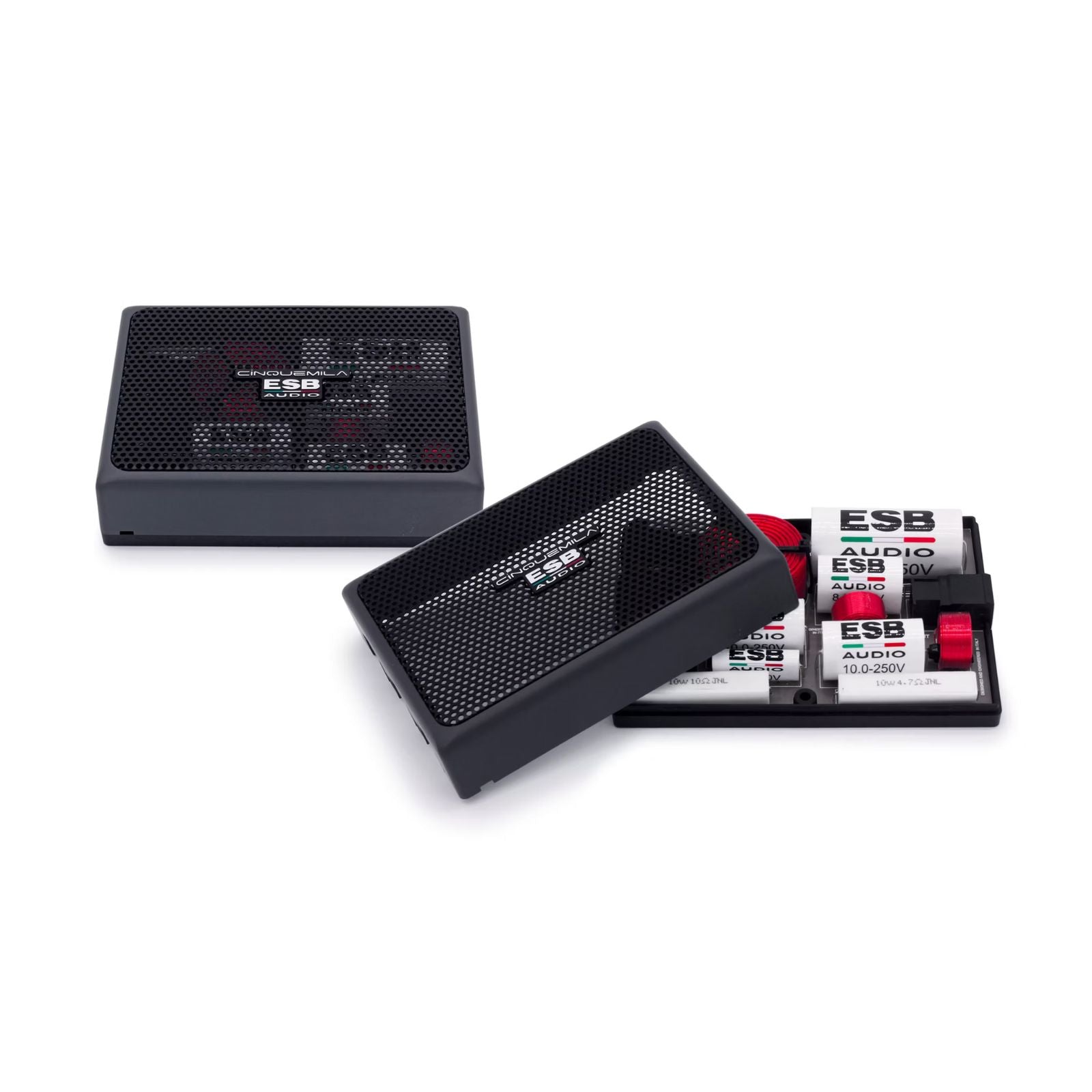

- 5.6K3 CX Crossover
