Comfort Mat Sound Proofing Isolator Raptor 4mm 5 Sheets
Couldn't Load Pickup availability
The Comfort Mat Raptor 4mm Sound Isolator is a multi-layer acoustic barrier from Comfort Mat, supplied as a pack of 5 sheets (480 × 700 mm). It is used as a second layer over vibration damping material to block road, tyre and engine noise in automotive, campervan and motorhome installations.
Key specifications
- Thickness: 4mm
- Sheet size: 480 × 700 mm
- Sheet weight: 1.6 kg per sheet
- Weight: 4.76 kg/m²
- Adhesion: 6–8 N/cm
- Noise reduction: up to 30 dB
- Operating temperature: −50°C to +150°C
- Waterproof material and waterproof adhesive
- Contains 5 sheets

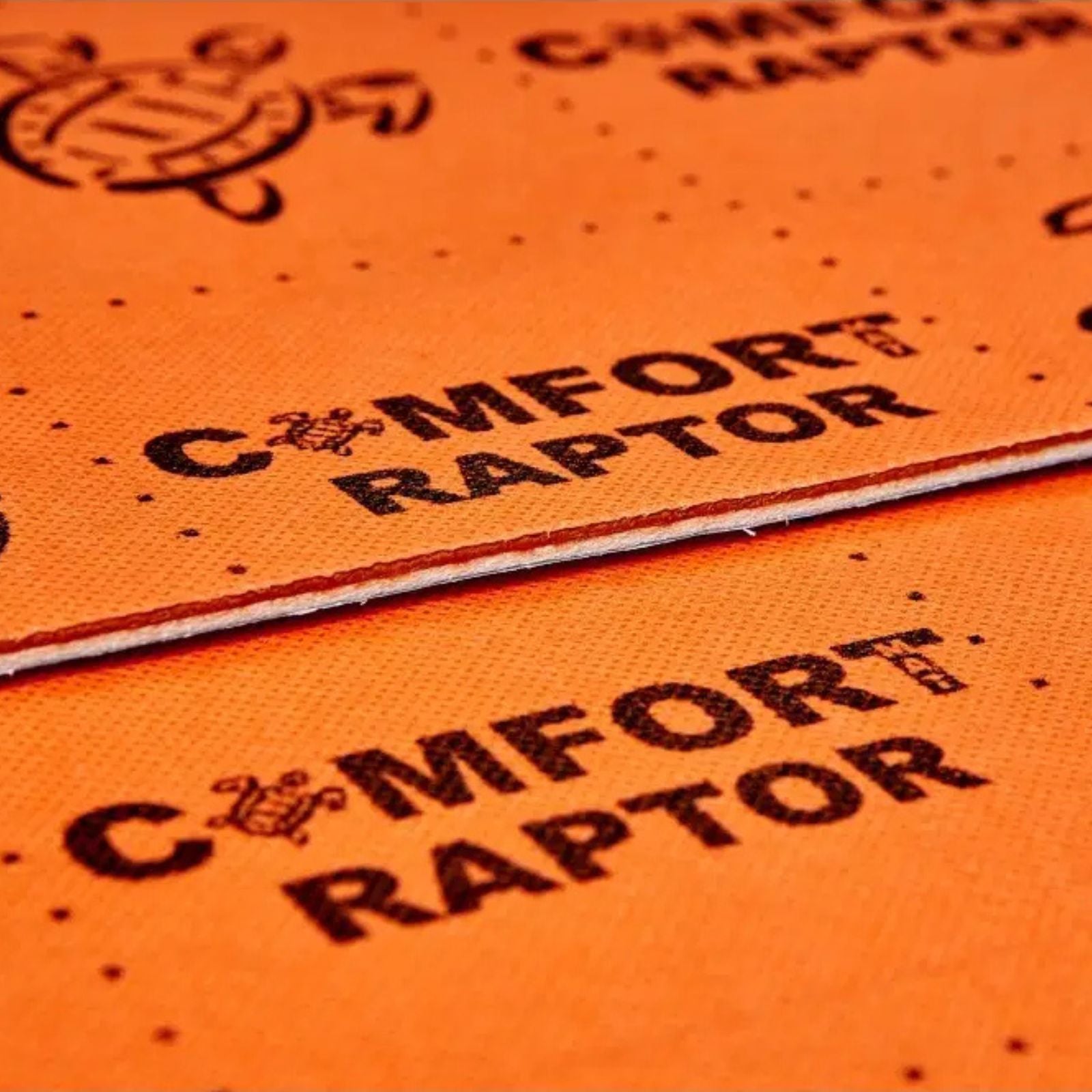

Raptor features a three-layer construction: a 2mm acoustic membrane with high-density acoustic mastic, a 2mm sound-absorbing layer, and a waterproof sealant adhesive. Applied as a second layer over vibration damping material, it delivers up to 30 dB of noise reduction while remaining lightweight and flexible. The material is fully waterproof and does not absorb moisture, making it suitable for demanding automotive environments.
Raptor suits vehicle soundproofing projects, campervan conversions, motorhomes and premium car audio installations where reducing background noise is essential. The high-performance adhesive remains effective between −50°C and +150°C for long-term reliability. By quietening the cabin, it improves driving comfort and the listening quality of any in-car audio system.
Features
- Thickness: 4mm
- Sheet size: 480 × 700 mm
- Sheet weight: 1.6 kg
- Weight: 4.76 kg/m²
- Adhesion: 6–8 N/cm
- Waterproof material: yes
- Waterproof adhesive: yes
- Used as a second layer
- Suitable for: interior and boot floor, engine firewall, wheel arches
- Contains 5 sheets
Explore the full range in Comfort Mat.
Specification
| Thickness | 4 mm |
|---|---|
| Sheet size | 480 x 700 mm |
| Sheet weight | 1.6 kg |
| Weight | 4.76 kg/m2 |
| Adhesion | 6-8 N / cm |
| Water proof material | yes |
| Water proof glue | yes |
| Place to use | Interior and trunk floor, Engine firewall, Wheel arches |
More specs
| |
What's Included
- RAPTOR 48×70x0.4 cm – 5 pcs
Comfort Mat
About the Comfort Mat RAPTOR 4
From our tech experts at CEN
The Comfort Mat Raptor 4mm is a multi-layer acoustic sound isolator supplied as 5 sheets (480 × 700 mm each). Its three-layer construction — a 2mm acoustic membrane with high-density mastic, a 2mm sound-absorbing layer, and waterproof adhesive — delivers up to 30 dB of noise reduction. It is designed to be used as a second layer applied over vibration damping material.
Who it suits
Raptor suits drivers undertaking full vehicle soundproofing, campervan conversions or premium car audio installations where cabin noise needs to be significantly reduced. For a complete two-layer system, pair it with a vibration deadener such as the Comfort Mat Vibration Deadening Viper 3mm.
Our tech experts advise
Each sheet covers 0.336 m², so calculate your target area carefully before ordering. Raptor is fully waterproof and its adhesive remains effective between −50°C and +150°C, making it well suited to wheel arches and the engine firewall. For a straightforward door treatment, see the Comfort Mat Door Kit Essential 3 in 1.
Explore the full Comfort Mat range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Comfort Mat
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Comfort Mat
More options from the same range, in stock and ready to go
Popular Comfort Mat Door Kit Essential 3 in 1 Car Speaker Soundproofing Upgrade Kit £99.99 /In stock
Frequently Asked Questions
Q: How much sound deadening do I need for my car?
A: As a guide, a pair of front doors takes around 1 to 1.5 square metres, and a full car between 4 and 6 square metres depending on coverage. The sheet coverage for this product is listed in the Specification tab.
Q: Where should I apply sound deadening first?
A: Doors give the biggest gain for both road noise and speaker performance, followed by the boot floor and wheel arches. Even a doors-only install noticeably tightens speaker bass.
Q: Is sound deadening difficult to fit myself?
A: It is one of the more DIY-friendly upgrades: panels are cut to shape, peeled and rolled firmly onto clean metal. A roller tool and panel removal tools make the job much easier, or CEN can carry out installation from our Nottingham premises.
Q: Will sound deadening improve my audio system?
A: Yes. Deadening the doors reduces panel resonance so speakers produce cleaner, tighter bass, and lowering road noise means you hear more detail at normal volumes.
Q: How much area does a pack of Comfort Mat Pulsar cover?
A: Each sheet measures 500 x 320 mm (0.16 square metres), so the pack of 15 sheets covers about 2.4 square metres.
Q: Do I need another layer on top of Pulsar?
A: Pulsar is designed to be used as a single layer. It combines anti-vibration damping and sound insulation in one 5 mm sheet, made up of a 100 micron foil, 5 mm mastic with foamed granules and an adhesive layer.
Q: Where can Comfort Mat Pulsar be fitted?
A: It is suited to doors, roof, bonnet, boot lid, boot and the floor under the rear seats, typically areas with medium to high vibration and noise loads.
