Brake Light Reversing Camera for Mercedes V Class Backup Rear Parking Camera
Couldn't Load Pickup availability

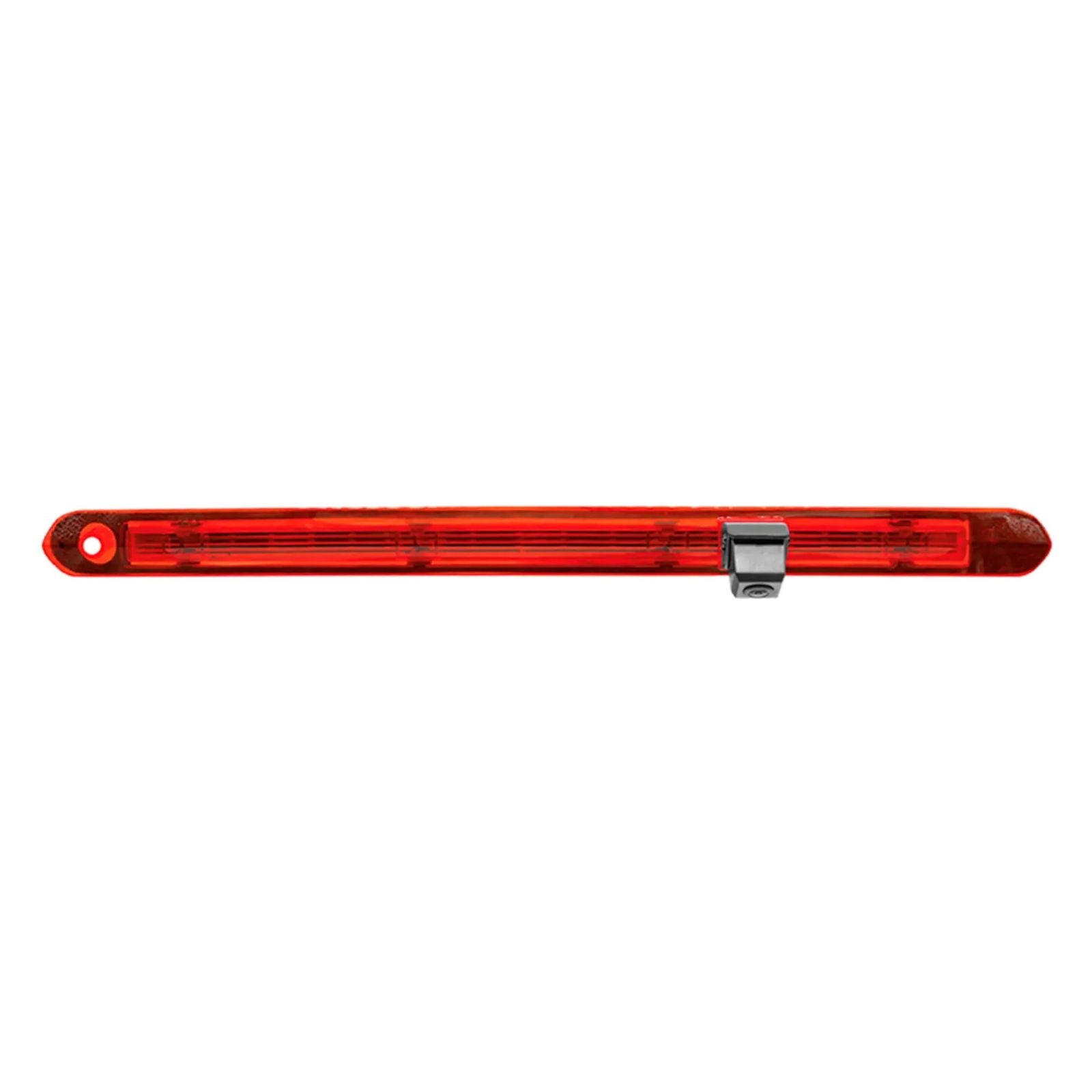

The UP-CAM-MC1 is an OEM-style brake light reversing camera for the Mercedes-Benz V-Class, Vito and Viano with a single rear door (2014 onwards). It replaces the original high-level brake light housing, supports CVBS, AHD 720P and AHD 1080P output, and carries an IP68 waterproof rating. It is a CEN own-brand reversing camera.
Key specifications
- Model: UP-CAM-MC1
- Image sensor: 1/2.7 inch HD CMOS
- Video output: CVBS / AHD 720P / AHD 1080P
- Max. resolution: 1920 x 1080 (AHD 1080P)
- Waterproof rating: IP68
- Operating voltage: 6V to 18V
- Guide lines: on/off selectable
- Current consumption: 150 mA
Vehicle compatibility
Mercedes-Benz V-Class / Vito / Viano single rear door (2014 to current).
Overview
The UP-CAM-MC1 fits directly in place of the original high-level brake light housing, giving a clear rear view without changing the factory appearance of your van or camper. It reduces blind spots when reversing and manoeuvring, and its IP68-rated, flame-retardant PC housing is built for reliable all-weather use. Compatible with a wide range of OEM and aftermarket display systems (model dependent).
Key features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans and commercial vehicles
- Weatherproof IP68 construction for all-weather reliability
- Compatible with selected OEM and aftermarket monitors
- Vehicle-specific installation (model dependent)
Camera features
- 1/2.7 inch high-performance HD CMOS image sensor
- Supports CVBS, AHD 720P and AHD 1080P video output
- High-resolution output up to 1920 x 1080
- Selectable mirror/non-mirror image mode
- Switchable parking guidelines
- Selectable image flip function
- IP68-rated waterproof construction
- Wide 6V to 18V operating voltage range
- Rugged flame-retardant PC housing for demanding automotive environments
Explore the full range in CEN Reversing Cameras.
Specification
| Image Sensor | 1/2.7" HD CMOS Image Sensor |
|---|---|
| Effective Pixels | CVBS: 1920 × 530 / AHD 1080P: 1920 × 1080 / AHD 720P: 1280 × 720 |
| Resolution | 1000–2000 TVL |
| TV System | NTSC / PAL |
| Video Output | CVBS / AHD |
| Viewing Angle | Customisable |
| Image Modes | Mirror / Non-Mirror |
| Guide Lines | On / Off Selectable |
| Image Flip | Flip / No Flip Selectable |
| Waterproof Rating | IP68 |
| Current Consumption | 150 mA |
What's Included
- UP-CAM-MC1
CEN
About the CEN UP-CAM-MC1
From our tech experts at CEN
The UP-CAM-MC1 is a CEN brake light reversing camera for the Mercedes-Benz V-Class, Vito and Viano with a single rear door (2014 onwards). It replaces the original high-level brake light unit and supports CVBS, AHD 720P and AHD 1080P output, with a 1/2.7 inch HD CMOS sensor and an IP68 waterproof rating.
Who it suits
This suits V-Class, Vito and Viano owners wanting a factory-look reversing camera with no visible modifications. It is a practical choice for campervans and light commercial use where a clean OEM appearance matters. Browse our full CEN range if you drive a different vehicle.
Our tech experts advise
Confirm your vehicle has a single rear door before ordering. Check your display accepts CVBS or AHD input, as monitor compatibility is model dependent. Guide lines and mirror mode are both selectable. Fitting is priced per vehicle — contact our Nottingham team via our installation page.
Explore the full CEN range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all CEN
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
CEN News & Guides
The latest CEN product news, launches and guides from the CEN team in Nottingham.
New at CEN: Anker SOLIX S2000 — 2kWh of Off-Grid Power Built to Last 15 Years
The Anker SOLIX S2000 has arrived at CEN: 2kWh of LFP capacity rated for 10,000 charge cycles, recharged six different...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
New at CEN: Option Audio Drive-10Flat — Golf Mk8 Bass, Zero Boot Space Lost
If you drive a VW Golf Mk8 and want real bass without sacrificing the boot, Option Audio built the answer:...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from CEN Reversing Cameras
More options from the same range, in stock and ready to go

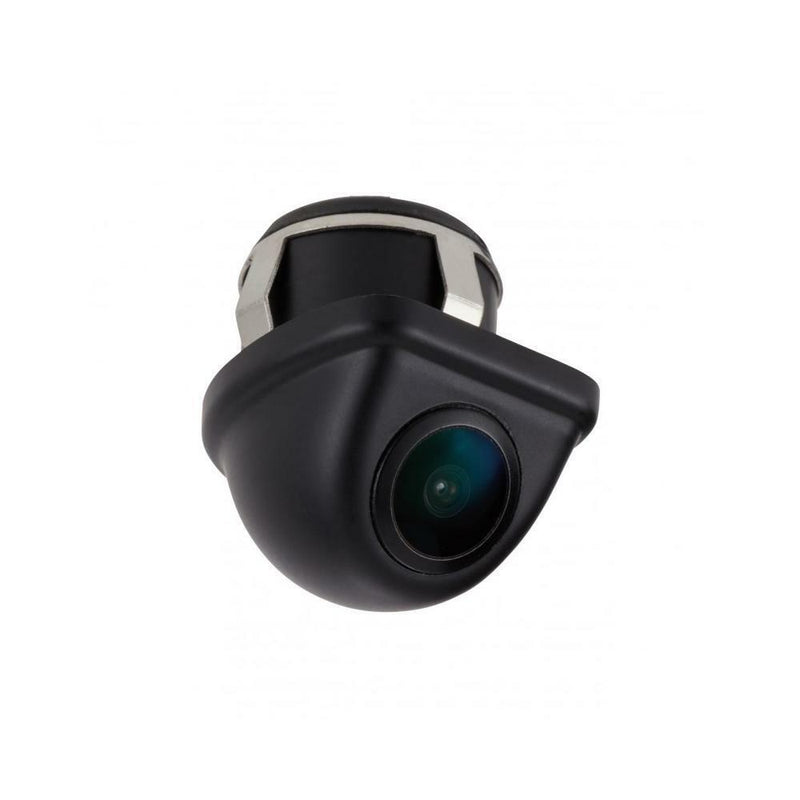

Mini Reversing Camera CMOS Push Fit Car Reverse Backup Rear Parking Camera
£99.95
View product

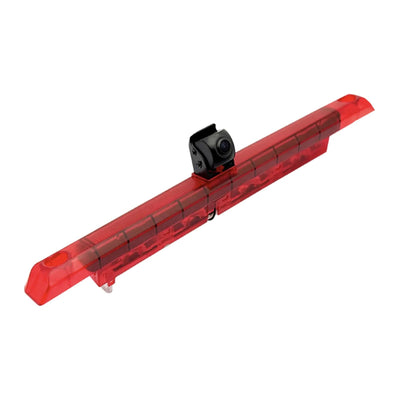

Brake Light Reversing Camera for Renault Master 2024+ Backup Rear Parking
£129.99

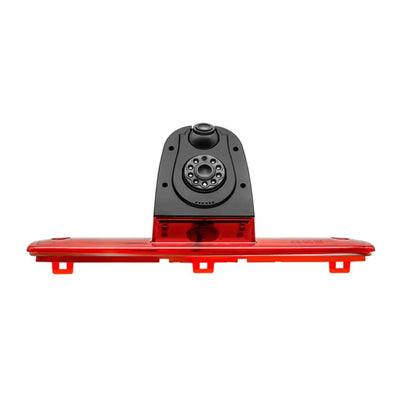

Brake Light Reversing Camera for Relay Boxer Ducato Dual Rear Parking Camera
£149.99

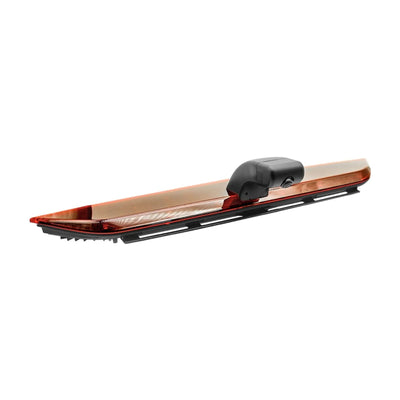

Brake Light Reversing Camera for Volkswagen T7 Backup Rear Parking Camera
£169.99

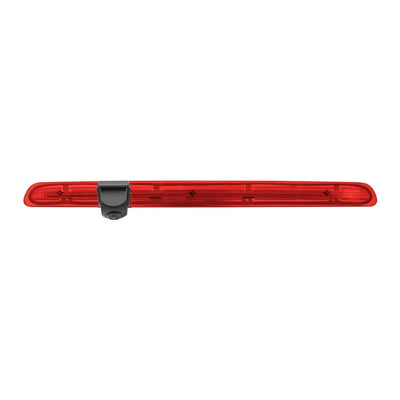

Brake Light Reversing Camera for Volkswagen T6 T6.1 Backup Rear Parking Camera
£99.99
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which vehicles does the UP-CAM-MC1 fit?
A: It is designed for the Mercedes-Benz V-Class, Vito and Viano with a single rear door (2014 onwards). Listed fitment: Mercedes-Benz V-Class / Vito / Viano single door (2014 to current). Check your vehicle's rear door type and year before ordering, or contact CEN with your registration.
Q: Can I switch off the parking guidelines or mirror the image?
A: Yes. The parking guidelines can be switched on or off, and the image can be set to mirror or non-mirror and flipped if needed.
Q: What video outputs does the UP-CAM-MC1 support?
A: It supports CVBS, AHD 720P and AHD 1080P video output, with a resolution of up to 1920 x 1080 in AHD 1080P mode. Your screen must accept the chosen format.
