Bluetti PV120 Portable Solar Panel IP65 Splashproof 120W
Couldn't Load Pickup availability

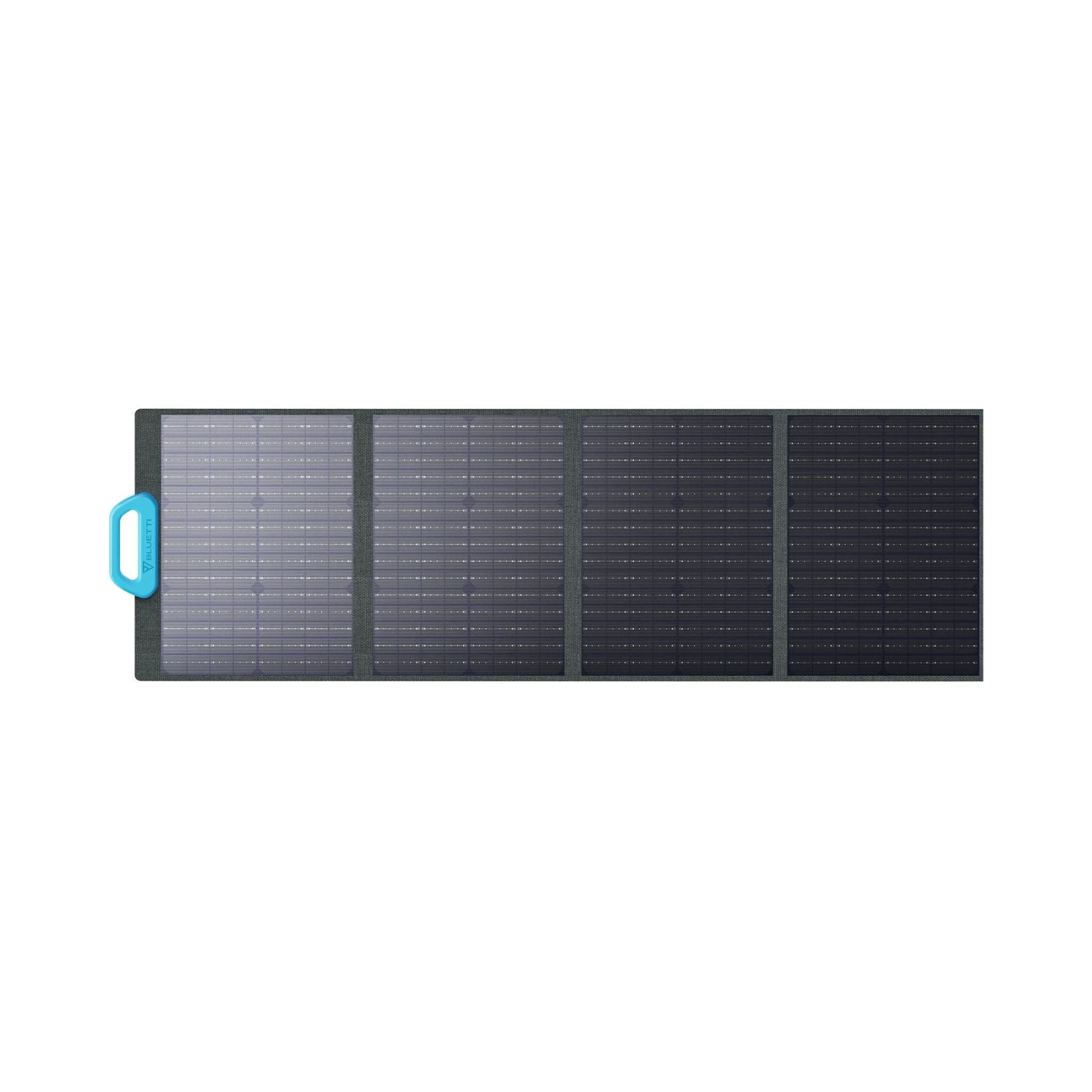

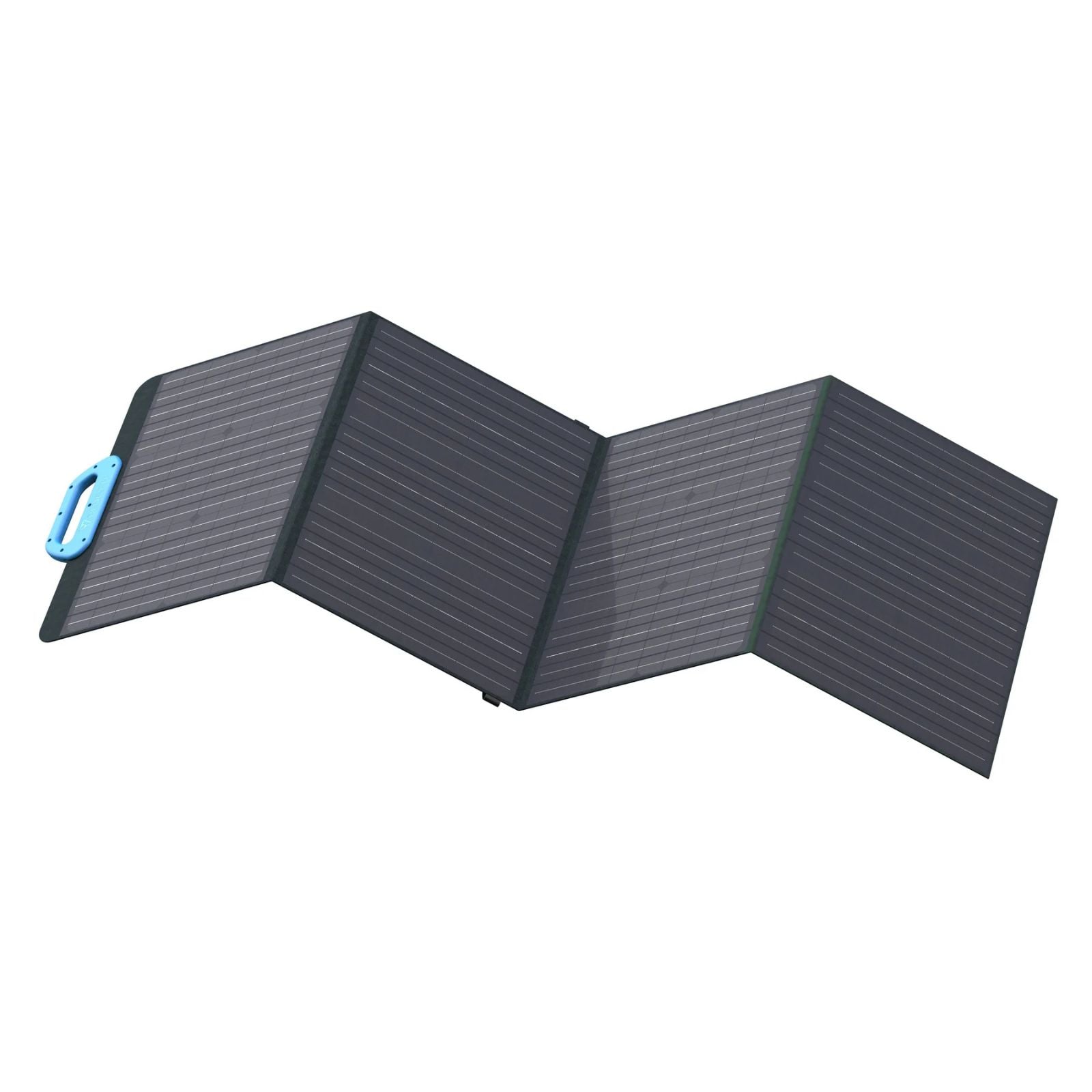

The Bluetti PV120 is a 120W foldable monocrystalline solar panel with up to 23.4% cell efficiency, an ETFE coating, and an IP65-rated junction box. It connects via standard MC4 and is compatible with Bluetti and other MC4-compatible solar generators.
This listing is the 120W panel. The Bluetti portable solar panel range is also available in 60W and 500W.
Key specifications
- Power: 120W
- Cells: monocrystalline, up to 23.4% efficiency
- Protection: ETFE coating, IP65 junction box (splash-resistant)
- Vmp / Imp: 19.6V / 6.1A
- Voc / Isc: 24.4V / 6.43A
- Connector: standard MC4, 3m cable
- Weight: 5.7kg

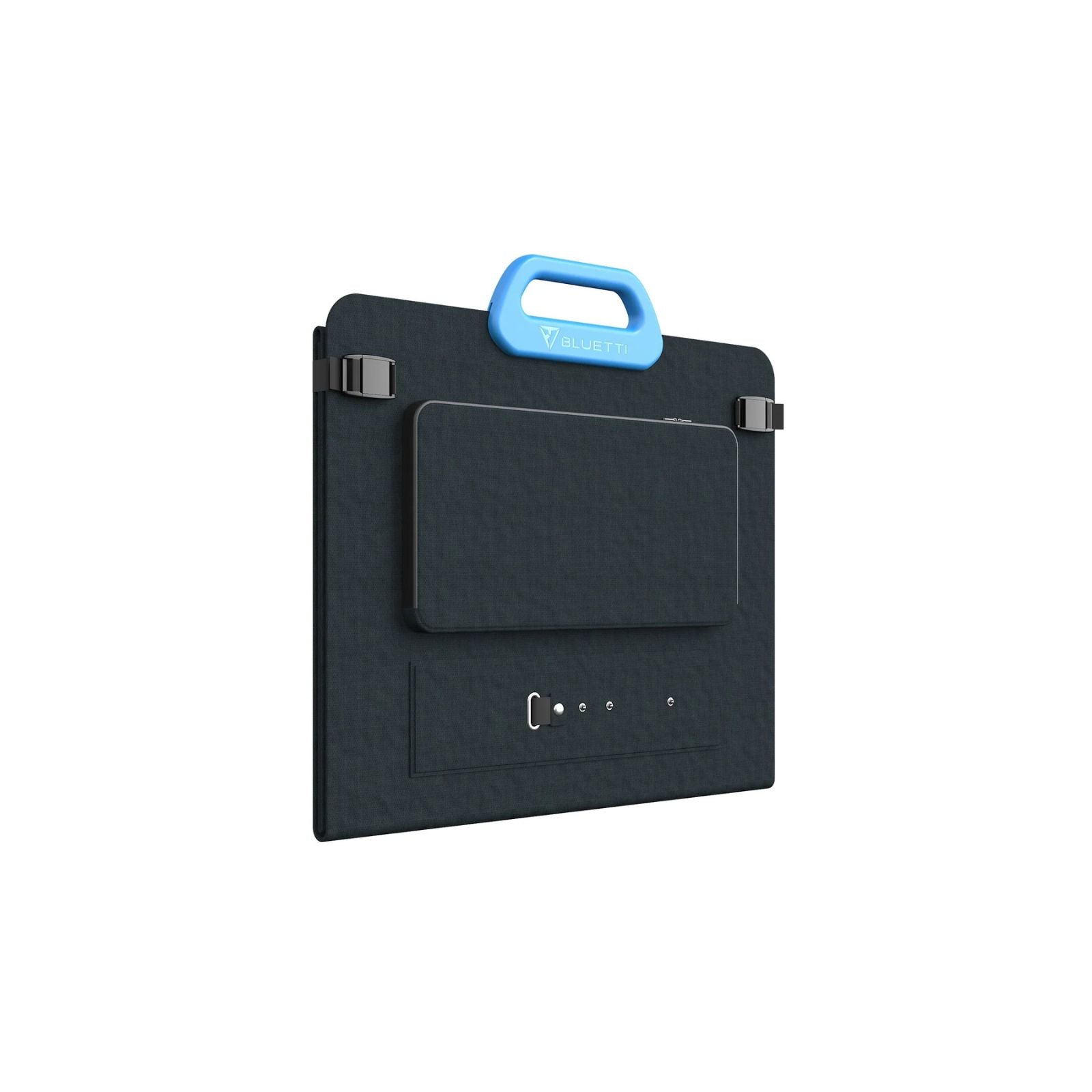

- Folded size: 53.3 x 47cm

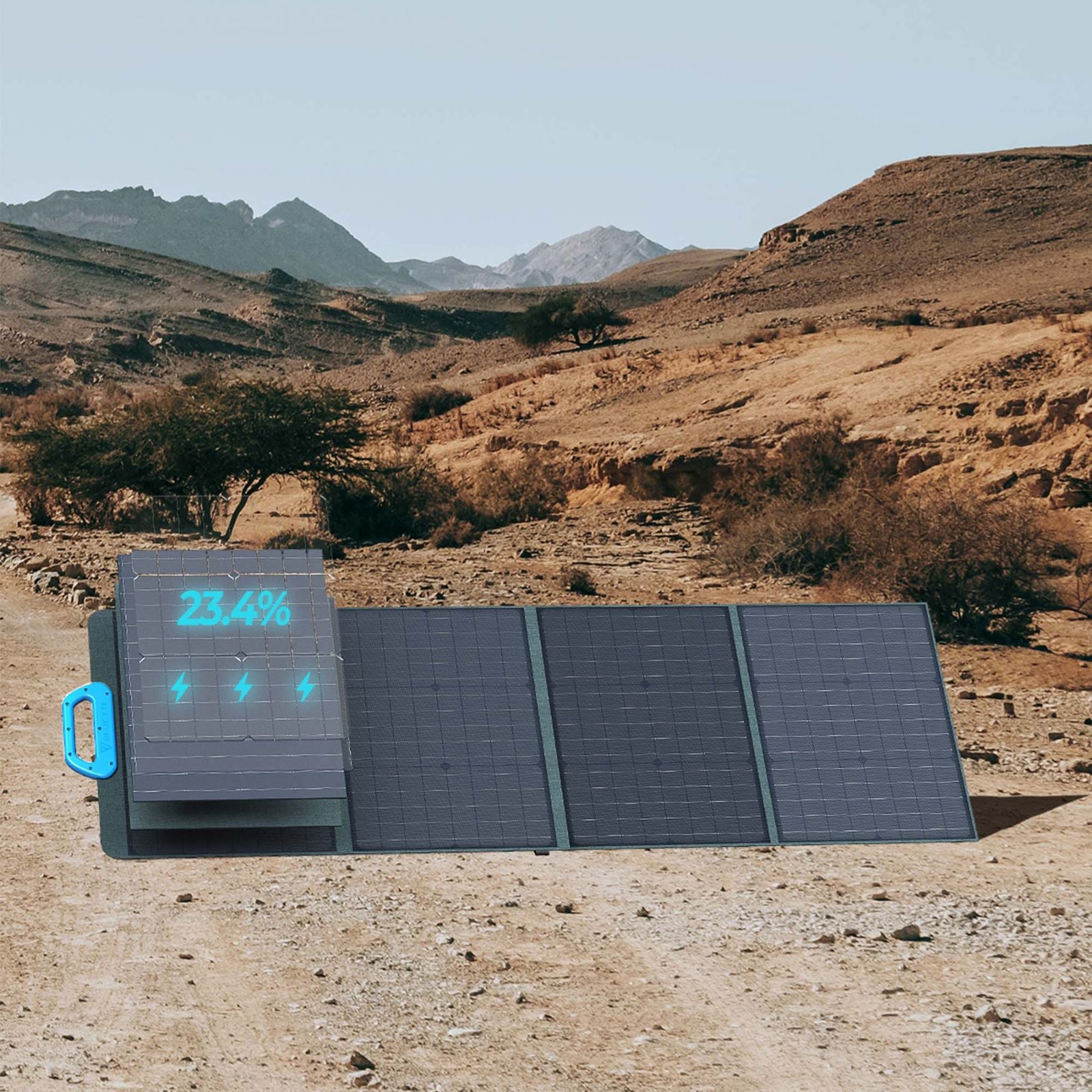

23.4% High Efficiency
Monocrystalline cells let the PV120 convert up to 23.4% of sunlight into usable energy, maintaining a charge even in overcast conditions.

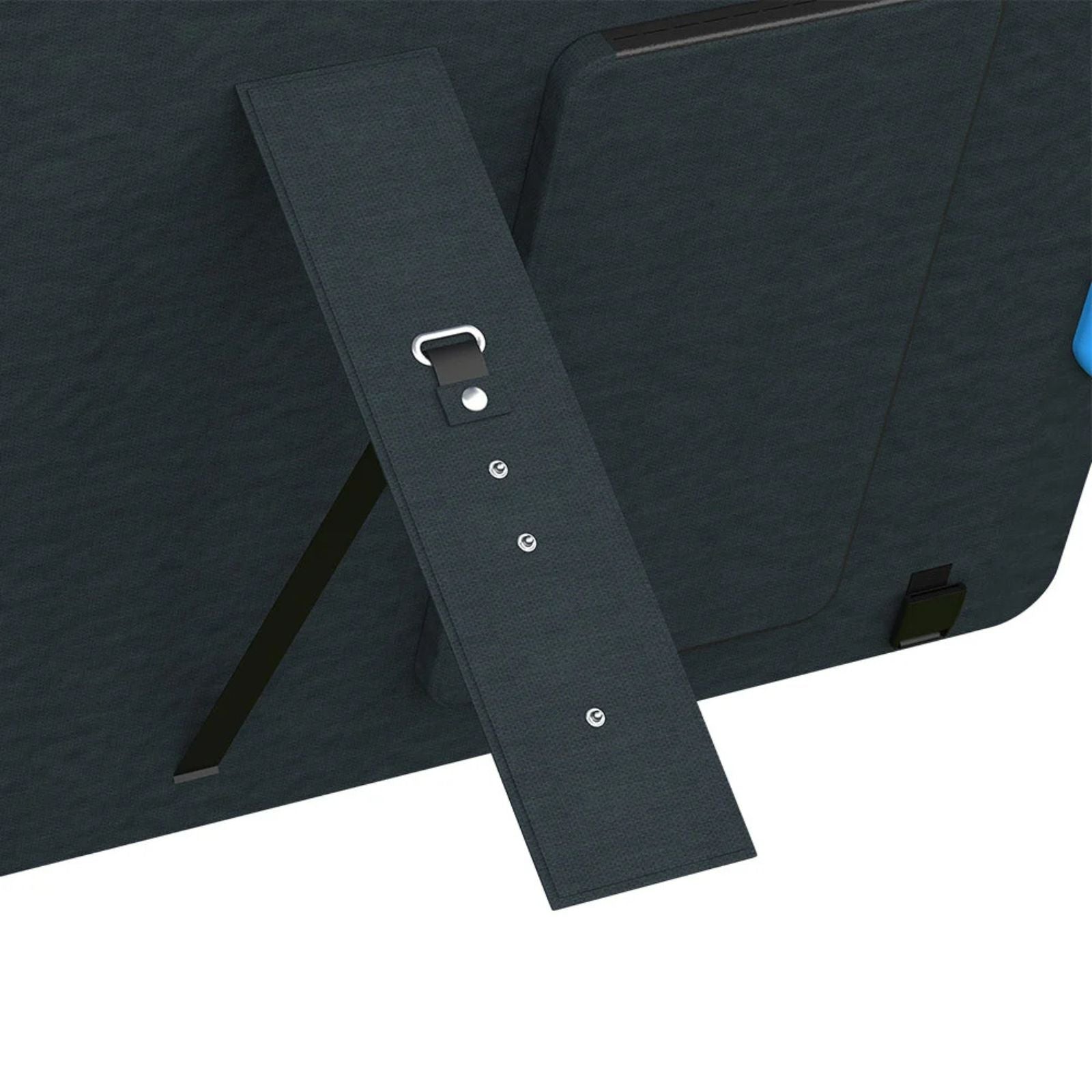

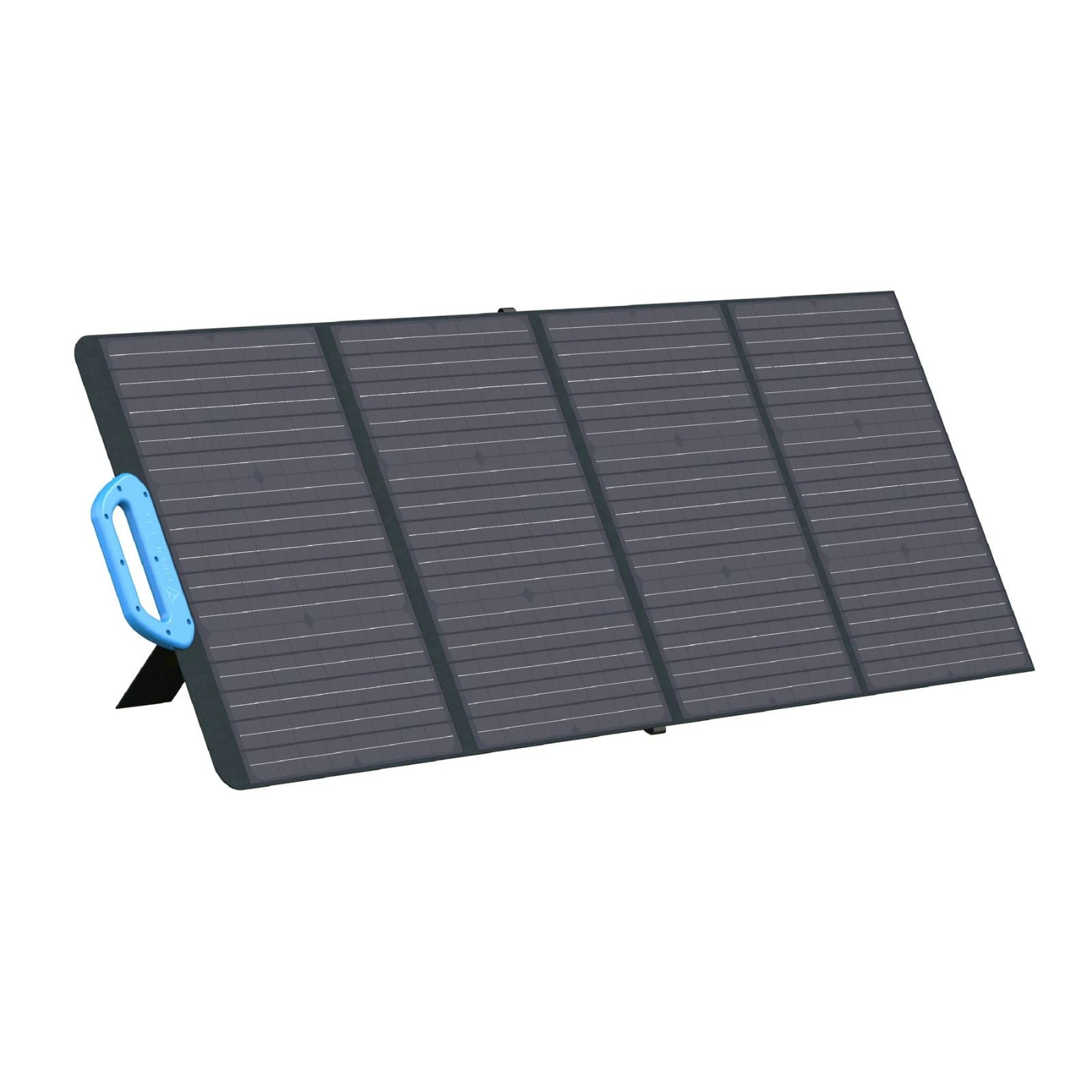

Easy Setup With Kickstand
Unfold the panel, snap the kickstands into place, adjust the angle for maximum sun exposure, and it's ready to use. Recharging times below refer to charging to 80%.
- BLUETTI EB55 (537Wh) + PV120: as little as 5 hours
- BLUETTI AC200P (2,000Wh) + 2 × PV120: as little as 8.5 hours
- BLUETTI AC200MAX (2,048Wh) + 4 × PV120: as little as 4.5 hours
- BLUETTI AC300 + B300 (3,072Wh) + 8 × PV120: as little as 3.5 hours
- BLUETTI EP500 (5,120Wh) + 6 × PV120: as little as 7.5 hours
Built to Last
The ETFE coating resists scratches and the IP65 junction box handles water splashes, making the PV120 a practical choice for camping, fishing and hiking. Avoid prolonged exposure to rain and do not submerge in water.
Explore the full range in Bluetti Solar Panels.
Specification
| Model | PV120 |
|---|---|
| Power | 120W |
| Lamination | ETFE (Ethylene tetrafluoroethylene) |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | Up to 23,4% |
| Voltage at Max Power(Vmp) | 19,6V |
| Current at Max Power(Imp) | 6,1A |
| Open Circuit Voltage(OCV) | 24,4V |
| Short Circuit Current(Isc) | 6,43A |
| Connector | Standard MC4 Connector |
| Weight | 12.57lbs (5.7kg) |
| Dimensions | (Unfolded) 21 × 65in (53.3 × 165.2cm) |
| Dimensions | (Folded) 21 × 18.5in (53.3 × 47cm) |
| Operating Temperature | 14-149℉ (-10-65℃) |
| Best Working Temperature | 77℉ (25℃) |
| Cable Length | 118in (3m) |
| Certifications | FCC, CE, ROHS |
What's Included
- PV120 Solar Panel
- Manuals
- Warranty Card
Bluetti
About the Bluetti PV120
From our tech experts at CEN
A Bluetti portable solar panel, 120W.
Who it suits
Campers, vanlifers and anyone running a power station who wants to top it up without an engine or a hookup.
Our tech experts advise
Output in UK conditions is well below the rated figure, so plan for more panel than the arithmetic suggests. Angle matters more than most people expect: flat on the ground is the worst case. get in touch for advice on pairing it to your power station.
Explore the full Bluetti range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Bluetti
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Bluetti
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Is the PV120 waterproof?
A: It has an IP65 junction box and ETFE coating that resist water splashes and scratches, but it is not designed for rain exposure or submersion.
Q: How long does the PV120 take to charge a power station?
A: As a guide to 80%: an EB55 (537Wh) with one PV120 in about 5 hours, and an AC200MAX (2,048Wh) with four PV120 panels in about 4.5 hours. Times depend on sunlight and panel angle.
Q: What connector does the PV120 use?
A: It has a standard MC4 connector on a 3m cable, compatible with BLUETTI and other power stations that accept MC4 solar input within its 24.4V open circuit voltage.
