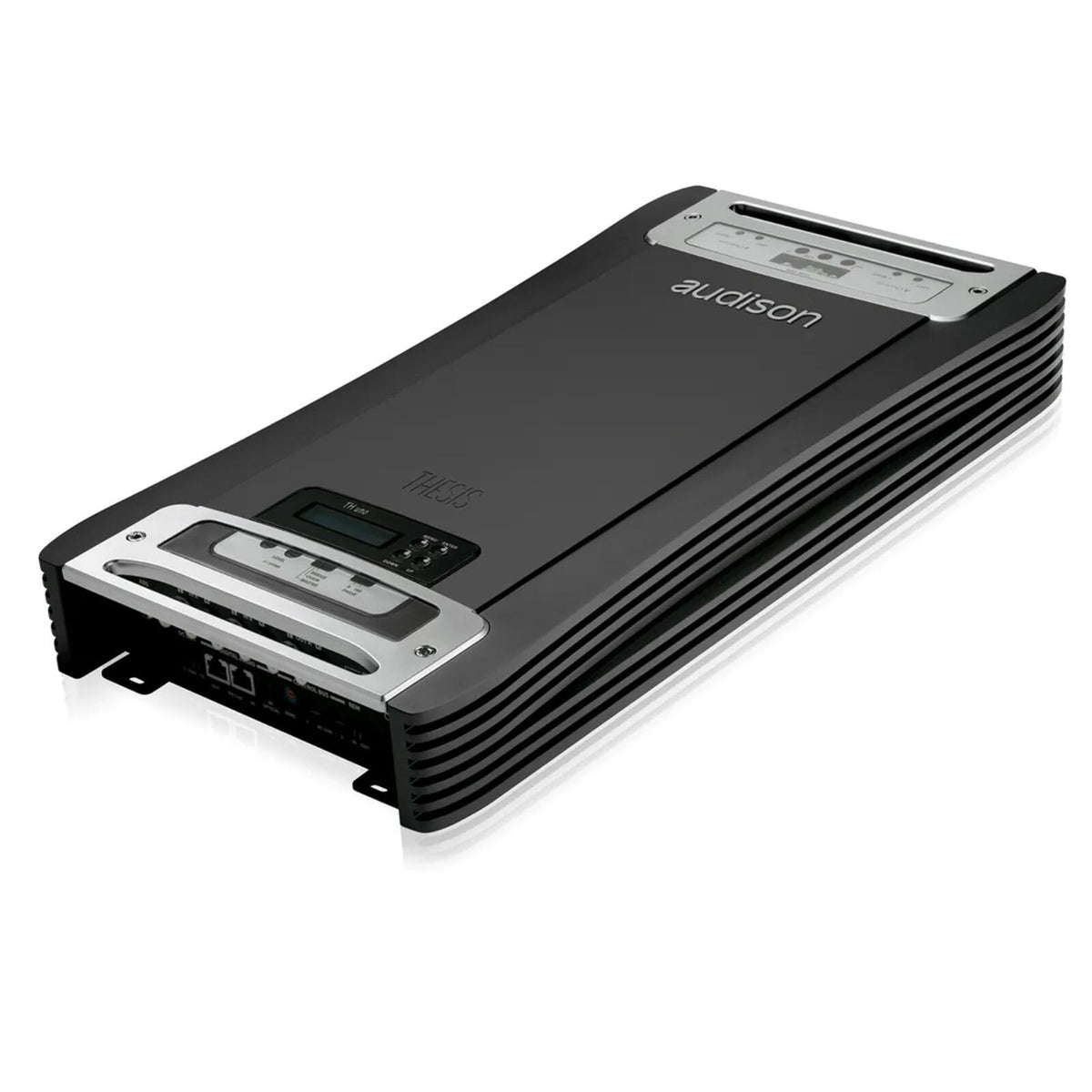

Audison Thesis TH Uno Amplifier Class A 1 Channel Dual Mono Amp 2300w RMS

Name: Audison Thesis TH Uno Amplifier Class A 1 Channel Dual Mono Amp 2300w RMS
Brand: Audison
SKU: 90248
Price: 3499.99 GBP
Availability: InStock

£3,499.99 Factory Order

Factory Order

SKU: 90248MPN: TH Uno

Product variants

Part of the range · 13 productsPart of the Audison Thesis range · 13 products See the range →

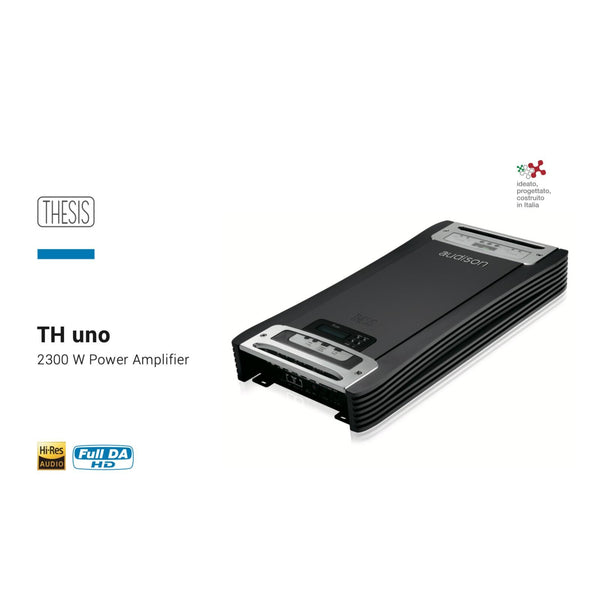

The Audison Thesis TH uno is a single-channel (mono) Class A car amplifier from the Audison Thesis range, delivering 2300W RMS into 1 ohm and 200W in pure Class A mode.

The TH uno is the mono model in the Thesis amplifier range. See also the 2-channel Audison Thesis TH due and the 4-channel Audison Thesis TH quattro.

Key specifications

Channels: 1 (mono)
Total power: 1500W RMS
Output: 850W @ 4 ohm, 1500W @ 2 ohm, 2300W @ 1 ohm
A Class mode: 200W
Minimum load: 1 ohm

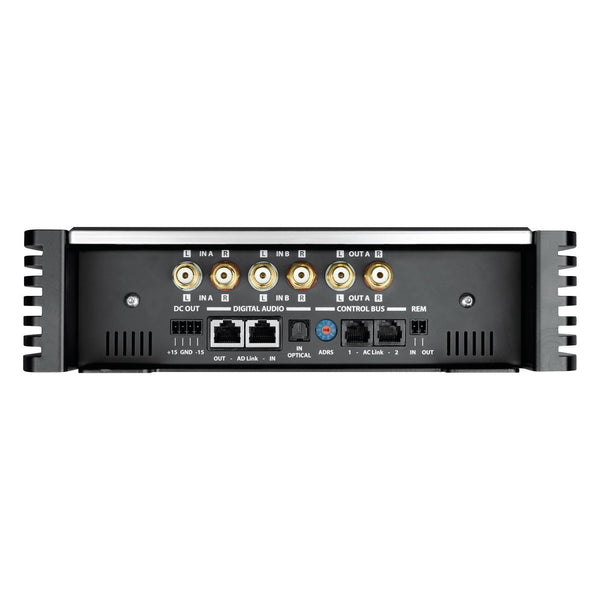

Inputs: pre-in, S/PDIF optical (up to 192kHz/24-bit) and AD Link
Bandwidth: 5Hz–40kHz (-3dB)
S/N ratio: 106dBA; THD 0.01%
Fuse: 150A

Thesis: beyond the absolute

The Thesis range builds on the know-how of the HV venti, combining the highest level of analogue technology with advanced digital features in a single product. The TH uno delivers up to 2300W into 1 ohm and 200W in audiophile Class A mode, and is specifically designed to drive subwoofers and demanding systems under any load.

Complementary differential circuitry with current mirror.
Cascode A Class driver with inverted complementary triplet power stages.
Integrated 24-bit / 192kHz Hi-End DA converters.
Compatible with Audison Full DA HD technology and Hi-Res audio files listening certification.
S/PDIF and AD Link optical digital inputs managing up to 8 digital channels on RJ-45 connector.

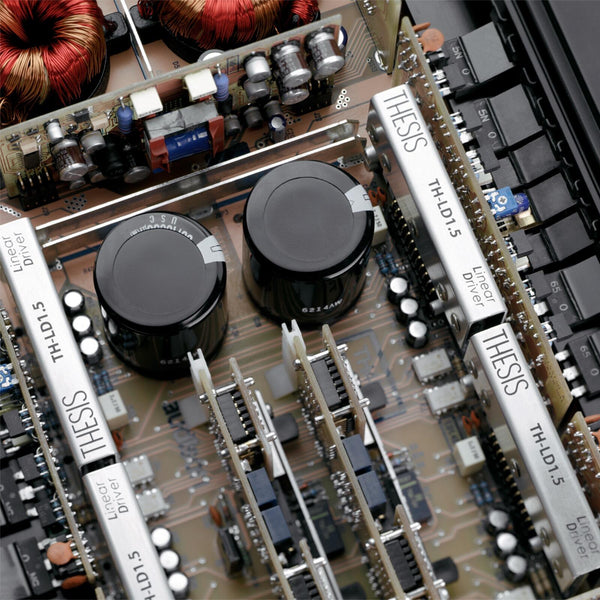

Dual Mono construction with four power supplies in Synchro-PWM configuration.
Sensitivity control with 256-step resistive switching for 120dB resolution.
Energy Saving, Hi-Current, Hi-AB Class and A Class presets selectable in real time.
Digital control via integrated settings panel, DRC and PC software.
High-quality crossover module supplied.
Chassis extruded from solid aluminium, built using CNC machines.

Full DA HD

Pure digital signal transfer at up to 24-bit / 96kHz resolution.

Digital inputs and outputs

The S/PDIF optical input connects directly to digital sources and can relay the digital signal to other Thesis amplifiers via the AD Link (Audison DigitalLink) system. Each amplifier features 192kHz/24-bit PCM D/A conversion through a high-quality converter.

Bias control

Selects between four presets: Energy Saving, Hi-Current, Hi-AB Class and full A Class operation.

Removable crossover

The complete crossover circuit is removable — inherited from the HV venti and designed to maximise the TH's versatility as a high-end sound quality solution.

Dual Mono construction

Four Synchro-PWM power supplies deliver a very fast transient current response and enable the Dual Mono configuration.

Explore the full range in Audison Thesis.

Specification

Channels	1
Bandwidth A (-3 dB, 2 VRMS, 4 Ω)	5 ÷ 40k Hz
S/N ratio A (A weighed @1 V)	106 dBA
Damping factor A (1kHz, 4 Ohms)	500
Filter Pass A Removable kit	(Hi-pass / Lo-pass / Bandpass 12/24dB) 32 steps 18 ÷ 7.5k Hz with 8 standard & 2 customizable modules
Other Functions Linked Amplifiers	Master/Slave Bridged; Slave Chain
Weight	10.2 kg
More specs Class A-Class Hi Level Input No Low Level Input Yes Digital Input Yes Power supply voltage / fuse 11 ÷ 15 VDC Operating power supply voltage 11 ÷ 15 VDC Idling current when off 0.04 mA Consumption @ 14.4 VDC, 2Ω, Max Musical Power 132 A Remote OUT 12 VDC (20 mA) Remote IN 7 ÷ 15 VDC (1 mA) Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.01 % Input sensitivity Pre-In 0.3 ÷ 4.8 VRMS Pre In Impedance 15 kΩ Total Power RMS 1500 W Minimum load impedance 1 Ω Output Power (RMS) @14.4 VDC, 1% THD • 850 W x 1 (4Ω) • 1500 W x 1 (2Ω) • 2300 W x 1 (1Ω) Adjustable Crossover No Output power @ 4Ω, 1% THD+N, 14.4 V Output power @ 4Ω, 1% THD+N, 14.4 V: 850 W x 1 Ch SN ratio (ref. 1W output) SN ratio (ref. 1W output): 75 dBA Input Type PRE - S/PDIF (Max 192 kHz / 24 bit) Optical and AD Link Filters Outputs PRE Bypass / AD Link Fuse 150 A

What's Included

Audison TH uno

Download User Manual(PDF)

Product information

Audison

About the Audison TH Uno

From our tech experts at CEN

A monoblock subwoofer amplifier from Audison’s range, rated at 2300w RMS.

Who it suits

Anyone driving a subwoofer that needs real, controlled power.

Our tech experts advise

Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It also needs a fused feed from the battery on the correct gauge. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Audison Thesis TH Quattro Amplifier Class A B 4 Channel Stereo Amp 1040w RMS - CEN

Factory Order Audison Thesis TH Quattro Amplifier Class A 4 Channel Stereo Amp 1040w RMS £3,999.99

Special Order

Audison Thesis TH Due Amplifier Class A 2 Channel Dual Power Mode Amp 1000w RMS - CEN

Factory Order Audison Thesis TH Due Amplifier Class A 2 Channel Dual Power Mode Amp 1000w RMS £3,499.99

Special Order

Audison Thesis TH K2 II P CORO Sax Violino 2 Way Passive Component Kit 150w RMS - CEN

Factory Order Audison Thesis TH K2 II P CORO Sax Violino 2 Way Passive Component Kit 150w RMS £2,499.99

Special Order

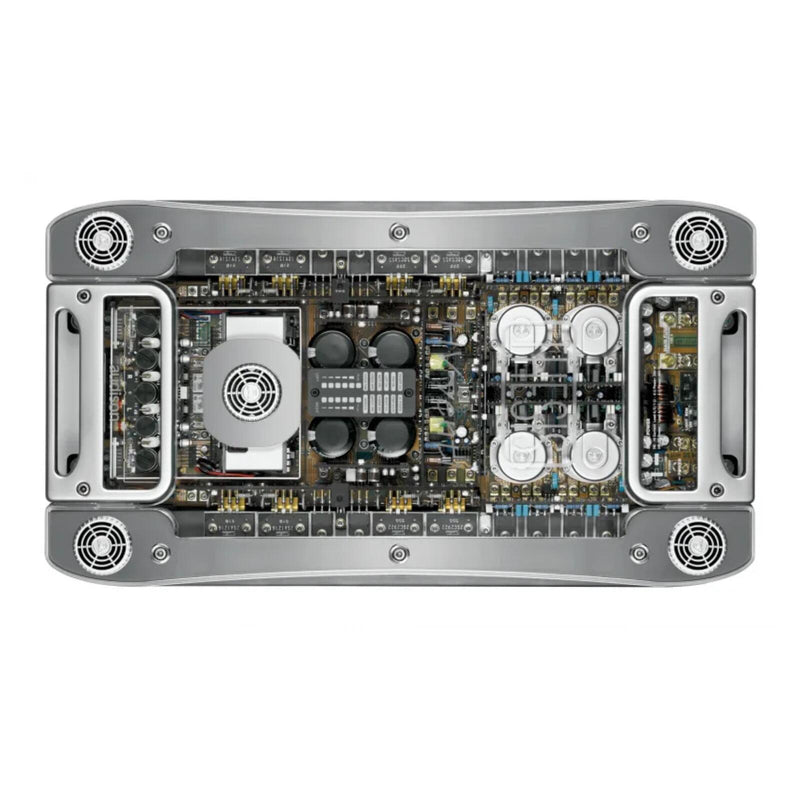

Audison Thesis HV Venti Amplifier Class A 2 Channel Dual Mono Amp 1600w RMS - CEN

Made just for you Audison Thesis HV Venti Amplifier Class A 2 Channel Dual Mono Amp 1600w RMS £11,999.99

Built to Order

Audison Thesis TH K3 II A ORCHESTRA Sax Voce Violino 3 Way Active Component Kit - CEN

Audison Thesis TH K3 II A ORCHESTRA Sax Voce Violino 3 Way Active Component Kit £3,349.00

Low stock

Audison Thesis TH K2 II A CORO Sax Violino 2 Way Active Component Kit 150w RMS - CEN

Audison Thesis TH K2 II A CORO Sax Violino 2 Way Active Component Kit 150w RMS £1,949.99

Low stock

Audison Thesis TH 3.0 II Voce 3" 70mm Midrange Dash Door Speakers with Grills - CEN

Audison Thesis TH 3.0 II Voce 3" 70mm Midrange Dash Door Speakers with Grills £1,149.99

In stock

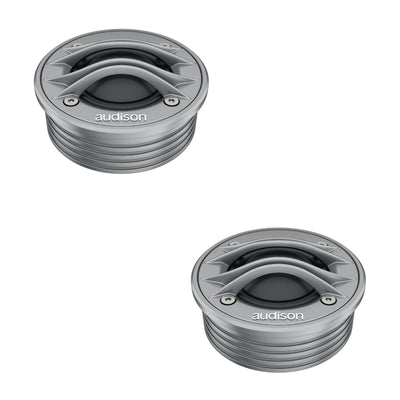

Audison Thesis TH 1.5 II Violino Custom Neodymium Magnet 38mm Silk Dome Tweeters - CEN

Audison Thesis TH 1.5 II Violino Custom Neodymium Magnet 38mm Dome Tweeters £999.99

Low stock

Audison Thesis TH 6.5 II SAX 6.5" 17cm Car Midbass Door Woofer Speakers 150w RMS - CEN

Audison Thesis TH 6.5 II SAX 6.5" 16.5cm Midbass Door Woofer Speakers 150w RMS £1,399.99

Low stock

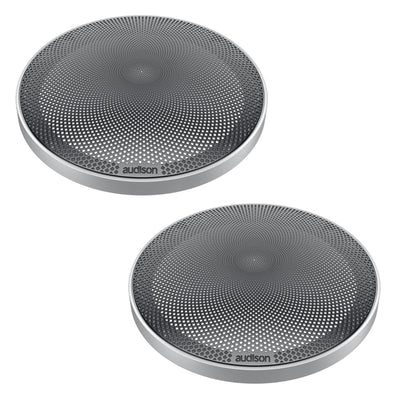

Audison Thesis THG 6.5 II Steel Mesh Grilles Pair for Orchestra Coro Sax Woofers - CEN
