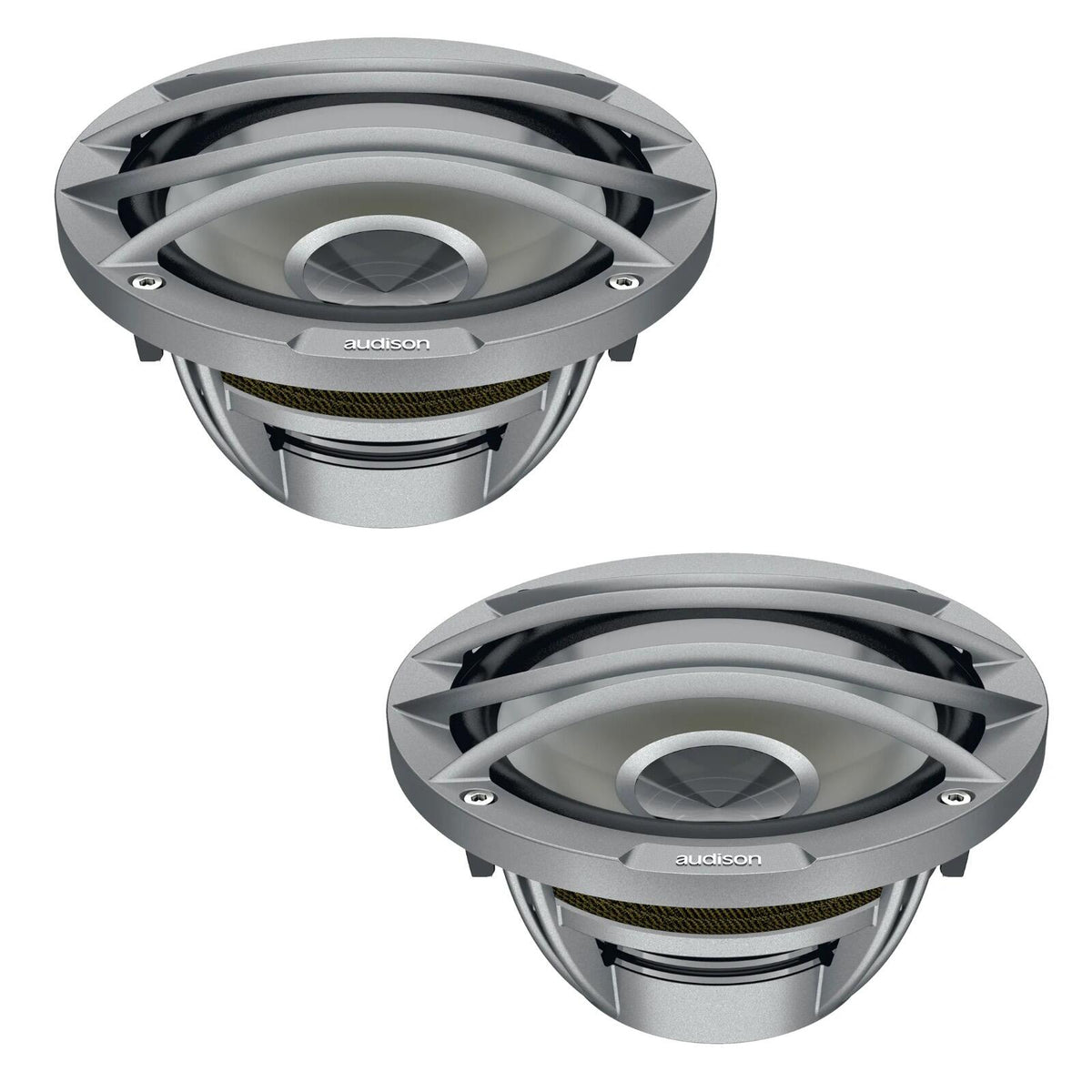

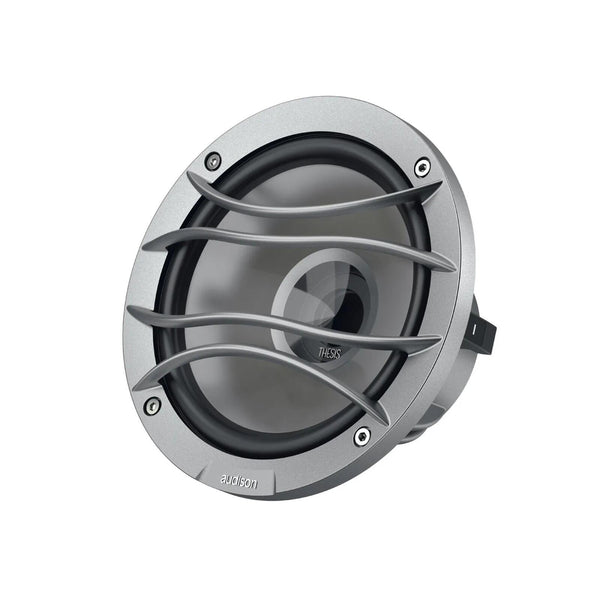

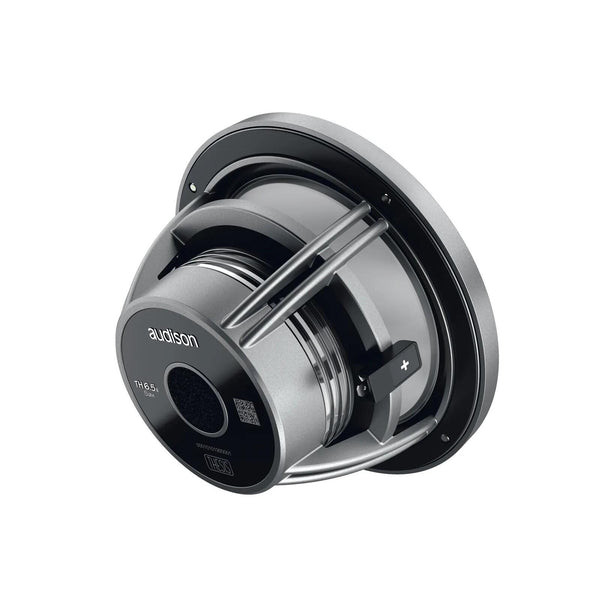

Audison Thesis TH 6.5 II SAX 6.5" 16.5cm Midbass Door Woofer Speakers 150w RMS
Couldn't Load Pickup availability
The Audison Thesis TH 6.5 II SAX is a 6.5-inch (165mm) flagship midbass woofer from Audison's Thesis range, rated at 150W RMS (300W peak). It features a 50mm copper clad aluminium ribbon voice coil, TPX cone and neodymium magnet, designed for high-end active or 3-way car audio systems.
For the matching Thesis midrange and tweeter, see the Audison Thesis TH 3.0 II voce and the Audison Thesis TH 1.5 II violino.
Key specifications
- Size: 6.5 inch (165mm)
- Power: 150W RMS / 300W peak
- Impedance: 4 ohms
- Frequency response: 40Hz–4.5kHz
- Voice coil: 50mm copper clad aluminium ribbon
- Cone: TPX
- Magnet: neodymium
- Xmax: 5.4mm
- Sensitivity: 87dB
Total Transparency
Transparency is the core Thesis principle, inherited from Audison's HV venti project. The TH 6.5 II SAX was designed from a blank sheet to avoid compromise, with the goal of passing the musical signal through untouched.
Engineered by Simulation
Audison's R&D team modelled the driver using finite element (FEM) software, then refined it through intensive prototyping to reach the ideal transducer.
At a glance
- Size: 6.5-inch (165mm)
- Power handling: 150W RMS / 300W peak
- Impedance: 4 ohms
- Designed to partner Thesis electronics
Explore the full range in Audison Thesis.
Specification
| Power Handling | - Peak 300 W |
|---|---|
| Power Handling | - Continuous 150 W |
| Impedance | 4 Ohm |
| Frequency Response | 40 ÷ 4500 Hz |
| Magnet | Material NEODYMIUM |
| Voice Coil | Ø 50 mm |
| Voice Coil | Material CCAP - COPPER CLAD ALLUMINIUM RIBBON |
| Cone | Material TPX® |
| Weight | 1.25 kg |
More specs
| |
What's Included
- Audison Thesis TH 6.5 II SAX 6.5" Woofers
Audison
About the Audison TH 6.5 II SAX
From our tech experts at CEN
Audison Thesis midbass drivers, 6.5 inch, handling 150w RMS, built to cover one band in a multi-way front stage.
Who it suits
Drivers building an active or multi-way system where each driver has a defined job and a processor sets the crossover points. Thesis is the top of Audison’s car range, intended for fully active systems.
Our tech experts advise
Drivers like this assume amplification and processing: the crossover points and mounting locations matter as much as the hardware. get in touch and we will help specify the front stage. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Audison Thesis
More options from the same range, in stock and ready to go

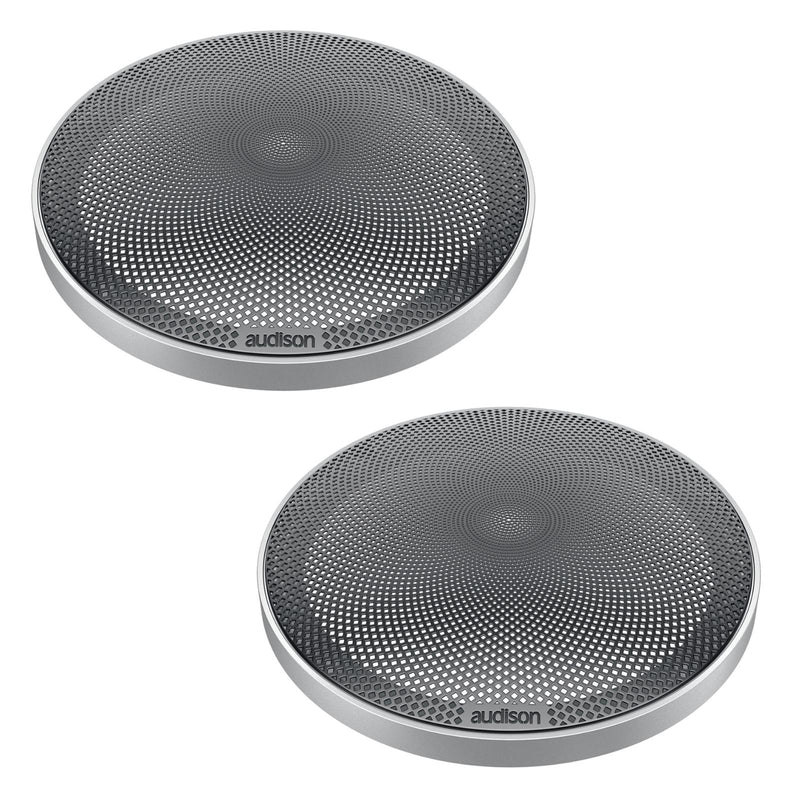

Audison Thesis THG 6.5 II Steel Mesh Grilles Pair for Orchestra Coro Sax Woofers
£249.99
View product
Audison Thesis THG 1.5 II Steel Mesh Grilles for Orchestra Coro Violino Tweeters
£149.99
Audison Thesis TH Due Amplifier Class A 2 Channel Dual Power Mode Amp 1000w RMS
£3,499.99
Audison Thesis TH Uno Amplifier Class A 1 Channel Dual Mono Amp 2300w RMS
£3,499.99
Audison Thesis TH K3 II A ORCHESTRA Sax Voce Violino 3 Way Active Component Kit
£3,349.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Is the TH 6.5 II SAX a full-range speaker?
A: No. It is a dedicated midbass woofer with a 40Hz to 4.5kHz response, intended to be used with a crossover alongside a midrange and/or tweeter, such as the Thesis TH 3.0 II voce and TH 1.5 II violino.
Q: How much power can the TH 6.5 II SAX handle?
A: It is rated at 150W continuous and 300W peak, with a 4 ohm impedance.
