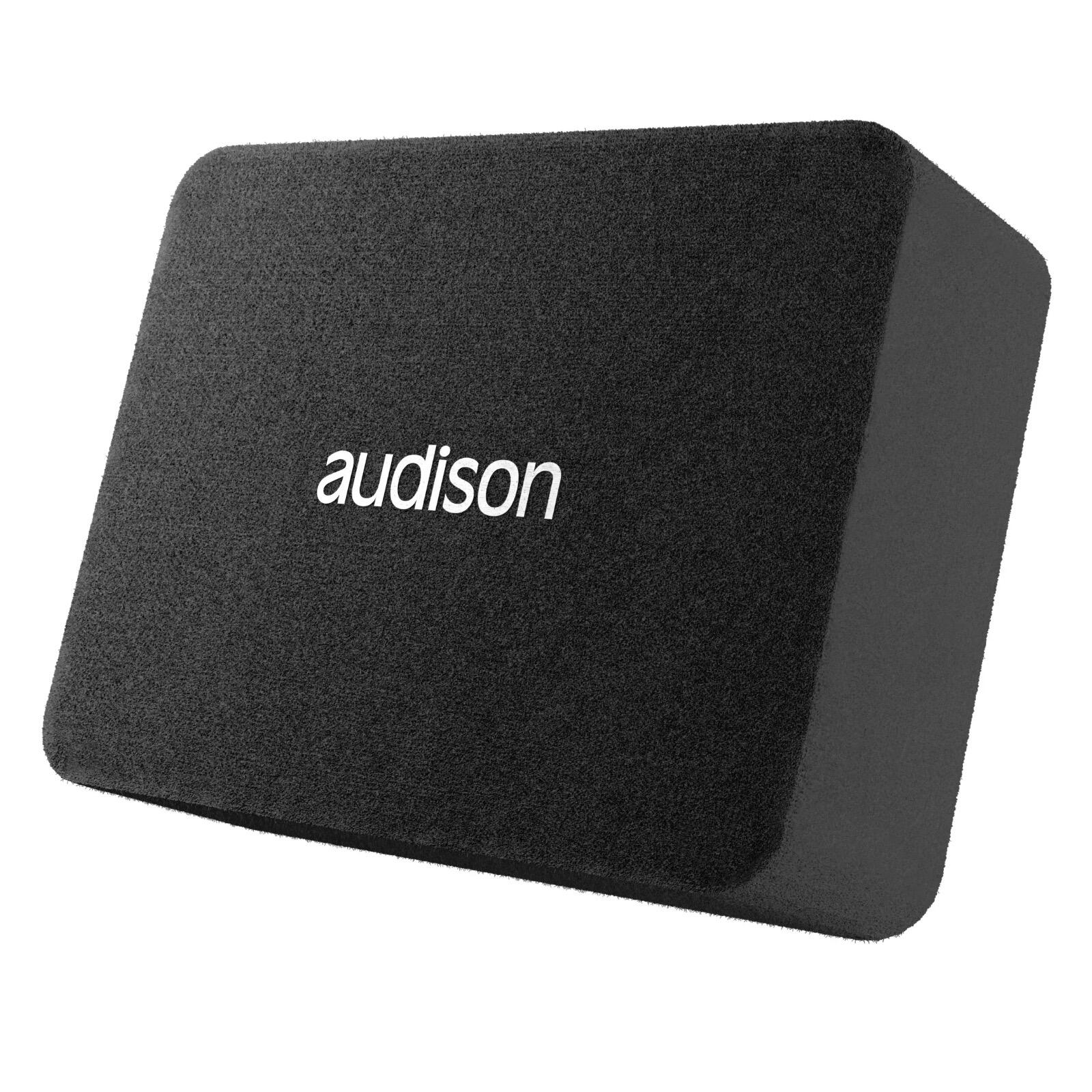

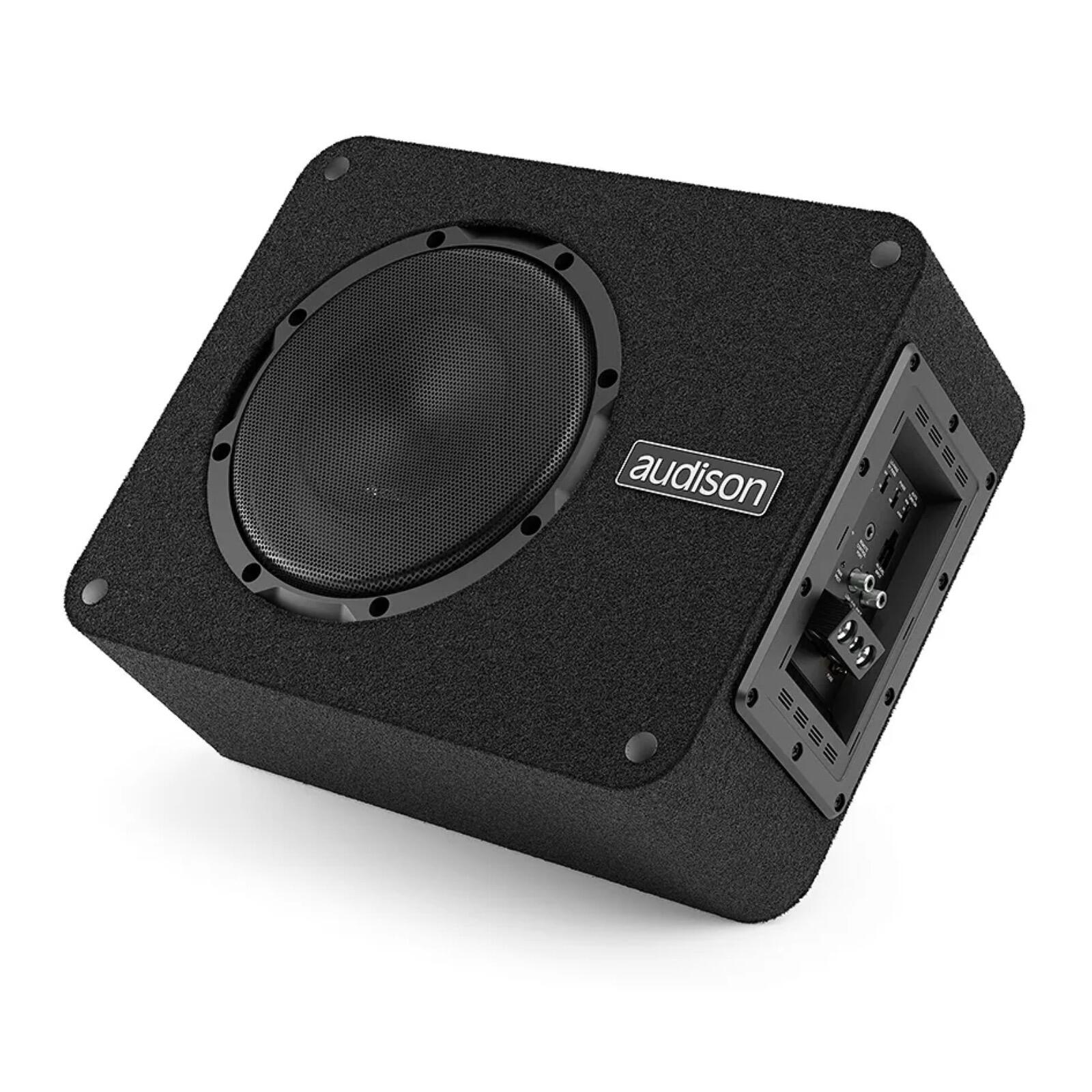

Audison Prima APBX 8 AS2 8" Active Subwoofer Enclosure Compact Sub Box 250w RMS

The Audison Prima APBX 8 AS2 is an 8-inch active subwoofer enclosure from the Audison Prima range, featuring a built-in 250 W RMS He-Li Class D amplifier (500 W peak) in an ultra-low-profile sealed box measuring 368 x 294 x 158 mm.

This listing is the 8-inch model. The Audison Prima active subwoofer enclosure is also available as the APBX 10 AS2 10-inch 400 W version.

Key specifications

• Driver: 8-inch (200 mm) APS 8 DL
• Amplifier power: 250 W RMS (500 W peak), He-Li Class D
• Low-pass filter: 50 to 300 Hz, 12 dB/oct, defeatable
• Bass boost: 0 to 6 dB at 45 Hz
• Phase: 0 to 180°
• Inputs: high-level (multi-pin) and low-level RCA
• Dimensions: 368 x 294 x 158 mm

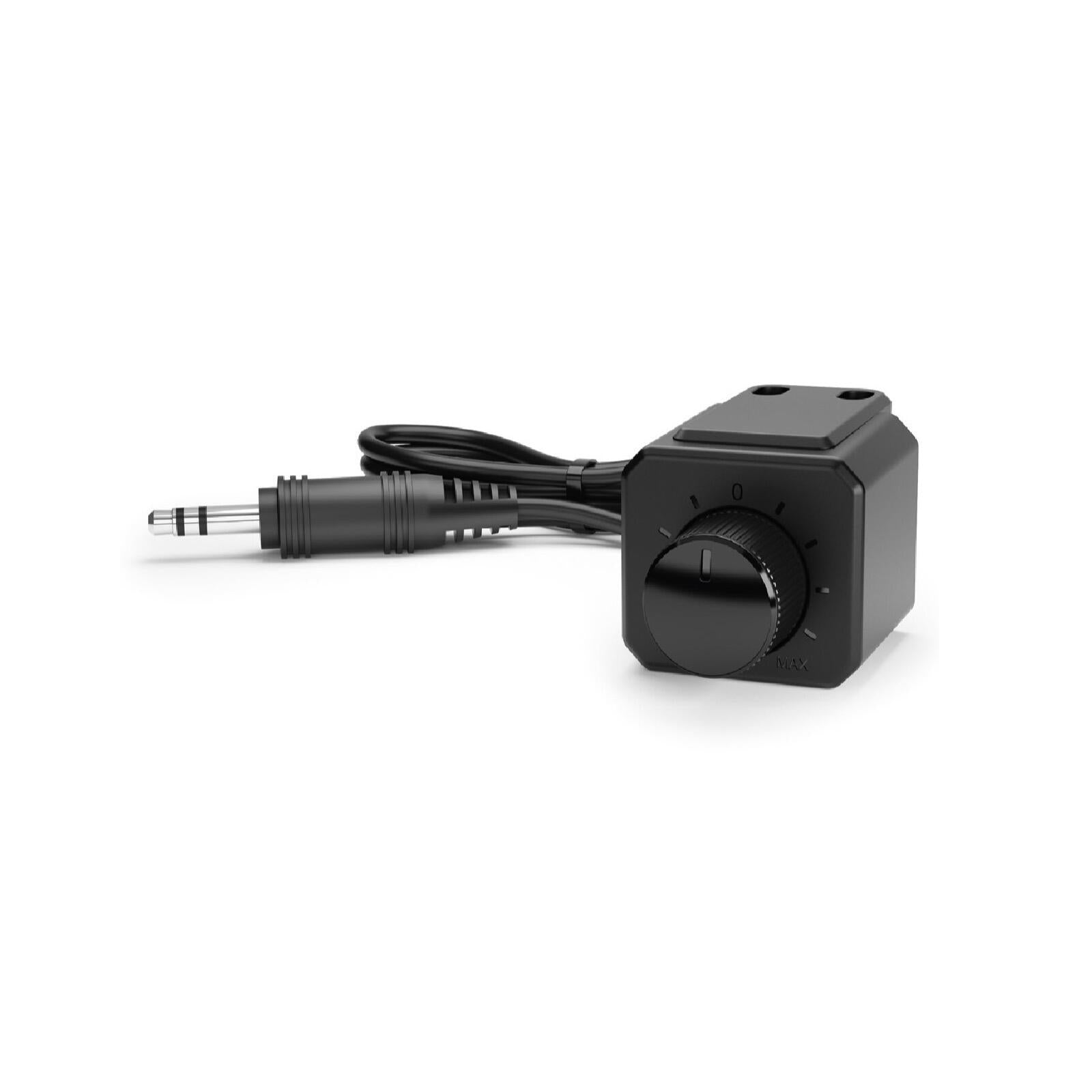

• Remote: HRC AP included

Audison Prima

Audison Prima is designed for car enthusiasts who want to appreciate all the nuances of their music with components that integrate cleanly with the car's OEM system — preserving the most precious resource in OEM integration: space.

The APBX 8 AS2 builds on Prima's passive box technologies, including the 2S² (2 Sides / 2 Sounds) design, the SSP Plug & Play terminal block and ultra-compact dimensions.

Features

• Integrated 250 W RMS @ 0.4 ohm D-Class amplifier with He-Li technology (high efficiency / low impedance), no switching power supply
• DBT (Dynamic Bass Tracking) input stage allows 100% use of the He-Li amplifier power for tight, dynamic bass at very high listening volumes
• Butterworth low-pass filter at 12 dB/oct with variable cut-off frequency (50 to 300 Hz), phase control (0 to 180°) and adjustable bass boost (0 to 6 dB at 45 Hz)
• Defeatable filter for use with the sub-dedicated output of a bit or AP bit processor

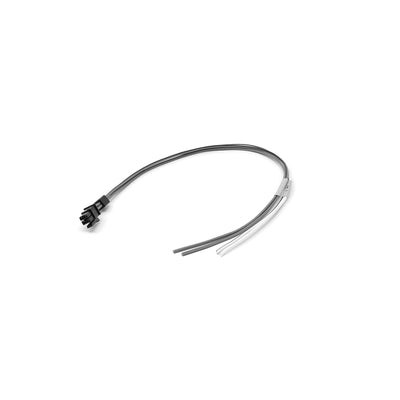

• High-level audio input on a multi-pin connector for OEM integration; low-level RCA input for aftermarket sources
• ART (Automatic Remote Turn-On) selectable between remote-in, high-level and audio signals
• Ultra-low-profile box (158 mm / 6.22 in) in air suspension, designed around the 8-inch APS 8 DL driver
• SSP (Sub Smart Plug) terminal block with a Plug & Play connector for easy, safe disconnection
• 2S² (2 Sides / 2 Sounds) design: down-firing for greater low-frequency extension, or up-firing for more punch and definition
• Down-firing levelling feet with Velcro inserts included for secure carpet grip and easy removal
• Rounded corners ease placement in the boot and reduce enclosure resonances
• Cone, dust cap and basket geometry engineered for wide linear excursion (9 mm in one direction) with minimal assembly depth
• HRC AP remote control included
• Sturdy metal grille included for full driver protection

He-Li amplification

The 250 W RMS amplification module uses He-Li technology (high efficiency / low impedance). Without a DC-DC voltage booster it achieves 90% efficiency — close to the theoretical limit of Class D. The DBT (Dynamic Bass Tracking) input stage ensures 100% use of amplifier power for tight, dynamic bass at any volume.

Removing the voltage booster was made possible by new dual-coil drivers that inherit Prima subwoofer technology but operate at ultra-low impedance, creating a perfect synergy between amplifier, speaker and sealed box for low, powerful and crisp bass.

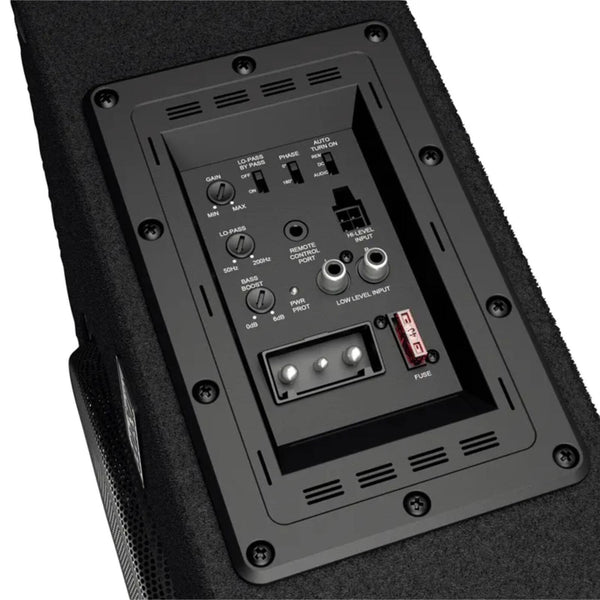

Controls and connections

The Butterworth low-pass filter at 12 dB/oct with variable cut-off frequency (50 to 300 Hz) can be bypassed when used with an AP bit processor featuring a dedicated sub pre-out. Adjustable bass boost (0 to 6 dB at 45 Hz) lets you emphasise the lowest part of the spectrum.

The high-level speaker-in input on the multi-pole connector eases integration with OEM audio systems; the low-level RCA input suits aftermarket sources. ART (Automatic Remote Turn-On) can respond to a remote signal, voltage changes on the high-level input, or the audio signal on either input. Phase control (0 to 180°) completes the adjustment options.

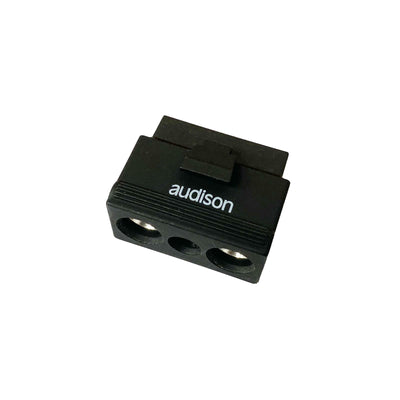

The SSP (Sub Smart Plug) terminal block uses a single Plug & Play connector so the box can be disconnected quickly and safely.
