Audison AF Link Cable Forza AF bit Outputs to Pre Inputs for AF D Amplifiers
Couldn't Load Pickup availability

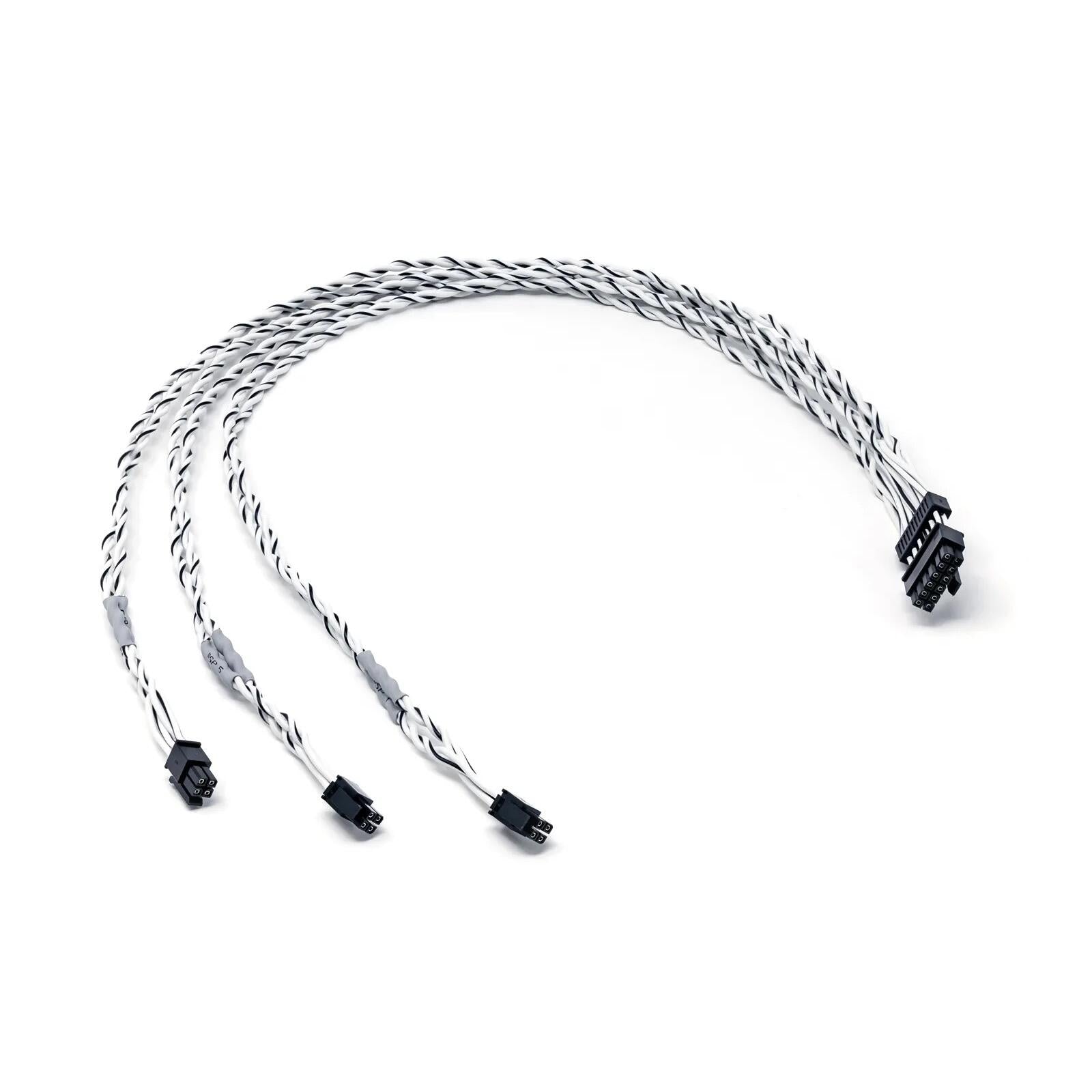

The Audison AF Link Cable connects the DSP OUT outputs of an Audison Forza AF bit amplifier to the PRE IN inputs of Audison AF D amplifiers, adding up to 6 extra channels configurable in bit Drive. It is part of the Audison Forza AF accessory range.
Key specifications
- Connects: AF bit DSP OUT outputs to AF D PRE IN inputs
- Additional channels: up to 6, configured in bit Drive software
- Compatible AF bit sources: AF M12.14bit, AF M8.14bit, AF C8.14bit, AF M5.11bit, AF C4.10bit
- Compatible AF D amplifiers: AF M4D, AF C4D, AF M1D, AF M6D
- AF M12.14bit exception: DSP 5 and DSP 6 outputs only
AF Link cable

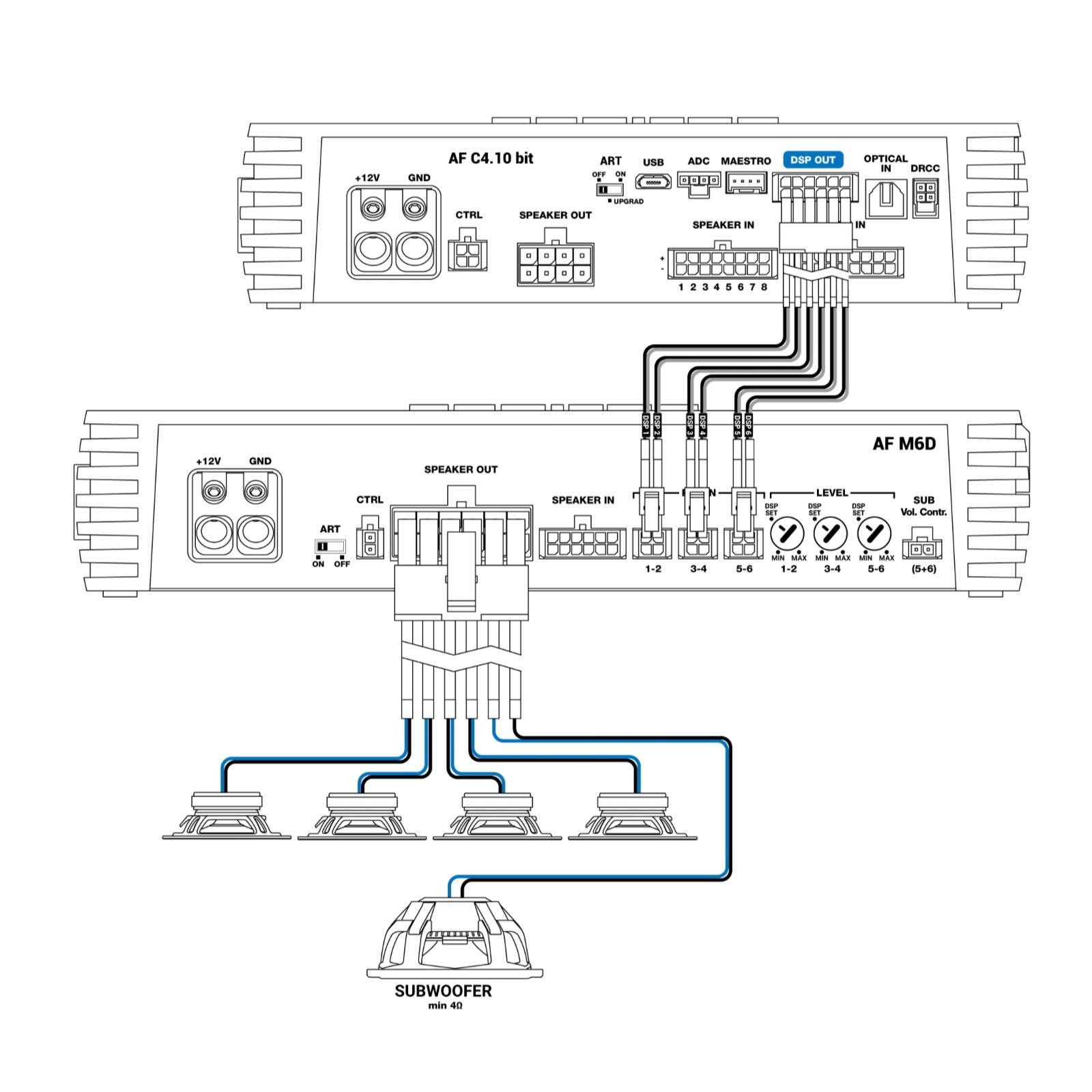

The AF Link cable connects the DSP OUT outputs of Audison AF bit amplifiers to the PRE IN inputs of Audison AF D amplifiers, giving access to additional channels configurable via bit Drive software.
Link cable for Audison AF Forza amplifiers
The AF Link cable provides 6 additional channels configurable in bit Drive when connecting an AF bit amplifier to an AF D amplifier.
- Connects DSP OUT outputs on Audison AF bit amplifiers to PRE IN inputs on Audison AF D amplifiers
- The AF bit amplifier line features 6 DSP OUT outputs
- All 6 outputs can be connected to the same number of PRE IN inputs on an AF D amplifier
Note
The AF M12.14bit is an exception. It uses the same DSP OUT connector, but only 2 outputs are available: DSP 5 and DSP 6. Outputs DSP 1 to DSP 4 on the AF M12.14bit replicate the signal already applied to amplified channels 9, 10, 11 and 12. It is not recommended to use these simultaneously.
Explore the full range in RCA Cables & Wiring.
Specification
| Type | Wiring |
|---|---|
| Series | Forza |
| Article Number | AF Link Cable |
| Country of Manufacture | China |
More specs
| |
What's Included
- AF Link Cable
Audison
About the Audison AF Link Cable
From our tech experts at CEN
A genuine Audison connecting cable, for linking Audison components without improvised joints.
Who it suits
Anyone installing or extending an Audison system who wants the wiring done properly rather than spliced.
Our tech experts advise
Cables are specific to particular units and connector types, so confirm what your system uses before ordering. get in touch and we will check. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from RCA Cables & Wiring
More options from the same range, in stock and ready to go
Best Seller Stinger SI8217 8000 Series 2 Channel Triple Shielded RCA Interconnect Cable 5.2m £46.00 /In stock
Best Seller Focal Inside IMP Extension Cable I/O 150 for Impulse 4.320 4 Channel Amplifier £69.99 /In stock
Best Seller Audison AP T-H AVS02 52 Pin T-Harness Plug & Play Integrate Audio for Audi & VW £69.99 /In stock
Best Seller Stinger SI826 8000 Series 2 Channel Triple Shielded RCA Interconnect Cable 1.8m £36.00 /Low stock
Frequently Asked Questions
Q: Which amplifiers does the AF Link cable plug into?
A: It plugs directly into the PRE IN inputs of Audison AF D amplifiers such as the AF M4D, AF C4D, AF M1D and AF M6D. For other amplifiers the Molex connectors must be cut and soldered to female RCA connectors, observing polarity: the white wire is positive and the white wire with a black line is negative.
Q: How many channels can I add with the AF Link?
A: AF bit amplifiers have 6 DSP OUT outputs, so up to 6 extra channels. The AF M12.14 bit is the exception: only DSP 5 and DSP 6 are available, as DSP 1 to 4 replicate amplified channels 9 to 12.
