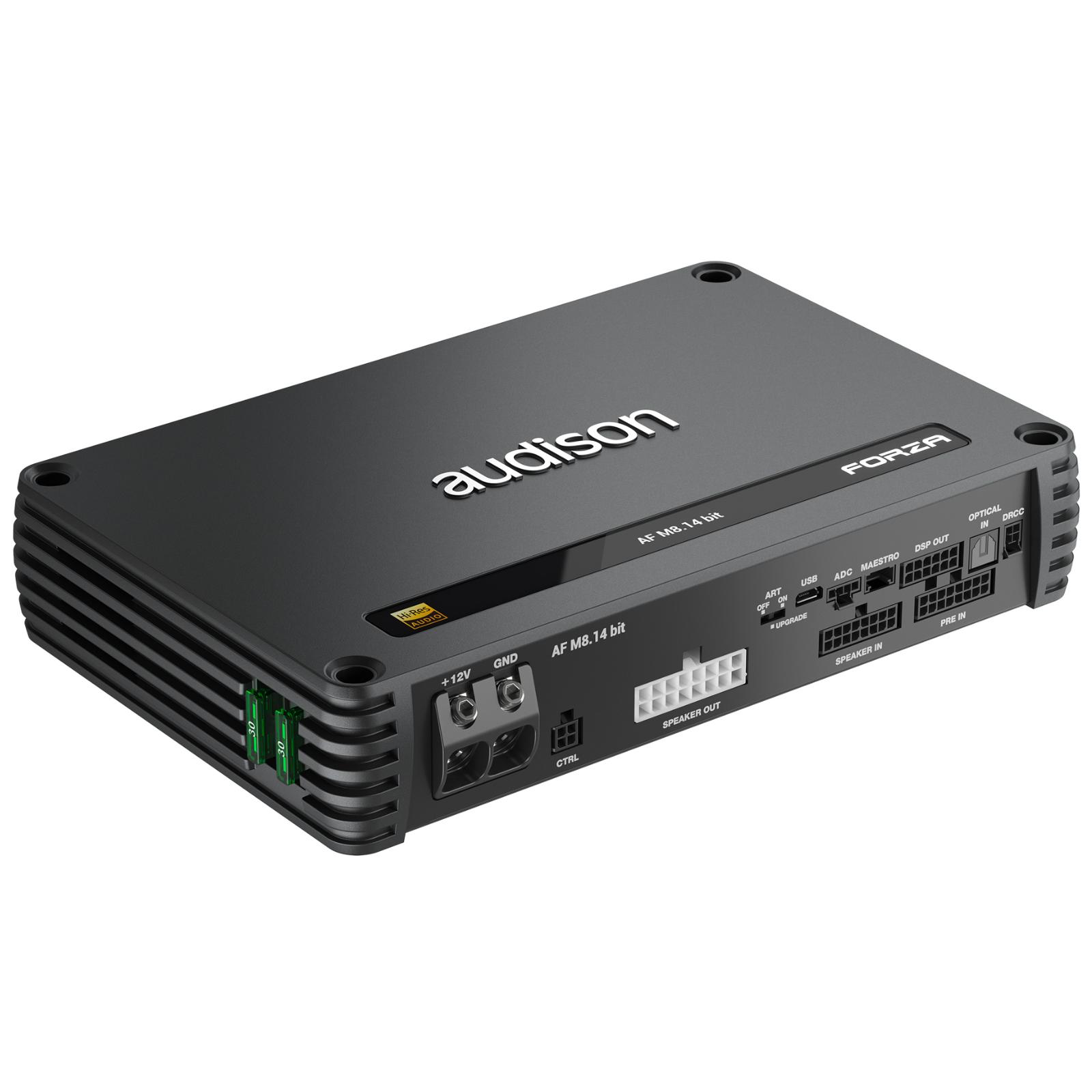

Audison Forza AF M8.14 bit Amplifier 8 Channel Amp 14 Channel DSP 1120w RMS

£1,299.99
Black Friday
In stock
SKU: 90177MPN: AF M8.14
Part of the range · 15 productsPart of the Audison Forza range · 15 products See the range →

The Audison Forza AF M8.14 bit is an 8-channel Class D amplifier with a built-in 14-channel DSP, delivering 1120 W RMS (8 x 140 W at 2 ohms). It is built for advanced OEM integration and tuning, with high and low level inputs, an optical input and six extra DSP pre-outs for expanding the system.

Key specifications

  • Channels: 8 amplified + 6 DSP pre-outs (14-channel DSP)
  • Power (RMS, 14.4 V, 1% THD): 8 x 90 W @ 4 ohms, 8 x 140 W @ 2 ohms
  • Bridged: 4 x 280 W @ 4 ohms
  • Inputs: 8 x pre-in / speaker-in, 1 x optical S/PDIF (max 192 kHz / 24 bit)
  • DSP processing: 24 bit / 96 kHz (Analog Devices ADAU1467)
  • Bandwidth: 10 Hz - 42 kHz (-3 dB)
  • Efficiency: 82%
  • Dimensions (W x H x D): 240 x 47 x 156 mm
  • Weight: 2.04 kg

AF M8.14 bit: 8-channel amplifier with DSP, 1120 W

DSP amplifier, 1120 W, 14-channel DSP + 8 x 140 W @ 2 ohm, Class D, fully bridgeable.

Audison Forza: the next level of OEM integration and tuning

  • Improved audio performance and power using the latest generation ADT (Audison D-Class) technology
  • Power/volume ratio up to 0.68 W RMS/cm³, reaching 82% efficiency
  • Next-generation bit Drive software platform
  • Hi-Res compatible performance with an extended audio band up to 40 kHz, made possible by DSP operation at 24 bit/96 kHz
  • Maximum versatility via the bridging option for each pair of power outputs
  • Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with additional amplifiers
  • 8 high/low-level inputs and an optical Toslink digital input for total connectivity with complex OEM systems
  • Extension card slot (additional 4 analogue or 1 digital input)
  • Electrical signal analysis for each input channel ensures proper integration and correction
  • Acoustic analysis via USB microphone integrates the response graph into the equaliser display for efficient tuning
  • Advanced signal routing options allow tuning beyond the predefined system definitions in the Configuration Wizard

Audiophile sound you expect from Audison

The AF M8.14 bit has eight high-fidelity amplified channels — 90 W x 8 @ 4 ohms and 140 W x 8 @ 2 ohms* — using the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering and higher-tolerance components deliver performance beyond typical Class D expectations in a compact package.

Native DSP runs at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning High-Resolution certification. Bridging channel pairs gives 280 W x 4 @ 4 ohms* for flexible, powerful output. Support for the Audison B-CON's Absolute Volume function guarantees maximum bit depth even with wireless connections.

*Output continuous power (RMS) @ 14.4 VDC, 1% THD, all channels driven.

Next-generation tuning capabilities for maximum control

Audison's bit Drive PC software analyses, routes and corrects the signal in new ways, letting you measure, mix and tune sound with a single tool. The graphical interface simplifies every control and function, with acoustic measurement built in for efficient tuning.

The Acoustic RTA is integrated into the equaliser graph and works with your USB microphone or sound card. The Final EQ function allows final equalisation without affecting left/right frequency relationships. Six processed preamp outputs sit alongside the eight amplified channels, letting the Forza's DSP section manage a larger system with ease.

All-in-one platform

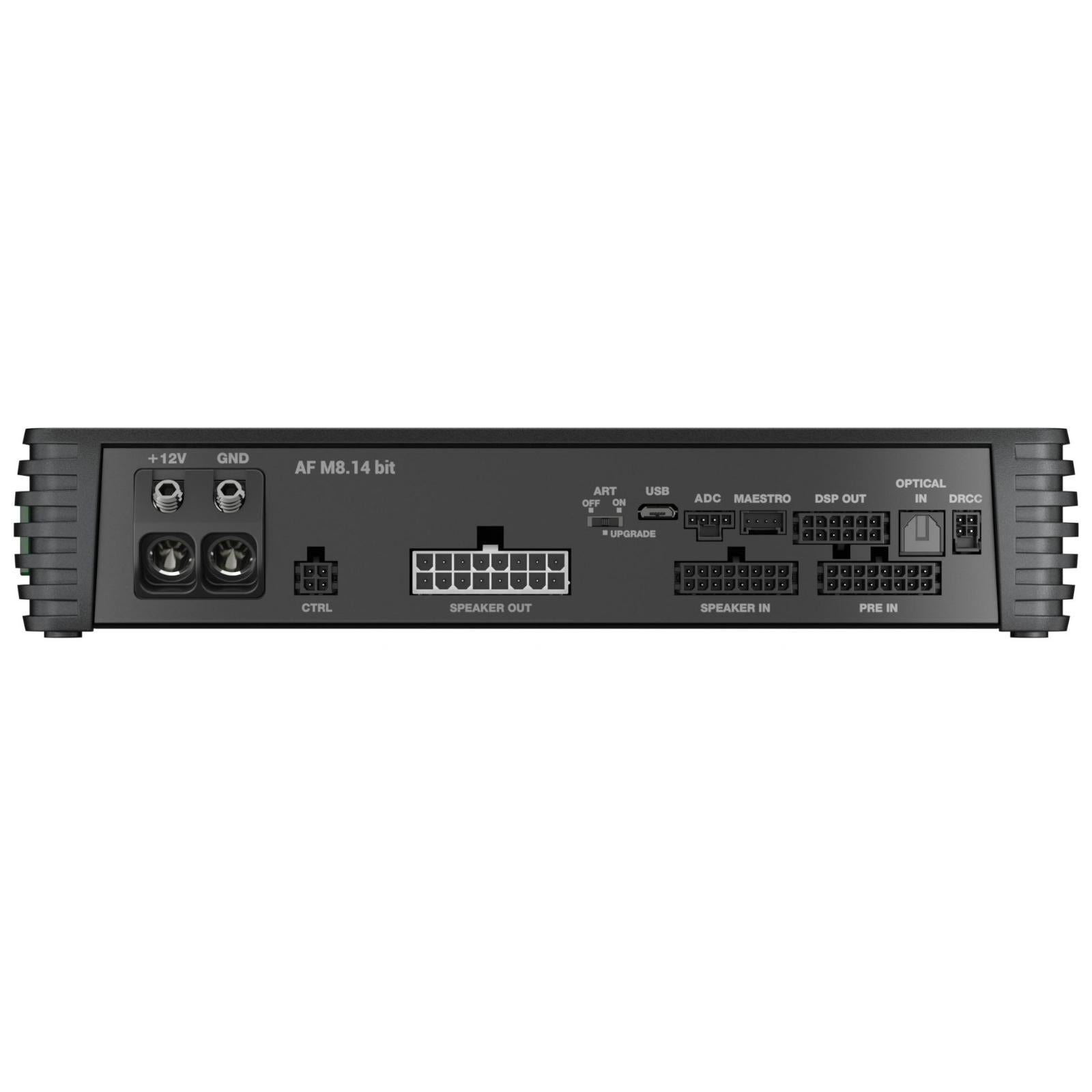

The AF M8.14 bit includes a set of high-quality cables supplied with a protective printed strip fitted upstream of the Molex connectors to increase torsion resistance:

  • Pre-In with 8 stereo RCAs for aftermarket sources with PRE-OUT outputs
  • Speaker-In with 8 pairs of labelled cables for OEM sources with high-level outputs
  • Speaker-Out with 8 labelled cables to connect the amplifier to the speakers
  • DSP-Out with 6 labelled cables to connect the amplifier to one or more companion amplifiers
  • Forza Control cable with 2 wires for remote power-on and remote out signal, plus 2 wires for functions programmable in bit Drive software

Advanced OEM integration capabilities

Eight analogue inputs plus an optical Toslink digital input support total connectivity with even the most complex OEM systems. The optional F4IN expansion card adds four additional analogue input channels where needed. If a coaxial S/PDIF or a second Toslink S/PDIF input is required, the optional F2O expansion card can be used.

Audison's classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system. Electrical signal analysis ensures proper integration and correction for each input and output channel. Built-in universal speaker simulation technology (USS) delivers maximum compatibility with any OEM source, without muting or instability.

Specification
Nominal power supply voltage / fuse11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage6.5 ÷ 17.5 VDC
Idling current1.5 A
Standby current draw1.7 mA
Remote IN4 ÷15 VDC (1 mA)
Remote OUT6.5 ÷15 VDC (150 mA)
Damping factor @ 1 kHz , 4Ω, 2 VRMS100
Bandwidth @ -3 dB10 Hz ÷ 42 kHz
Minimum load impedance8Ch: 2Ω 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
• 8 Ch @ 4Ω90 W x 8
• 8 Ch @ 2Ω140 W x 8
• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω280 W x 4
Output power @ 4Ω, 1% THD+N, 14.4 V90 W x 8
SN ratio (ref. 1 W output)80 dB
Pre-In (8 Ch)0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital IN1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (6 Ch)5V RMS
AudioDSP and converters Analog Devices ADAU1467 automotive qualified audio processor.
Crossover frequency20 Hz ÷ 20 kHz
Phase control0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz ÷ 20 kHz)12 Biquad + Delay
Output EqualizerParametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay0 ÷ 15 ms
Audison DRCC portInput for DRCC remote control (Optional)
Audison ADC portManage other Audison devices that support this standard
Control 1 wireCustomizable functions (+ 12 V activated)
Control 2 wireCustomizable functions (+ 12 V activated)
PC connectionsMicro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirementsWindows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range0 °C to 55 °C (32 °F to 131 °F)
Max size W x H x D (mm/inch)240 x 47 x 156 / 9.44 x 1.85 x 6.14
Weight(kg/lb) 2.04 / 4.49
More specs
  • Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 55 A
  • ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
  • Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 82%
  • Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
  • S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98.5 dBA
  • S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
  • Output Continuous Power (RMS) @14.4 VDC, 1% THD:
  • Speaker-In (8 Ch + + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
  • Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
  • Filter type:
  • Full / High-Pass / Low-Pass / Band-Pass
  • Filter mode and slope:
  • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP @ 6 dB/Oct.
  • Input and Output Real-Time Audio Monitor: RTA
What's Included
  • Audison AF M8.14 bit
  • Pre In Cable
  • Speaker Out Cable
  • Speaker in Cable
  • DSP Out Cable 6CH
  • Control Cable
  • USB Cable
  • Install Kit
Product information

Audison

About the Audison AF M8.14

From our tech experts at CEN

An 8-channel amplifier from Audison’s Forza range, with bit processing built in giving 14 processed channels, rated at 1120w RMS.

Who it suits

Drivers building a fully processed system without room for a separate DSP and amplifier, and anyone keeping a factory head unit, since the processor can take that signal and correct it. Forza combines amplification and bit processing in one chassis.

Our tech experts advise

Processing is worth only what the tuning puts into it: measurements in the car, delays set for the driving seat, crossovers chosen for your drivers. That is the work, and we do it in the vehicle. It also needs a fused feed from the battery on the correct gauge. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: How much power does the Audison AF M8.14 bit deliver?

A: It delivers 8 x 90 W RMS at 4 ohms or 8 x 140 W RMS at 2 ohms (1120 W total), and 4 x 280 W RMS at 4 ohms when bridged, all measured at 14.4 VDC and 1% THD.

Q: Can the AF M8.14 bit connect to a factory head unit?

A: Yes. It has 8 speaker-level (high level) inputs with USS universal speaker simulation, plus de-EQ, de-Time and de-Phase processing to restore a flat signal from OEM systems.

Q: What software is used to tune the AF M8.14 bit?

A: It is tuned with Audison bit Drive PC software via micro USB, on Windows 10 or Windows 11. Acoustic analysis works with a USB microphone or sound card.
