Audison Forza AF M5.11 bit Amplifier 5 Channel Amp 11 Channel DSP 1200w RMS

£1,099.99
Black Friday
In stock
SKU: 90175MPN: AF M5.11 bit
Part of the range · 15 productsPart of the Audison Forza range · 15 products See the range →

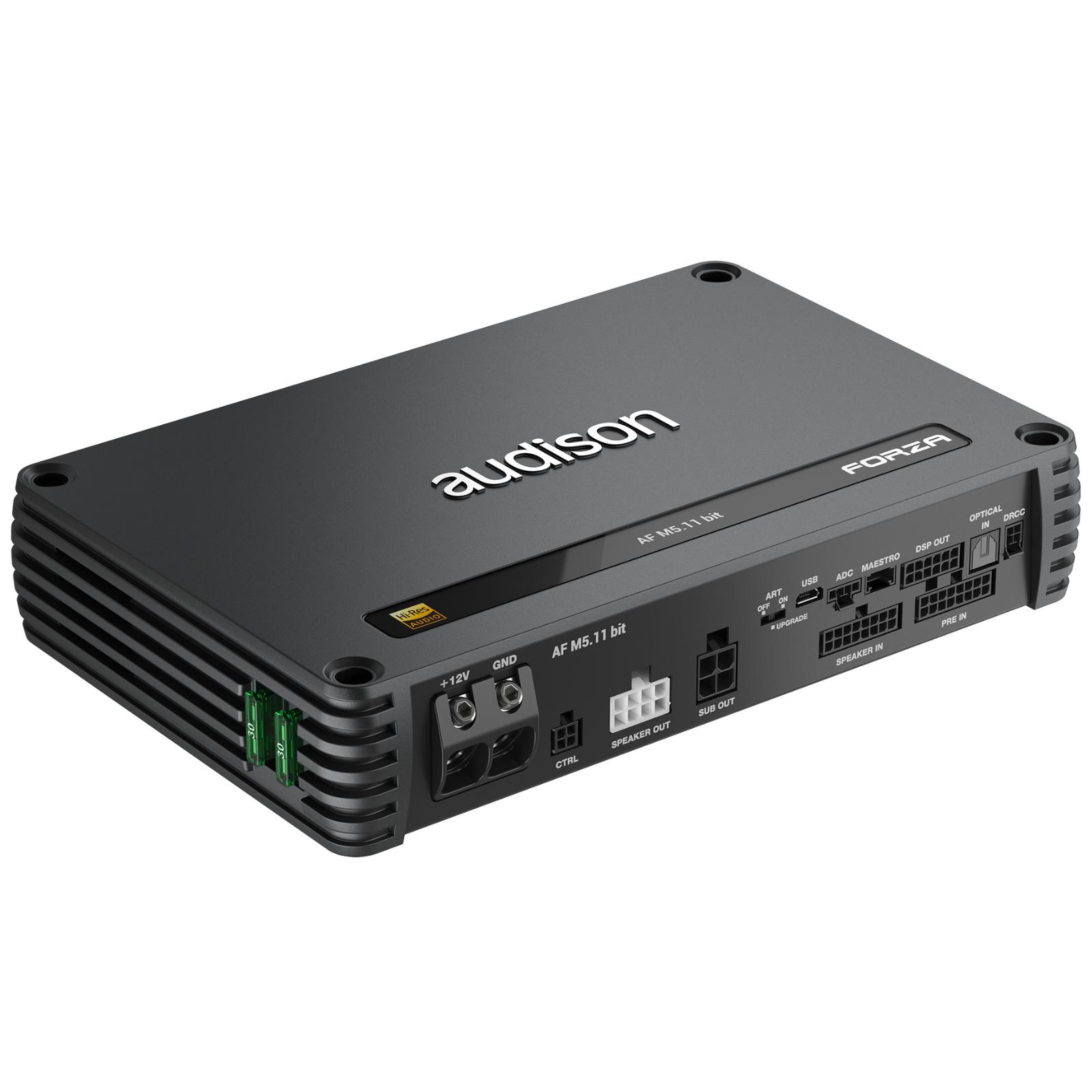

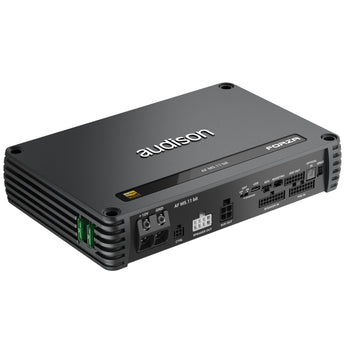

The Audison Forza AF M5.11 bit is a 5-channel Class D car amplifier with an integrated 11-channel DSP, producing 4 x 150 W + 1 x 600 W RMS at 2 ohms (1,200 W total). It is part of the Audison Forza range, designed for high-power OEM integration with full digital signal processing and tuning.

Key specifications

  • Channels: 5 amplified + 6 DSP pre-outs (11 DSP output channels)
  • Power at 4 ohms: 4 x 100 W + 1 x 400 W RMS
  • Power at 2 ohms: 4 x 150 W + 1 x 600 W RMS
  • Bridged (3 channels) at 4 ohms: 2 x 300 W + 1 x 400 W RMS
  • Inputs: 8 x pre-in/speaker-in + 1 x optical S/PDIF (up to 192 kHz / 24 bit)
  • DSP: Analog Devices ADAU1467, processing at 96 kHz, Hi-Res bandwidth up to 40 kHz
  • Tuning software: Audison bit Drive (Windows 10 / 11)
  • Dimensions (W x H x D): 240 x 47 x 156 mm
  • Weight: 2.04 kg

Audison Forza: OEM integration and tuning

  • Latest-generation ADT (Audison D-Class) technology delivers improved power and audio performance
  • Power/volume ratio up to 0.68 W RMS/cm³, reaching 82% efficiency
  • Next-generation bit Drive software platform
  • Hi-Res compatible — extended audio band up to 40 kHz via 24 bit/96 kHz DSP operation
  • Bridging option available for each pair of power outputs
  • Up to 11 output channels (5 amplified, 6 optional pre-outs) for expanding the system with additional amplifiers
  • 8 high/low-level inputs plus optical Toslink digital input for connectivity with complex OEM systems
  • Extension card slot (additional 4 analogue or 1 digital inputs)
  • Electrical signal analysis per input channel for accurate integration and correction
  • Acoustic analysis via USB microphone integrates the response graph into the equaliser display
  • Advanced signal routing allows tuning beyond the predefined Configuration Wizard settings

Audiophile sound

The AF M5.11 bit provides five high-fidelity amplified channels: 100 W x 4 + 400 W at 4 Ω*, or 150 W x 4 + 600 W at 2 Ω*, using the latest Audison D-Class technology. Higher switching frequencies, steeper filtering and higher-tolerance components deliver sound quality beyond typical Class D expectations in a compact form factor.

The native DSP operates at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning High-Resolution certification. Bridging channel pairs yields 300 W x 2 + 400 W at 4 Ω* for flexible, powerful output. Support for the Audison B-CON's Absolute Volume function maintains maximum bit depth even over wireless connections.

*Output Continuous Power (RMS) @ 14.4 VDC, 1% THD, all channels driven.

Next-generation tuning capabilities

Audison's bit Drive PC software analyses, routes and corrects the signal — measuring, mixing and tuning with a single tool. The graphical interface simplifies every control and integrates acoustic measurement directly.

The Acoustic RTA is built into the equaliser graph and works with any USB microphone or sound card. The Final EQ function allows final equalisation without affecting left/right frequency relationships. The six processed pre-outs, in addition to the five amplified channels, allow the Forza's DSP to manage a larger system with ease.

Supplied cables

The AF M5.11 bit includes six high-quality cables with a protective printed strip upstream of the Molex connectors for increased torsion resistance:

  • Pre-In with 8 stereo RCAs for aftermarket sources with pre-out outputs
  • Speaker-In with 8 pairs of labelled cables for OEM sources with high-level outputs
  • Speaker-Out with 4 labelled cables to connect the amplifier to speakers
  • Sub-Out with 2 labelled cables for one or two subwoofers
  • DSP-Out with 6 labelled cables to connect to one or more companion amplifiers
  • Forza Control cable with 2 wires for remote power-on and remote out, plus 2 wires for functions programmable in bit Drive software

Advanced OEM integration

Eight analogue inputs plus an optical Toslink digital input support connectivity with even the most complex OEM systems. The optional F4IN expansion card adds four additional analogue input channels; the optional F2O expansion card provides a coaxial S/PDIF or second Toslink S/PDIF input if required.

Audison's de-EQ process is complemented by de-Time and de-Phase capabilities, enabling sound restoration across nearly every OEM system. Electrical signal analysis ensures accurate integration and correction for each input and output channel. Built-in universal speaker simulation technology (USS) provides maximum compatibility with any OEM source, without muting or instability.

Specification
Pulse operating voltage6.5 ÷ 17.5 VDC
Idling current1.5 A
Standby current draw1.5 mA
Remote IN4 ÷15 VDC (1 mA)
Remote OUT6.5 ÷15 VDC (150 mA)
Damping factor @ 1 kHz , 4Ω, 2 VRMS140
Bandwidth @ -3 dB10 Hz ÷ 42 kHz
Minimum load impedance5Ch: 2Ω 3Ch: 4Ω + 4Ω + 2Ω
• 5 Ch @ 4Ω100 W x 4 + 400 W x 1
• 5 Ch @ 2Ω150 W x 4 + 600 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω300 W x 2 + 400 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω300 W x 2 + 600 W x 1
Output power @ 4Ω, 1% THD+N, 14.4 V85 W x 4 + 340 W x 1
SN ratio (ref. 1 W output)78 dB
Pre-In (8 Ch)0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital IN1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (6 Ch)5V RMS
AudioDSP and converters
Crossover frequency20 Hz ÷ 20 kHz
Phase control0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz ÷ 20 kHz)12 Biquad + Delay
Output EqualizerParametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay0 ÷ 15 ms
Audison DRCC portInput for DRCC remote control (Optional)
Audison ADC portManage other Audison devices that support this standard
Control 1 wireCustomizable functions (+ 12 V activated)
Control 2 wireCustomizable functions (+ 12 V activated)
PC connectionsMicro USB 1.1 / 2.0 / 3.0 Compatible
Ambient operating temperature range0 °C to 55 °C (32 °F to 131 °F)
Max size W x H x D (mm/inch)240 x 47 x 156 / 9.44 x 1.85 x 6.14
Weight(kg/lb) 2.04 / 4.49
More specs
  • Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
  • ART – Automatic Remote Turn on/off from Speaker-In 1.5V DC
  • Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80.5%
  • Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.02%
  • Damping factor @ 100 kHz , 4Ω, 2 VRMS SUB Channel): 140
  • S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
  • S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
  • Output Continuous Power (RMS) @14.4 VDC, 1% THD:
  • Speaker-In (8 Ch + additional 4 Ch with optional F4IN card):2.2 ÷ 22 VRMS (5 Ω Imp.)
  • Analog Devices ADAU1467 automotive qualified audio processor.
  • Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
  • Filter type:
  • Full / High-Pass / Low-Pass / Band-Pass
  • Filter mode and slope:
  • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP @ 6 dB/Oct.
  • Input and Output Real Time Audio Monitor: RTA
  • Software/ PC requirements:
  • Windows 10, Windows 11 (min. res. 1024 x 768
What's Included
  • Audison AF M5.11 bit
  • Pre In Cable
  • Speaker Out Cable
  • Speaker in Cable
  • DSP Out Cable
  • Control Cable
  • USB Cable
  • Install Kit
Product information

Audison

About the Audison AF M5.11 bit

From our tech experts at CEN

A 5-channel amplifier from Audison’s Forza range, with bit processing built in giving 11 processed channels, rated at 1200w RMS.

Who it suits

Drivers building a fully processed system without room for a separate DSP and amplifier, and anyone keeping a factory head unit, since the processor can take that signal and correct it. Forza combines amplification and bit processing in one chassis.

Our tech experts advise

Processing is worth only what the tuning puts into it: measurements in the car, delays set for the driving seat, crossovers chosen for your drivers. That is the work, and we do it in the vehicle. It also needs a fused feed from the battery on the correct gauge. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: How many channels does the Audison AF M5.11 bit have?

A: It has five amplified channels (four full-range plus one high-power subwoofer channel) and a DSP that manages 11 output channels in total, including six processed pre-outs for adding further amplifiers.

Q: How much power does the AF M5.11 bit produce?

A: At 14.4 V it delivers 4 x 100 W + 1 x 400 W RMS into 4 ohms, or 4 x 150 W + 1 x 600 W RMS into 2 ohms. Bridged as three channels it gives 2 x 300 W + 1 x 400 W RMS at 4 ohms.

Q: Can the AF M5.11 bit connect to a factory head unit?

A: Yes. It has eight speaker-level or pre-level inputs plus an optical digital input, with de-EQ, de-Time and de-Phase processing and universal speaker simulation (USS) to integrate with OEM systems. Optional F4IN and F2O cards add extra analogue or digital inputs.
