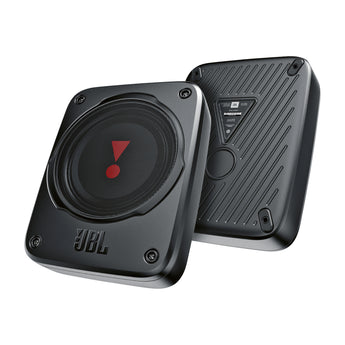

JBL BassPro Lite Sub Compact Powered Active Underseat Car Subwoofer 100w RMS
Couldn't Load Pickup availability
JBL BassPro Lite
Compact Underseat Subwoofer
Ultra-Compact, Super Bass, Powerful - JBL BassPro LITE delivers deep bass and takes up ultra-compact space.
JBL’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, BassPro LITE delivers accurate, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.
Big Bass, ultra-compact space
- Upgrade easier, Connected in series
- Intelligent Electronic Design for Reliable and Extraordinary Performance
- Die-Casting Aluminium Enclosure Design
- Bass boost Volume Control
- Features and Benefits
- Big Bass, ultra-compact space
- JBL BassPro LITE delivers deep bass and takes up ultra-compact space. Its onboard 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass
Upgrade easier, Connected in series
JBL BassPro LITE can be connected in series for user upgrade to purchase 2 set devices. The secondary BassPro LITE is still adjusted by them-self without extra Power / Single complex wires
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassPro LITE employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminium Enclosure Design
The all-die-cast aluminium enclosure design is not only Ultra-compact size, but the ALL IN ONE is combined elegant JBL industry design element and powerful acoustic performance.
Bass boost Volume Control

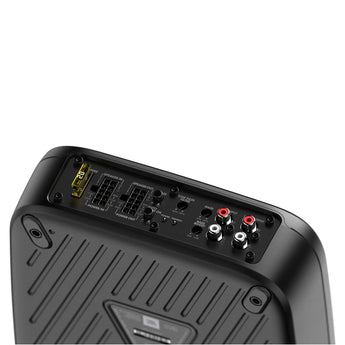

Bass boost Volume control is intergraded on I/O panel to let you adjust the sound freely
Specification
| Driver Complement | super powerful 7” (178mm) Subwoofer |
|---|---|
| Amplifier Power | Class D, 100Wrms; 200W Max |
| Frequency Response | 30Hz – 150Hz |
| Fuse | 15A |
| Maximum Current Draw | 15 A |
| Quiescent Current Draw | Input Sensitivity: 0.18 V – 5.0 V Low- |
| Crossover Frequency | 50 Hz – 150 Hz |
| Crossover Slope | 12 dB/octave |
| Bass Boost | 0dB to + 12dB @ 50Hz |
| Dimensions | (L x W x H) 10-1/4” x 8” x 2-9/16” (259.6mm x 203.1mm x 65.5mm) |
| Weight | 8 lbs (3.5kg) |
More specs
| |
What's Included
- Under seat subwoofer
- Screws
- Wiring harness for power and speaker level input (300mm)
- 15A Fuse
About the brand
JBL
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from JBL
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
