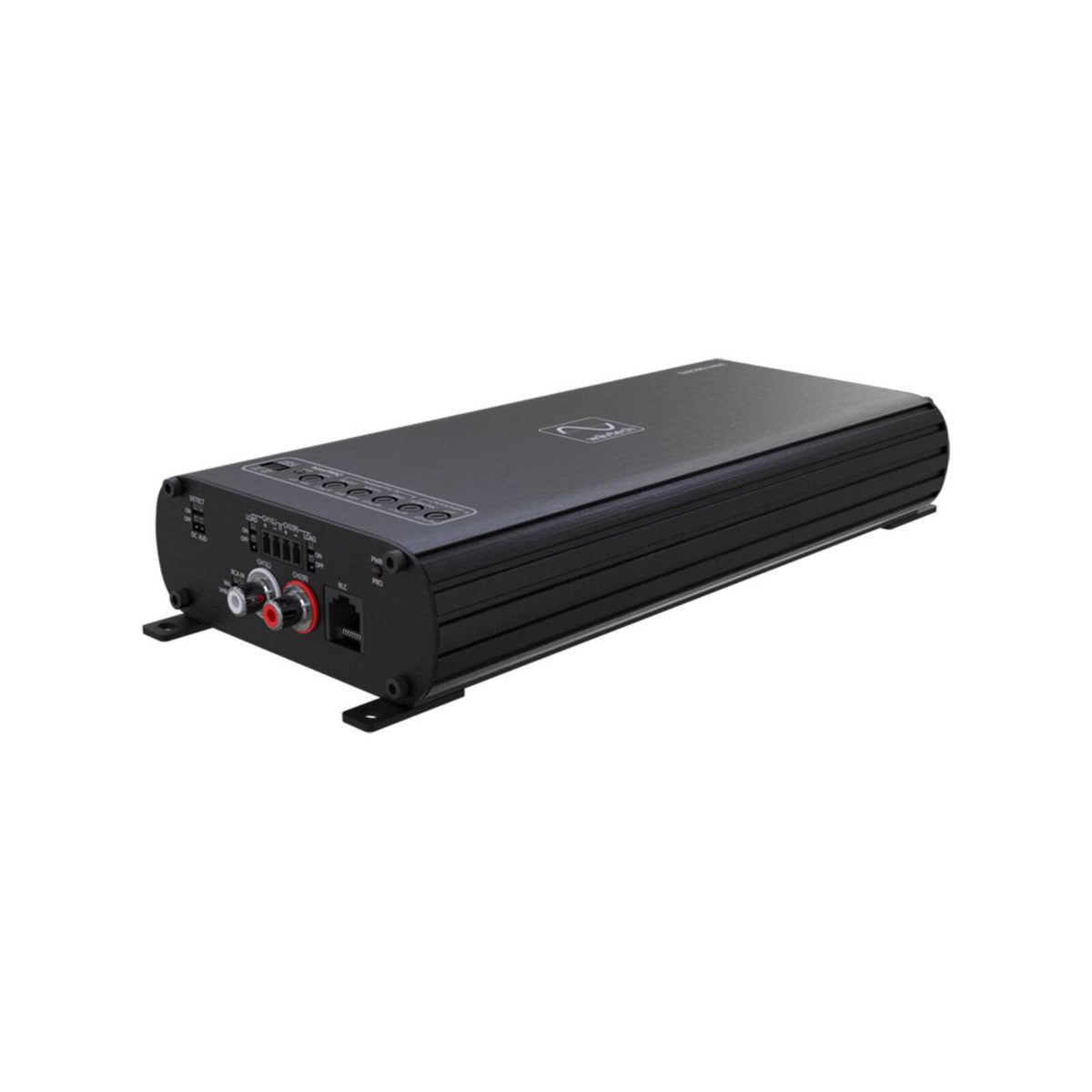

Wavtech Link500.1mini Sub Amp Compact Mono Subwoofer Channel Amplifier 500w RMS
Couldn't Load Pickup availability
The Wavtech link500.1mini is a compact mono subwoofer amplifier delivering 500W RMS at 2Ω (300W RMS at 4Ω), with a built-in bassFREQ preamp and high-level inputs for OEM or aftermarket head units. It is part of the Wavtech Link mini amplifier range.
This listing is the link500.1mini. The Link mini range is also available as the link1000.1mini (1000W RMS).
Key specifications
- Power: 300W x 1 @ 4Ω, 500W x 1 @ 2Ω
- Low-pass crossover: Variable, 24dB/oct
- Subsonic filter: Variable, 24dB/oct
- Parametric EQ: Fully adjustable
- Inputs: Speaker level up to 40V, RCA up to 10V
- Frequency response: <10Hz to >500Hz
- Dimensions: 9.17" x 4.53" x 1.65" (233 x 115 x 42mm)
- Remote: Optional linkRC
link500.1mini 500 watt mono amplifier
The link500.1mini delivers 500W RMS at 2Ω in a compact chassis that fits almost anywhere. The optional linkRC remote provides additional system control.
Engineered specifically for adding bass to any system, the link500.1mini accepts speaker-level input up to 40V with built-in loading, and RCA input up to 10V, making it suitable for both factory and aftermarket head units. If you need more power, Wavtech also offer the Link300.4mini for full-range OEM-compatible applications.
link500.1mini features
- 500W mono amplifier
- 300W x 1 @ 4Ω
- 500W x 1 @ 2Ω
- Small footprint: 9.17" x 4.53" x 1.65"
- Fully adjustable parametric EQ
- Variable low-pass crossover (-24dB/oct)
- Variable subsonic filter (-24dB/oct)
The link500.1mini uses Wāvtech's proprietary bassFREQ preamp with a 24dB/oct crossover, adjustable parametric EQ and subsonic filter for precise subwoofer tuning. Like all Wāvtech amplifiers, it is compatible with start/stop systems. The optional linkRC remote provides further system control.
Explore the full range in Wavtech Amplifiers.
Specification
| Input Sensitivity SPK | 1-20Vrms, 2-40Vrms |
|---|---|
| Input Sensitivity RCA | 0.2V-5Vrms, 0.4V-10Vrms |
| Max Input Voltage (SPK) | 40Vrms |
| Frequency Response | <10Hz to >500Hz (+0/-3dB) |
| THD+N | <1% at rated power |
| S/N | >78dBA (1W, 4Ω) |
More specs
| |
What's Included
- Wavtech link500.1mini
- Owner's manual
Wavtech
About the Wavtech Link500.1Mini
From our tech experts at CEN
A monoblock subwoofer amplifier from Wavtech, rated at 500w RMS.
Who it suits
Anyone adding a subwoofer that needs real power behind it. Wavtech specialises in the awkward part of modern installs: getting a usable signal out of a factory system.
Our tech experts advise
Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Wavtech range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Wavtech
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Wavtech Amplifiers
More options from the same range, in stock and ready to go
Wavtech Link1000.5 Plus 5 Channel Amplifier with OEM Integration
£699.95
View product
Wavtech Link1500.1 Plus Monoblock Amplifier with OEM Integration
£699.95

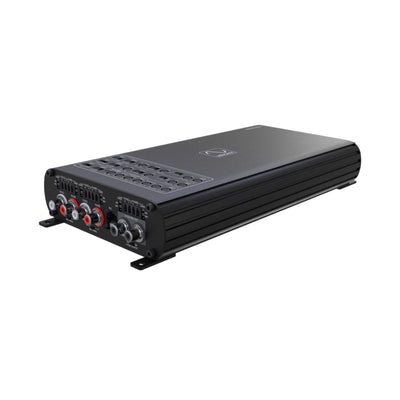

Wavtech Link700.4 Plus 4 Channel Amplifier with OEM Integration
£699.95

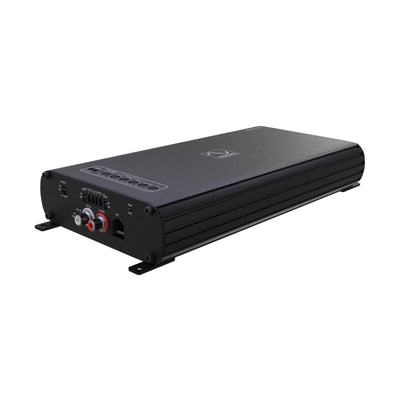

Wavtech Link750.1 Plus Compact Monoblock Amplifier with OEM Integration
£449.95

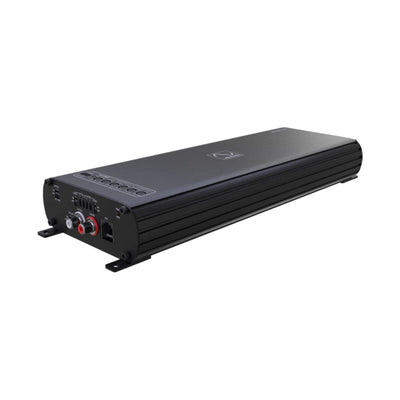

Wavtech Link1000.1mini Amp Compact Mono Subwoofer Channel Amplifier 1000w RMS
£499.95
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the link500.1mini produce?
A: It produces 500W RMS at 2 Ohms or 300W RMS at 4 Ohms into a single channel.
Q: Can the link500.1mini be used with a factory head unit?
A: Yes. Its speaker level input handles up to 40V with built-in loading, and its RCA input accepts up to 10V for aftermarket head units.
Q: Does the link500.1mini have a bass remote?
A: Remote level control is available with the optional linkRC remote.
