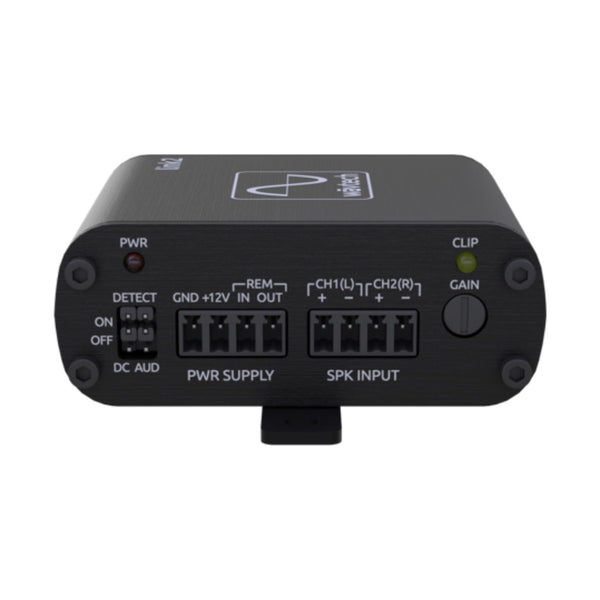

Wavtech Link2 2 Channel LOC Line Output Converter OEM Load Detect Compatible
Couldn't Load Pickup availability

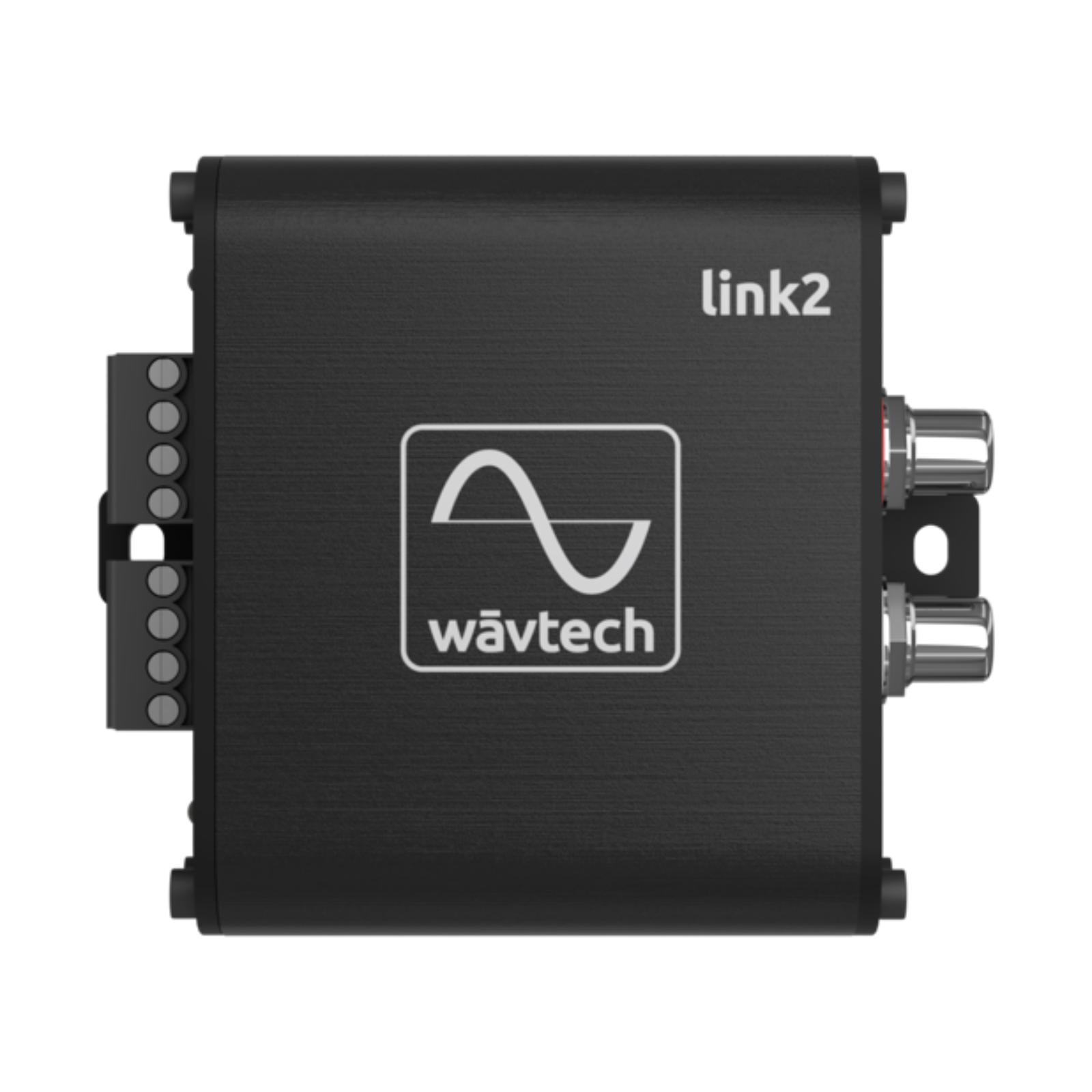

The Wavtech Link2 is a compact 2-channel line output converter (LOC) that converts factory speaker-level signals into clean RCA outputs, accepting up to 40V RMS input and delivering up to 10V RMS output. It is part of the Wavtech Link range.
This listing is the Link2. The Wavtech Link range is also available in 4-channel (Link4) and 6-channel (Link6) versions.
Key specifications
- Channels: 2 in / 2 out
- Input: Speaker level, up to 40V RMS
- Output: RCA, up to 10V RMS at under 50 Ohms
- OEM load detect: Compatible
- Auto turn-on: DC offset or audio signal detect
- Generated +12V remote output
- Dimensions: 75 x 63 x 29mm
Link2 2-channel LOC
A quality LOC is an essential starting point when adding aftermarket audio to a factory system. The Link2 is Wavtech's entry-level option — compact enough to fit almost anywhere, keeping installations straightforward.
It is designed for installs that need a clean 2-channel LOC without summing or auxiliary inputs. Like all Wavtech LOCs, it includes OEM load detect for factory systems that require resistance to function correctly. It accepts up to 40V RMS at its speaker inputs and delivers up to 10V RMS output at less than 50 Ohms.
Link2 features
- 2-channel line output converter (LOC)
- Differential balanced inputs
- Low impedance outputs
- Variable gain adjustments with clip LEDs
- Auto turn-on via DC offset or audio signal detect
- Generated +12V remote output
- OEM load detect compatible

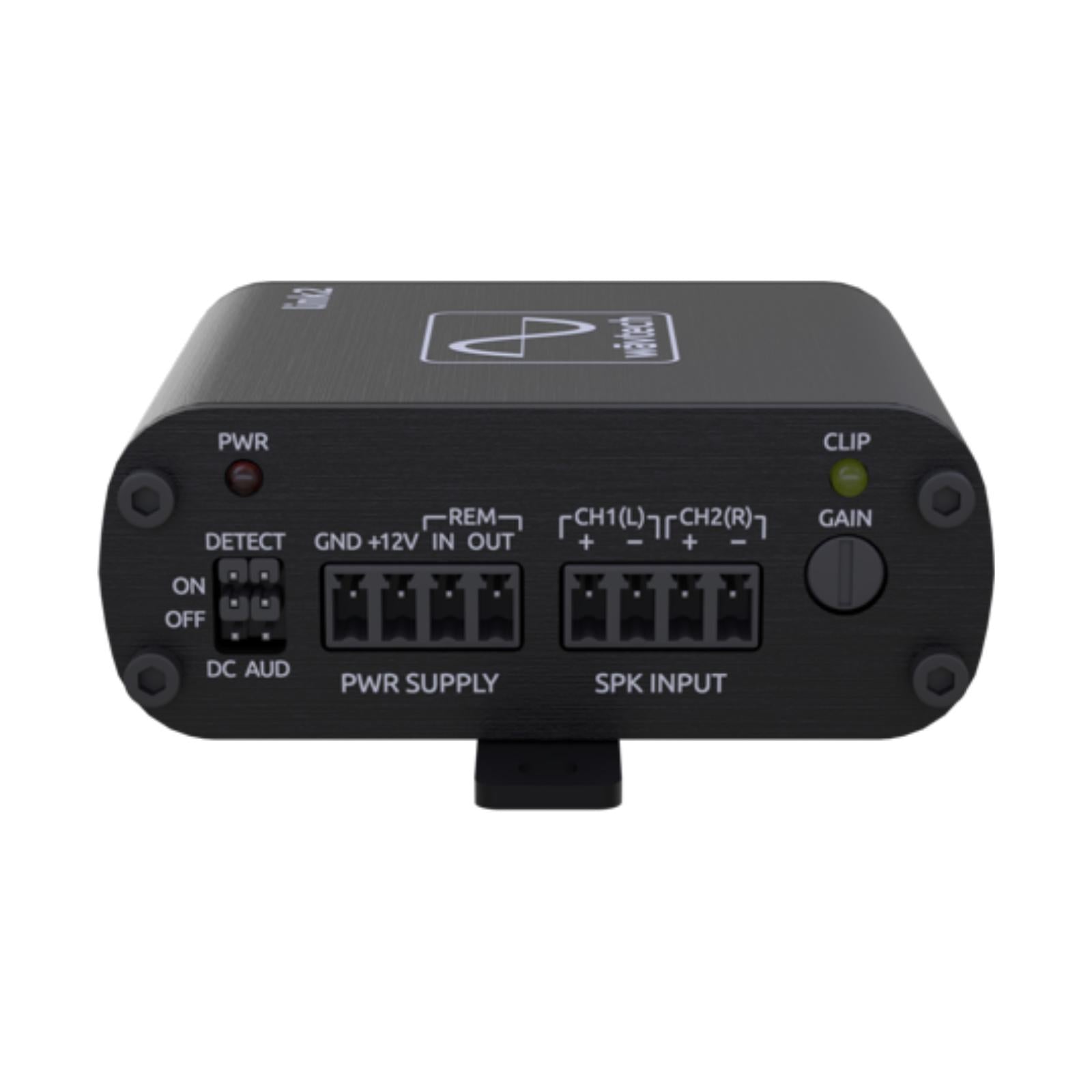

- Locking detachable power/speaker terminals

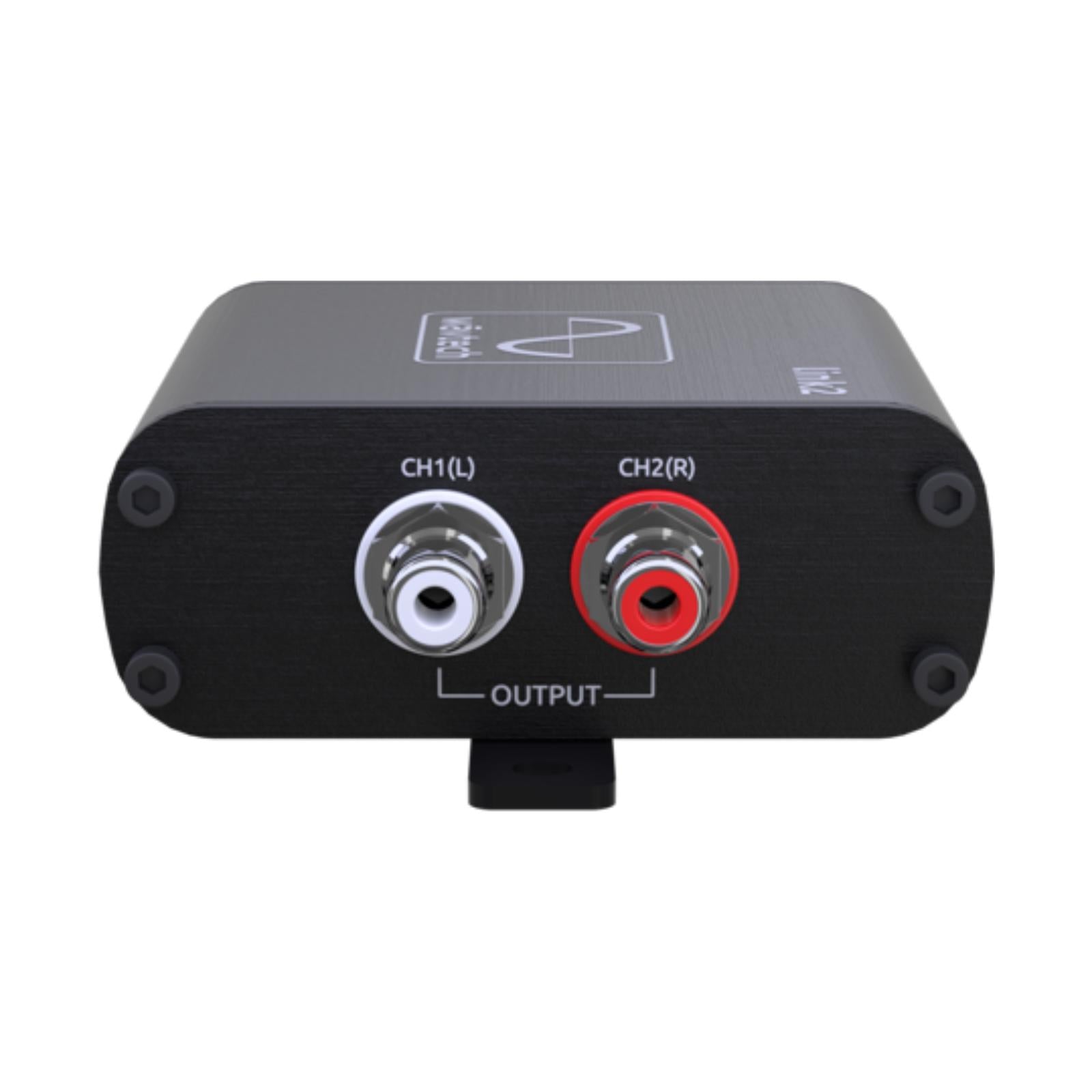

- Professional grade panel mount RCAs
- Compact aluminium chassis with detachable mounting tabs
Explore the full range in Wavtech Line Output Converters.
Specification
| Shape | Square |
|---|---|
| Article Number | Link2 |
| Country of Manufacture | China |
More specs
| |
What's Included
- Wavtech Link2
- Owner's manual
Wavtech
About the Wavtech Link2
From our tech experts at CEN
The Wavtech Link2 is a compact 2-channel line output converter (LOC) that converts factory speaker-level signals into clean RCA outputs, accepting up to 40V RMS input and delivering up to 10V RMS at under 50 Ohms. It includes OEM load detect, auto turn-on via DC offset or audio signal, a generated +12V remote output, and variable gain with clip LEDs.
Who it suits
The Link2 suits anyone adding a 2-channel aftermarket amplifier to a factory head unit without needing aux input or signal summing. If your install requires 4 channels or those extra features, consider the Wavtech Link4 instead.
Our tech experts advise
At 75 × 63 × 29mm, the Link2 fits easily behind a dashboard or under a seat. OEM load detect means it works with factory systems that need a resistive load on speaker outputs to function correctly. Set gain using the clip LEDs to keep the signal clean at your amplifier input. Fitting prices vary by vehicle — see our car audio installation page for details.
Explore the full Wavtech range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Wavtech
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from Wavtech Line Output Converters
More options from the same range, in stock and ready to go

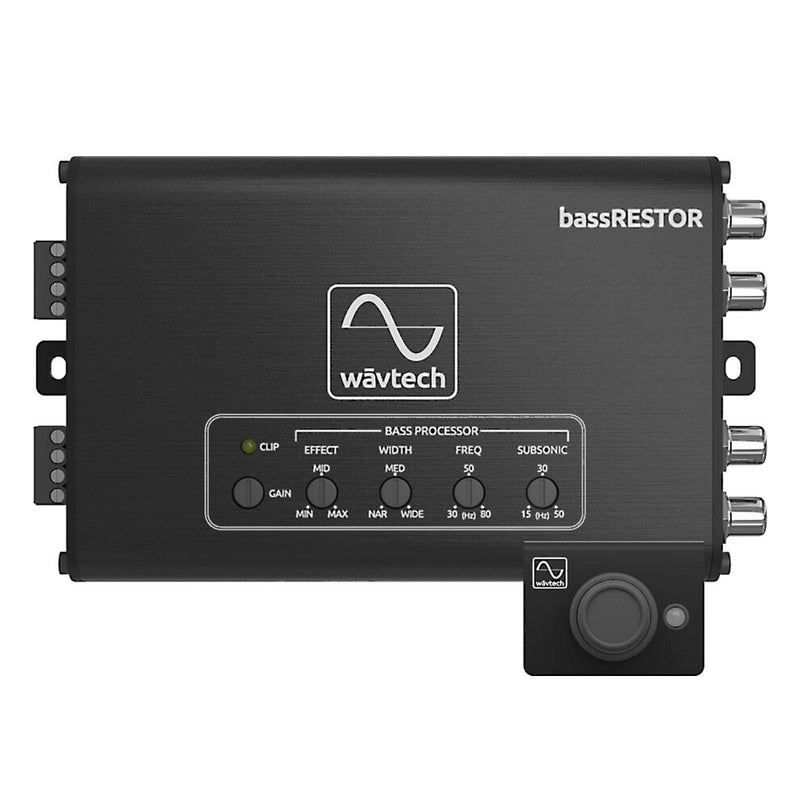

Wavtech Bass Restoration LOC Line Output Converter Subsonic Filter with Remote
£209.95
View product

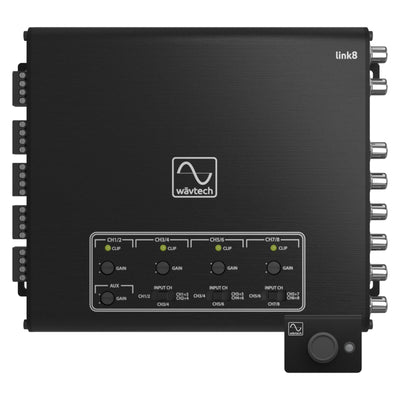

Wavtech Link8 8 Channel LOC Line Output Converter Aux In Signal Summing & Remote
£329.95

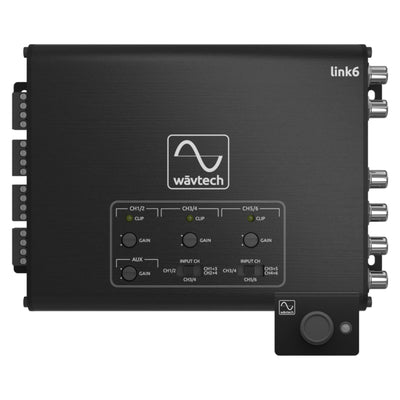

Wavtech Link6 6 Channel LOC Line Output Converter Aux In Signal Summing & Remote
£229.95

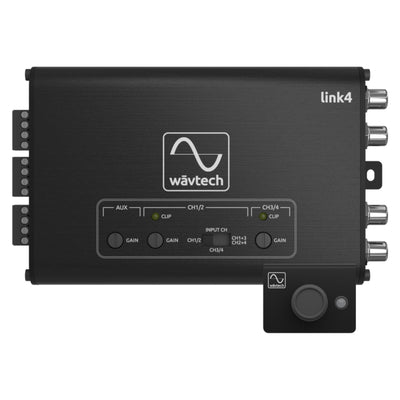

Wavtech Link4 4 Channel LOC Line Output Converter Aux In Signal Summing & Remote
£209.95

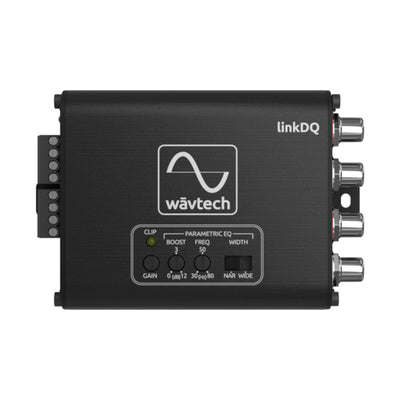

Wavtech LinkDQ 2 Channel LOC Line Output Converter Line Driver Parametric EQ
£119.95
Frequently Asked Questions
Q: What is the Wavtech link2 used for?
A: It converts speaker-level signals from a factory head unit into RCA line-level outputs, so you can add an aftermarket amplifier to a factory system.
Q: Will the link2 work with factory systems that check for speakers?
A: Yes. It is OEM load detect compatible for factory systems that need to see a resistive load to function properly.
Q: How much input can the link2 handle?
A: It accepts up to 40V RMS through its speaker inputs and delivers up to 10V RMS of output at under 50 Ohms.
