Wavtech 10 Inch Professional Series Shallow Subwoofer ThinPro10 Sub 4 Ohm

ThinPRO10 4 Ohm

10” Professional Series Shallow Subwoofer

The ThinPRO10 redefines what’s possible in a shallow-mount subwoofer. With an ultra-slim 2.9” mounting depth, it fits where other subs can’t - without sacrificing performance.

Its dual mirrored NBR spiders and axial force transfer assembly achieve an impressive 20mm of linear xmax, rivaling even deep-mount subs. The FEA-optimized dual-gap motor structure, powered by double-stacked strontium magnets, maximizes control and output for deep, powerful bass.

Built for serious performance, the ThinPRO10 features a composite Nomex® and glass fiber honeycomb cone, ensuring a rigid yet lightweight structure. Its 4.5” voice coil delivers 750W RMS power handling, making it a powerhouse in a compact form.

This sub shines in small sealed and ported enclosures:

Sealed: 0.25-0.8 cu. ft. (Optimal: 0.35 cu. ft.)
Ported: 0.8-1.5 cu. ft. (Optimal: 1.0 cu. ft.)

Key Features

• 750W RMS Power Handling

• Single Voice Coil - 4 Ohm

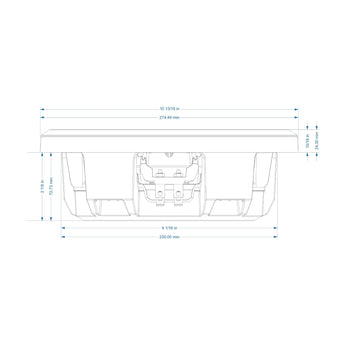

• 2.9” Ultra-Slim Mounting Depth

• 4.5” Voice Coil with 4-Layer Winding

• Honeycomb Nomex® & Glass Fiber Cone

• FEA-Optimized Dual-Gap Motor for Maximum Output

• Double-Roll NBR Surround for Smooth, Deep Bass

• 8AWG Push Terminals for Secure Connections

• Vented Cast Aluminum Frame for Heat Dissipation

• Protective Grille included
