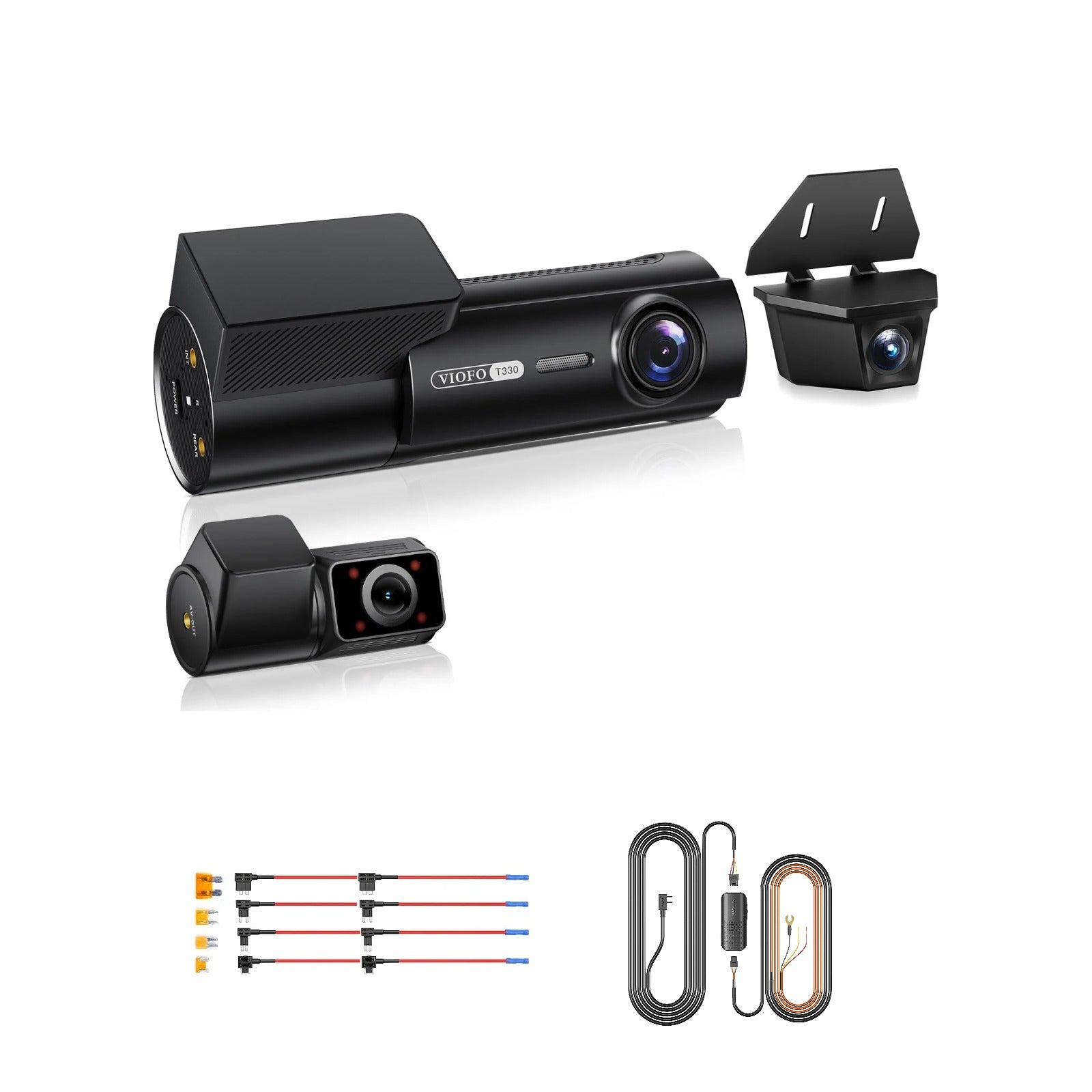

Viofo T330WW 3CH Dash Cam HK6-F Hardwire Kit 8pcs Fuse Bundle
Couldn't Load Pickup availability

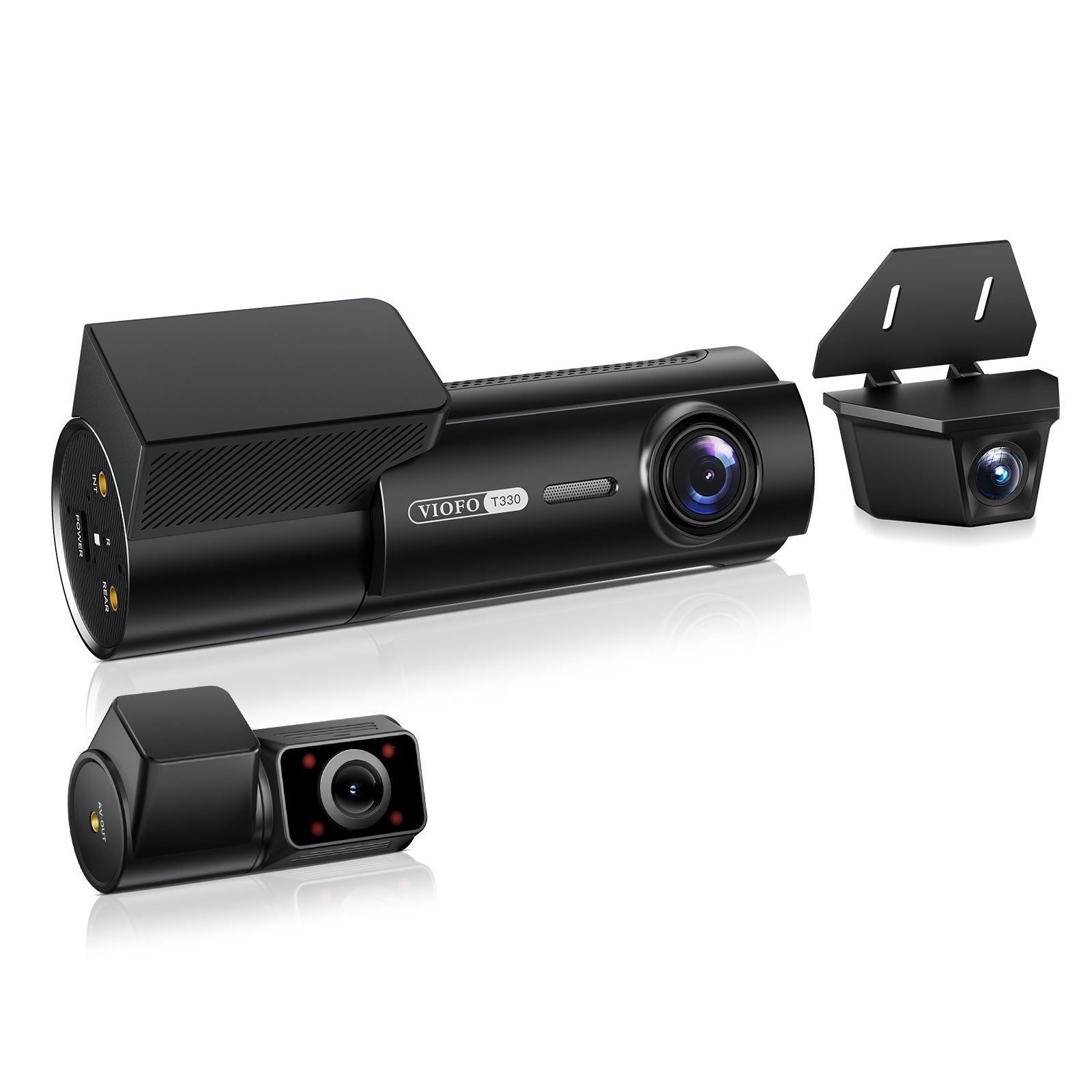

This VIOFO T330WW 3CH bundle combines the three-channel dash cam, recording 4K from the front and 2K from two outside-mounted waterproof rear cameras, all with Sony STARVIS 2 sensors and HDR, with an HK6-F hardwire kit and an 8-piece fuse kit.
The HK6-F hardwire kit and fuse set power the camera from the fuse box for all five parking modes, and show your battery voltage on recorded footage. A memory card is not included; the T330WW 3CH 512GB bundle adds one, or choose the VIOFO 512GB microSD card separately. The dash cam is also sold on its own.
Key specifications
- Channels: 3 (front + dual outside waterproof rear)
- Front: 4K 30fps, Sony STARVIS 2 IMX678 8MP, 140° field of view
- Dual waterproof rear: 2K 30fps each, Sony STARVIS 2 IMX675 5MP, 160° field of view
- HDR: all channels
- Wi-Fi: Wi-Fi 6, 2.4GHz and 5GHz
- GPS: built-in
- Parking mode: 5 modes, buffered parking supported
- Display: none (set up and view in the VIOFO app)
- microSD: up to 512GB (not included)
- Bundle extras: HK6-F hardwire kit, 8pcs fuse kit
T330WW 3CH Dash Cam Bundle
HK6-F Hardwire Kit and 8pcs Fuse Set
The T330WW pairs a 4K front camera with two waterproof cameras mounted outside the vehicle, so you can cover the rear and a side, or both rear corners, of vans, trucks and trailers. Setup and playback run through the VIOFO app over Wi-Fi 6, and a tamper-resistant cover protects the front unit.
Explore the full range in Pre Order.
Specification
| Channels | 3-Channel (Front + Dual Outside Waterproof Rear) |
|---|---|
| Chipset | Novatek |
| Sensor | Front - Sony STARVIS 2 IMX678 8MP / Dual Waterproof Rear - Sony STARVIS 2 IMX675 5MP |
| Video Resolution | Front + Dual Waterproof Rear - 4K 30fps + 2K 30fps + 2K 30fps |
| WDR / HDR | Front HDR + Dual Waterproof Rear HDR |
| Lens | Front - F1.8 Aperture, FOV=140° / Dual Waterproof Rear - F1.8 Aperture, FOV=160° |
| Wi-Fi | Wi-Fi 6, dual-band 2.4 GHz / 5 GHz |
| Parking Mode | Supported (5 Parking Modes - Hybrid Parking Recording / Low Power Impact Detection / Auto Event Detection / Time-lapse Recording / Low Bitrate Recording) |
| Buffered Parking Mode | Supported |
| G-sensor | Off / Low / Middle / High Sensitivity |
| Time-lapse | Recording Off / 1fps / 2fps / 3fps / 5fps / 10fps |
| Loop Recording | 1 min / 2 min / 3 min / 5 min / 10 min |
| GPS | Logger Built-in |
| Voice Notification | Supported |
| Voice Control | Supported |
| Microphone | Built-in |
| Speaker | Built-in |
| CPL | Front - CPL-700 Included / Dual Waterproof Rear - Not needed |
| Bluetooth | Built-in, supports BTR200 remote (optional) |
| Hardwire Kit | HK6-F Included |
| Storage | Up to external 512GB microSD Card (Optional) |
| Video Format | MP4 |
| Image Format | JPEG |
| Frequency | 50 / 60 Hz |
| Display | No Display |
| USB Port | USB Type-C Port |
| LED Indicators | Recording LED, Microphone LED, Wi-Fi LED, GPS LED |
| Battery | & Charging No battery, built-in supercapacitor |
| Input Power | DC 5V / 2A |
| Operating Temperature | -20°C~65°C |
| Storage | Temperature -20°C~70°C |
| Size | Front - 5.35 x 2.23 x 2.17 inch / Dual Waterproof Rear - 2.05 x 1.17 x 1.29 inch |
What's Included
- Front Camera
- Waterproof Rear Cameras x 2
- Car Charger
- Waterproof Rear Camera Cables x 2
- Type-C Data Cable
- Front Camera CPL
- Spare Mount Sticky Pads
- Windshield Static Stickers x 2
- Trim Removal Tool
- Waterproof Rear Camera x 4
- Tamper Resistant Cover
- Tamper-Resistant Cover
- Hex Key
- After-Sales Service Card
- Warning Sticker
- Quick Start Guide
- User Manual
Bundle Extras

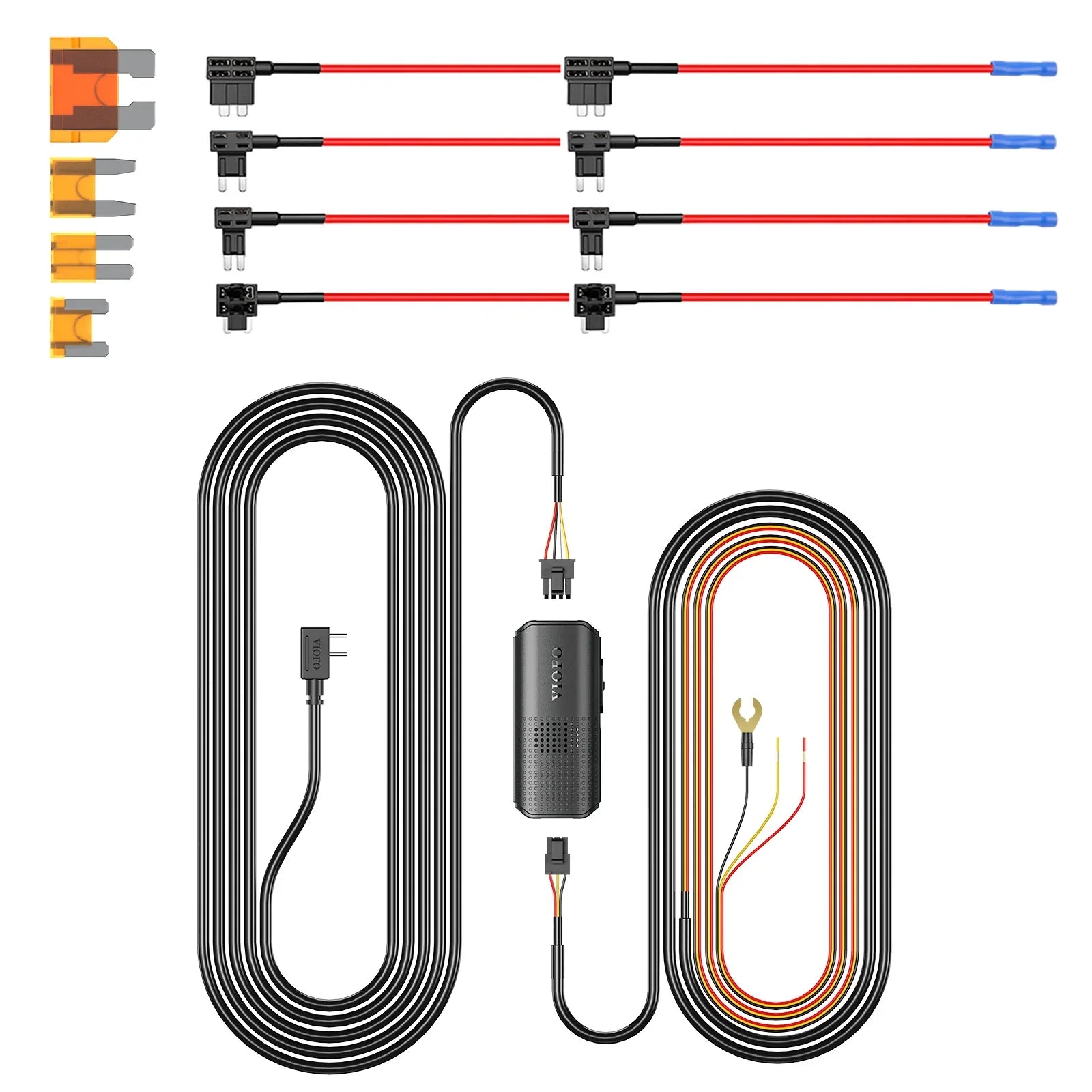

- HK6-F Hardwire Kit
- 8pcs Fuse Kit
Other bundles for this product
Viofo
Explore the full Viofo range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Viofo
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Viofo News & Guides
The latest Viofo product news, launches and guides from the CEN team in Nottingham.
Viofo A229 Plus vs A229 Pro: Is 4K Worth It?
Same body, same mount, same hardwire kit. The only real difference is 2K versus 4K at the front, and it...
Viofo A229 Pro vs A329S: Which Should You Buy?
Both record 4K, both take a 2K rear camera, and the price gap is bigger than the spec gap. Here...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
More from Pre Order
More options from the same range, in stock and ready to go
Save 11% New Release Viofo T340TW 4CH Dash Cam Front, Cabin, Telephoto & Waterproof Rear RRP£539.95£479.95 / Save 11%Pre Order
Save 11% New Release Viofo T340WW 4CH Dash Cam 4K Front, Cabin & Dual Waterproof Rear RRP£539.95£479.95 / Save 11%Pre Order
Save 13% New Release Viofo T340W 3CH Dash Cam 4K Front, Cabin & Waterproof Rear RRP£479.95£419.95 / Save 13%Pre Order
Save 14% New Release Viofo T330TW 3CH Dash Cam 4K Front, Telephoto & Waterproof Rear RRP£439.95£379.95 / Save 14%Pre Order
Save 12% New Release Viofo T340 4CH Dash Cam Front 4K, 2K Rear, Cabin & Telephoto Camera RRP£519.95£459.95 / Save 12%Pre Order
Save 16% New Release Viofo T330 2CH Dash Cam Front 4K & 2K Rear Camera RRP£379.95£319.95 / Save 16%Pre Order
Frequently Asked Questions
Q: What SD card do I need for this dash cam?
A: Use a high-endurance microSD card designed for continuous recording. Standard cards wear out quickly in dash cams. CEN stocks suitable high-endurance cards, and the maximum supported capacity is listed in the Specification tab.
Q: Does this dash cam record while the car is parked?
A: Parking mode is listed in the Specification tab. Where supported, it requires constant power from either a hardwire kit or a dedicated dash cam battery pack, both of which CEN stocks.
Q: Do I need to hardwire the dash cam?
A: Not necessarily. All dash cams work from the 12V socket for drive recording. Hardwiring hides the cabling and enables parking mode, and CEN offers professional hardwire installation from our Nottingham premises.
Q: Will the footage be accepted by my insurer or the police?
A: Dash cam footage is widely used in insurance claims and can be submitted to most UK police forces through their online portals. Recording quality matters, so check the resolution in the Specification tab.
Q: Front only or front and rear - which should I choose?
A: A front camera covers the most common claim scenarios. A two-channel system adds rear coverage for rear-end collisions and tailgating evidence, which is where many disputed claims arise. Three-channel systems add an interior view, suited to taxi and fleet use.
Q: What is included in the T330WW 3CH hardwire bundle?
A: You get the T330WW front camera, two waterproof rear cameras with cables and mounting screws, car charger, front CPL filter, USB-C data cable, tamper-resistant cover and hex key, trim tool and stickers, plus an HK6-F hardwire kit and an 8-piece fuse kit. A microSD card is not included.
Q: What are the two waterproof cameras for?
A: Both mount outside the vehicle, so you can cover the rear and a blind side, or both rear corners, on vans, trucks, motorhomes and trailers where an inside camera cannot see out.
Q: Why the HK6-F hardwire kit?
A: The HK6-F is VIOFO's hardwire kit for the T330 and T340 range. It enables all five parking modes with automatic ACC switching and broadcasts your car battery voltage over Bluetooth, which the camera shows on recorded footage.
