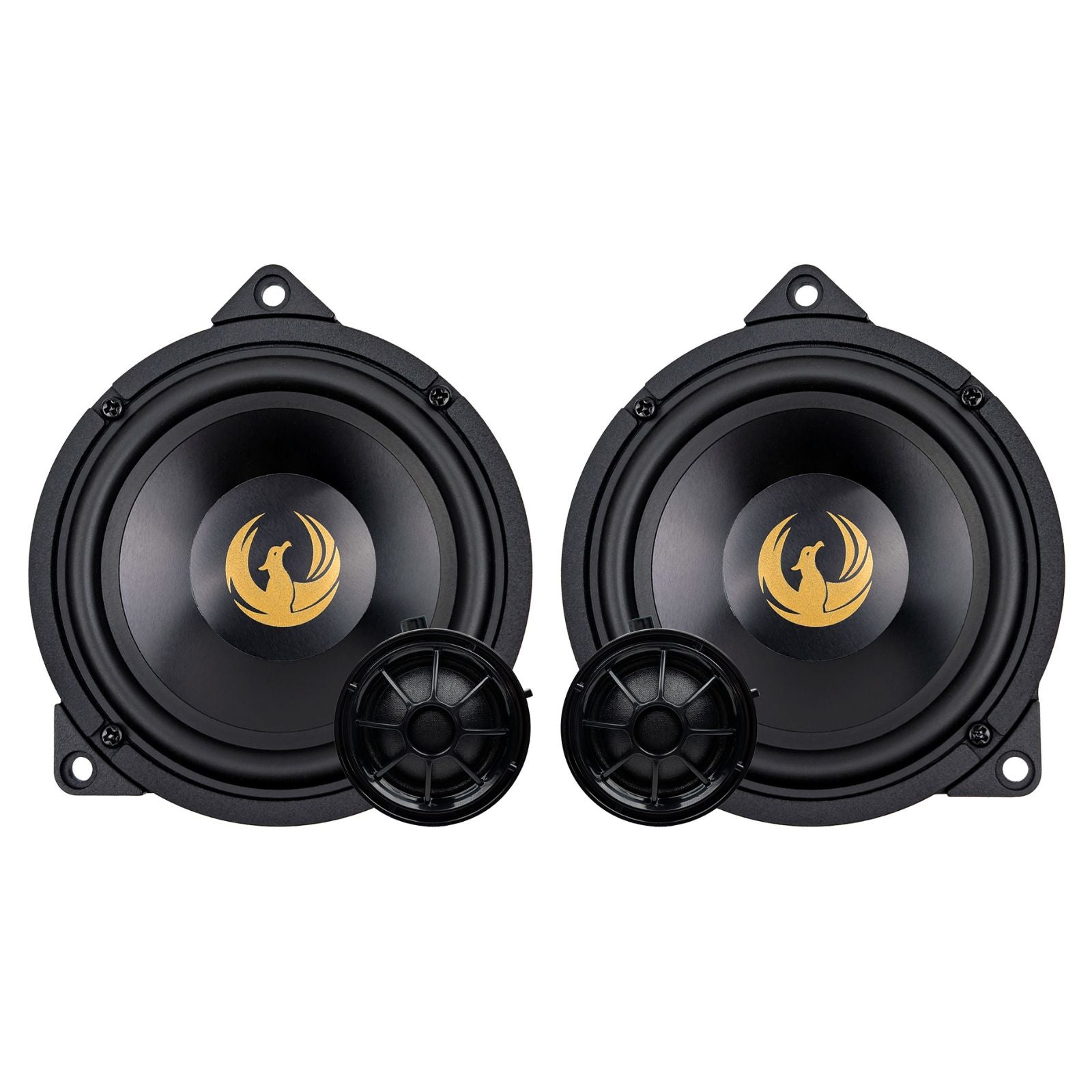

The Phoenix Gold ZDBMW4CS is a 4-inch (100mm) 2-way component speaker kit built specifically for BMW door locations. It handles 60W RMS (120W max), includes an integrated bass blocker, and is part of the Phoenix Gold Z series.
Prefer a coaxial? See the ZDBMW4CX 4-inch BMW coaxial speakers.
Key specifications
- Type: 2-way component set
- Size: 4-inch (100mm) midrange, 1-inch silk dome tweeter
- Power handling: 60W RMS / 120W max
- Frequency response: 120Hz – 20kHz
- Sensitivity: 86dB (1W/1m)
- Impedance: 4 ohm
- Crossover: 3300Hz (12dB/Oct)
- Bass blocker: below 120Hz (-12dB/Oct)
- Supplied as: pair
ZDBMW4CS BMW Speaker Upgrade Kit
The ZDBMW4CS is a 2-way component set designed specifically for BMW vehicles. It delivers a plug-and-play sound upgrade that improves clarity, control, and tonal balance by addressing common factory system limitations.
Engineered for clarity and control

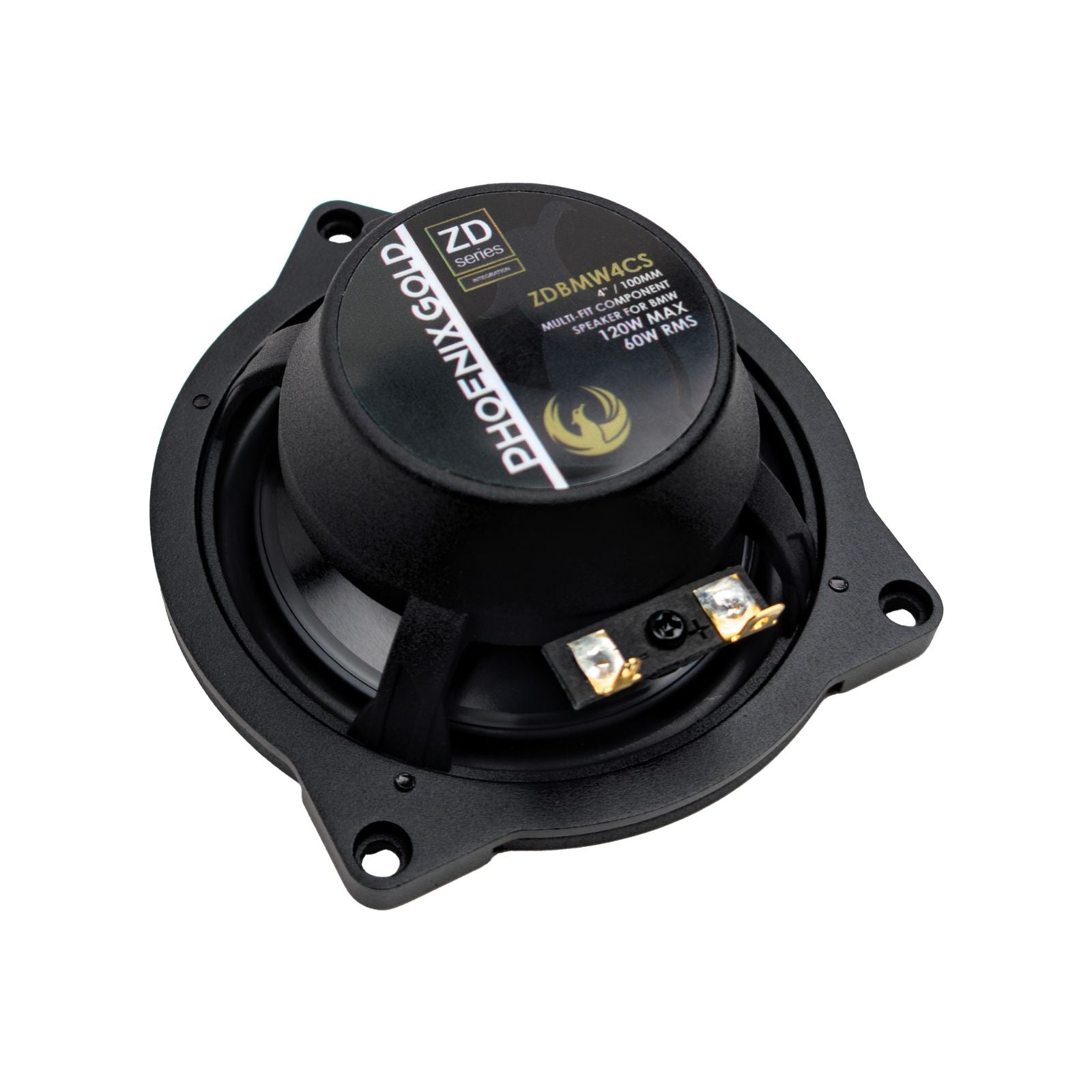

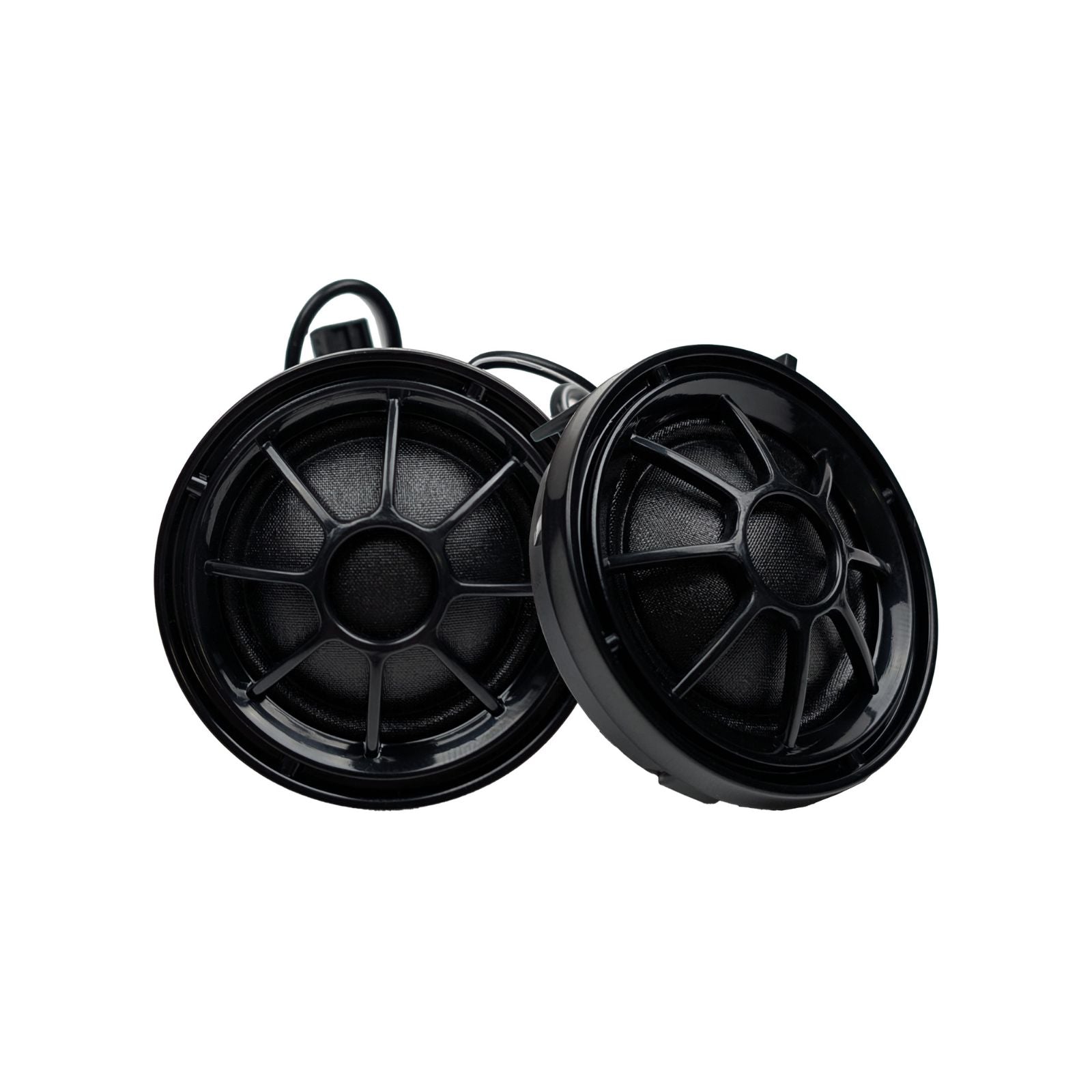

The 4-inch midrange driver uses an aluminium cone for tight midbass and accurate midrange reproduction. The 1-inch silk dome tweeter produces smooth, refined high frequencies without harshness. A dedicated 2-way crossover at 3300Hz (12dB/Oct) keeps each driver in its optimal range and ensures seamless integration with the vehicle.
Smart bass blocker function
In BMWs with the factory Basic Sound System, the underseat woofers and door speakers share the same signal. This forces the small 4-inch door speakers to reproduce deep bass they were not designed for, causing distortion and muddy sound.
The ZDBMW4CS includes an integrated bass blocker that filters frequencies below 120Hz (-12dB/Oct). This prevents unwanted bass from reaching the midrange drivers, letting them play louder and more clearly, while the underseat woofers handle the low end properly for a balanced, distortion-free result.
Precision engineering meets plug-and-play simplicity
A dual aluminium mounting bracket system provides maximum rigidity and eliminates unwanted vibration. The design accommodates multiple BMW configurations, fitting either of the two OEM bracket types your vehicle may use.
Explore the full range in Phoenix Gold Plug & Play.
Specification
| Speaker Type | 2-Way Component Set |
|---|---|
| Speaker Size | 4” (100mm) |
| Frequency Response | 120Hz – 20kHz |
| Power Handling | (RMS) 60W |
| Power Handling | (MAX) 120W |
| Impedance | 4Ω |
| Sensitivity | 86.0dB (1W/1m) |
| Voice Coil | 1” (25.5mm) |
| Crossover Frequency | 3300Hz (12dB/Oct) |
| Unit | Sold as pairs |

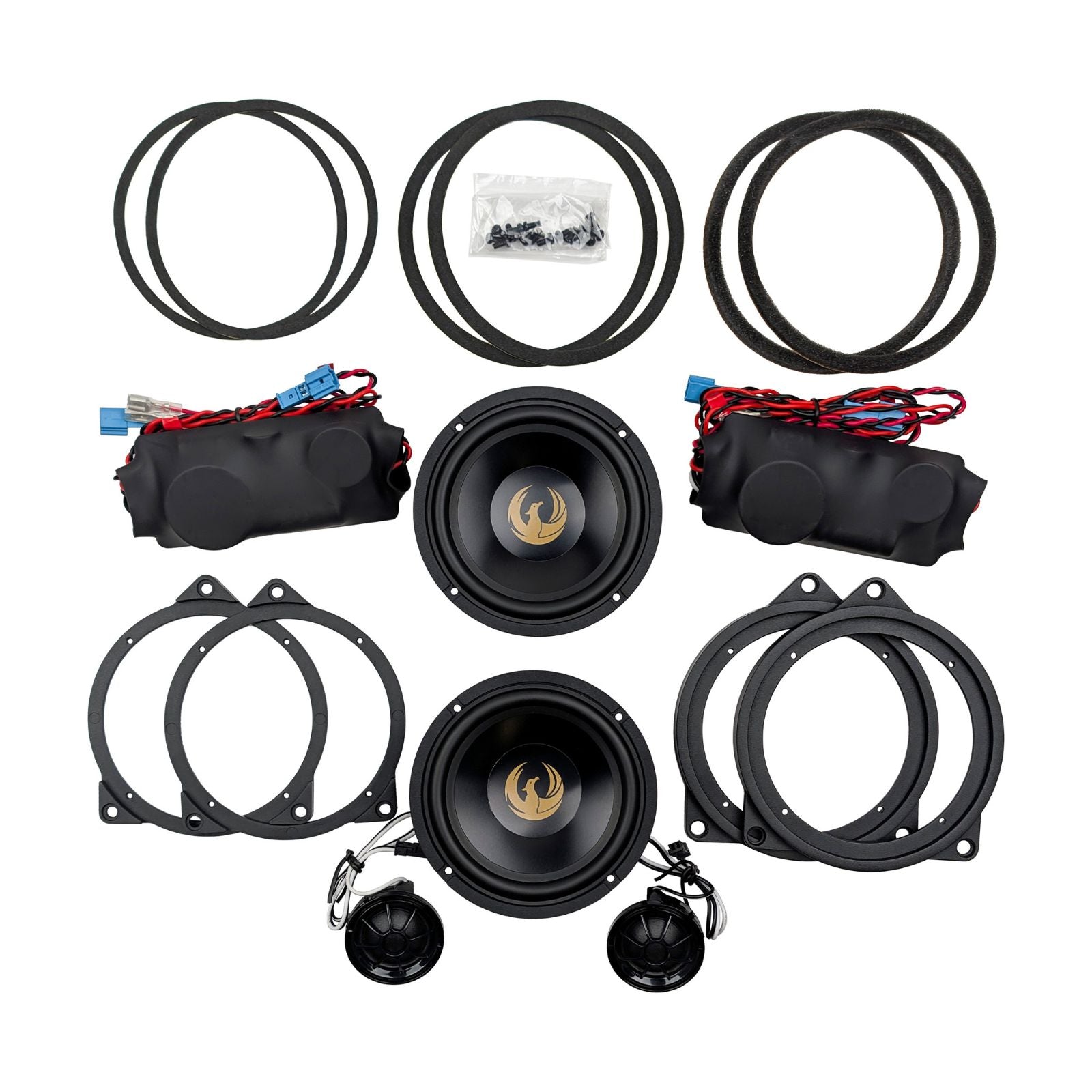

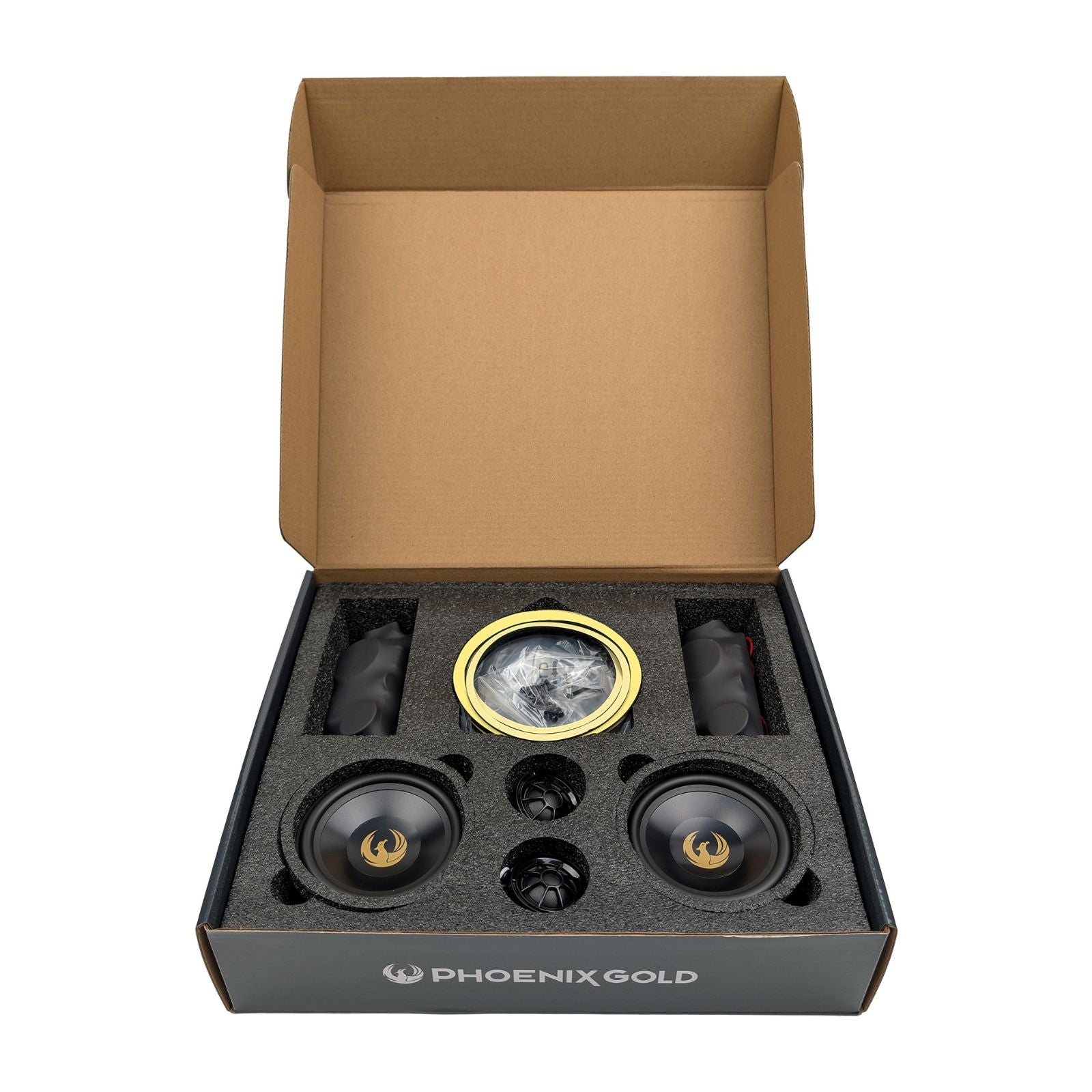

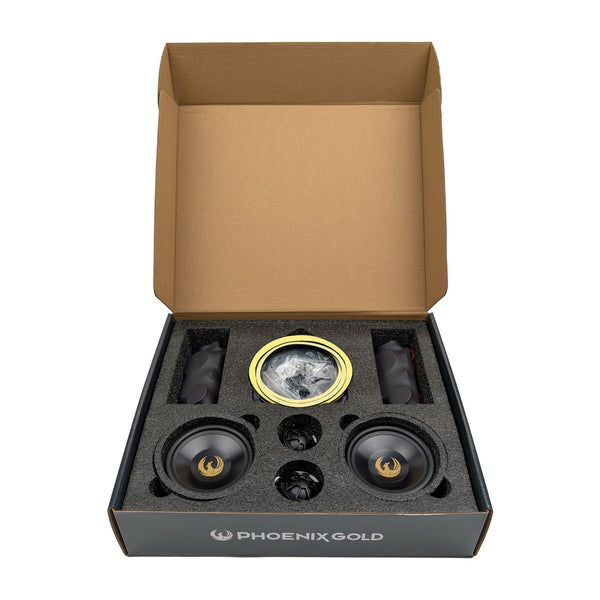

What's Included
- 2x 4” Speakers
- 2x 1” Tweeters
- 2x Crossovers
- 4x BMW Mounting Brackets (2 of each)
- 6x Speaker Foam
- 8x Screws
- 1x Manual
Phoenix Gold
About the Phoenix Gold ZDBMW4CS
From our tech experts at CEN
The Phoenix Gold ZDBMW4CS is a 4-inch (100mm) 2-way component speaker kit built specifically for BMW door locations. It handles 60W RMS (120W max) and pairs an aluminium-cone midrange with a 1-inch silk dome tweeter. An integrated bass blocker filters frequencies below 120Hz, preventing distortion in BMWs where door speakers share a signal with underseat woofers.
Who it suits
BMW drivers who want a clear, balanced upgrade over factory audio without replacing the full system. The bass blocker makes it especially useful in vehicles fitted with the Basic Sound System. For other Phoenix Gold upgrades, browse the Phoenix Gold collection.
Our tech experts advise
These are component speakers, so the tweeter mounts separately from the midrange — check your door card has a suitable location before ordering. The kit includes two types of BMW mounting bracket to suit different OEM configurations. Sensitivity is 86dB at 4 ohm, which works with a standard head unit but responds well to amplification. Installation is priced per vehicle; see our car audio fitting service in Nottingham.
Explore the full Phoenix Gold range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Phoenix Gold
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Phoenix Gold Plug & Play
More options from the same range, in stock and ready to go

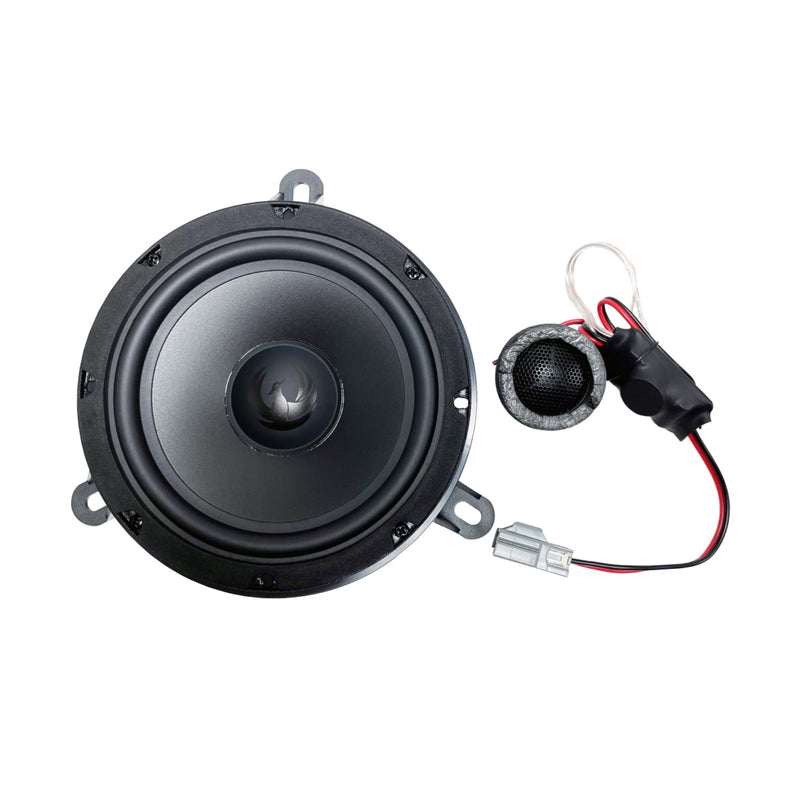

Phoenix Gold ZDSKV3 2 Way Plug and Play Speaker Kit System for Select Volvo Cars
£249.99
View product

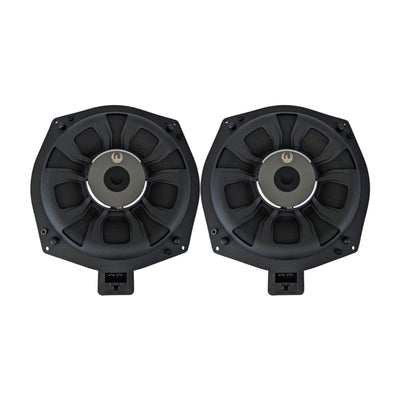

Phoenix Gold ZD Series ZDSB200S 8 Inch BMW Subwoofer Kit 75w RMS
£349.99

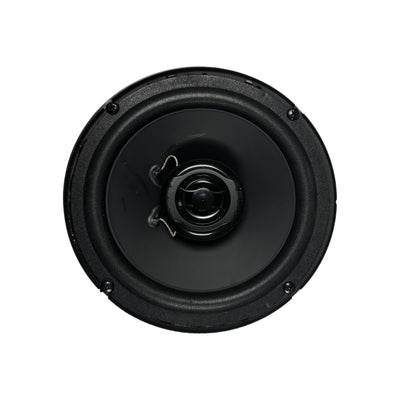

Phoenix Gold ZDSKSZ2 Suzuki 2 Way 6.5 Inch Plug & Play Coaxial Speaker 50w RMS
£129.99

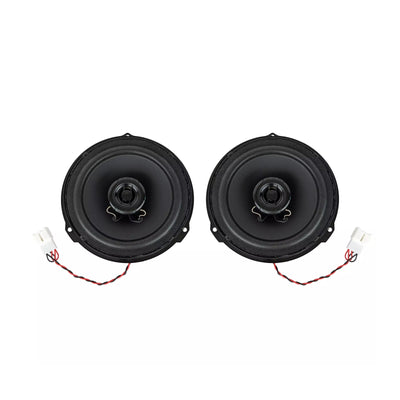

Phoenix Gold ZDSKF2 Ford 2 Way Plug & Play 6.5 Inch Coaxial Speakers 50w RMS
£129.99

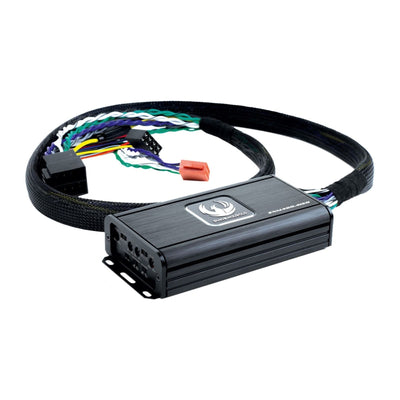

Phoenix Gold ZXM400.4ISO Plug & Play 4 Channel Mini Amplifier
£199.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What does the bass blocker in the ZDBMW4CS do?
A: In BMWs with the factory Basic Sound System, the door speakers and underseat woofers share the same signal. The integrated bass blocker filters out frequencies below 120Hz (-12dB/Oct) so the 4 inch midrange can play louder and cleaner while the underseat woofers handle the bass.
Q: What is in the ZDBMW4CS box?
A: 2 x 4 inch speakers, 2 x 1 inch tweeters, 2 x crossovers, 4 x BMW mounting brackets (2 of each), 6 x speaker foam, 8 x screws and a manual.
Q: Will the ZDBMW4CS fit my BMW's door brackets?
A: The dual aluminium mounting bracket system is designed to fit regardless of which of the two OEM bracket types your BMW uses. Contact CEN with your registration if you would like fitment confirmed.
