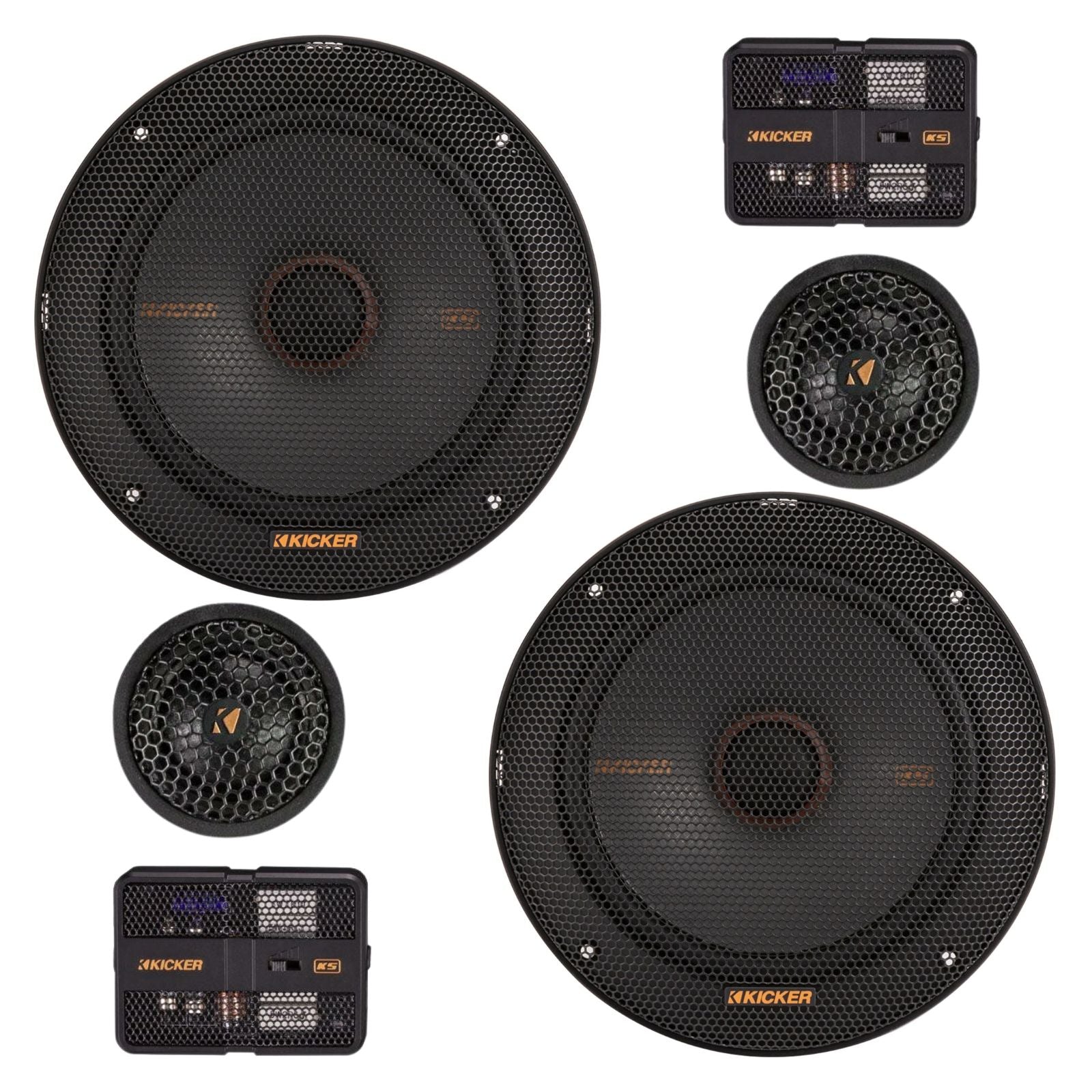

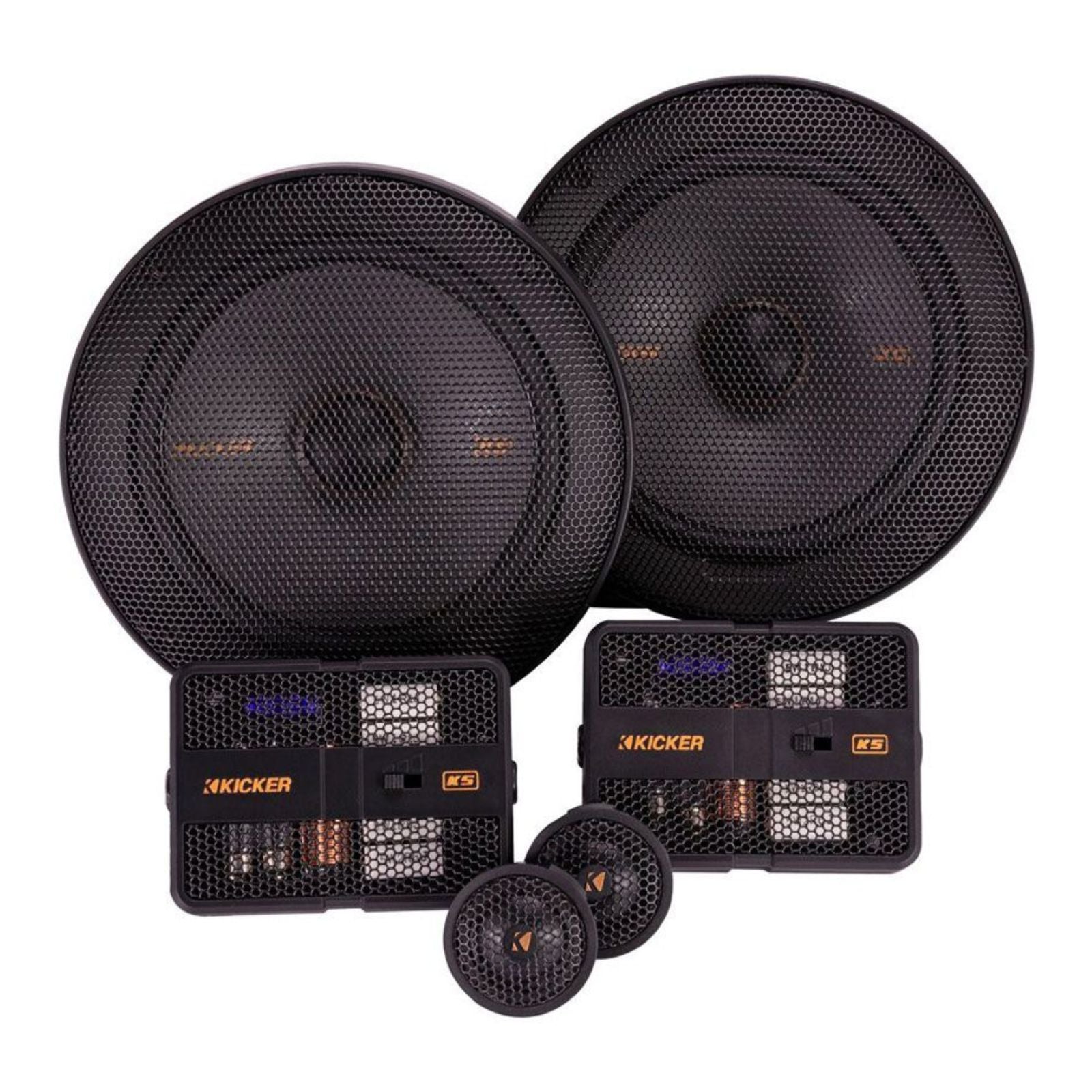

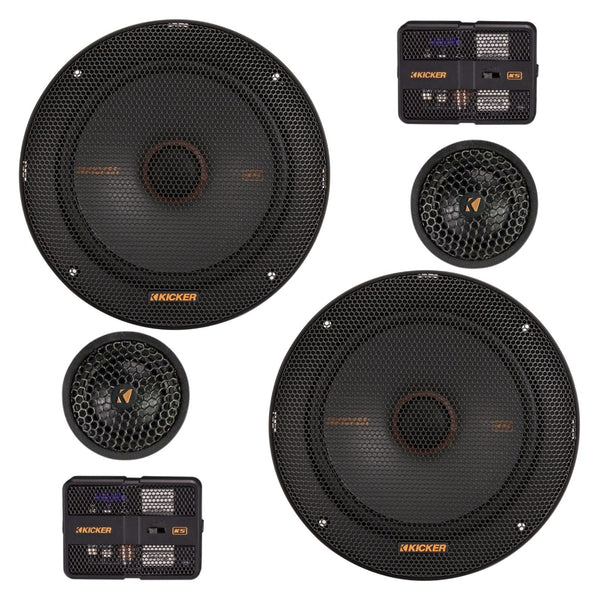

The Kicker 51KSS6504 is a 6.5" (160 mm) 2-way component speaker system from the Kicker KS Series, rated at 125W RMS / 250W peak, with a polypropylene woofer and 1" silk-dome tweeter — and can also be configured as a high-end coaxial.
Other sizes in the KS Series 2-way component range: the 5.25" KSS504, 6.75" KSS6704 and 6x9" KSS6904.
Key specifications
- Woofer: 6.5" (160 mm) polypropylene cone with rubber surround
- Tweeter: 1" (25 mm) silk dome
- Power: 125W RMS, 250W peak
- Recommended power: 15–125W
- Impedance: 4 ohms
- Sensitivity: 90 dB (1W/1m)
- Frequency response: 35Hz–21kHz
- Woofer mounting: 123 mm hole, 46 mm depth
- Crossover: 12dB high-pass at 4,000Hz, tweeter attenuation 0/4.5/9dB
KS 6.5" (160 mm) Component Speaker System
51KSS6504
The KS Series is designed to deliver concert-like volume without losing detail or smoothness. Internally dampened polypropylene cones and rubber surrounds produce precise midrange and bass, while the silk-dome tweeters deliver natural, detailed highs.
Run these as a traditional component system with separate tweeters, or as a high-end coaxial. Remove the woofer's bullet-style phase plug and fit the included adapter to mount the 25 mm silk-dome tweeter directly to the woofer — it rotates and tilts for improved off-axis performance and flexible system design.
Features
- 125W RMS power handling
- 1" silk-dome tweeters for smooth, detailed highs
- Polypropylene woofer with rubber surround
- Thin-mount design fits behind factory grilles
- Four tweeter mounting options

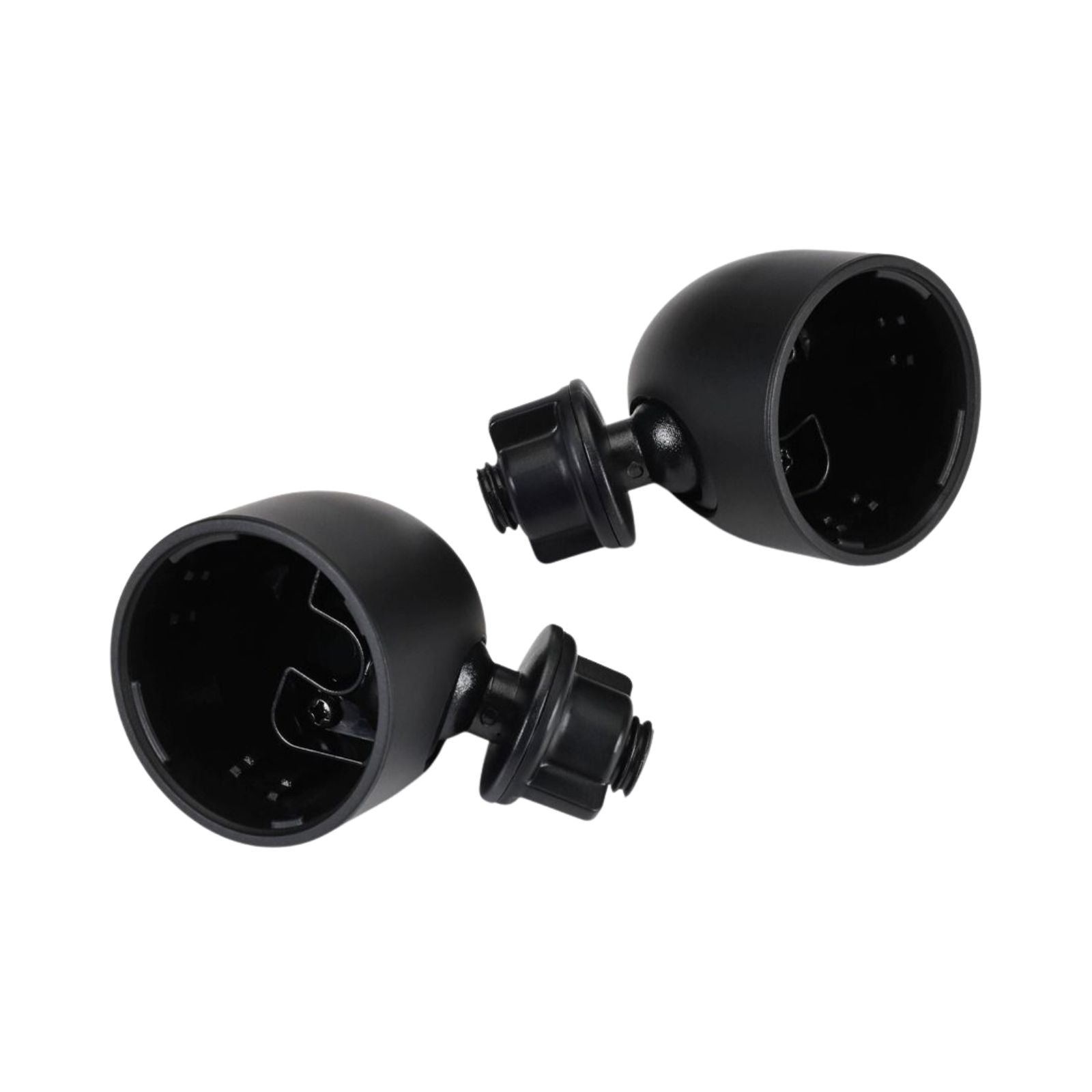

- Articulating tweeter pod included

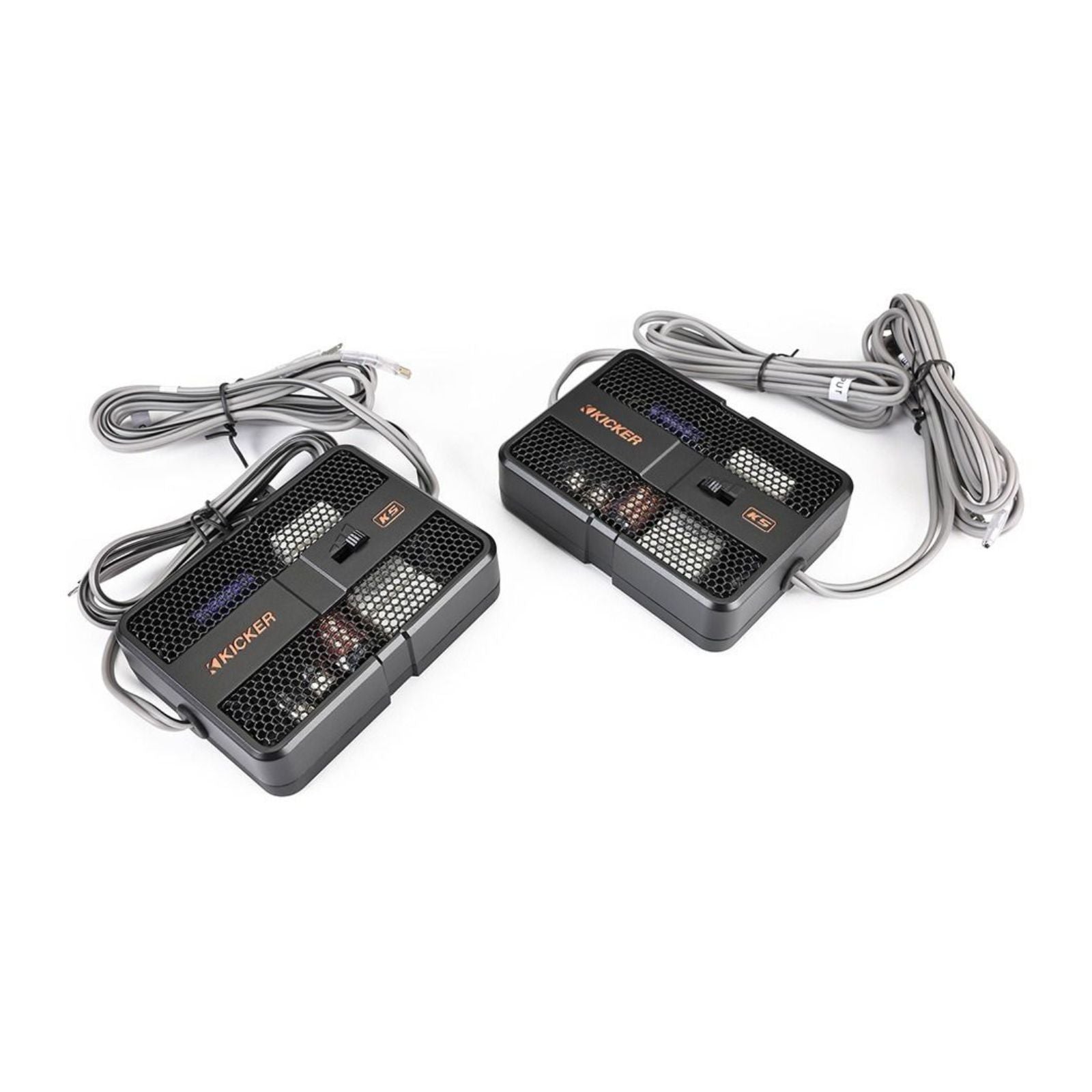

- Compact crossover for easier mounting

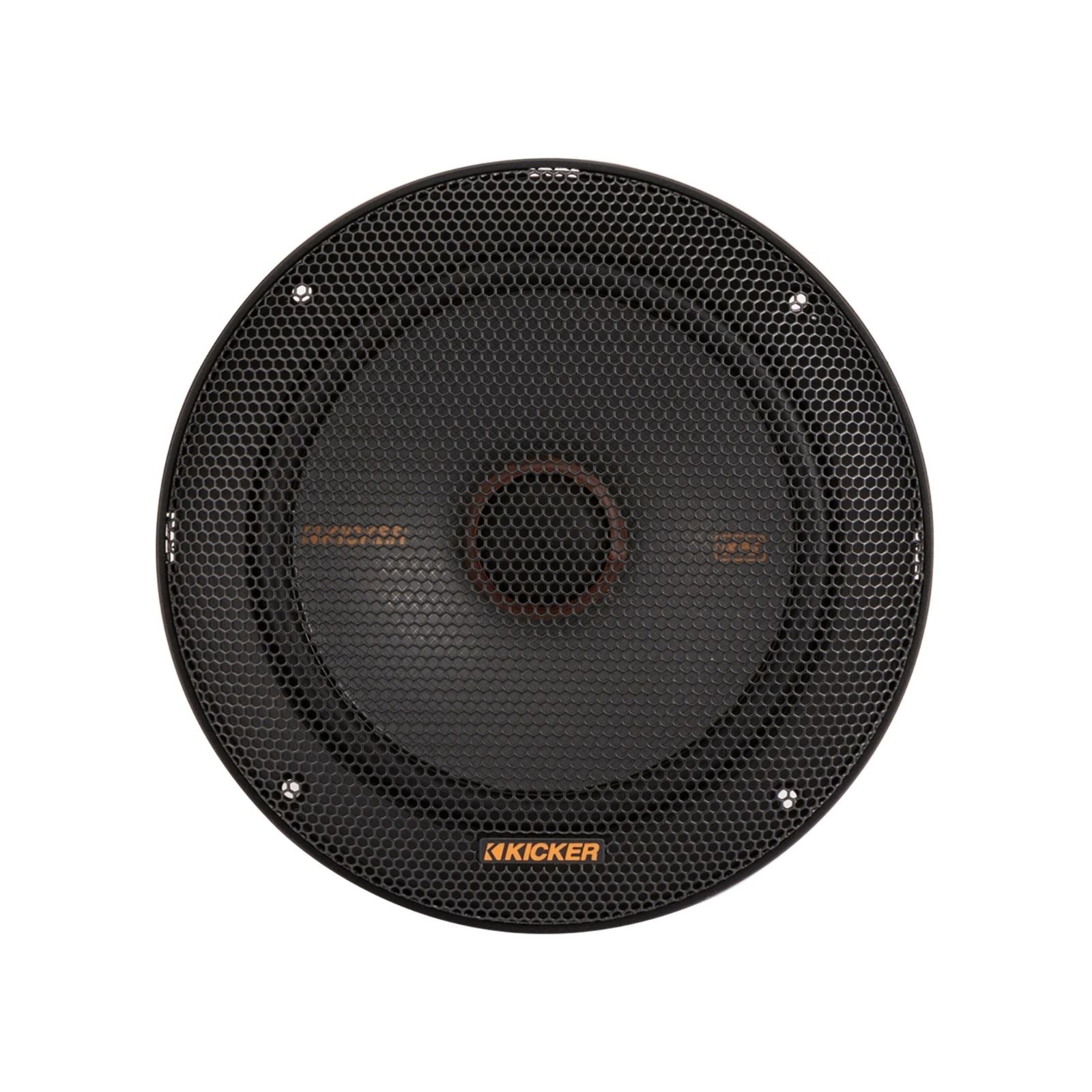

- Grilles included
Explore the full range in Kicker KS Series Speakers.
Specification
| Woofer Size (in) | 6.5" |
|---|---|
| Tweeter Size (in) | 1" |
| Style | Component |
| Impedance | (Ohms) 4 |
| RMS Power (W) | 125 |
| Peak Power (W) | 250 |
| Sensitivity | (dB @ 1W/1m) 90 |
| Frequency Response | (Hz) 35-21k |
| Dome Material | Silk |
| Depth (cm) | 4.6 |
| Woofer Mounting Hole Diameter [in, mm] | 4-13/16 , 123 |
| Woofer Bottom Mount Depth [in, mm] | 1-13/16 , 46 |
| Flush Mount Tweeter Depth [in,mm] | 11/16 , 17 |
| High Pass [dB], at Frequency [Hz] | 12, 4,000 |
| Low Pass [dB], at Frequency [Hz] | none |
| High Frequency Output Attenuation [dB] | 0, 4.5, 9 |
More specs
| |

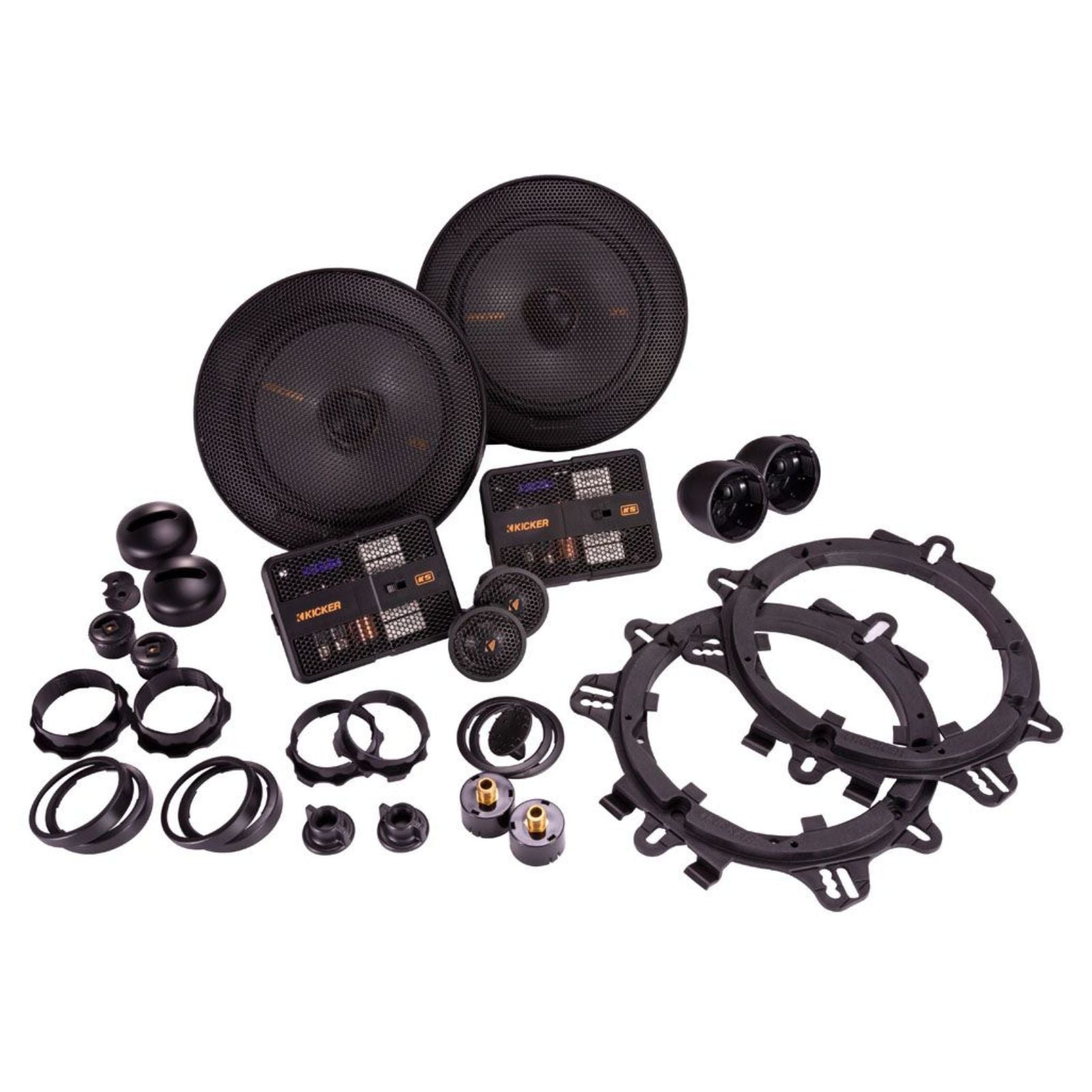

What's Included
- Kicker 51KSS6504
Kicker
About the Kicker 51KSS6504
From our tech experts at CEN
A 6.5 inch component set, with separate tweeters that can be mounted higher up where you will actually hear them, rated at 125w RMS.
Who it suits
Drivers who want the best result from a door upgrade and are happy for tweeters to be mounted separately, which usually means a professional fit.
Our tech experts advise
Speaker sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker: a good driver in an untreated door is doing half a job. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Kicker News & Guides
The latest Kicker product news, launches and guides from the CEN team in Nottingham.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Kicker KS Series Speakers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: How much power does the Kicker KSS6504 handle?
A: It is rated at 125 watts RMS and 250 watts peak at 4 ohms, and works best with 15 to 125 watts of recommended power.
Q: Can the KSS6504 be used as a coaxial speaker?
A: Yes. The removable phase plug is replaced with an adapter so the 25 mm tweeter can sit on the woofer, rotate and tilt.
Q: What is the mounting depth of the KSS6504 woofer?
A: The woofer bottom mount depth is 46 mm and it needs a 123 mm mounting hole.
